Task 5: Combining subassemblies

Assembly time ≈ 30 minutes

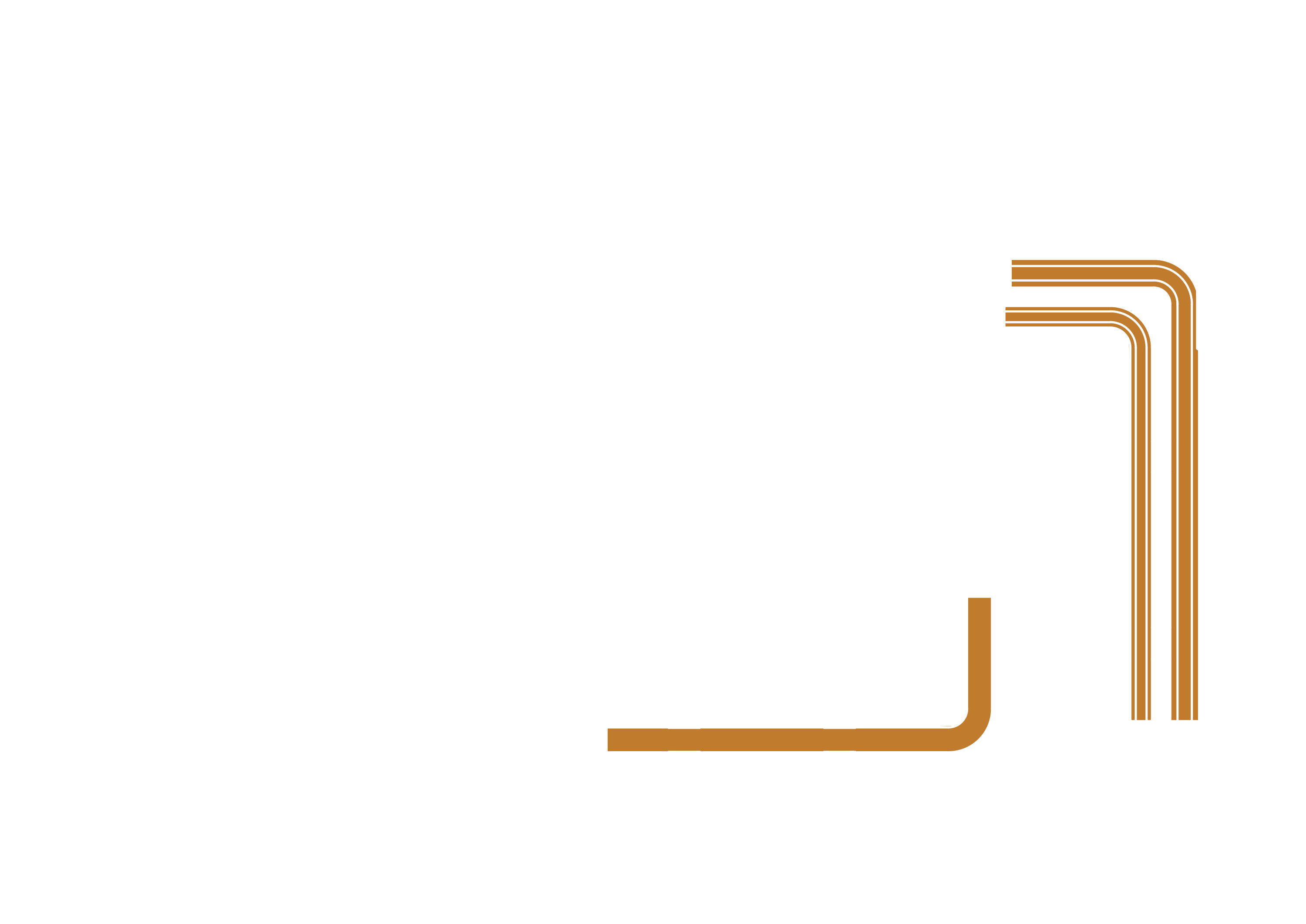

Needed tools

Needed tools

Step 1

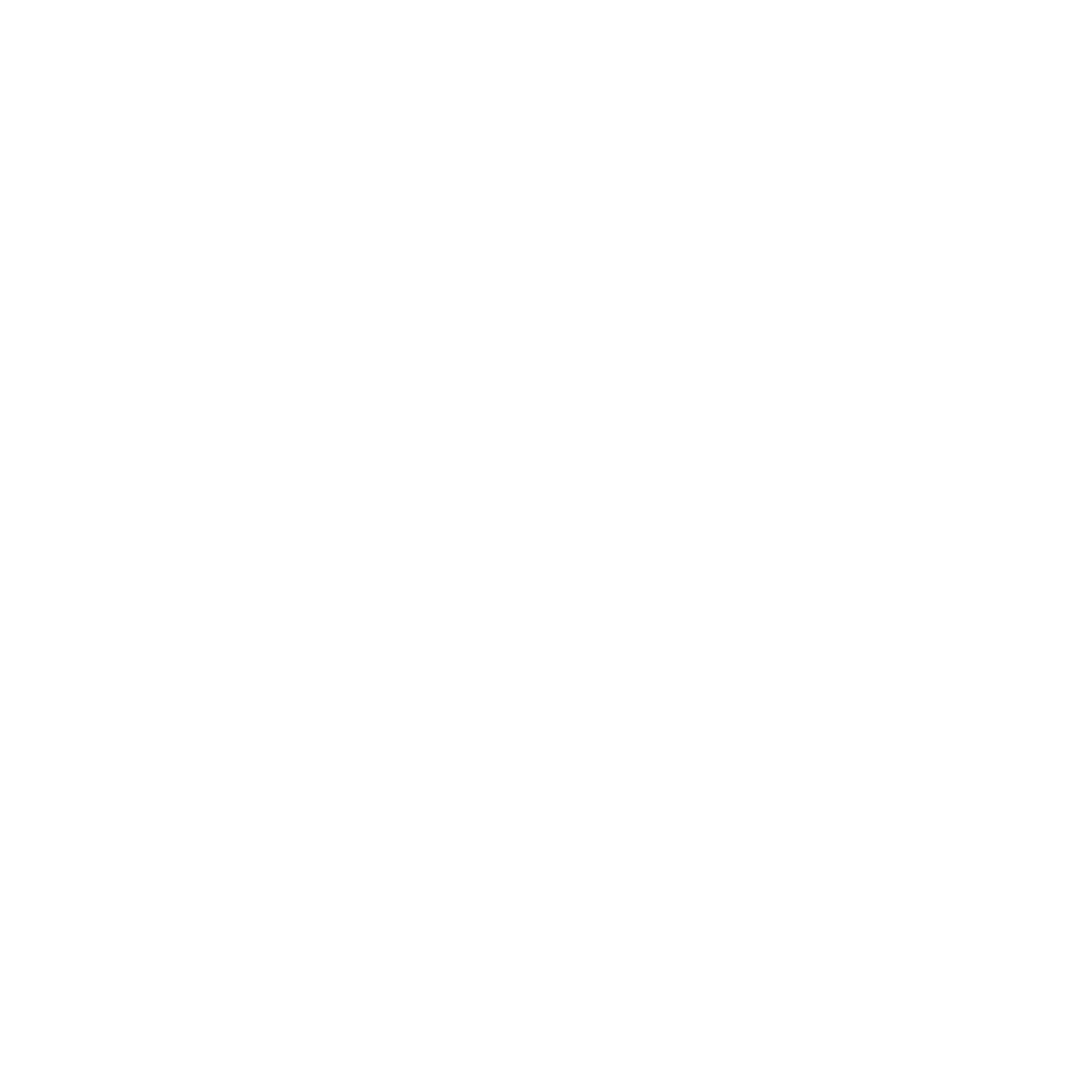

Front cover

Front cover

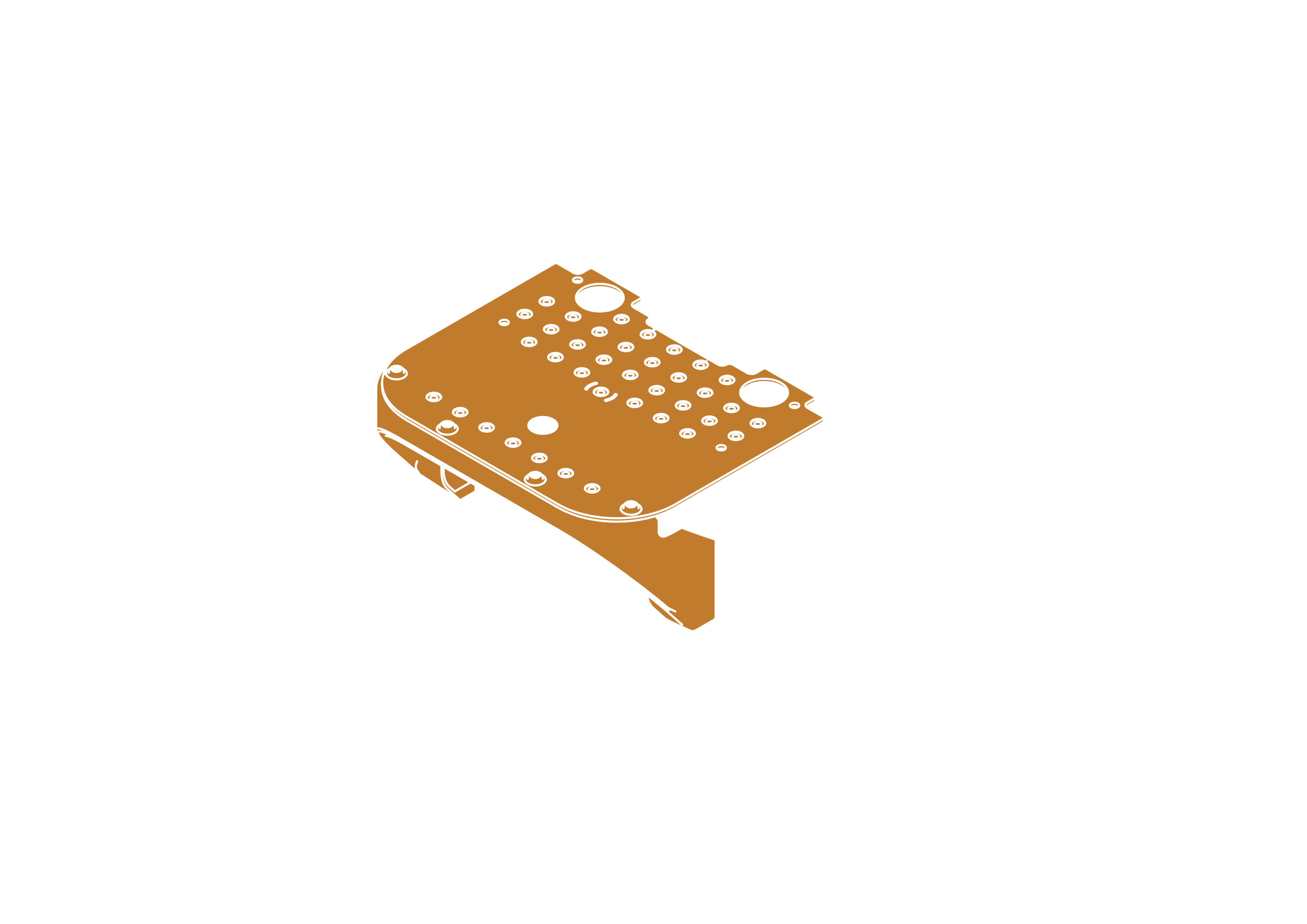

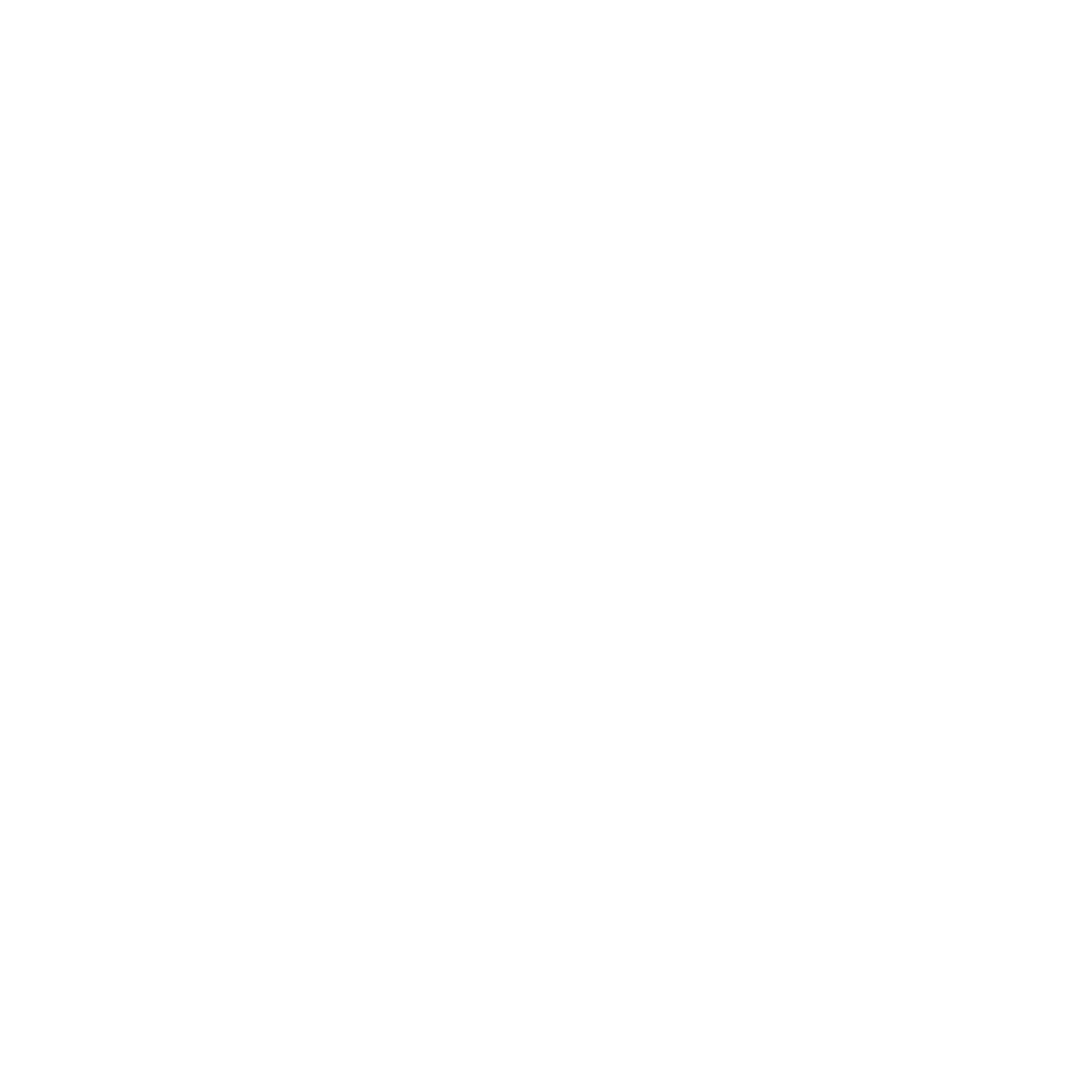

Task 2 assembly

Task 2 assembly

Step 1 - 1

Step 1 - 1

note

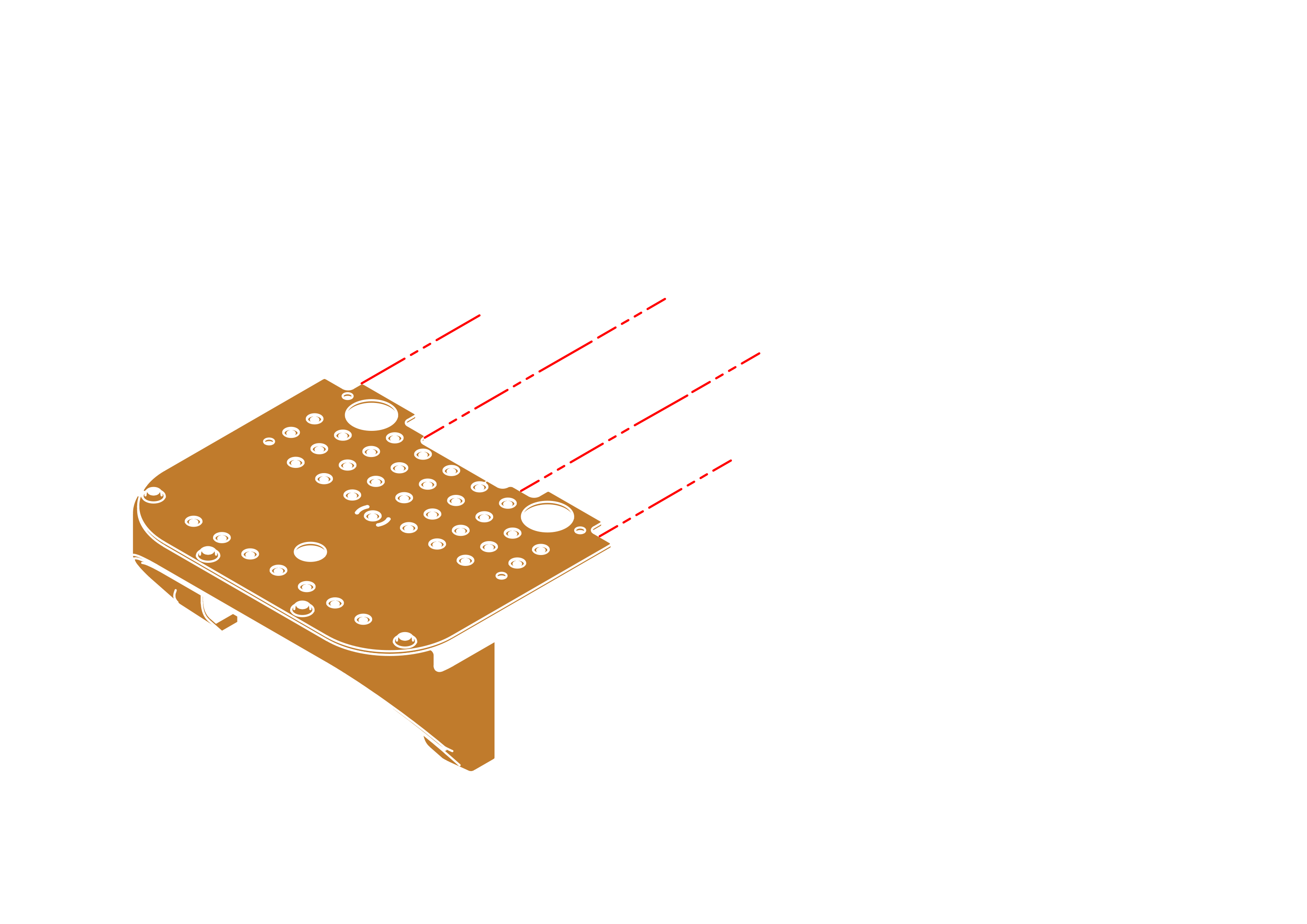

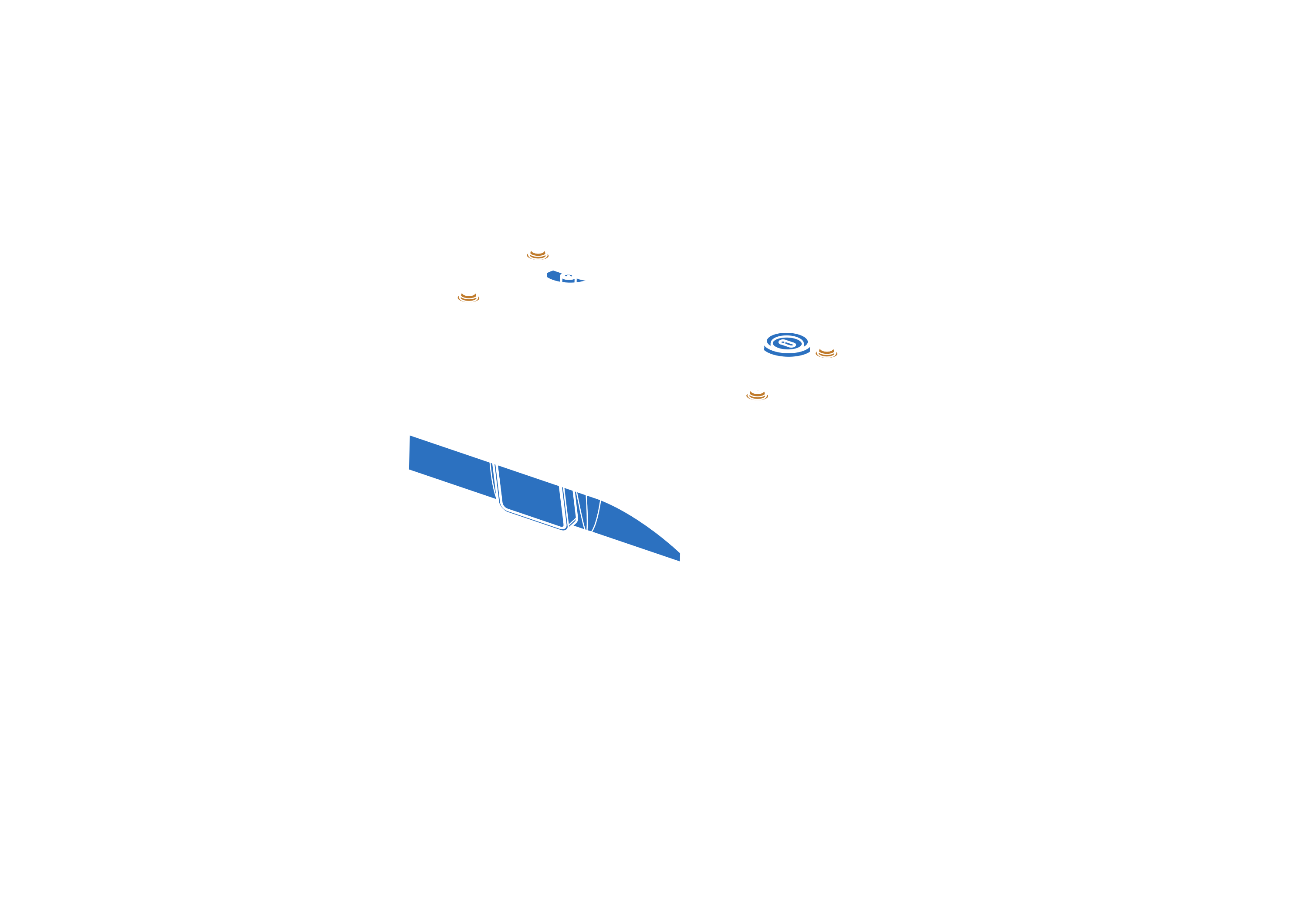

Slide the front cover over the differential bar and tighten the screws.

Step 1 - 2

Step 1 - 2

Step 2

Step 1 assembly

Step 1 assembly

Task 3 assembly

Task 3 assembly

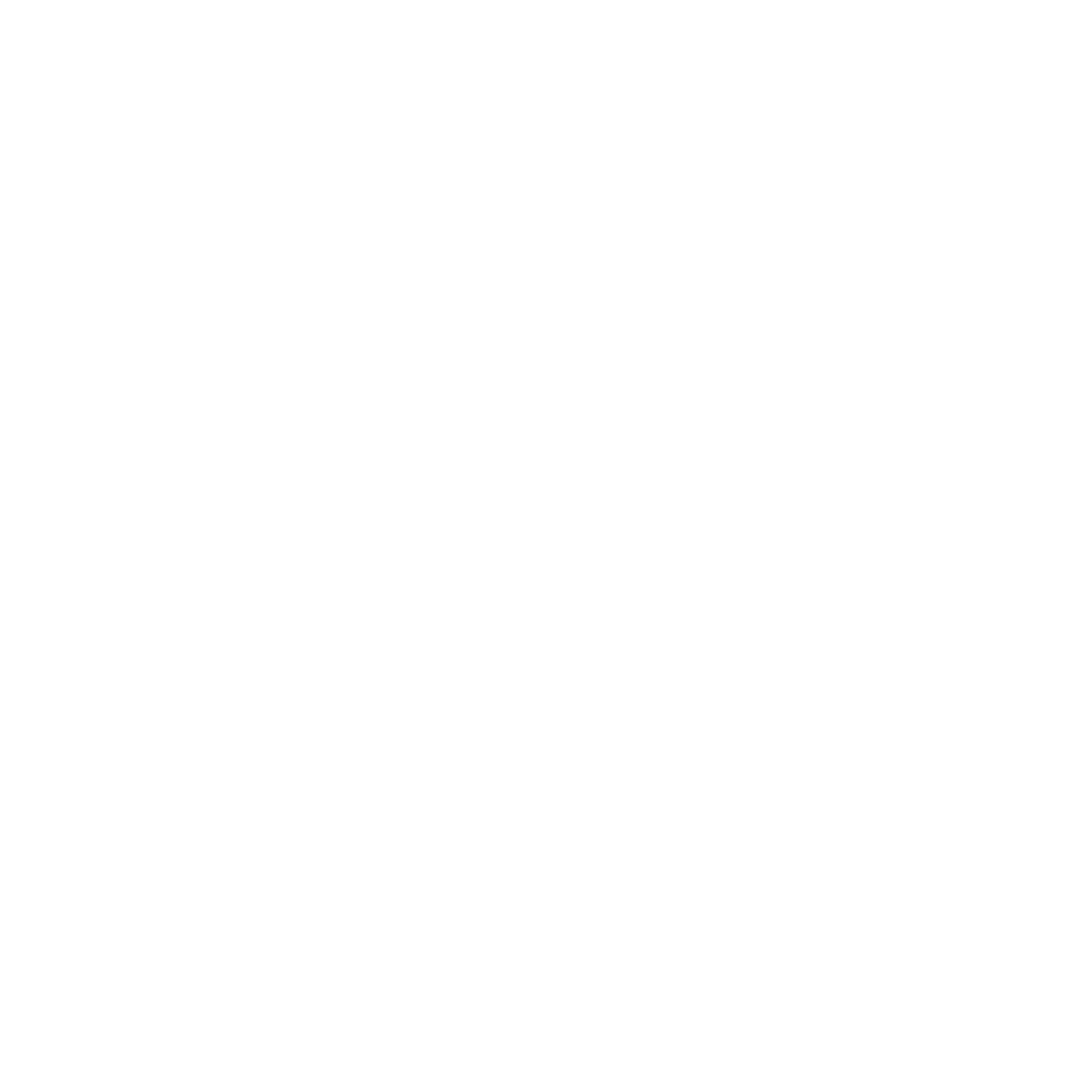

4x M4x8 torx screw

4x M4x8 torx screw

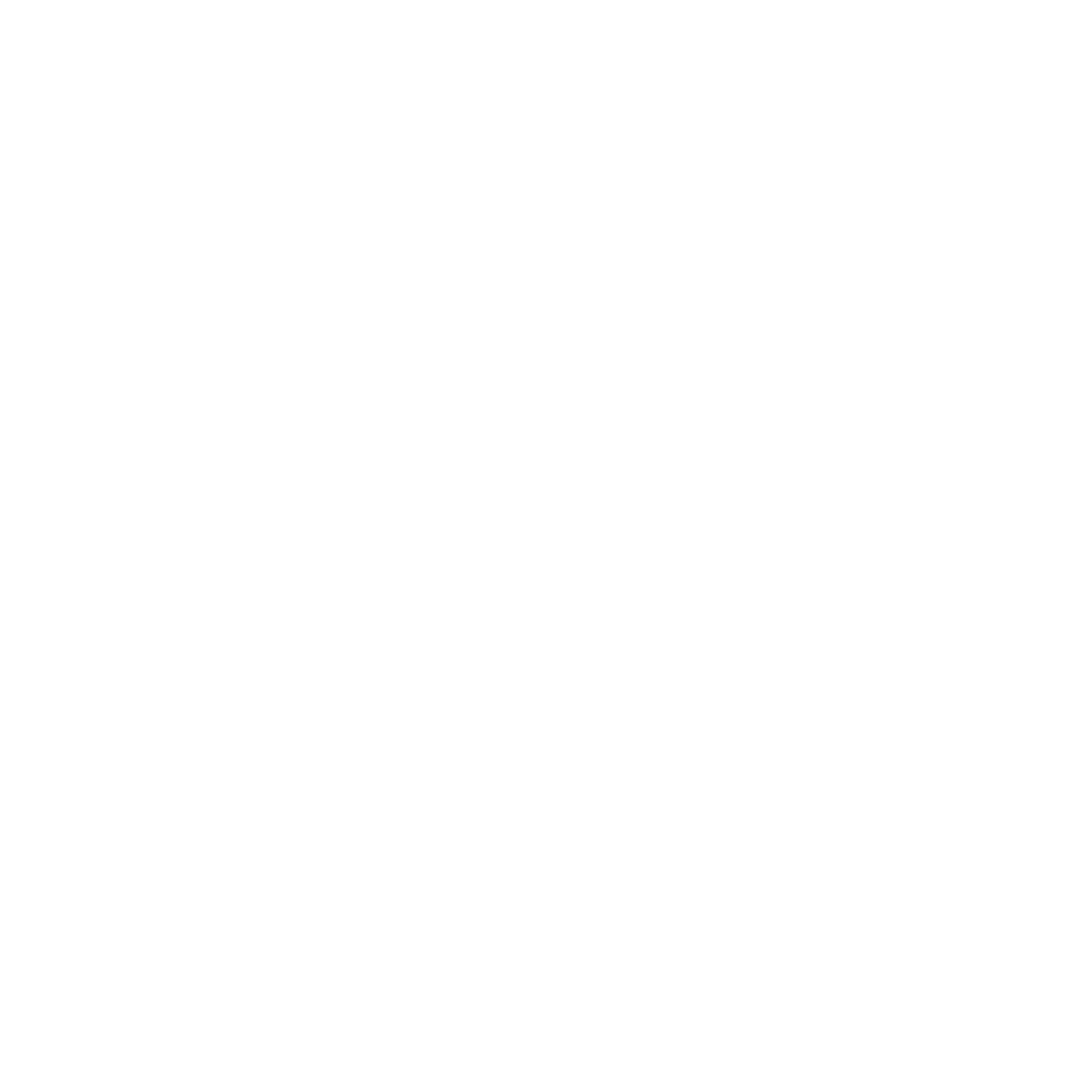

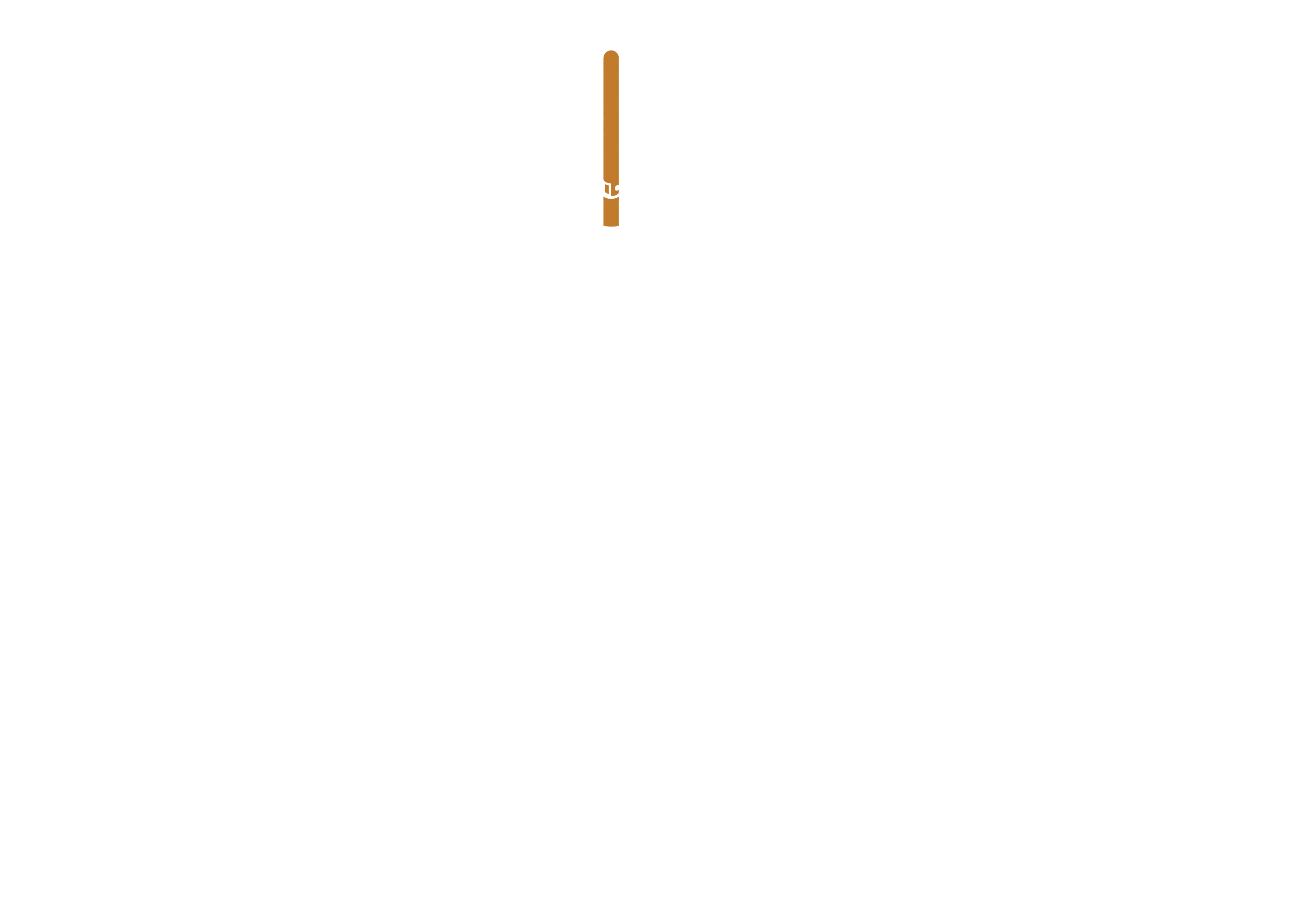

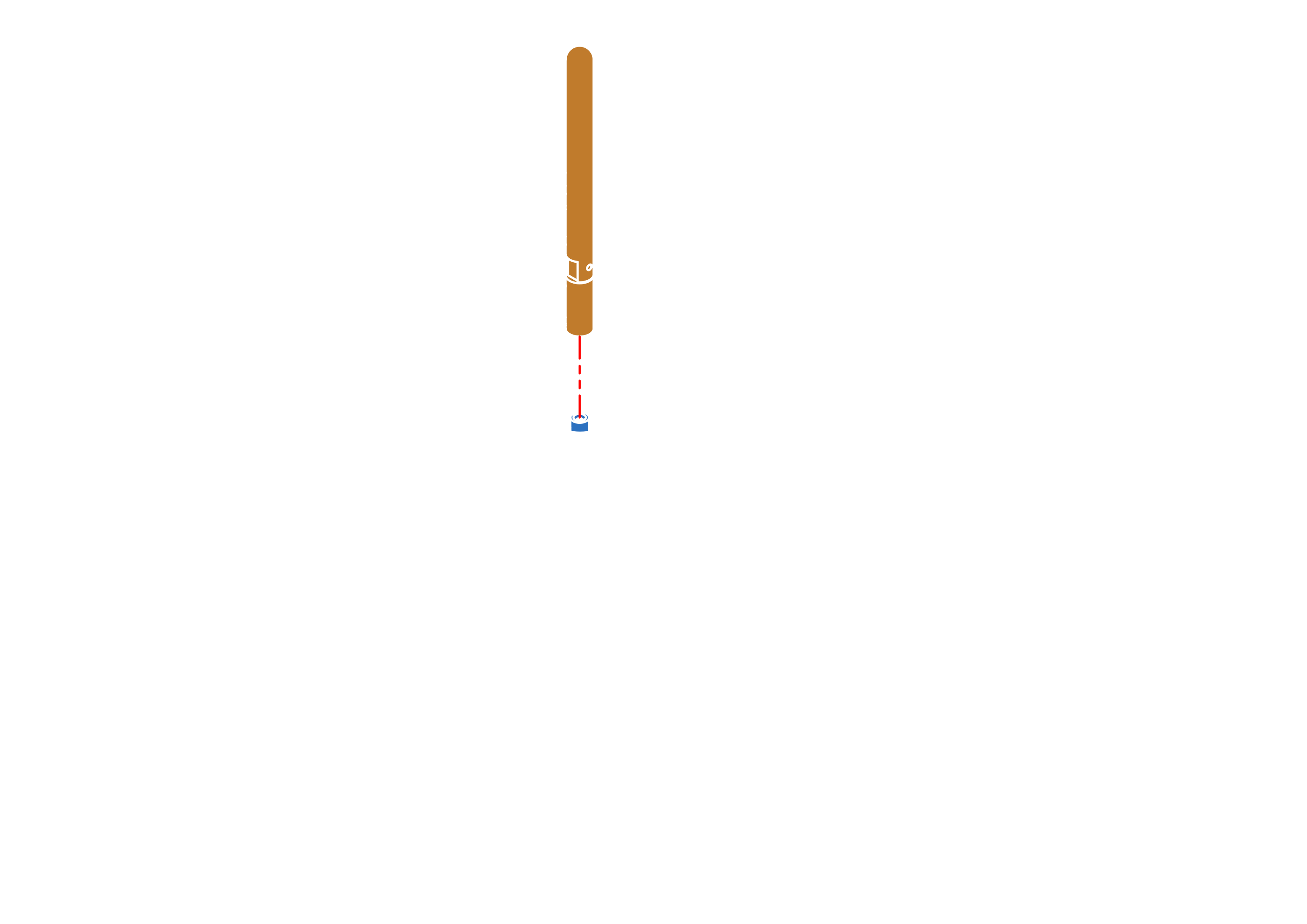

Alfa wifi antenna

Alfa wifi antenna

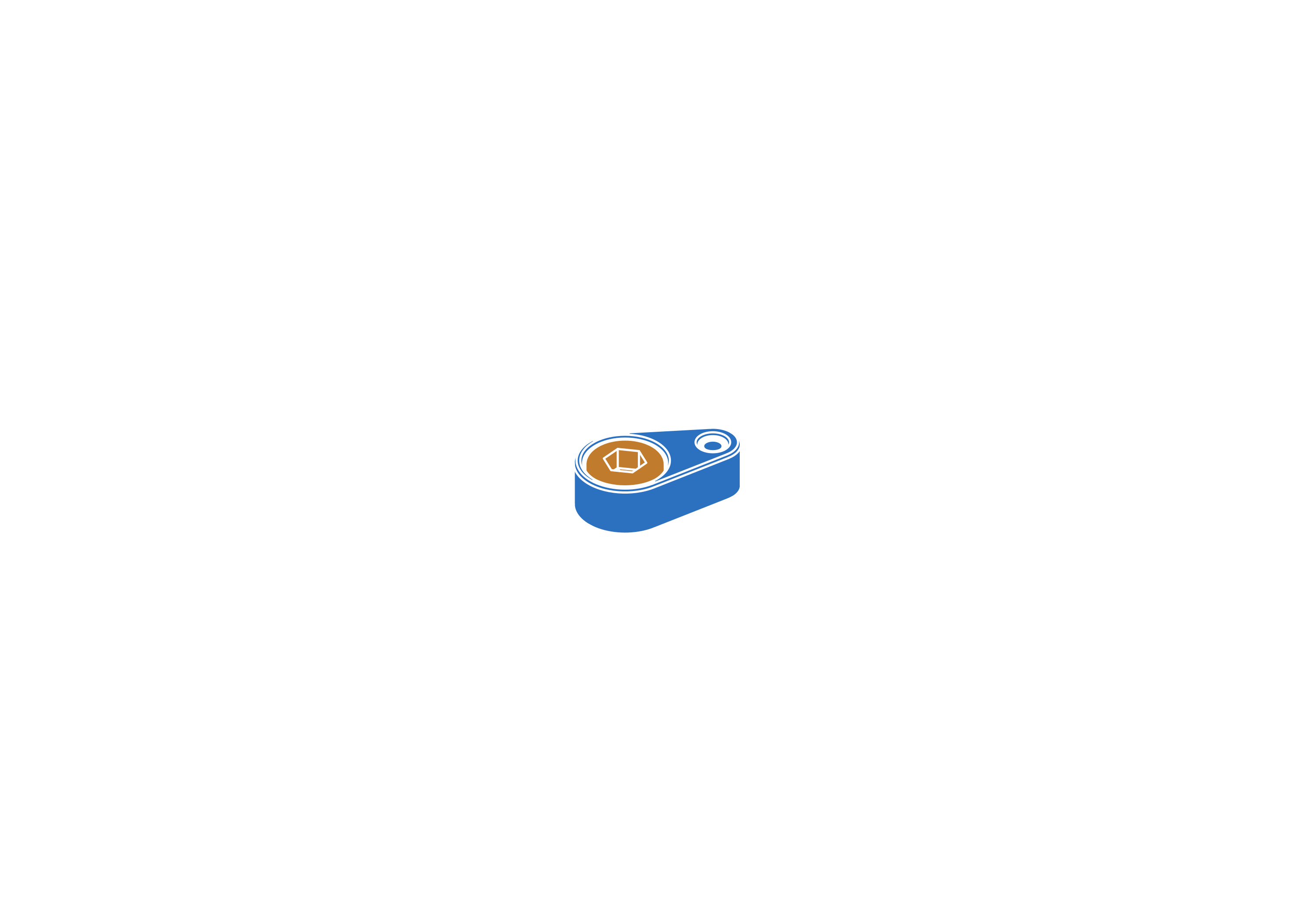

Step 2 - 1

Step 2 - 1

Step 2 - 2

Step 2 - 2

Step 2 - 3

Step 2 - 3

Step 3

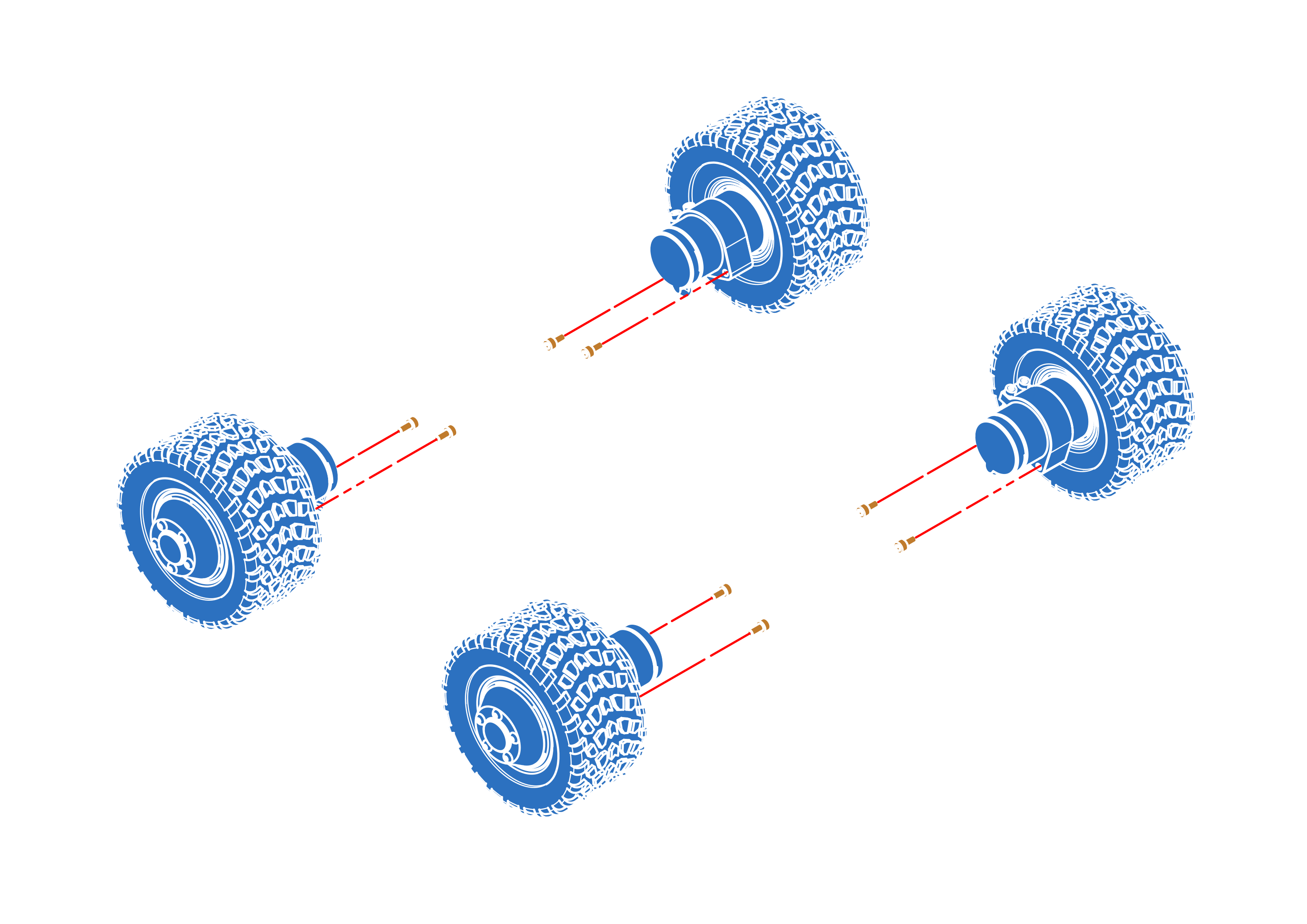

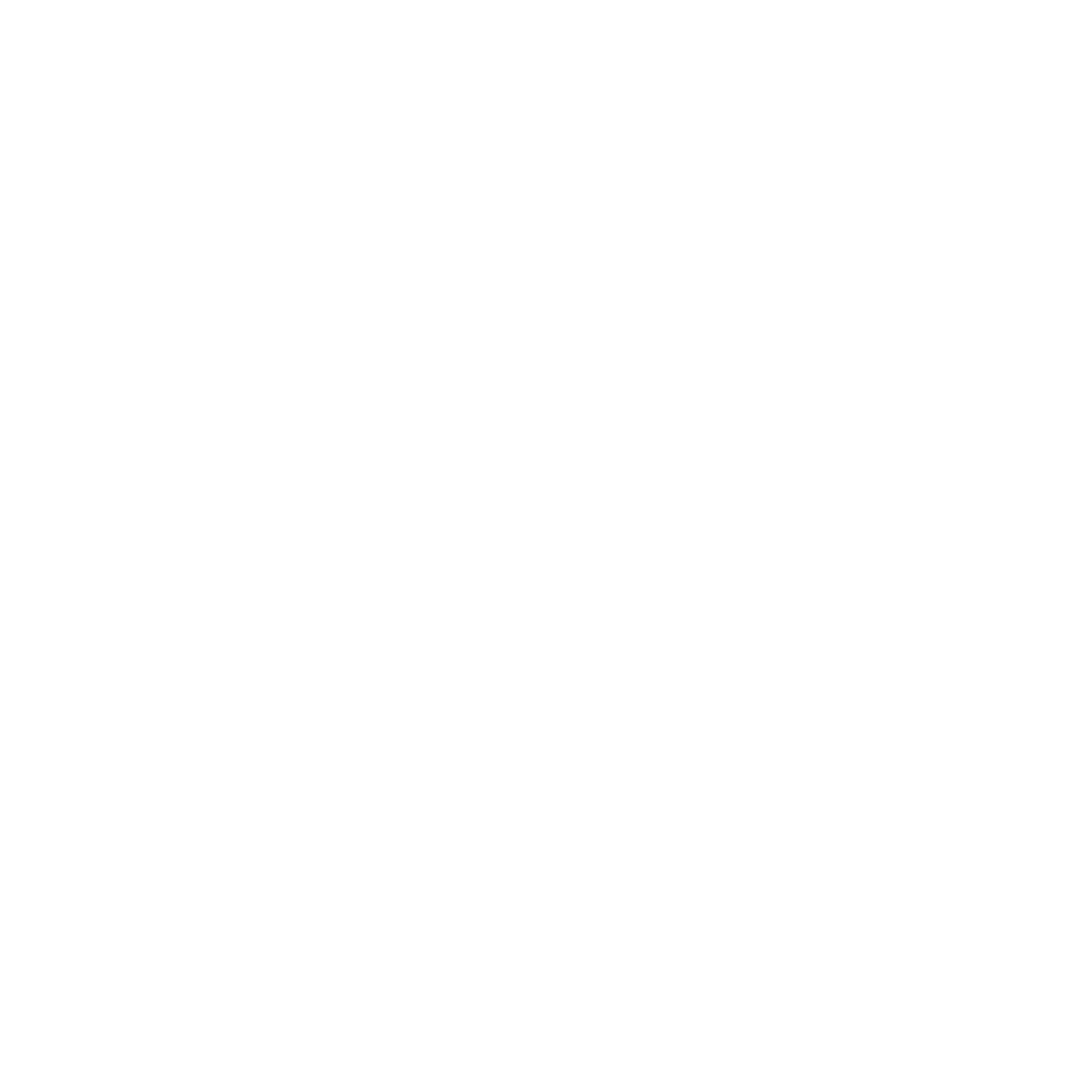

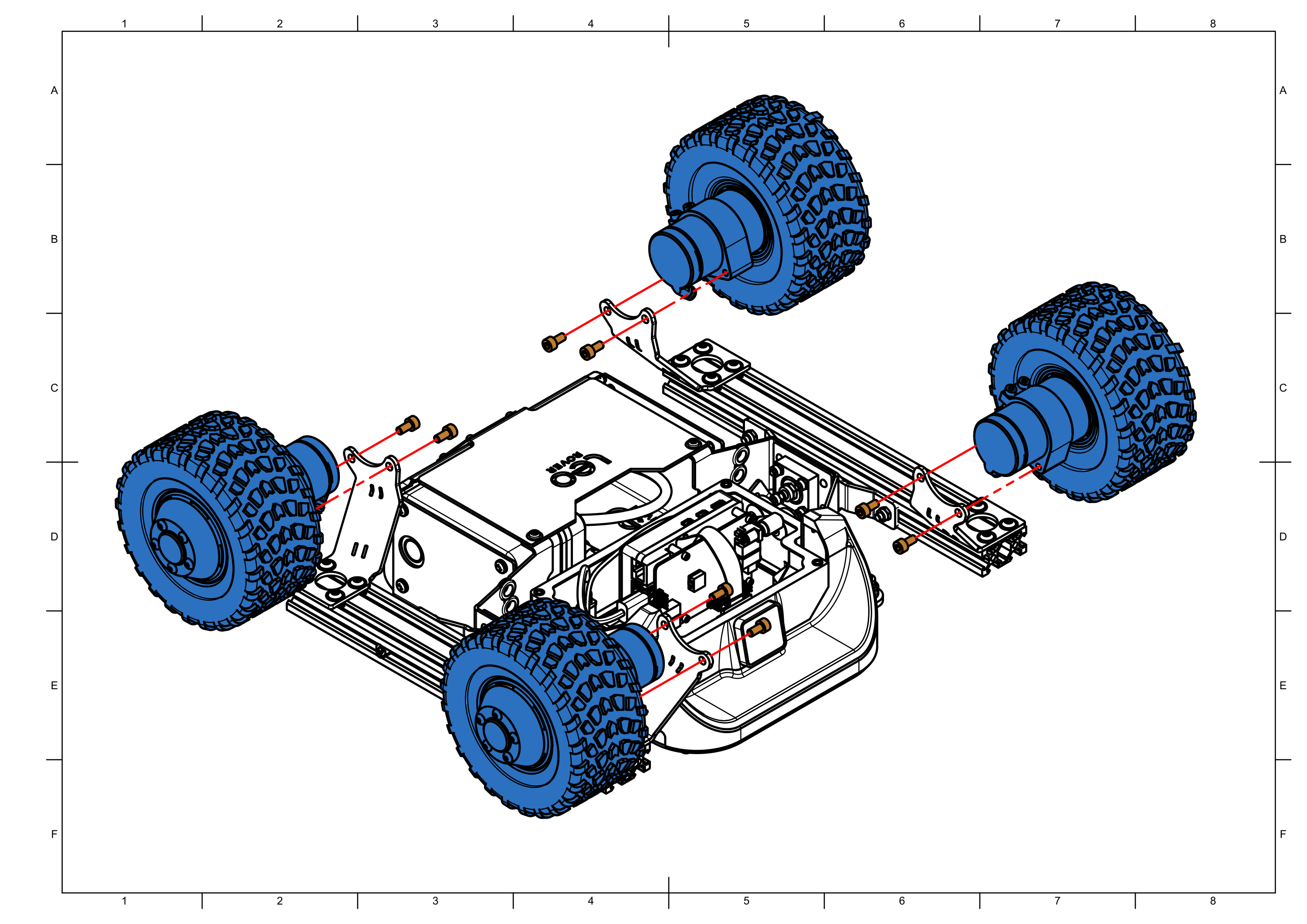

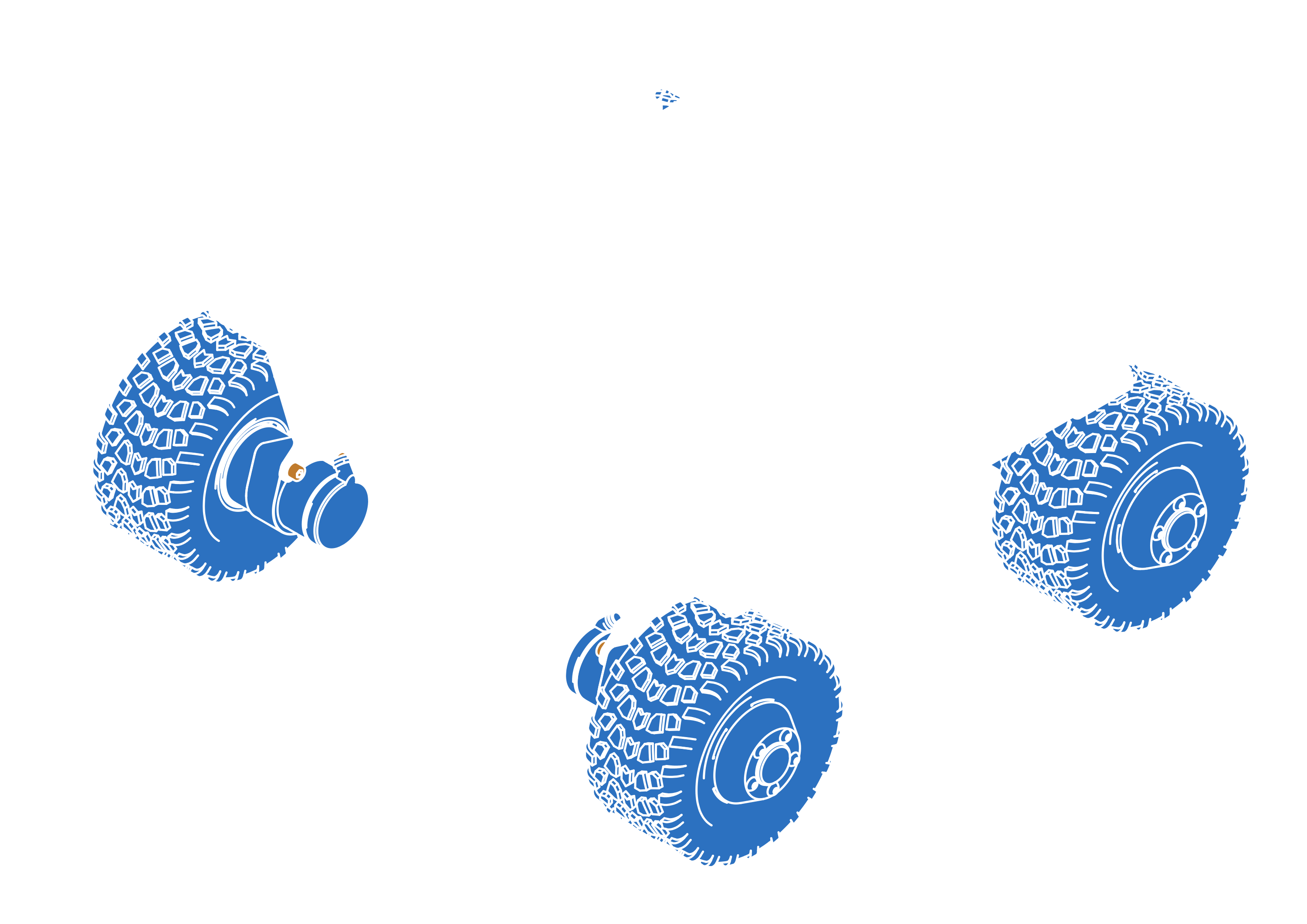

Rover's wheel

Rover's wheel

Step 2 assembly

Step 2 assembly

Step 3 - 1

Step 3 - 1

note

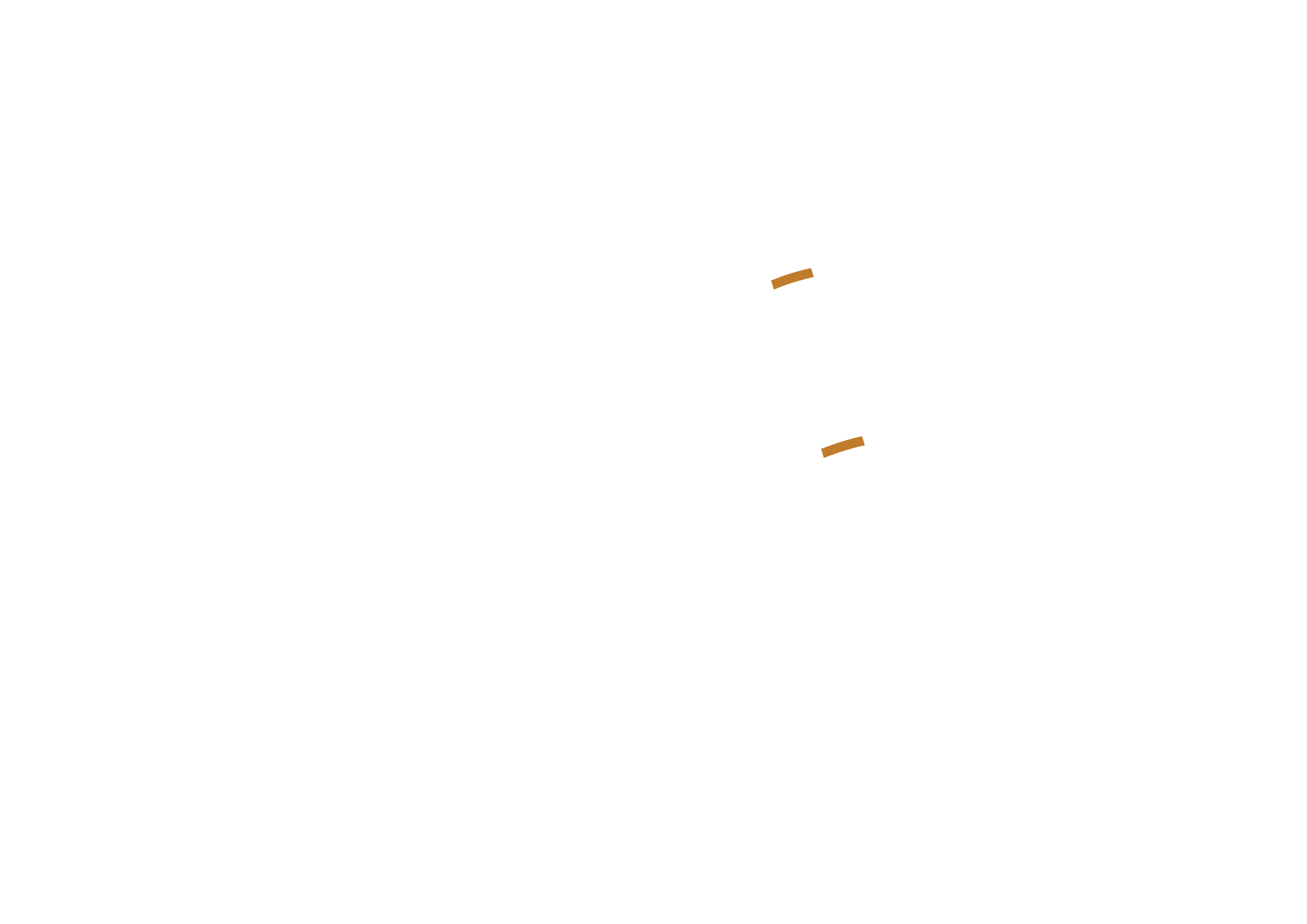

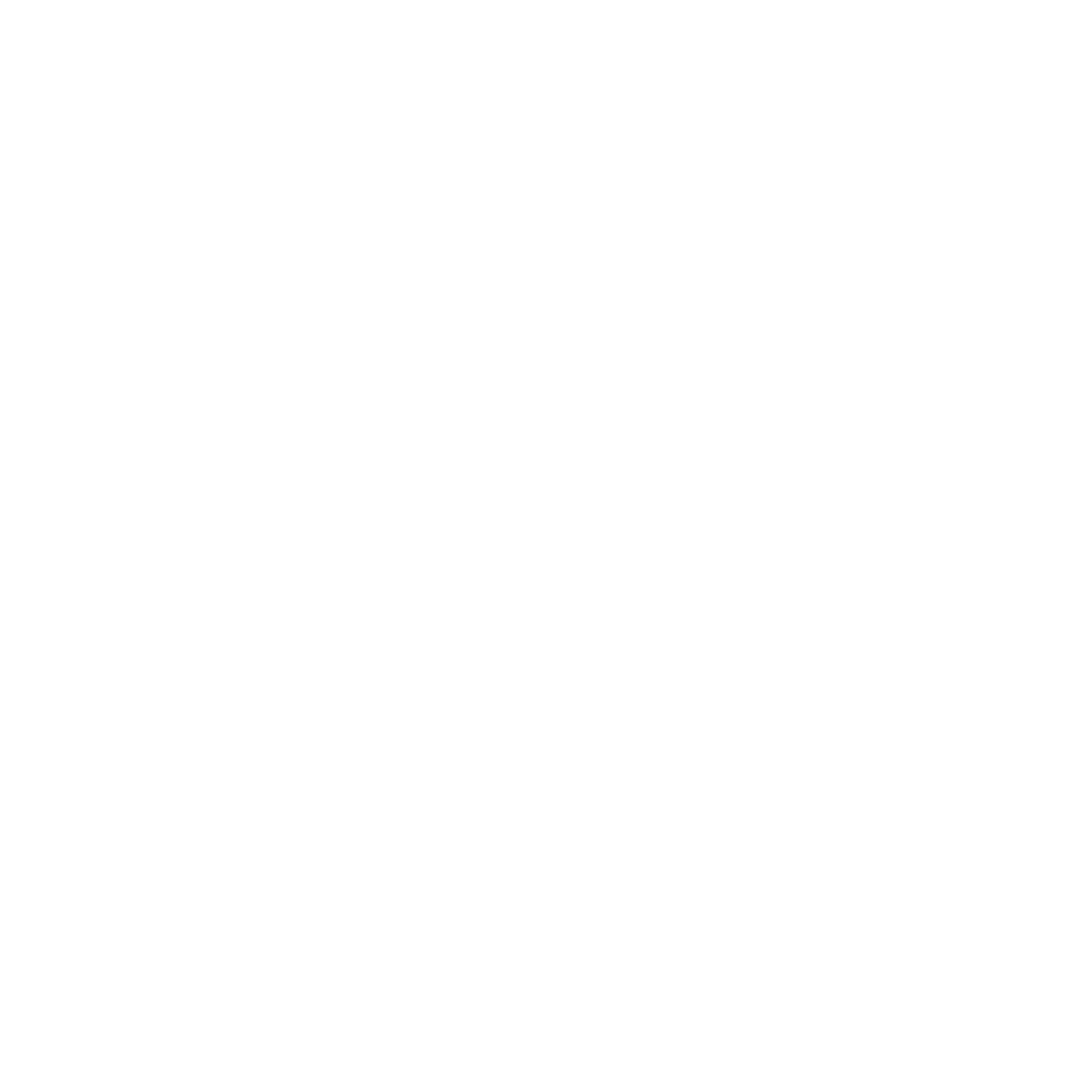

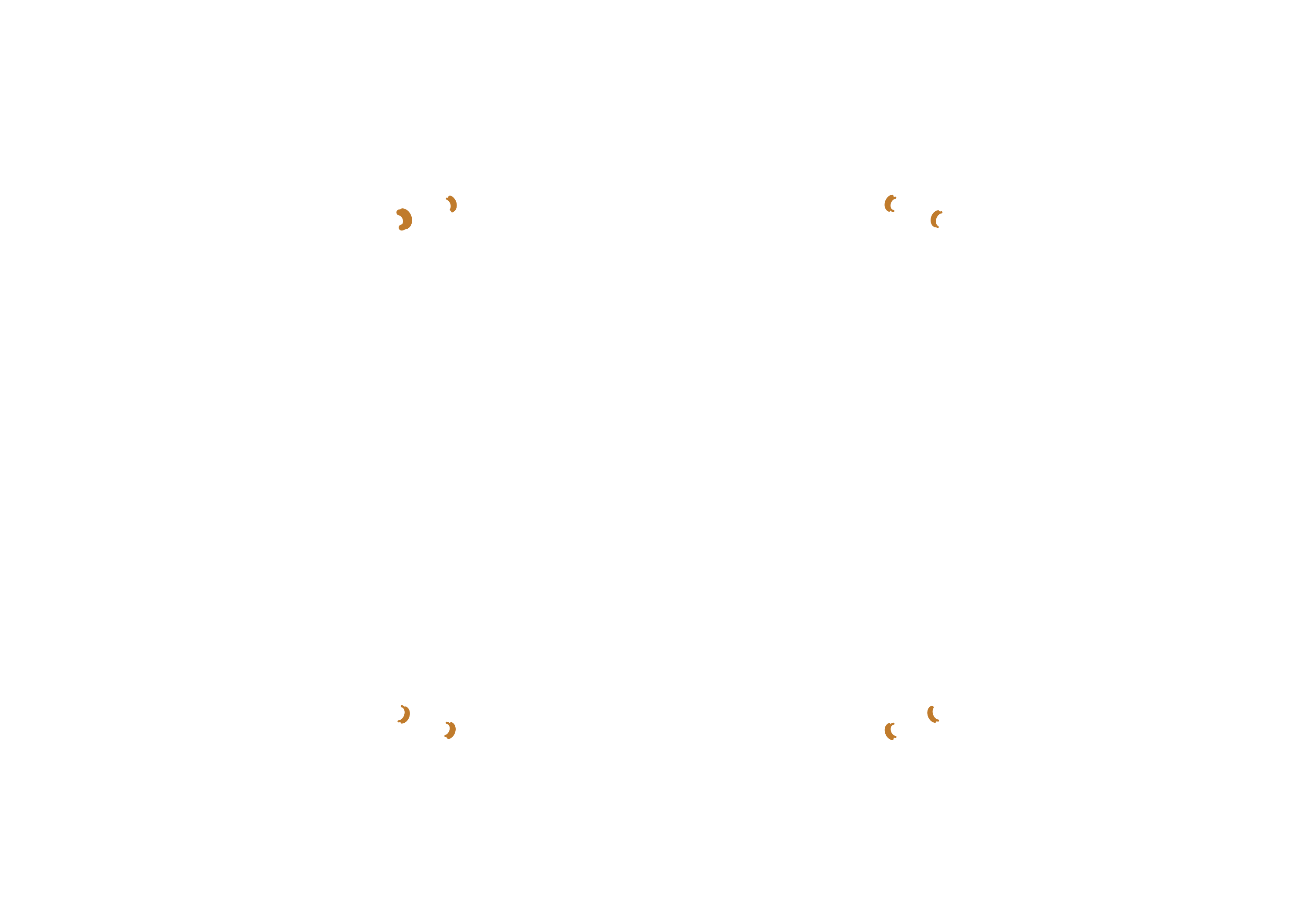

Use zip-ties to secure the cable.

Step 3 - 2

Step 3 - 2

Step 3 - 3

Step 3 - 3

Step 3 - 4

Step 3 - 4

note

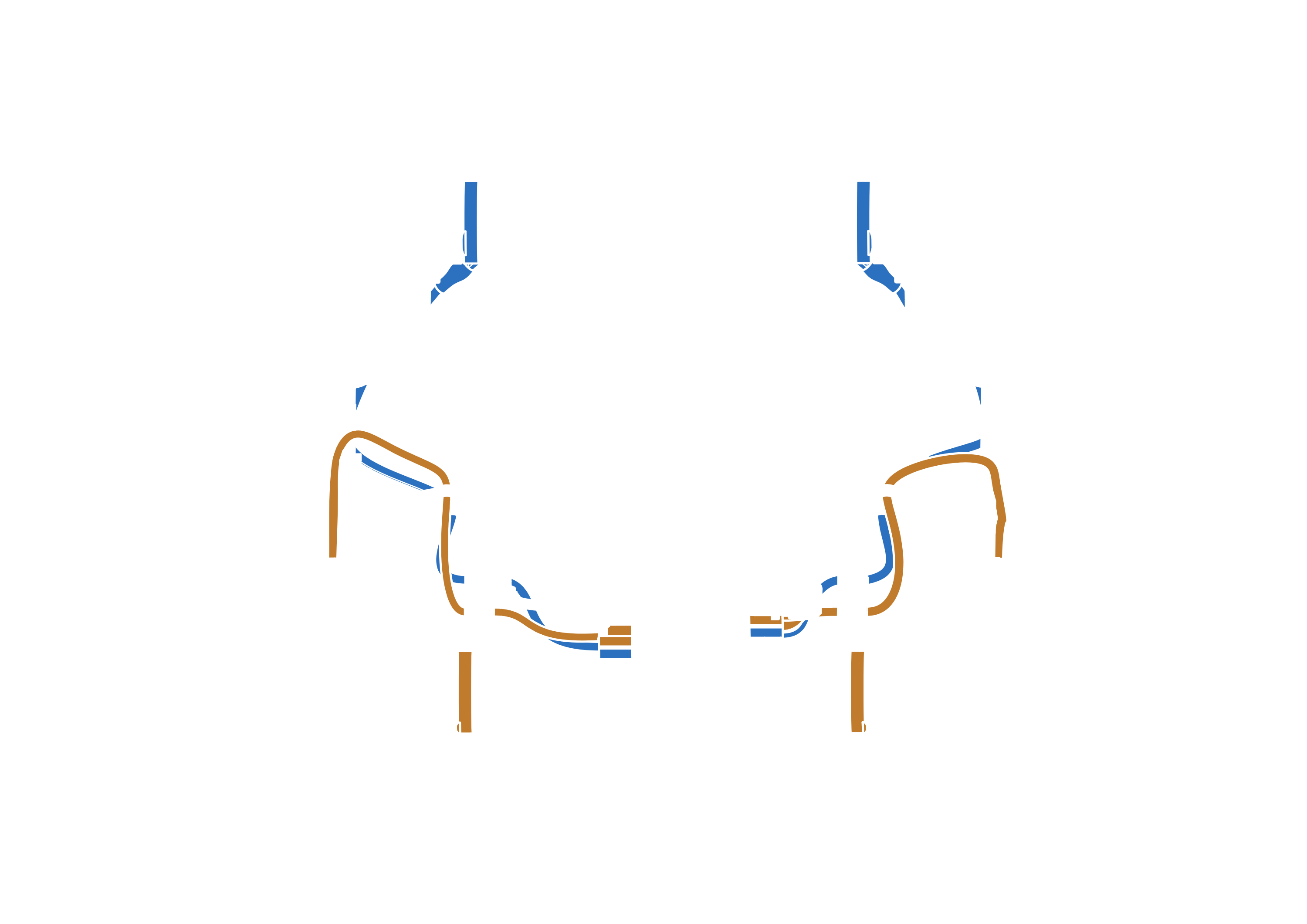

Run the cables through the sides of the electronics box.
Push cable seals and grommets into their designated spots.

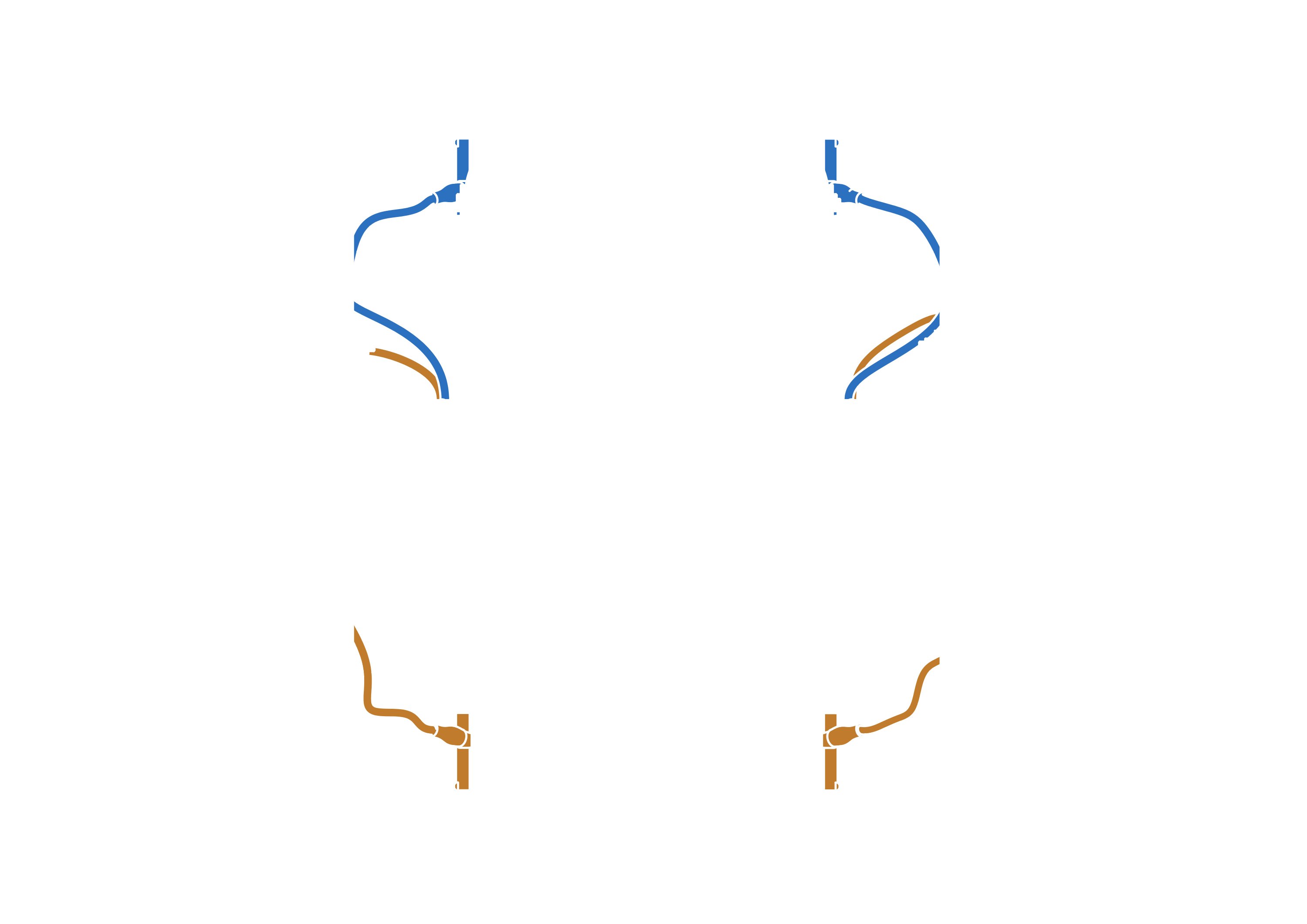

Plug wheel connectors into the LeoCore controller board.
Make sure that front wheel plugs are connected to the sockets closer to rover's front.

Step 4

Step 3 assembly

Step 3 assembly

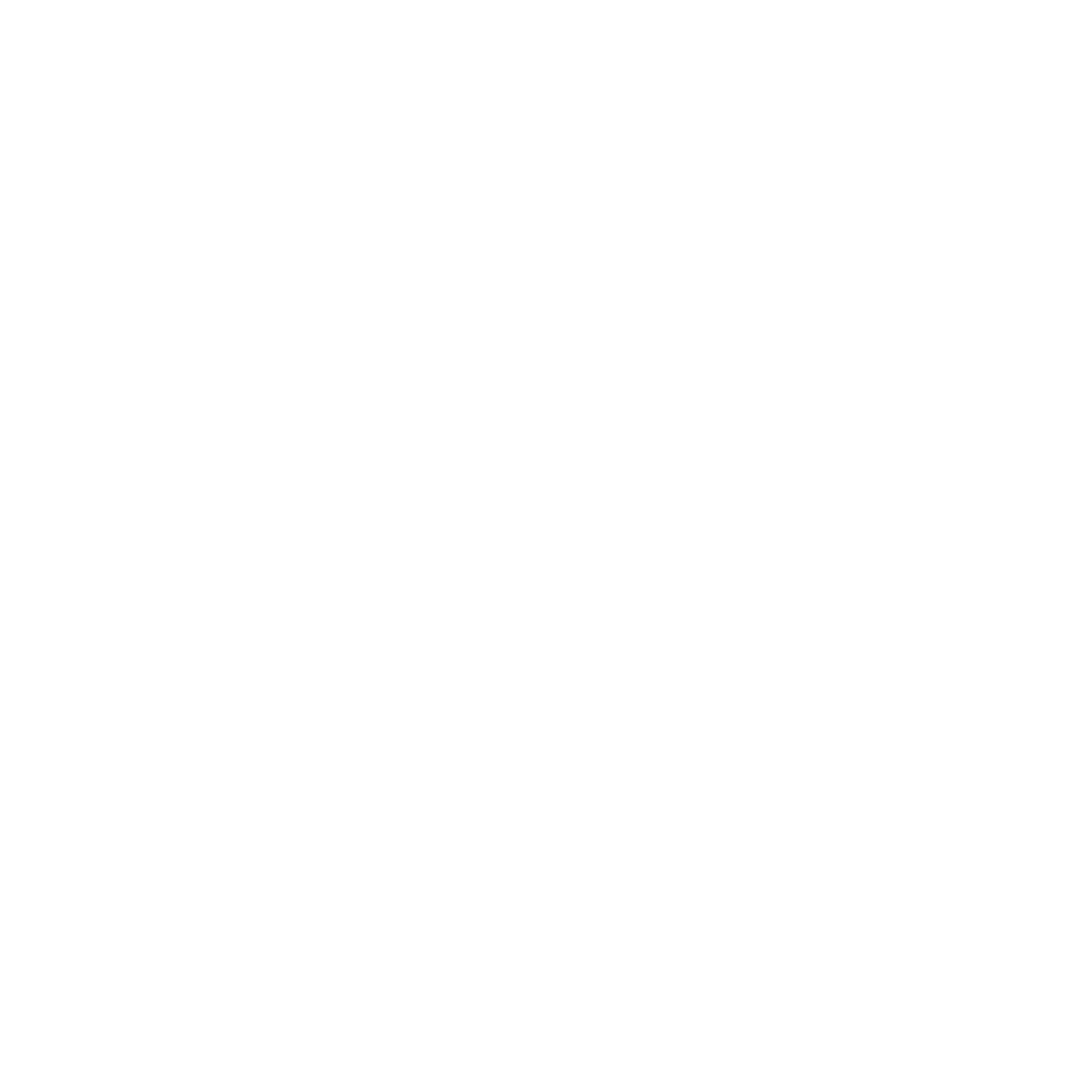

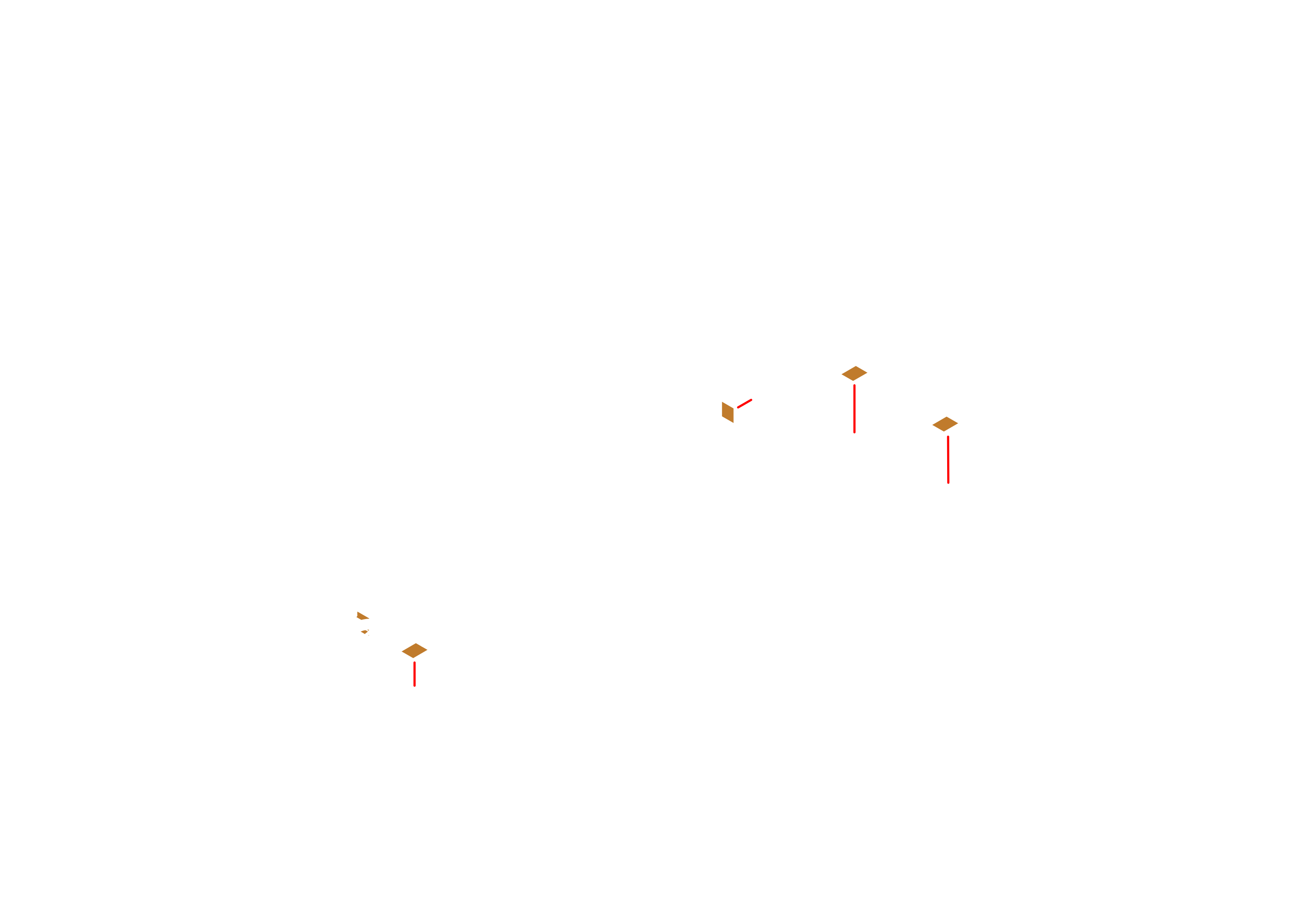

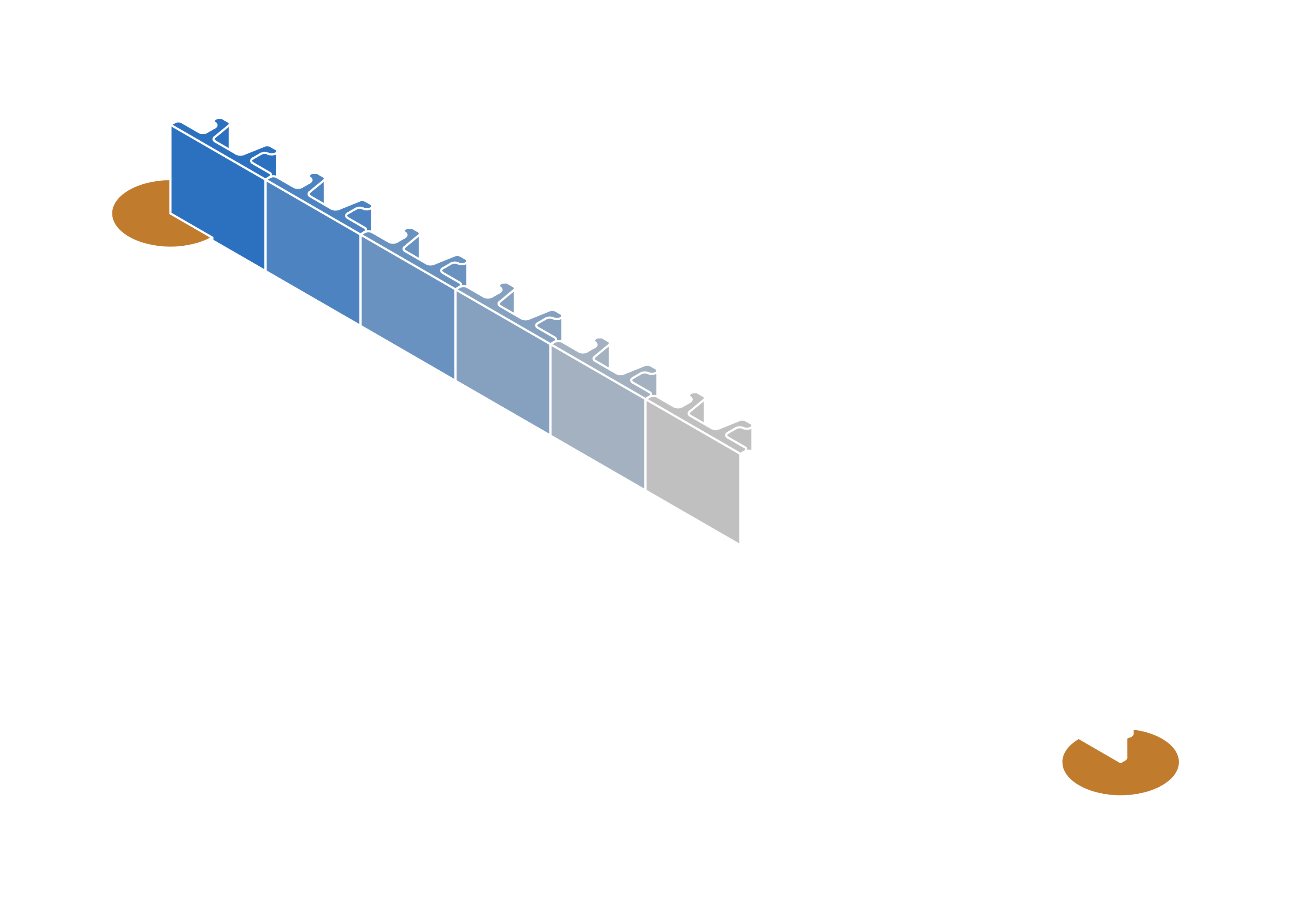

V-slot clip stick

V-slot clip stick

Step 4 - 1

Step 4 - 1

note

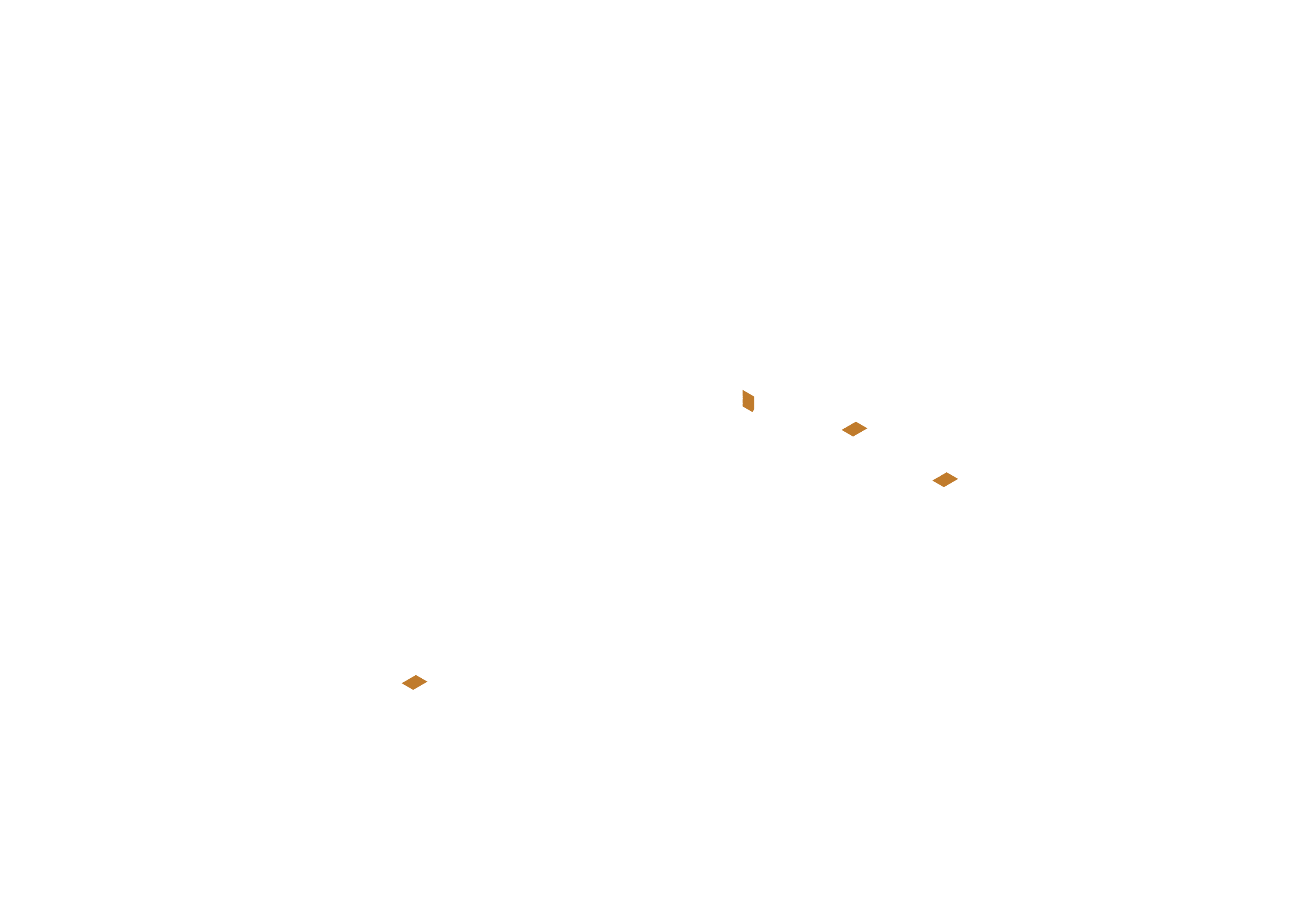

Separate the individual clips and remove excess material.

Step 4 - 2

Step 4 - 2

Step 5

Step 4 assembly

Step 4 assembly

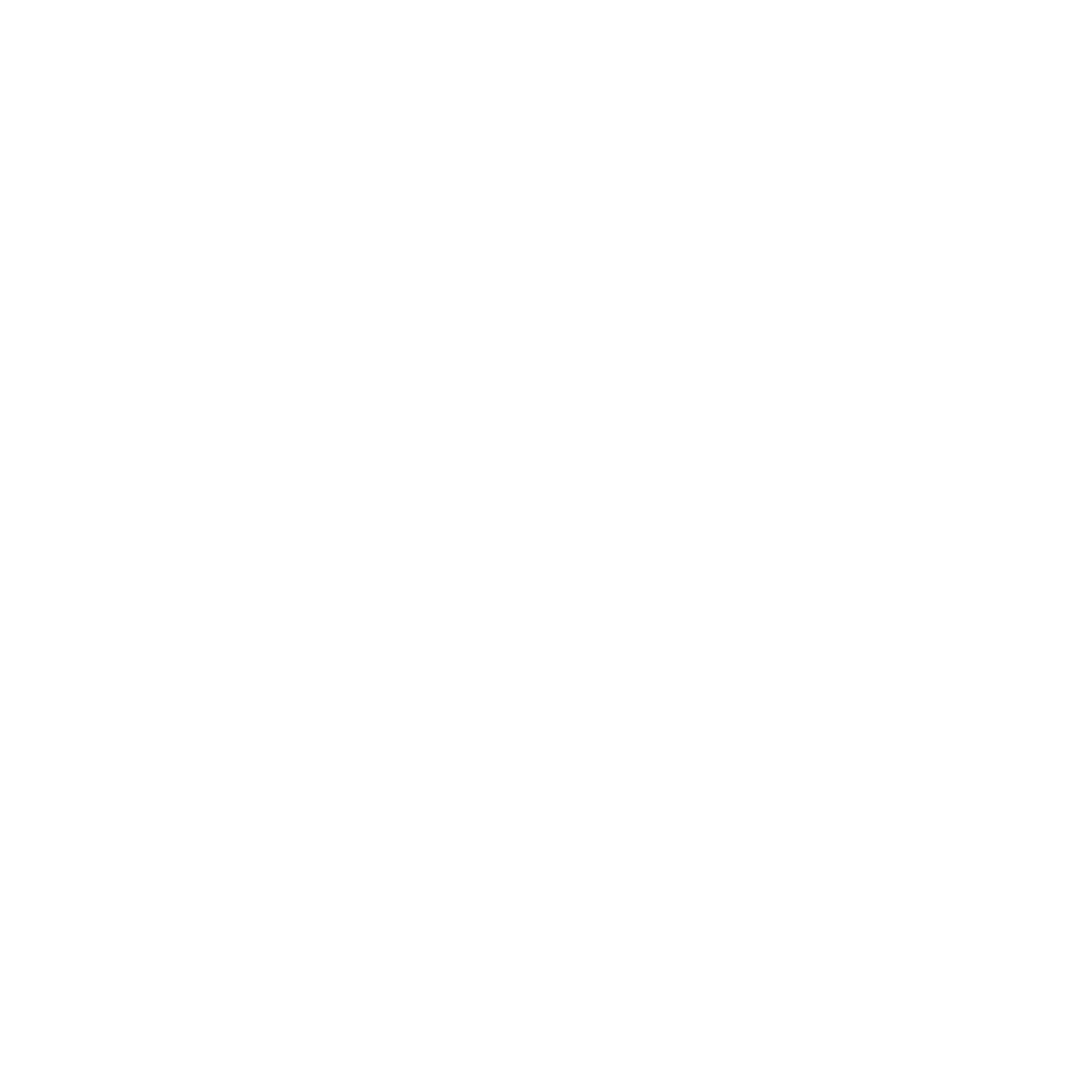

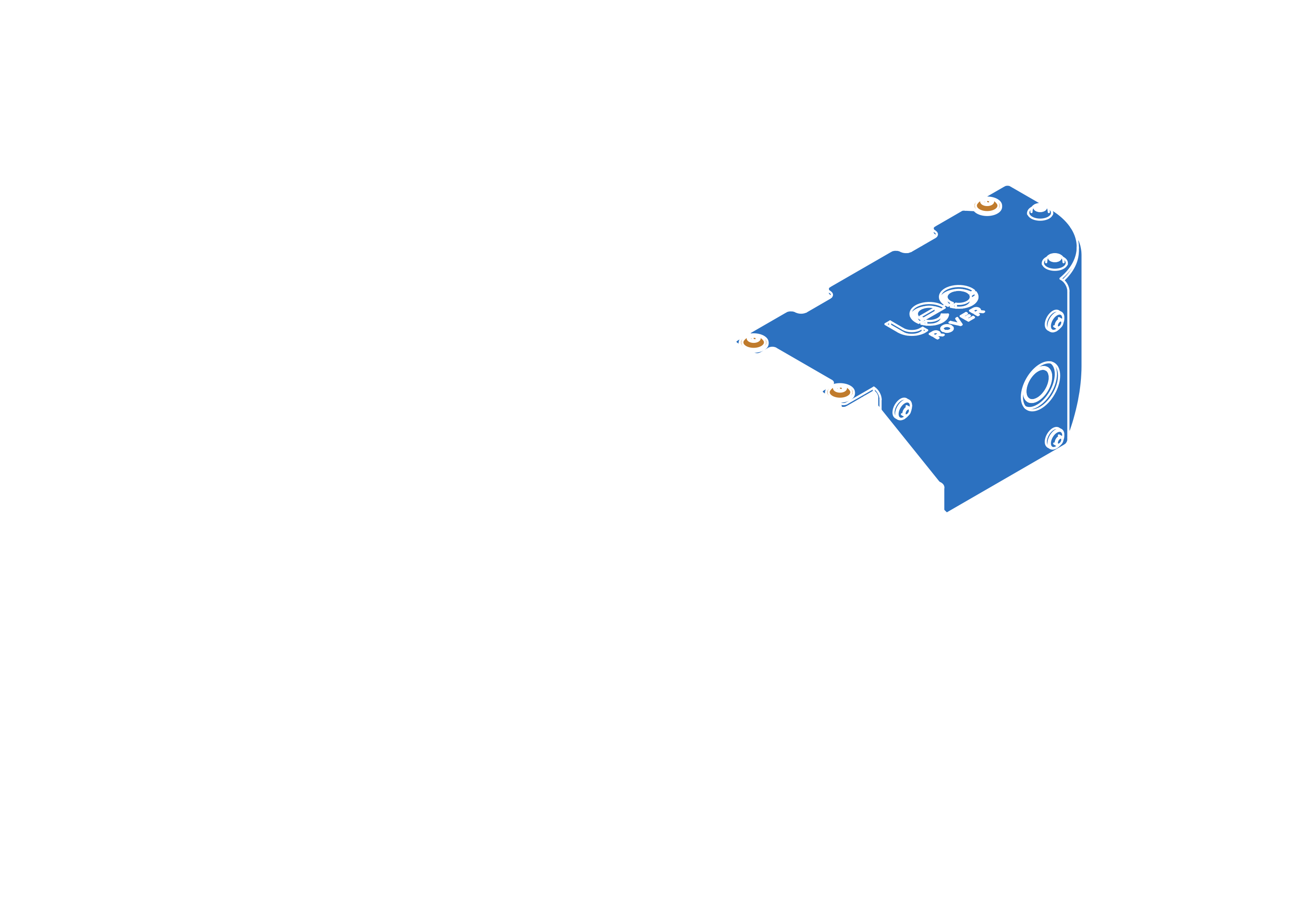

Battery

Battery

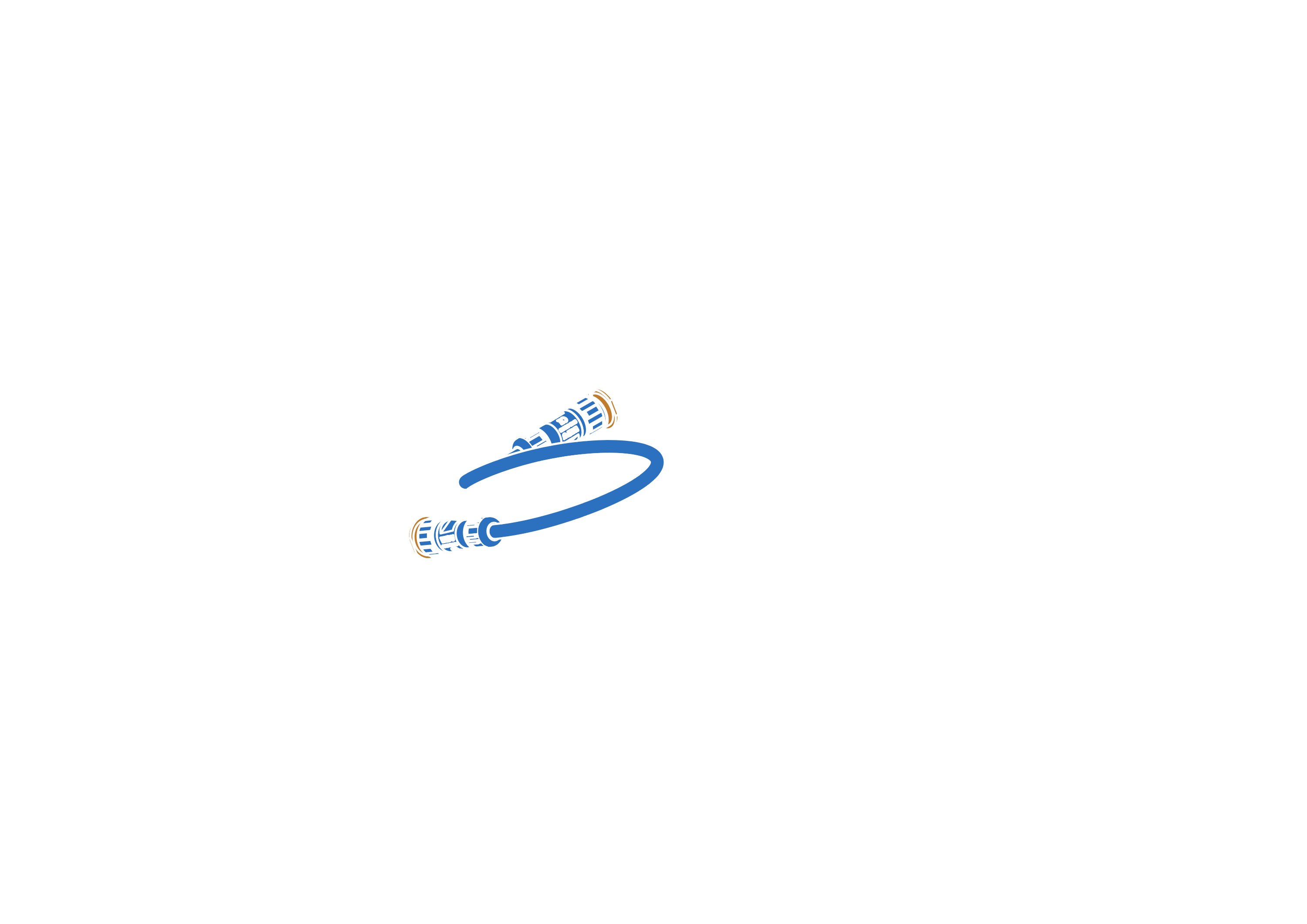

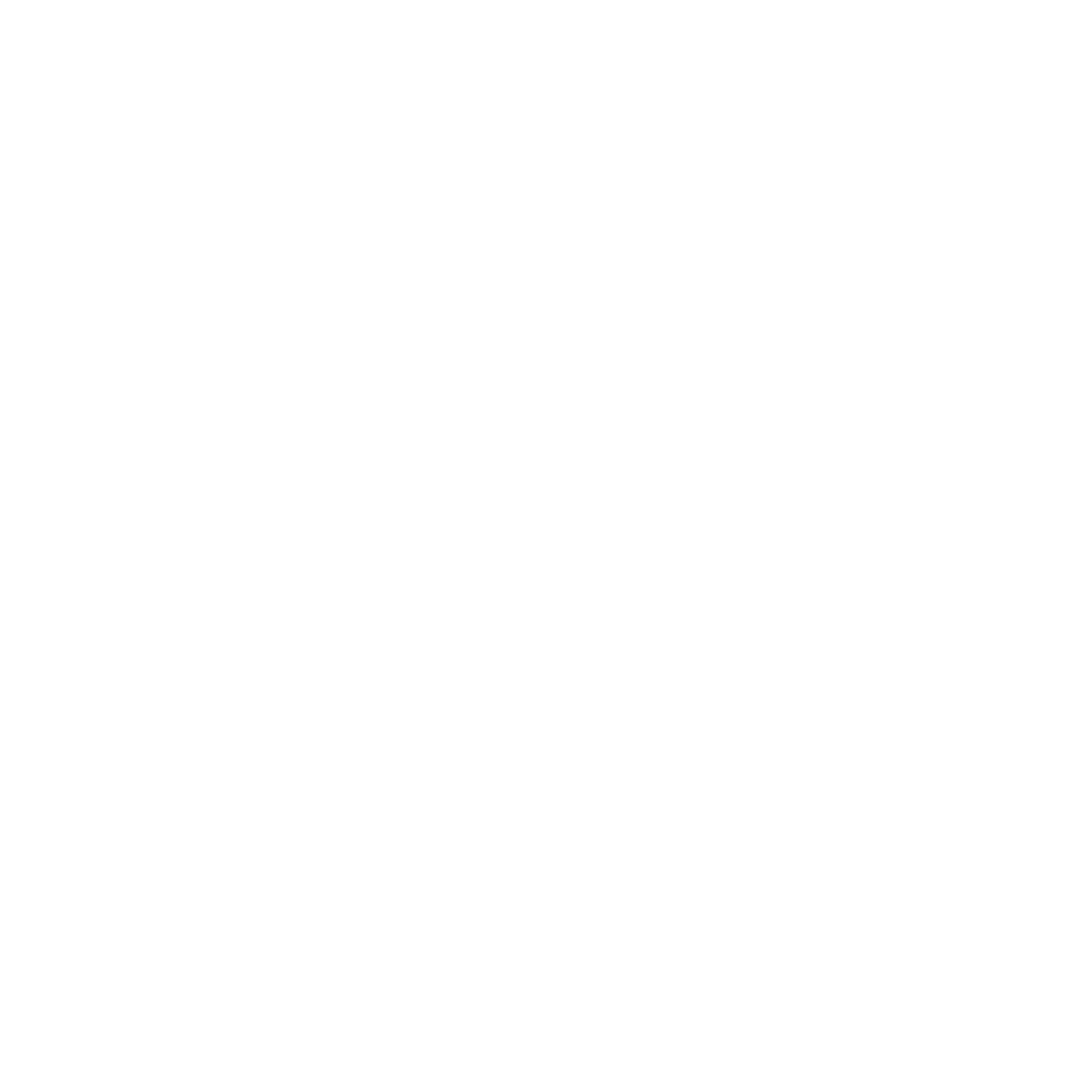

MEB <-> Battery cable

MEB <-> Battery cable

Step 5 - 1

Step 5 - 1

Step 5 - 2

Step 5 - 2

Step 5 - 3

Step 5 - 3

Step 6

Step 5 assembly

Step 5 assembly

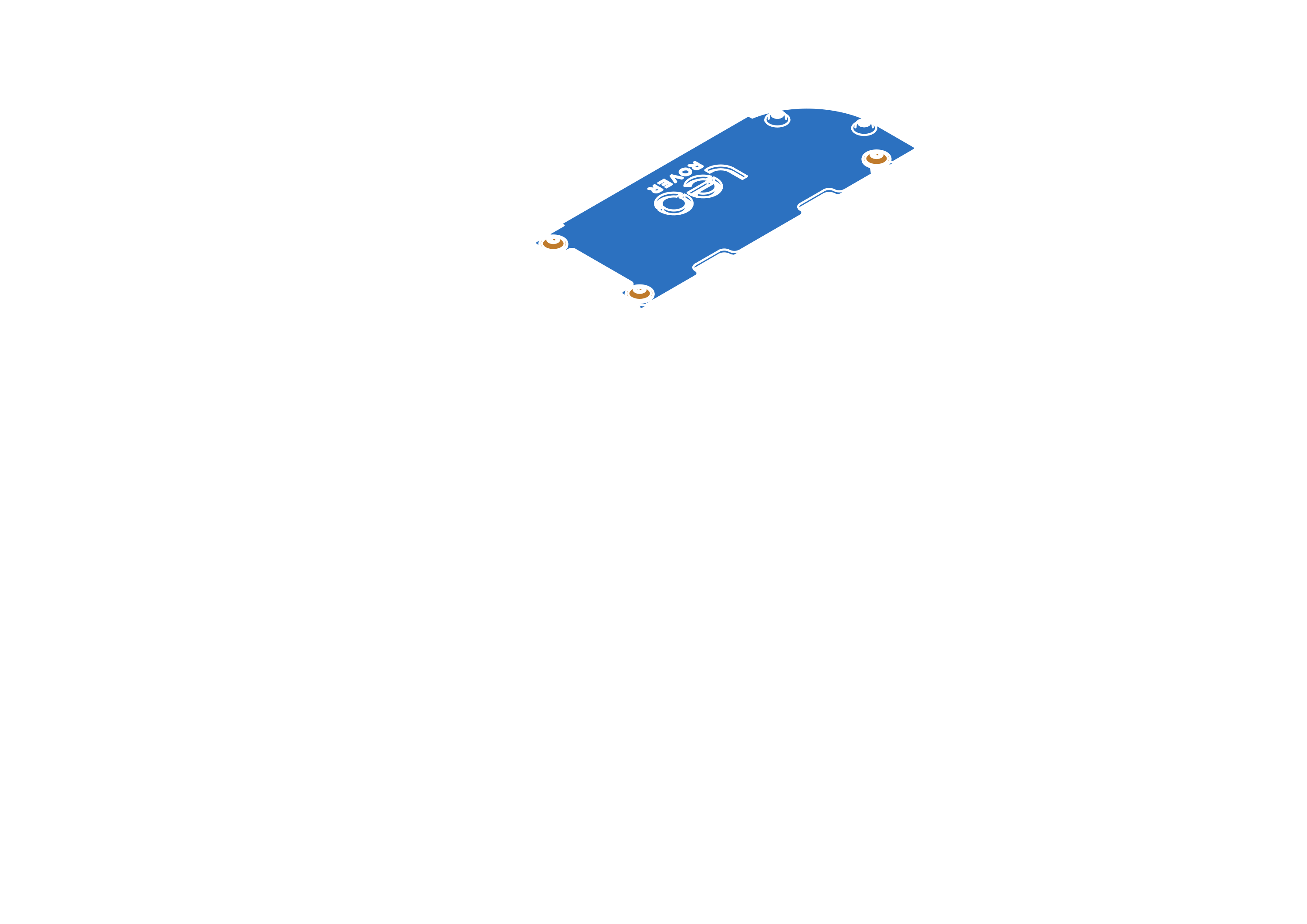

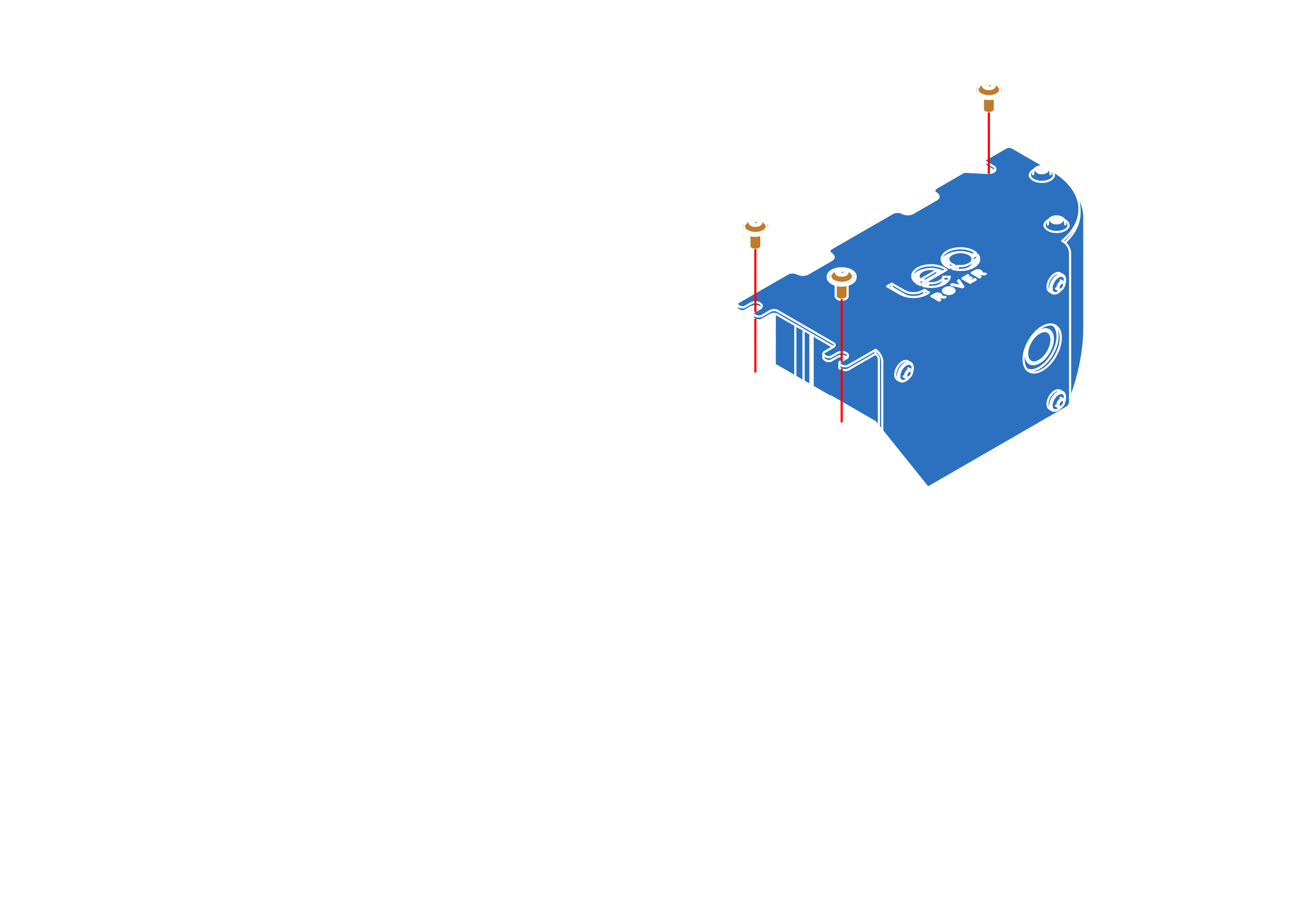

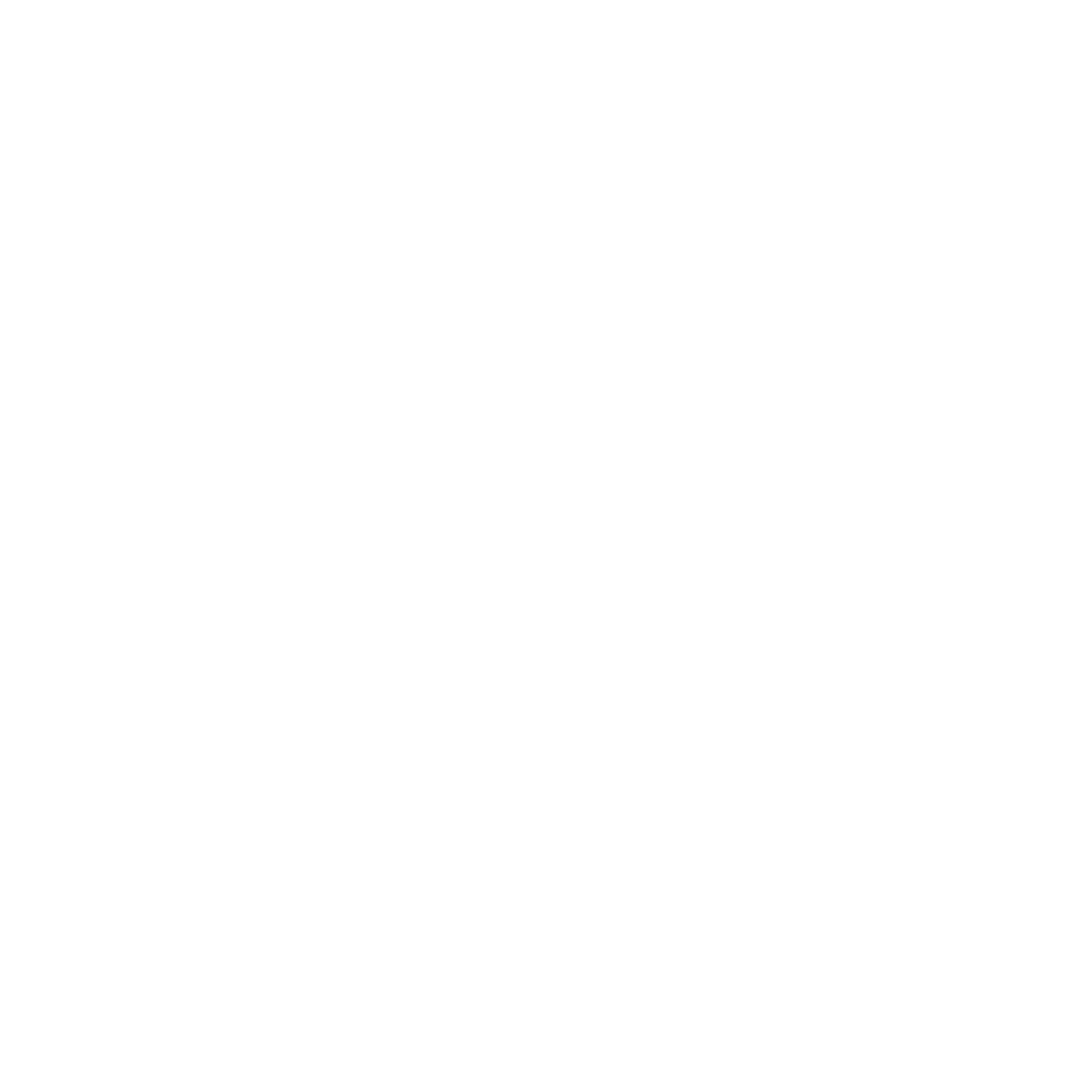

Addon quarter

Addon quarter

Step 6 - 1

Step 6 - 1

Step 6 - 2

Step 6 - 2

Step 7

Step 6 assembly

Step 6 assembly

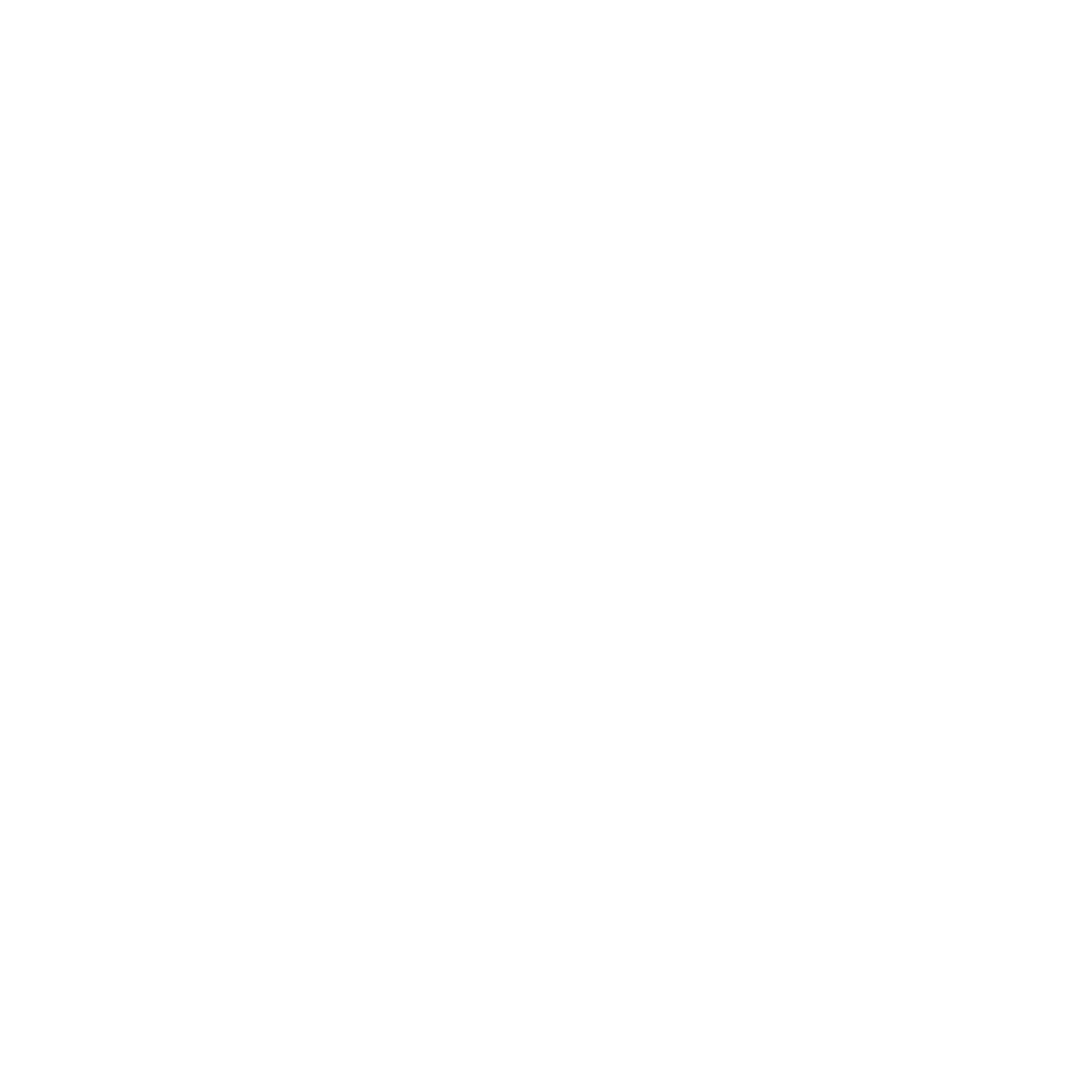

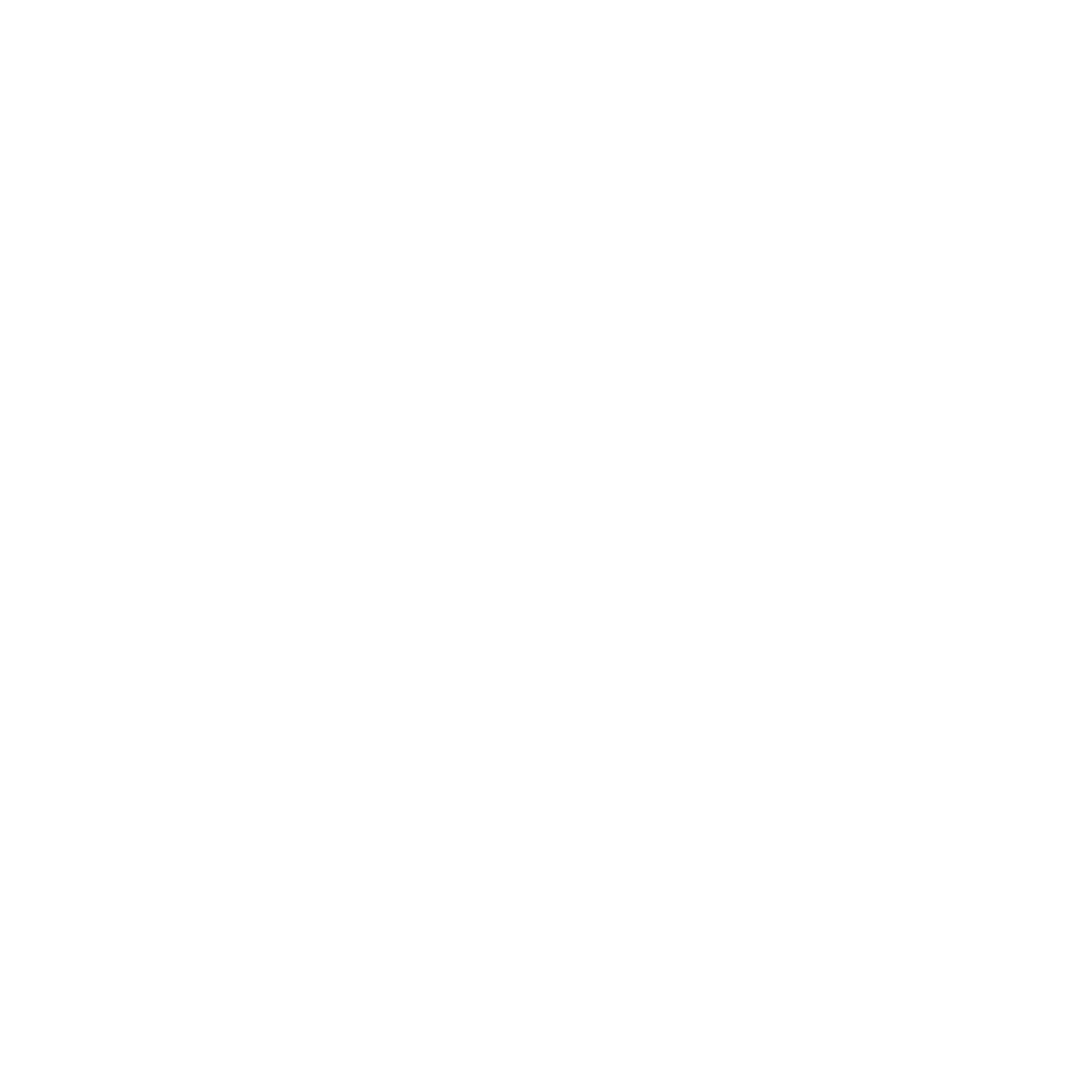

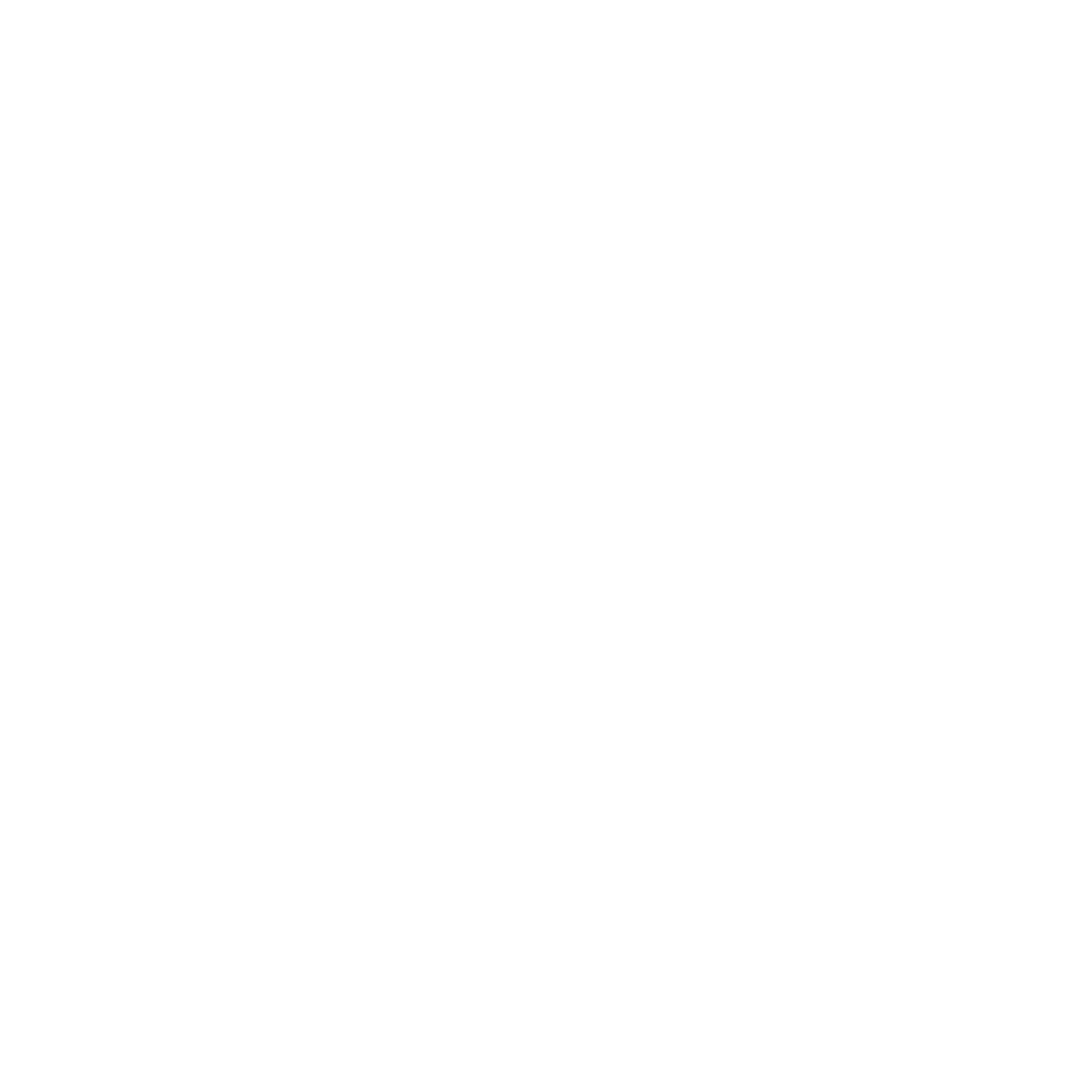

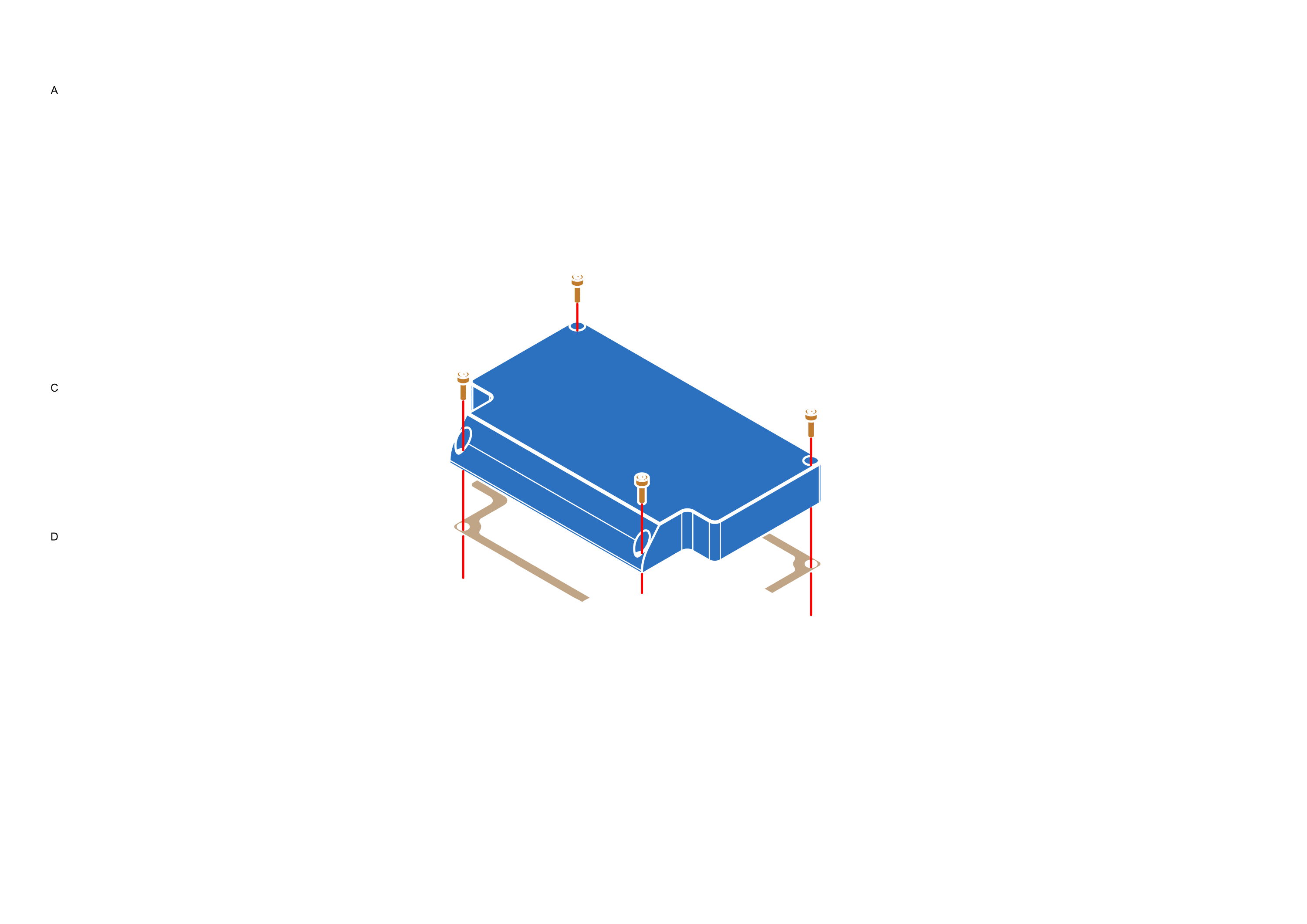

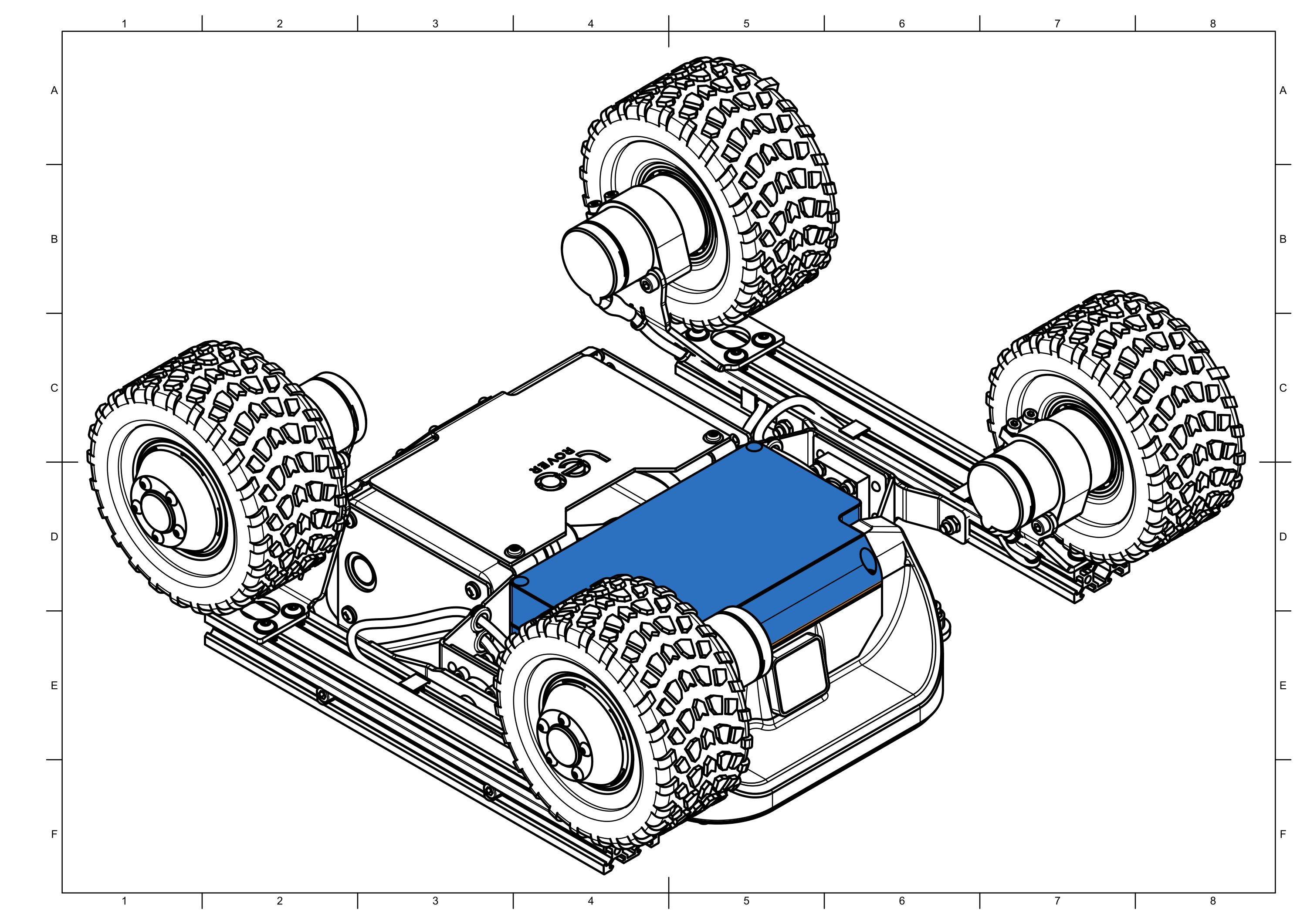

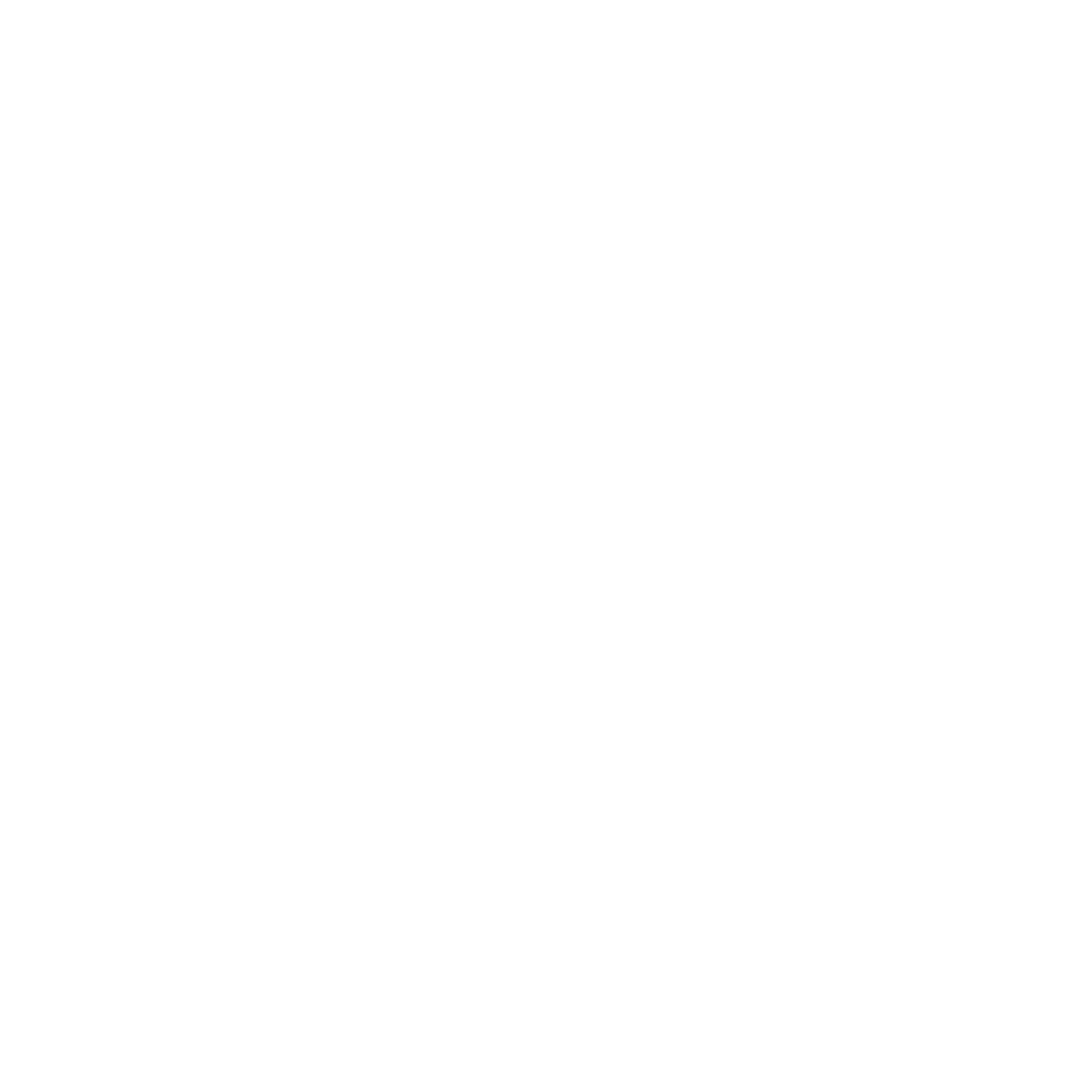

MEB cover

MEB cover

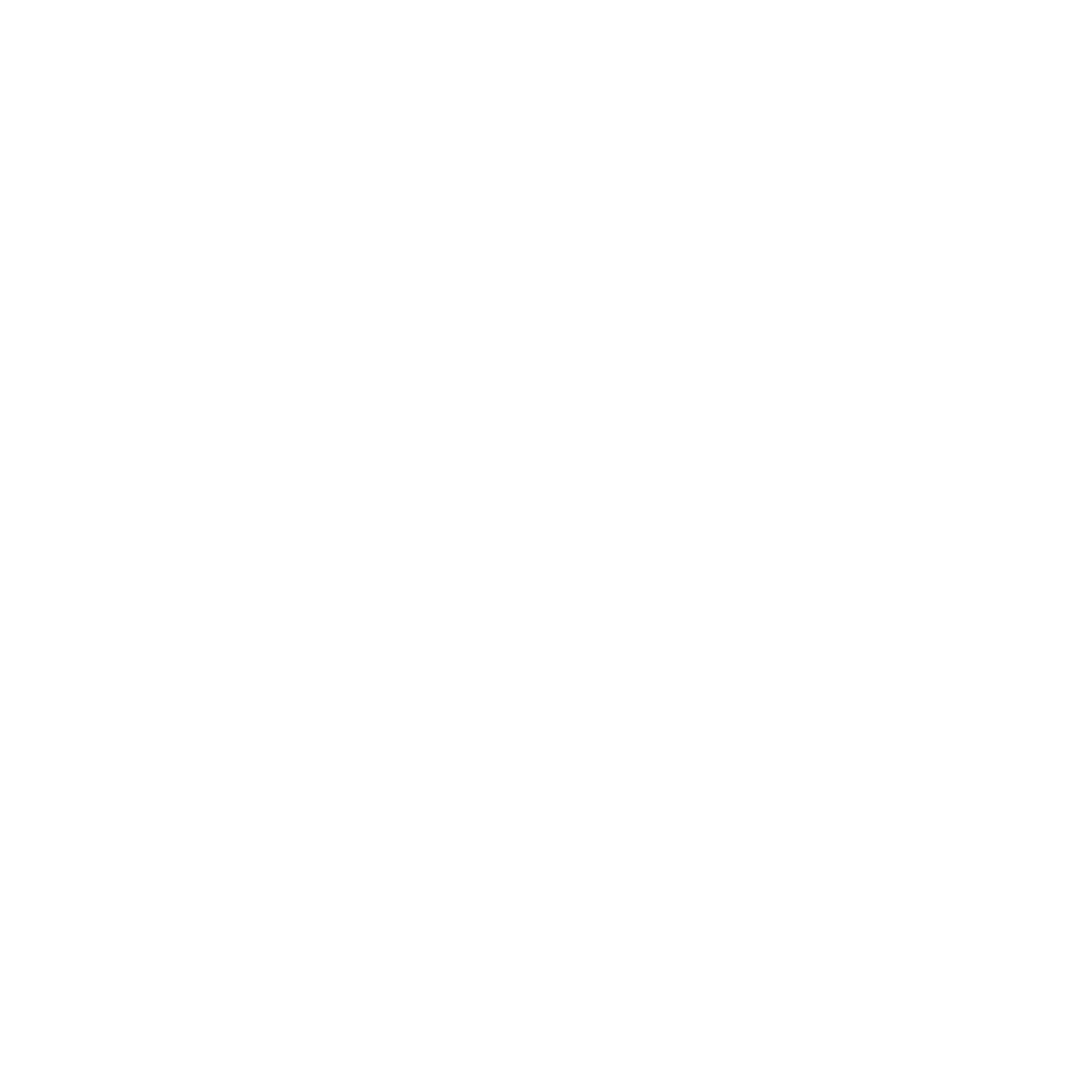

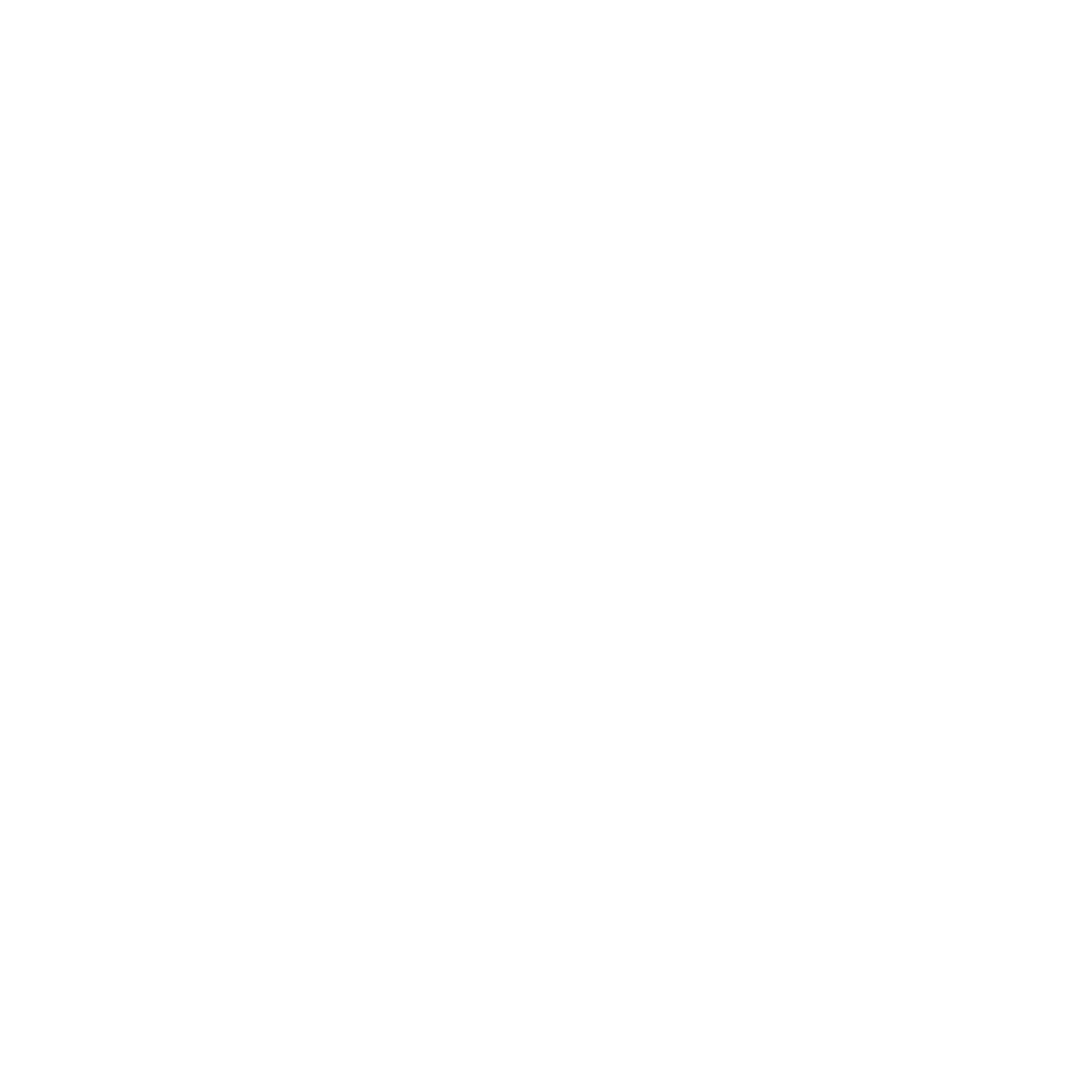

4x M4x12 screw

4x M4x12 screw

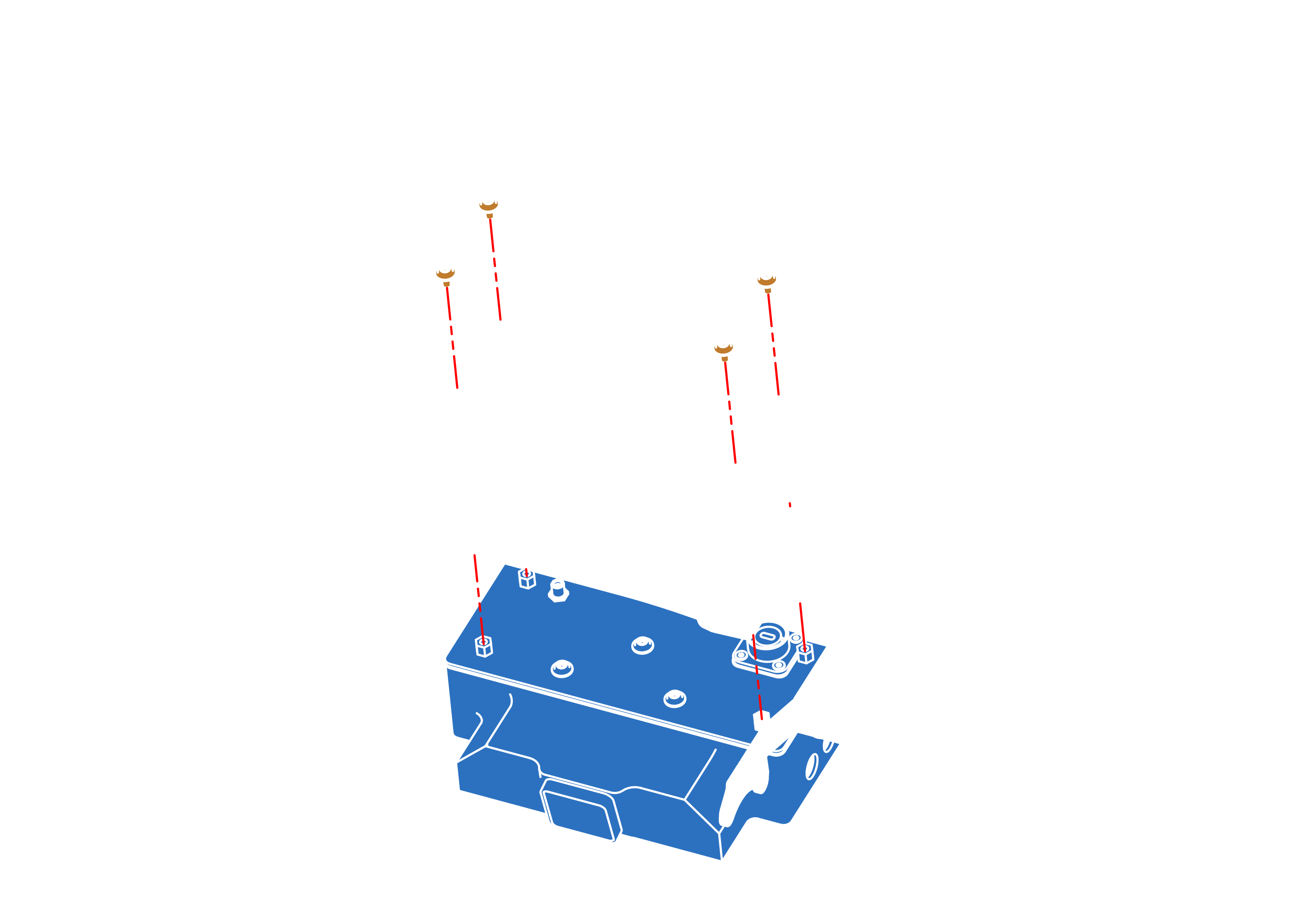

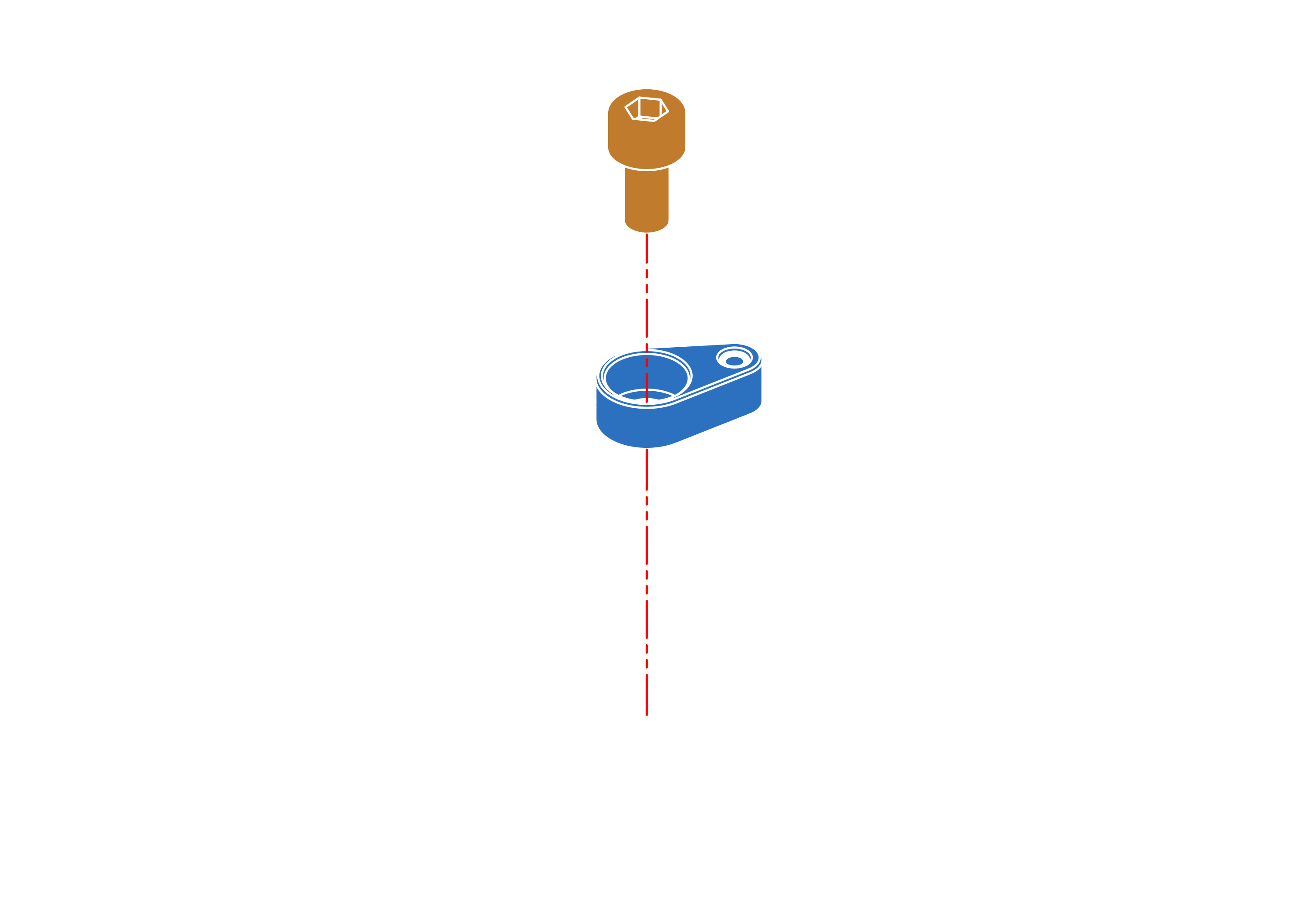

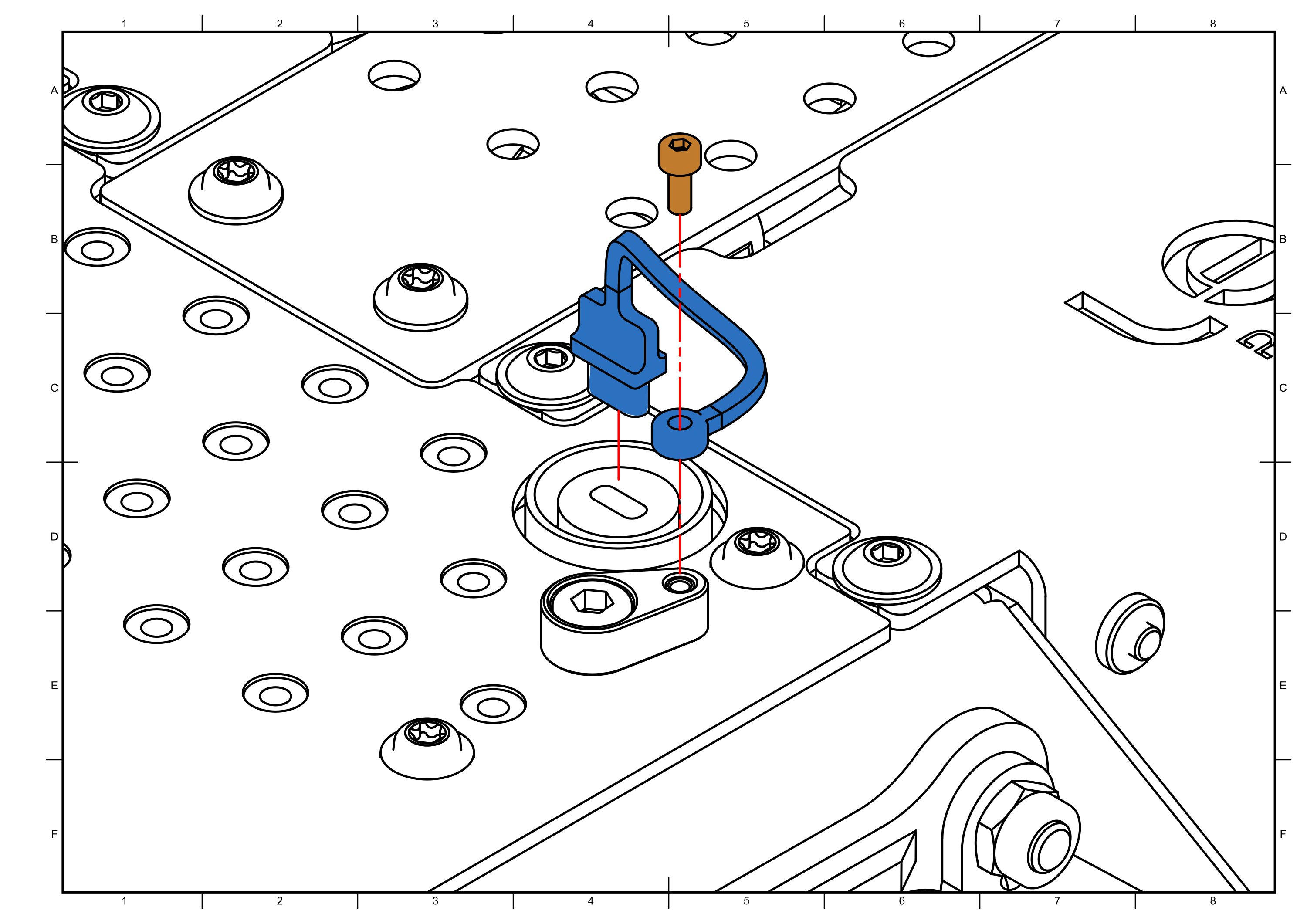

Step 7 - 1

Step 7 - 1

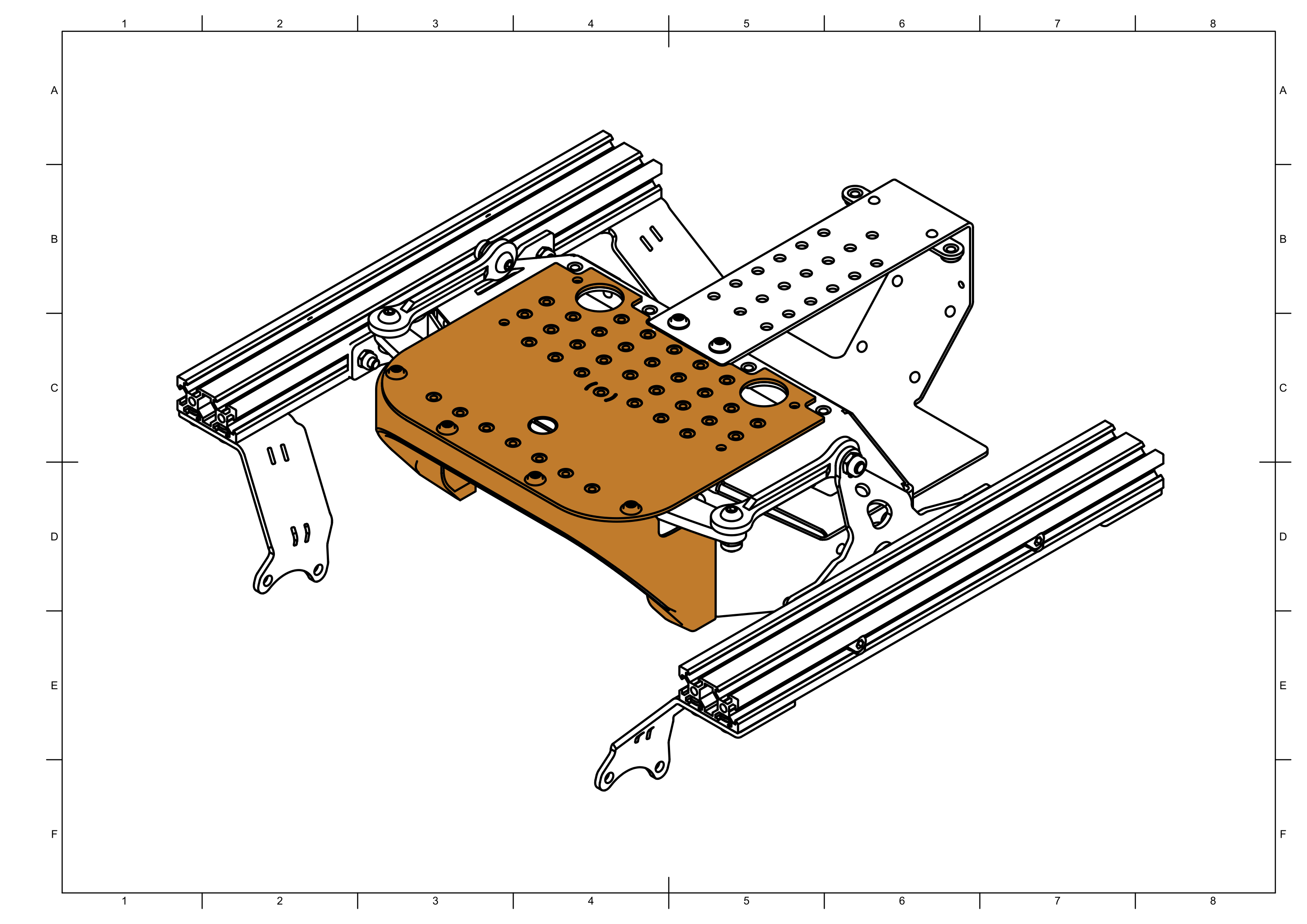

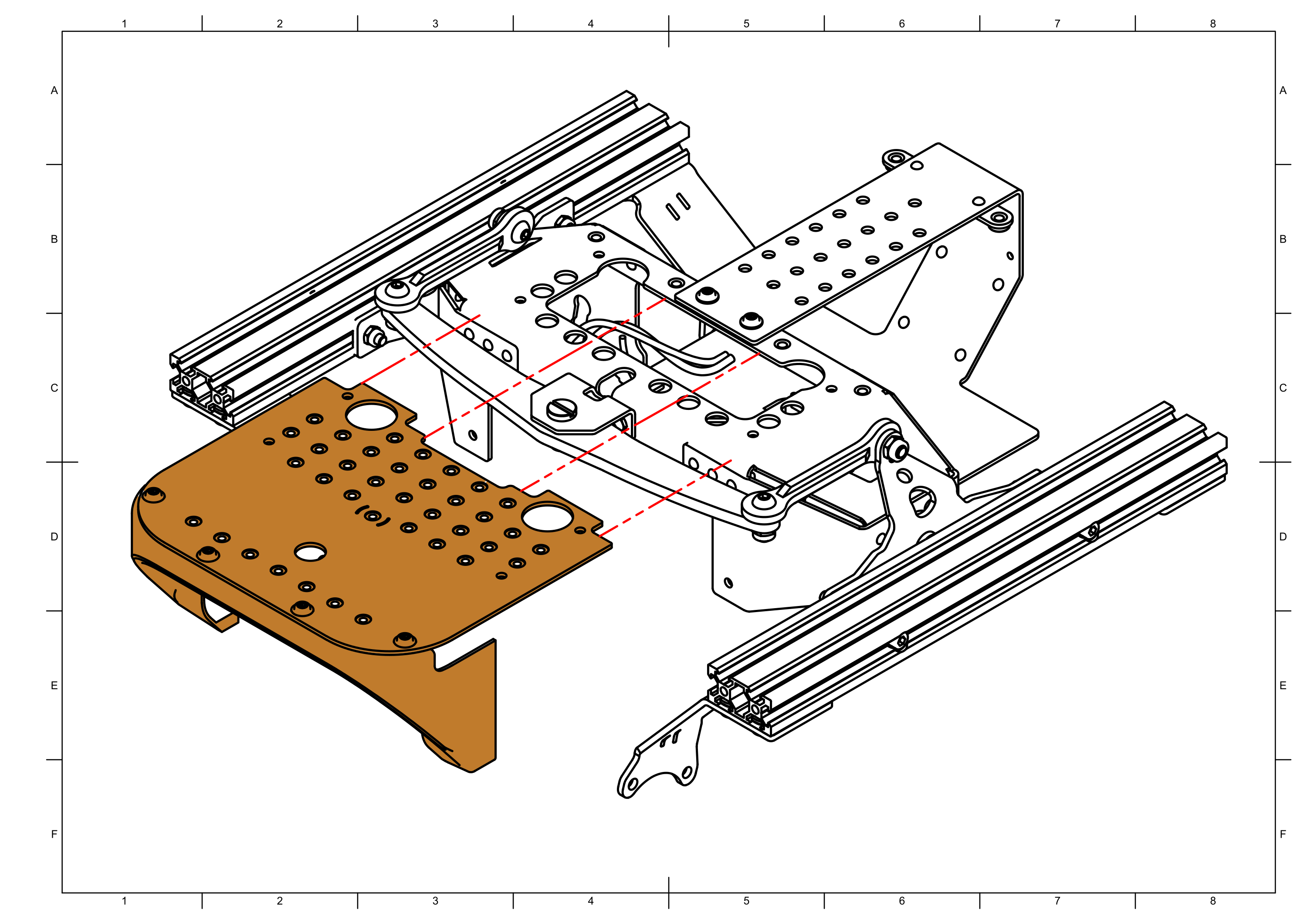

Step 7 - 2

Step 7 - 2

Mechanically that's it. Good job!
