Task 2: Main Electronics Box (MEB)

Assembly time ≈ 60 minutes

---

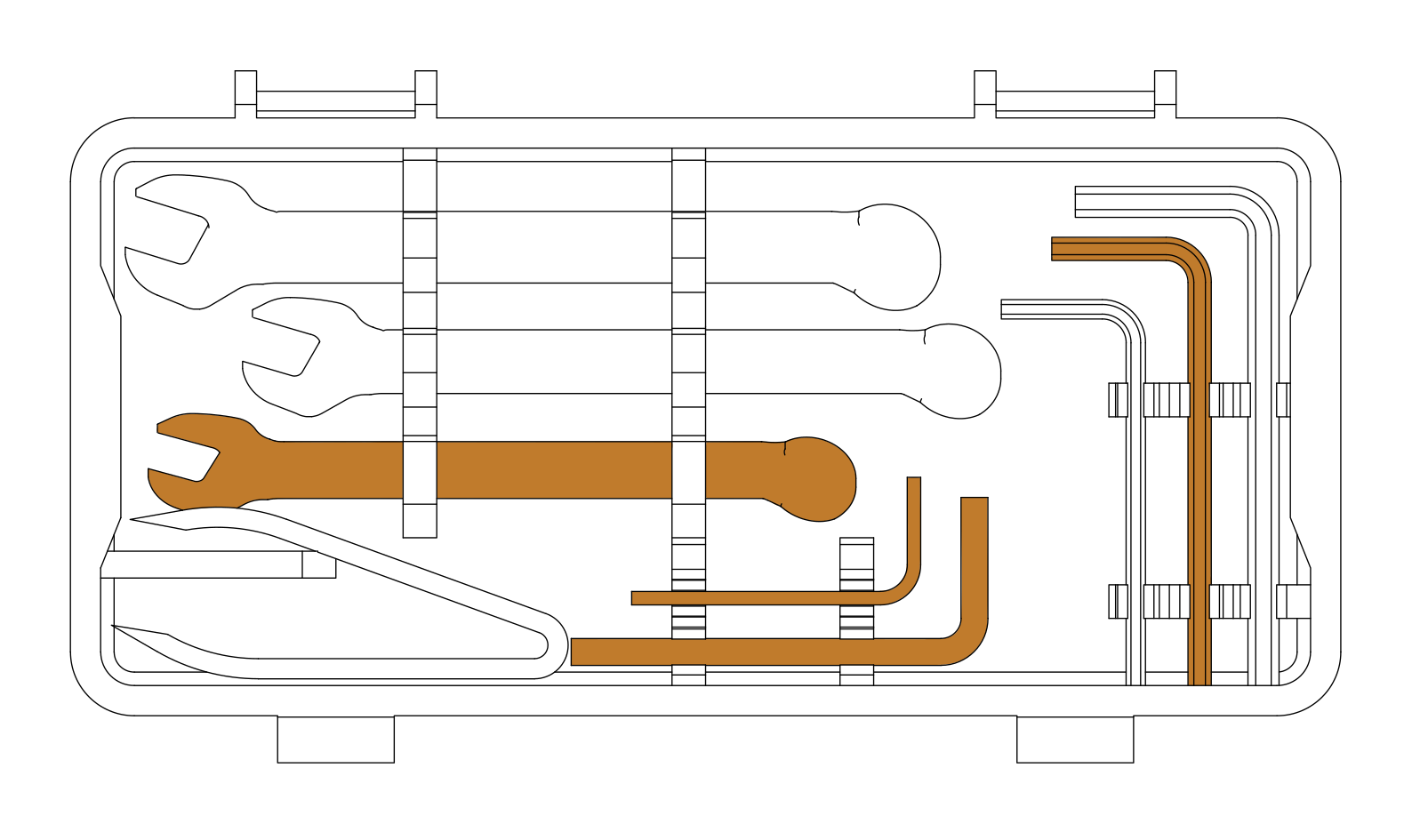

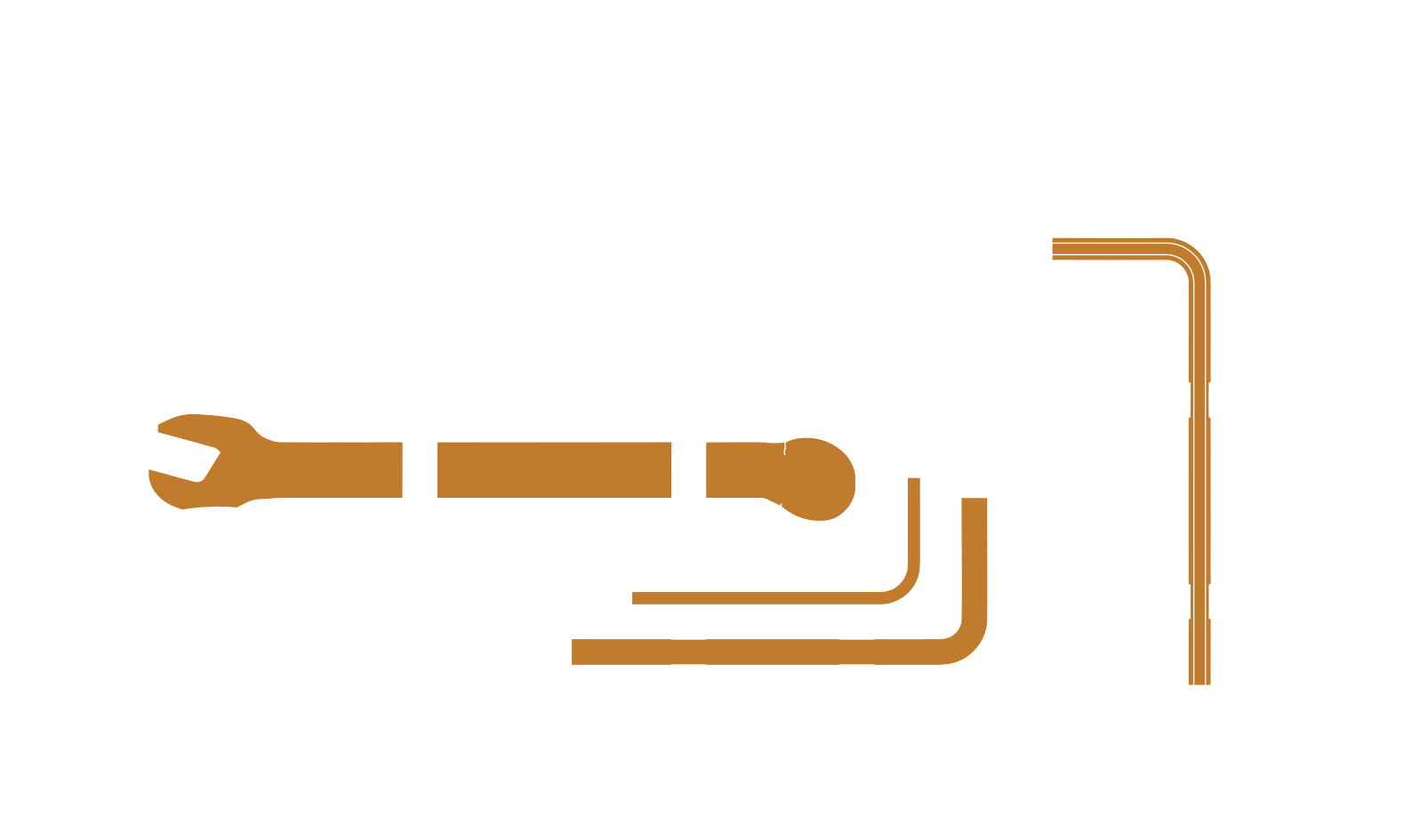

Step 0

Burn LeoOs image to the microSD card using this tutorial:

📄Software update

A guide to updating your Leo Rover by flashing the latest LeoOS image to a microSD card using tools like Etcher or command-line utilities.

---

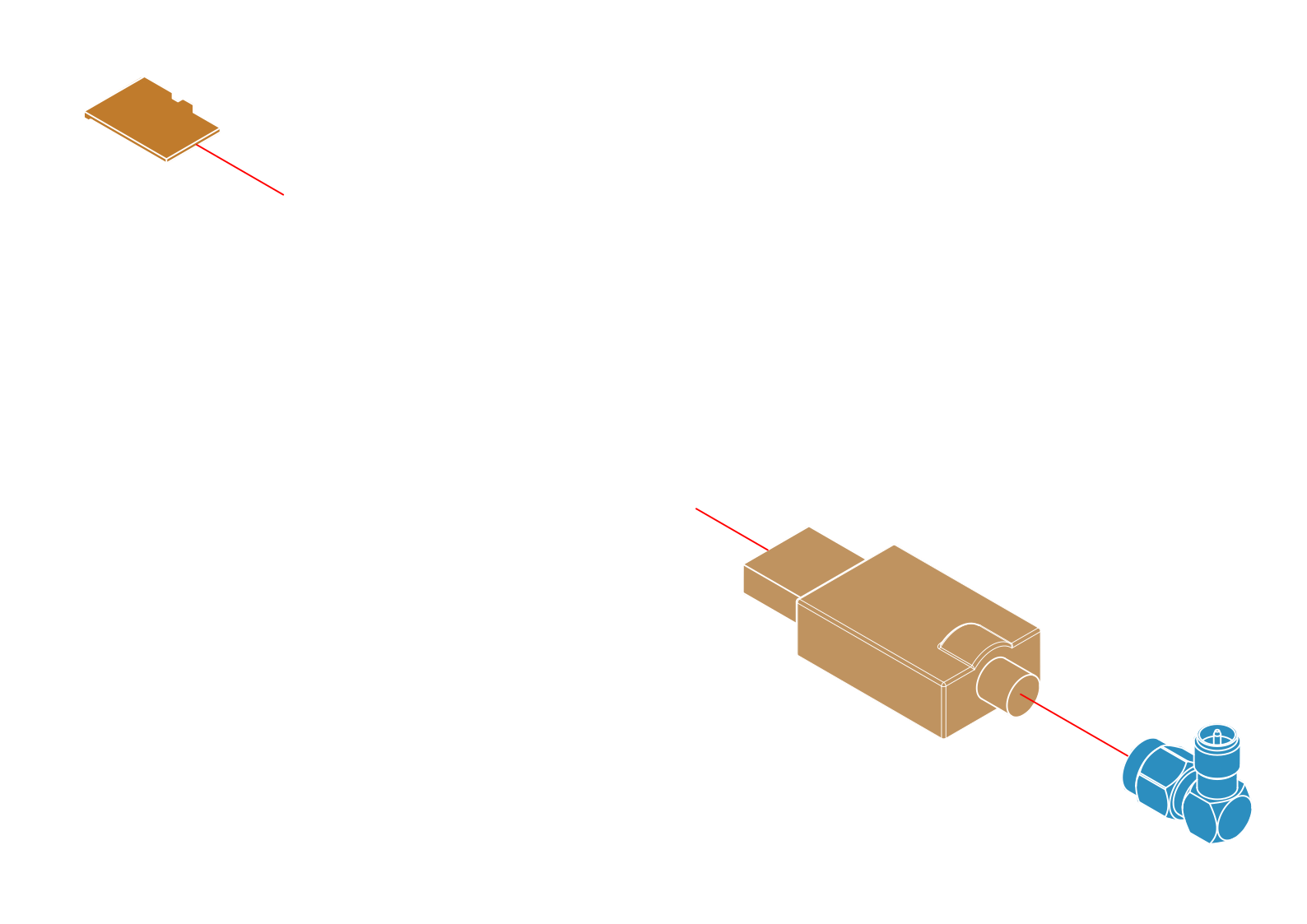

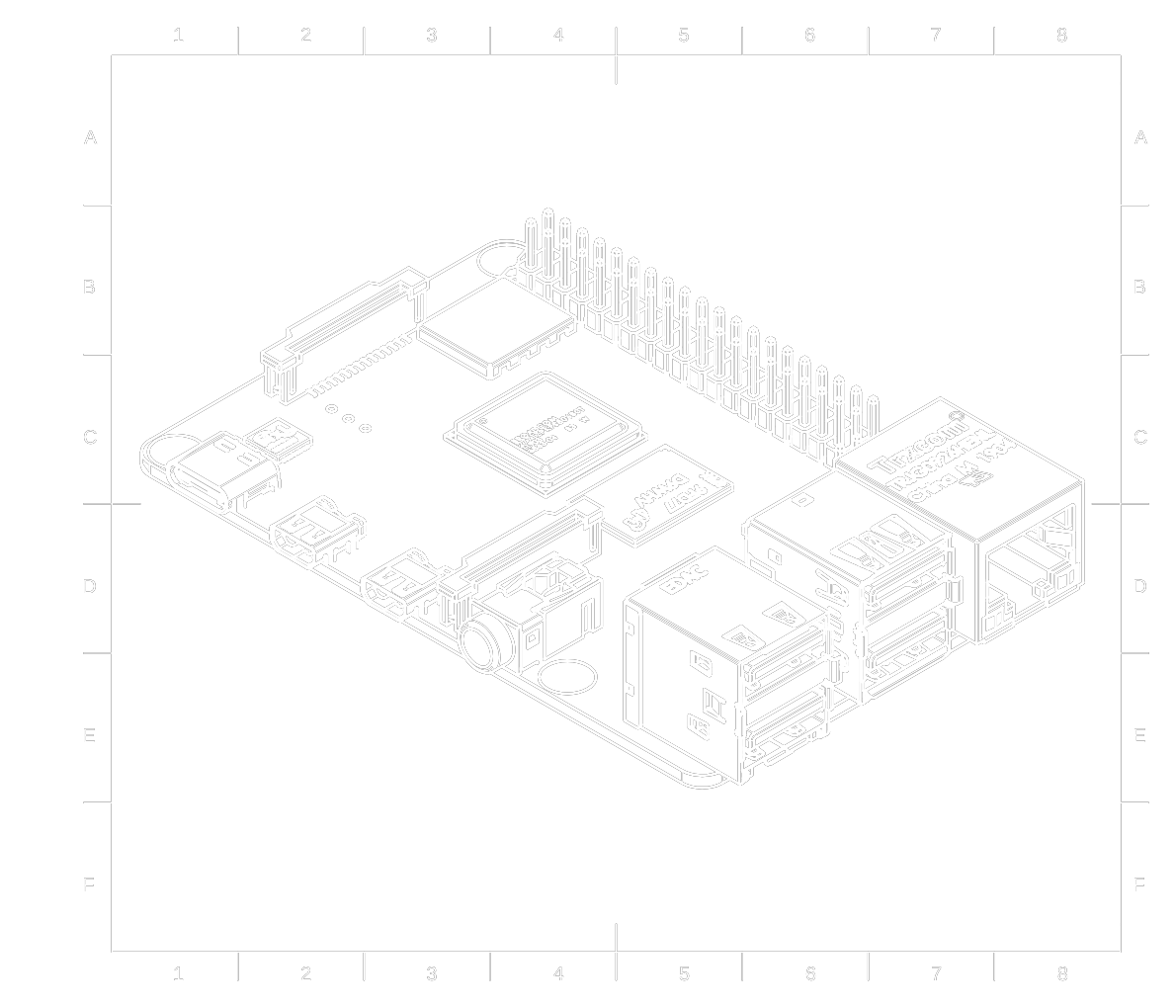

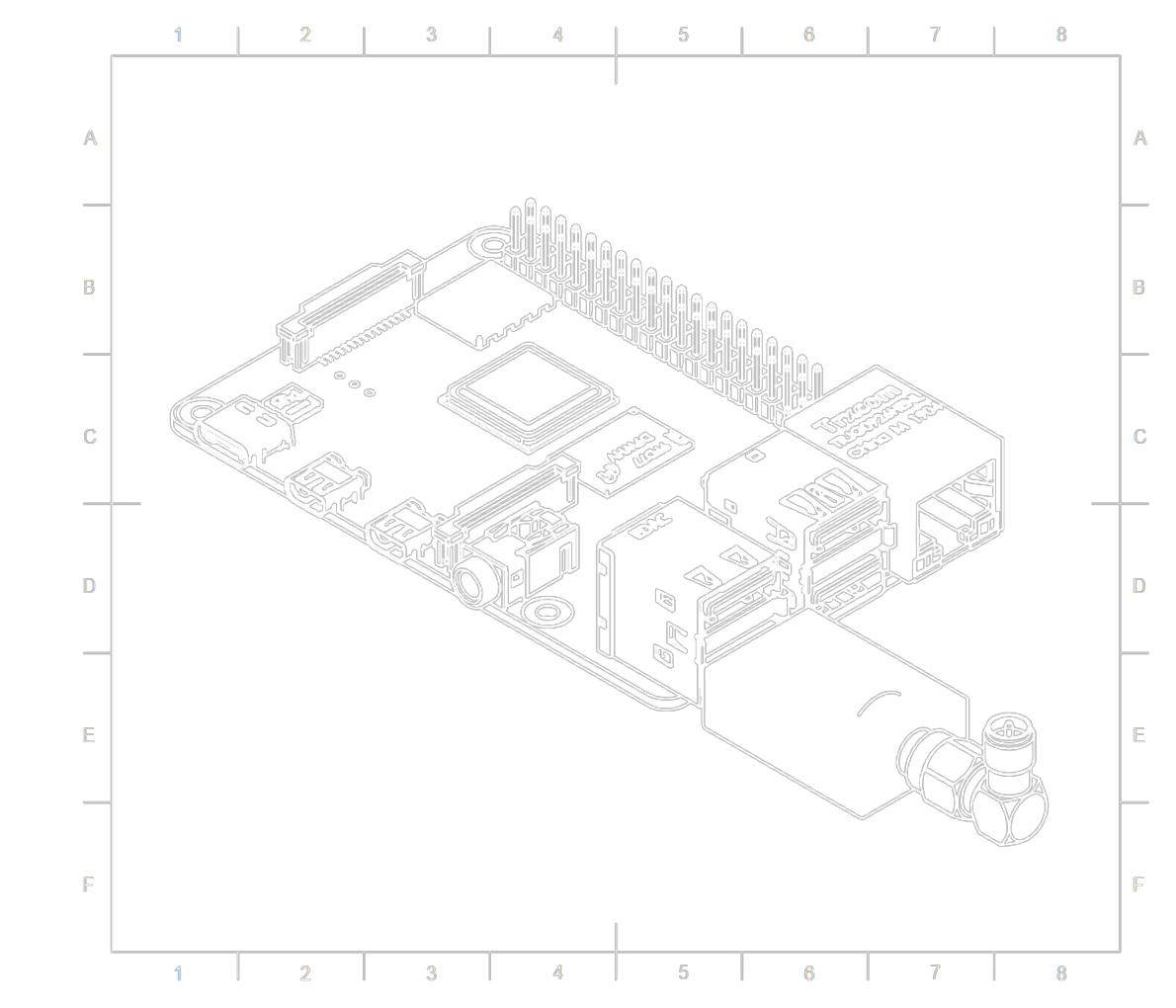

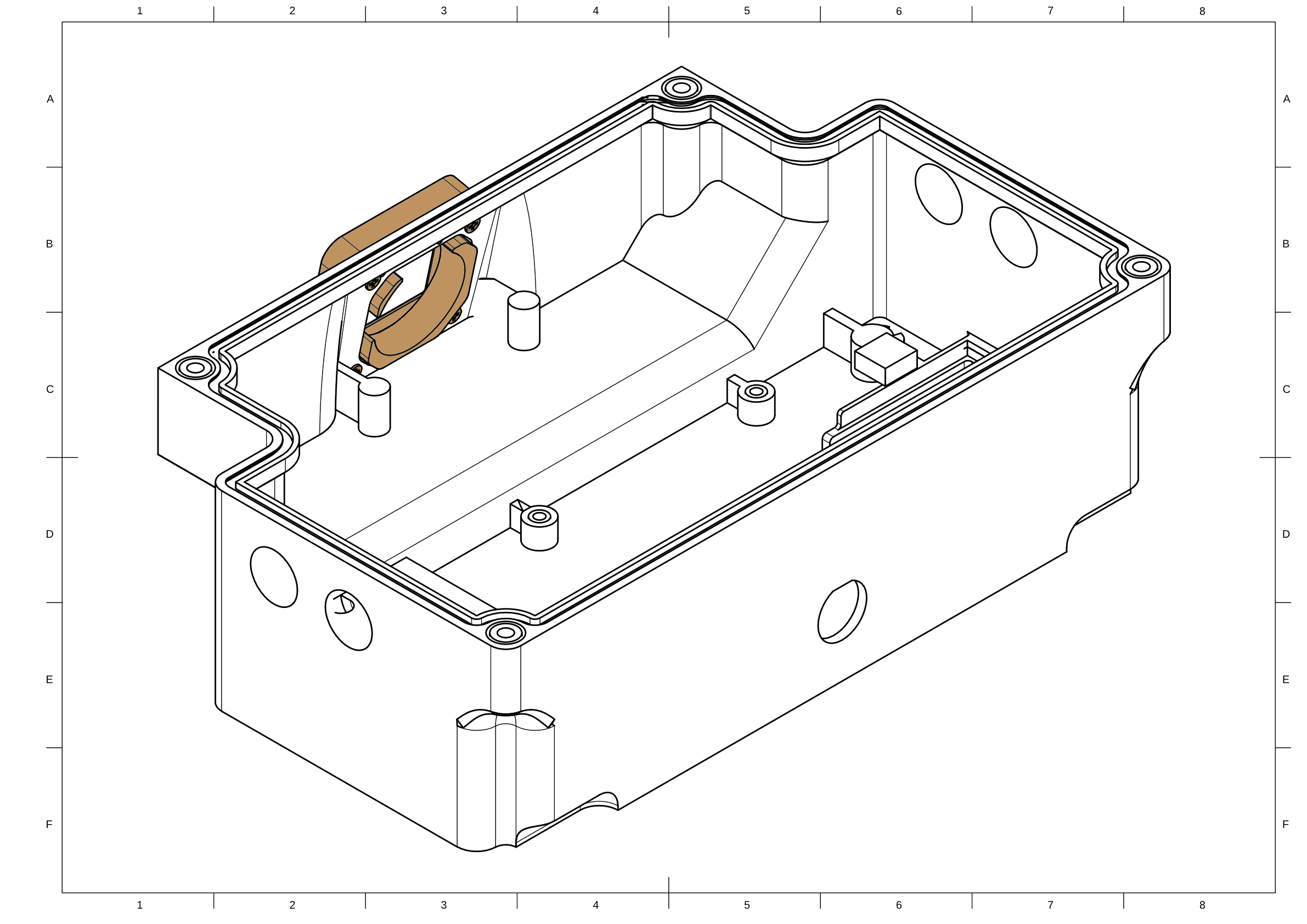

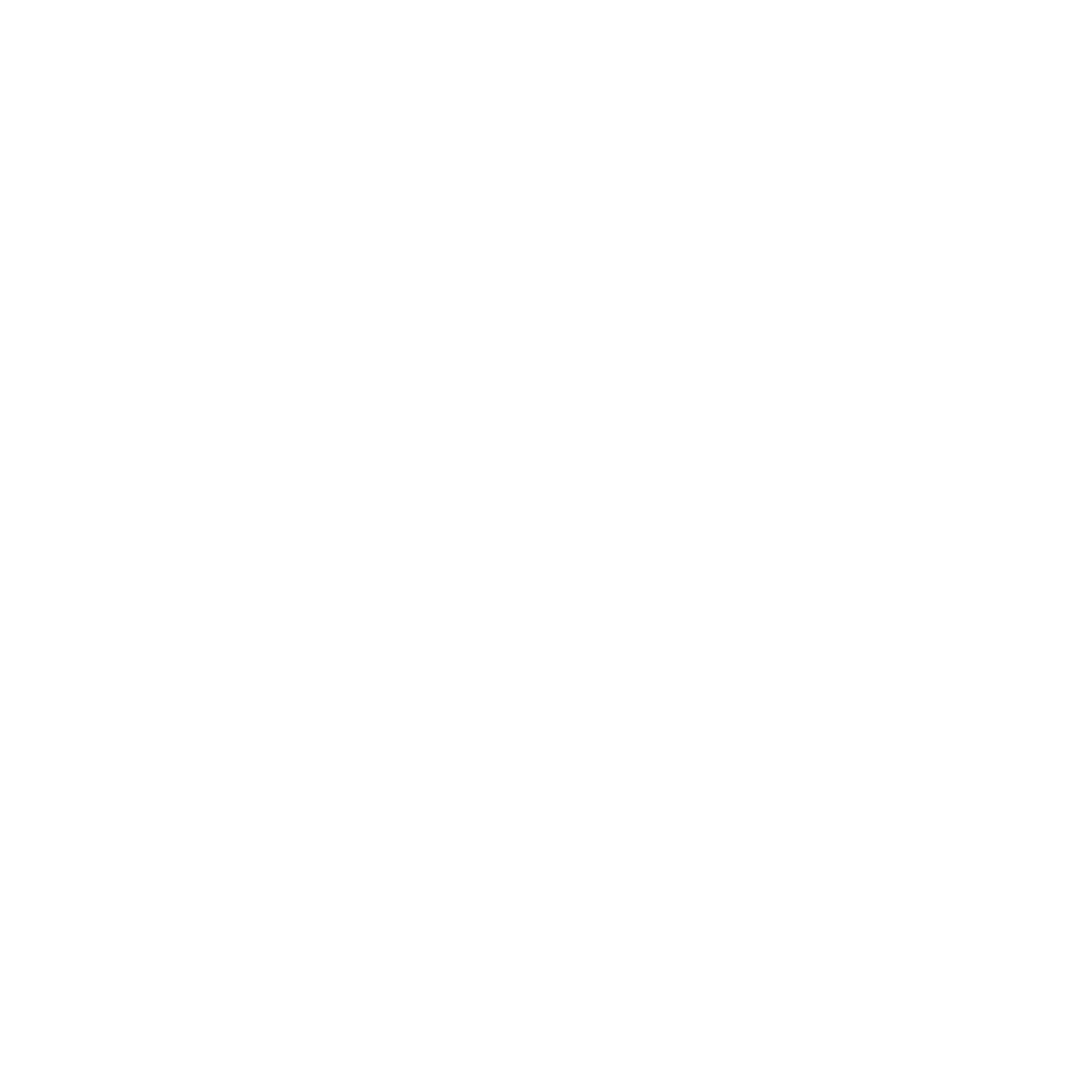

Step 1

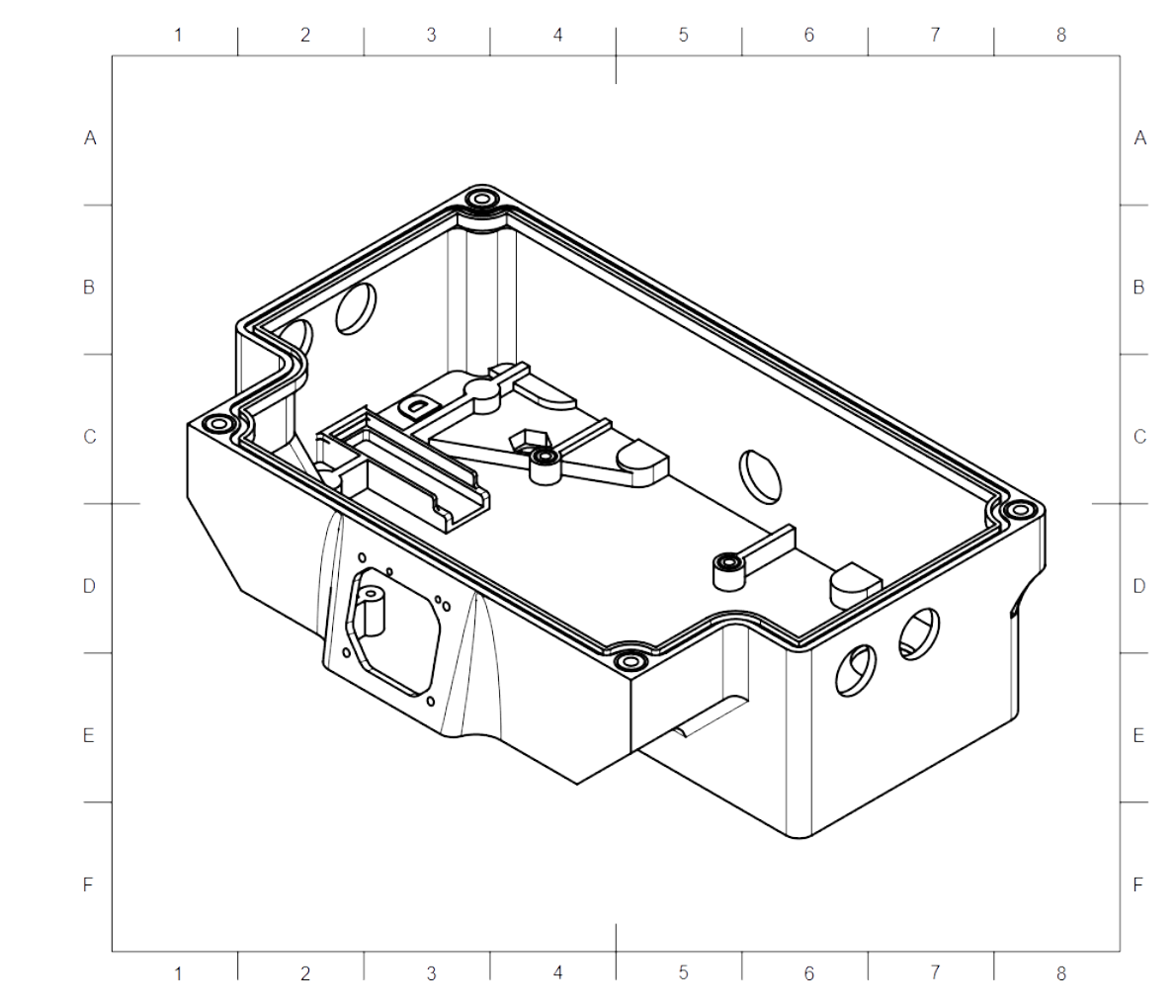

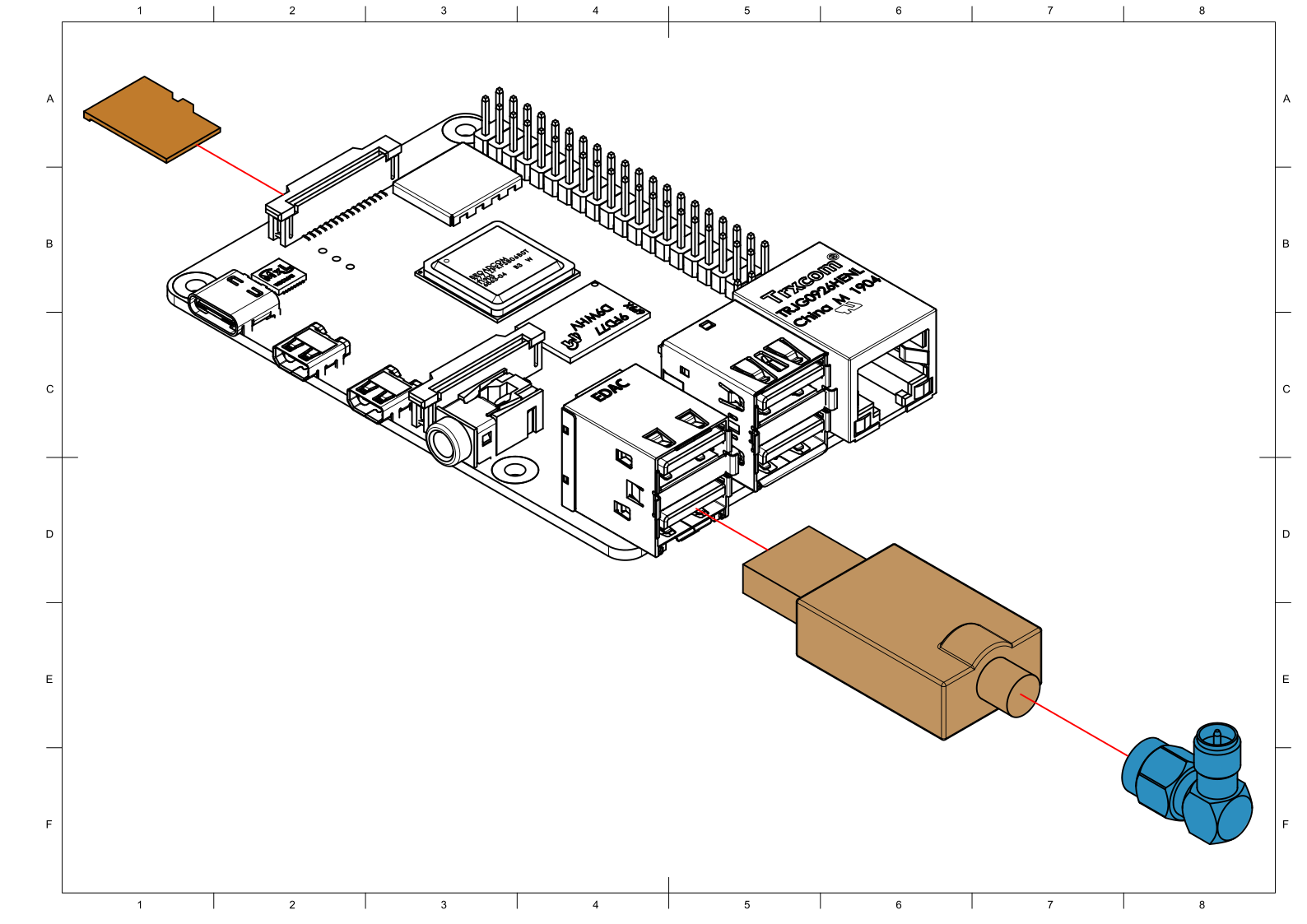

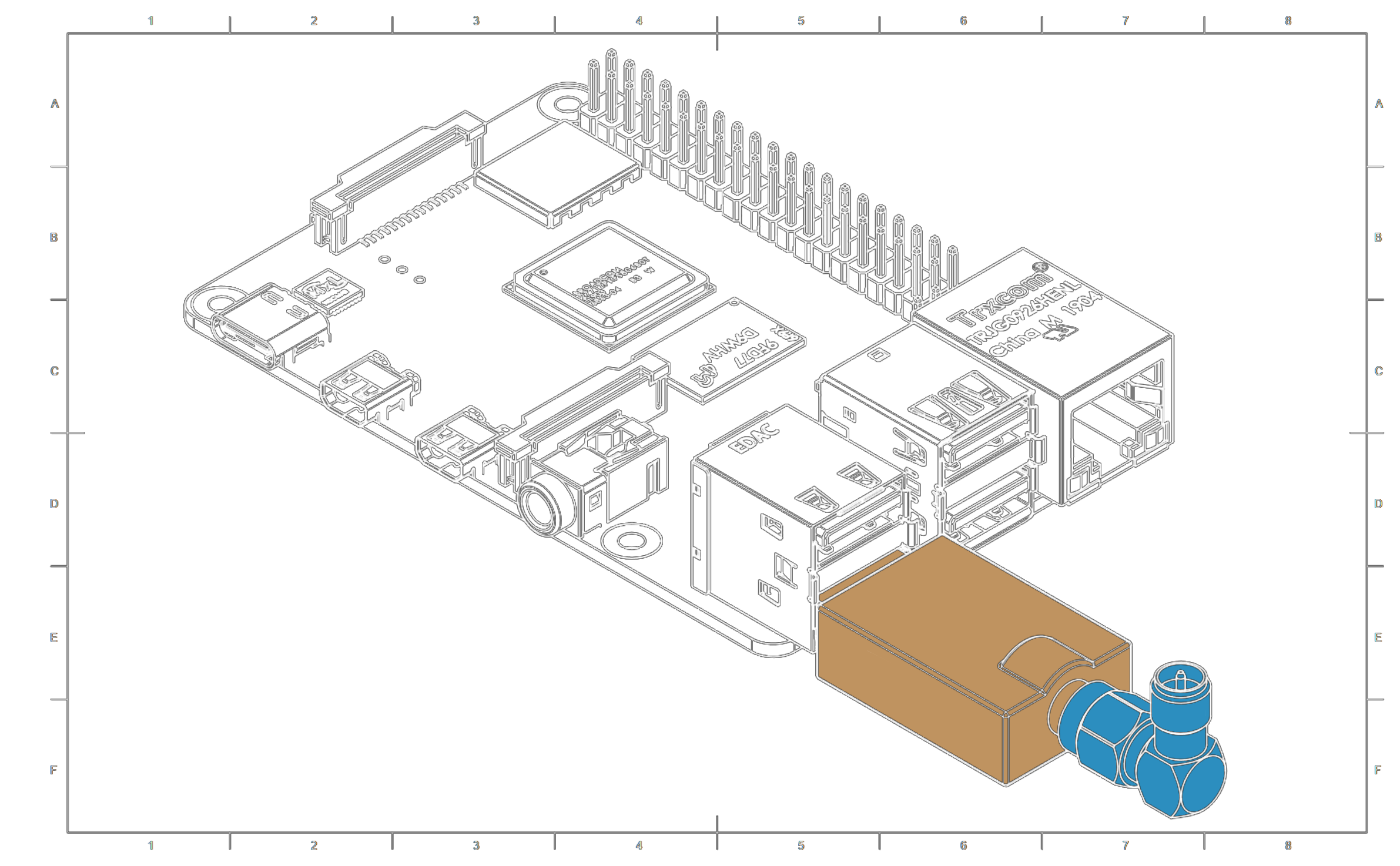

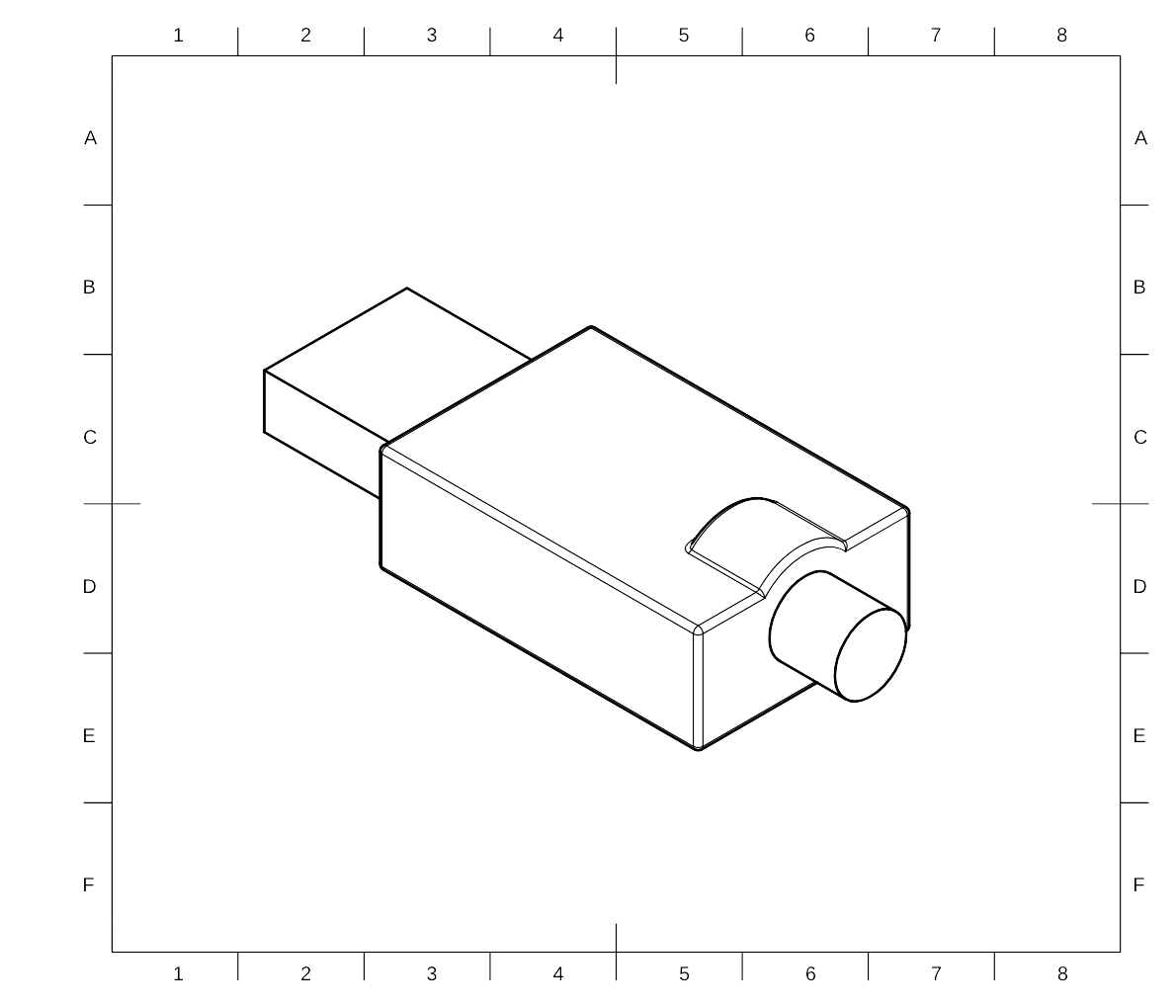

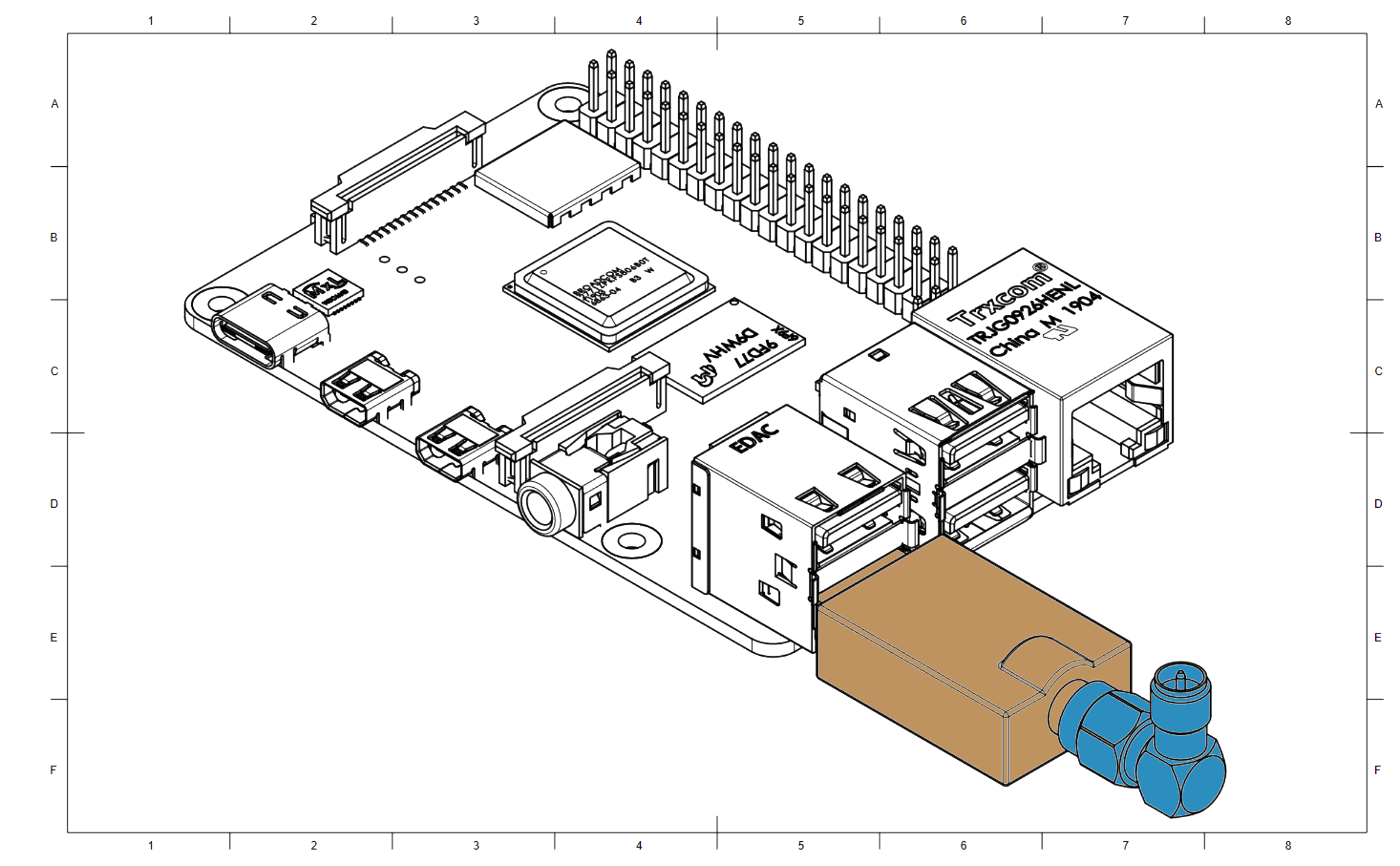

WiFi adapter

WiFi adapter

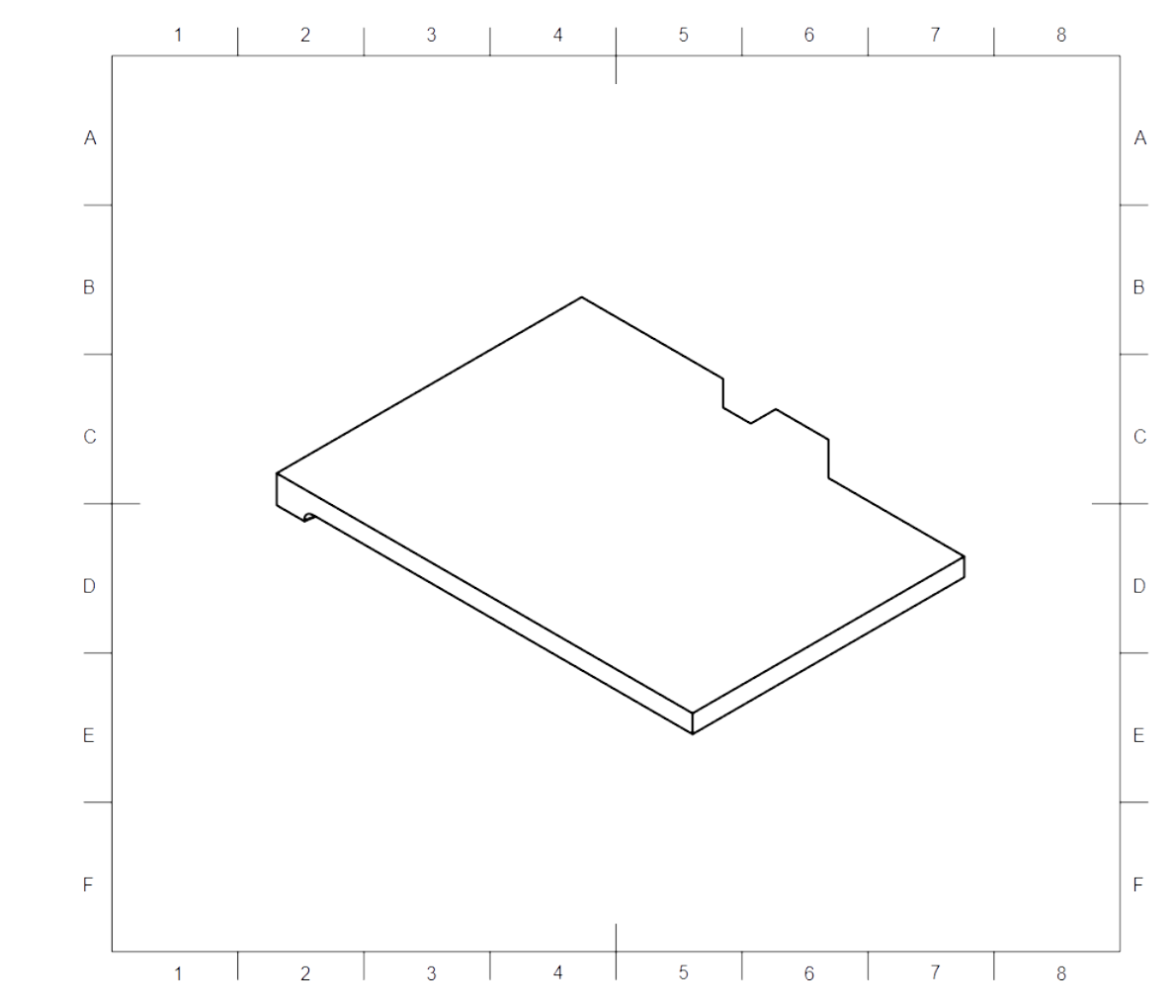

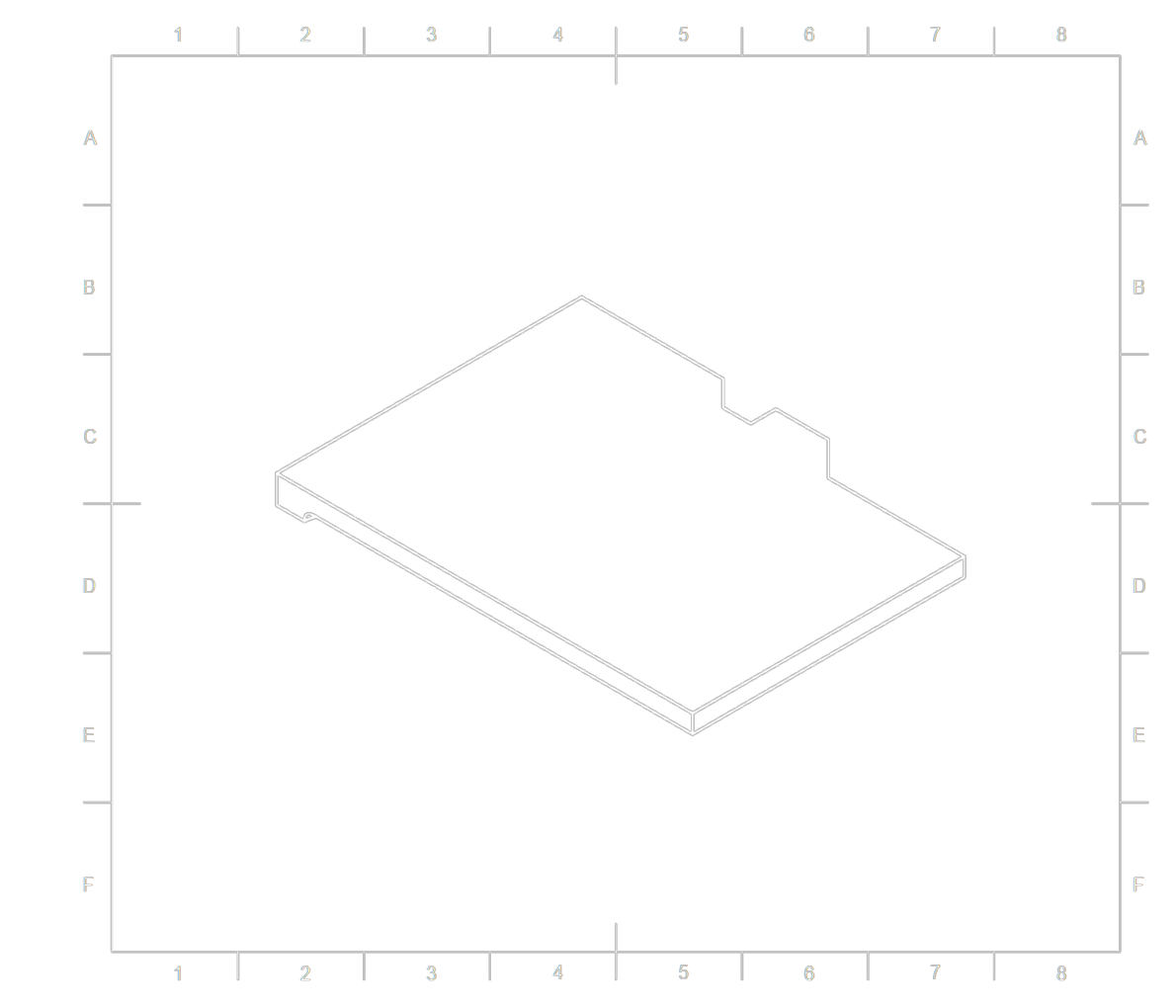

SD card with burnt LeoOS image

SD card with burnt LeoOS image

---

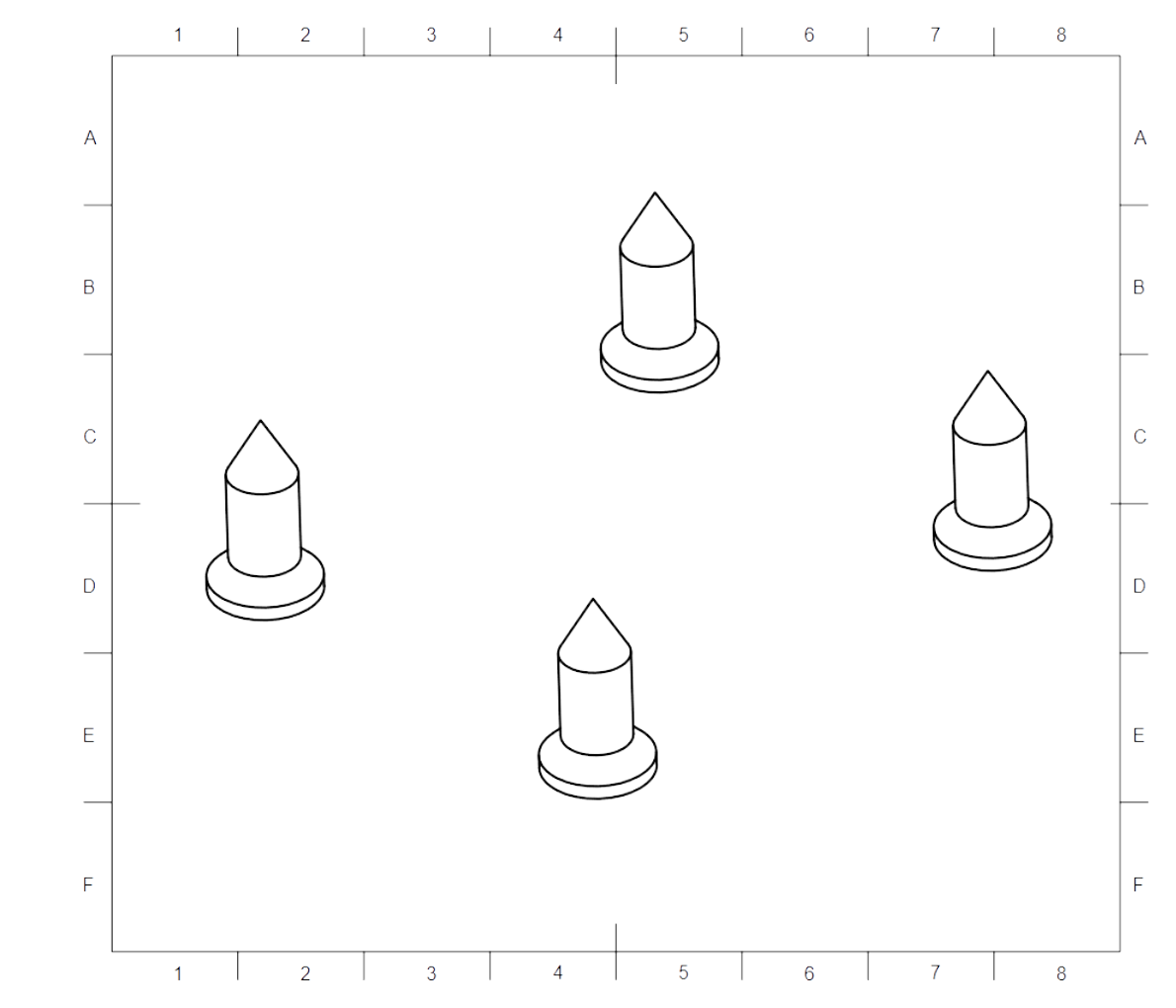

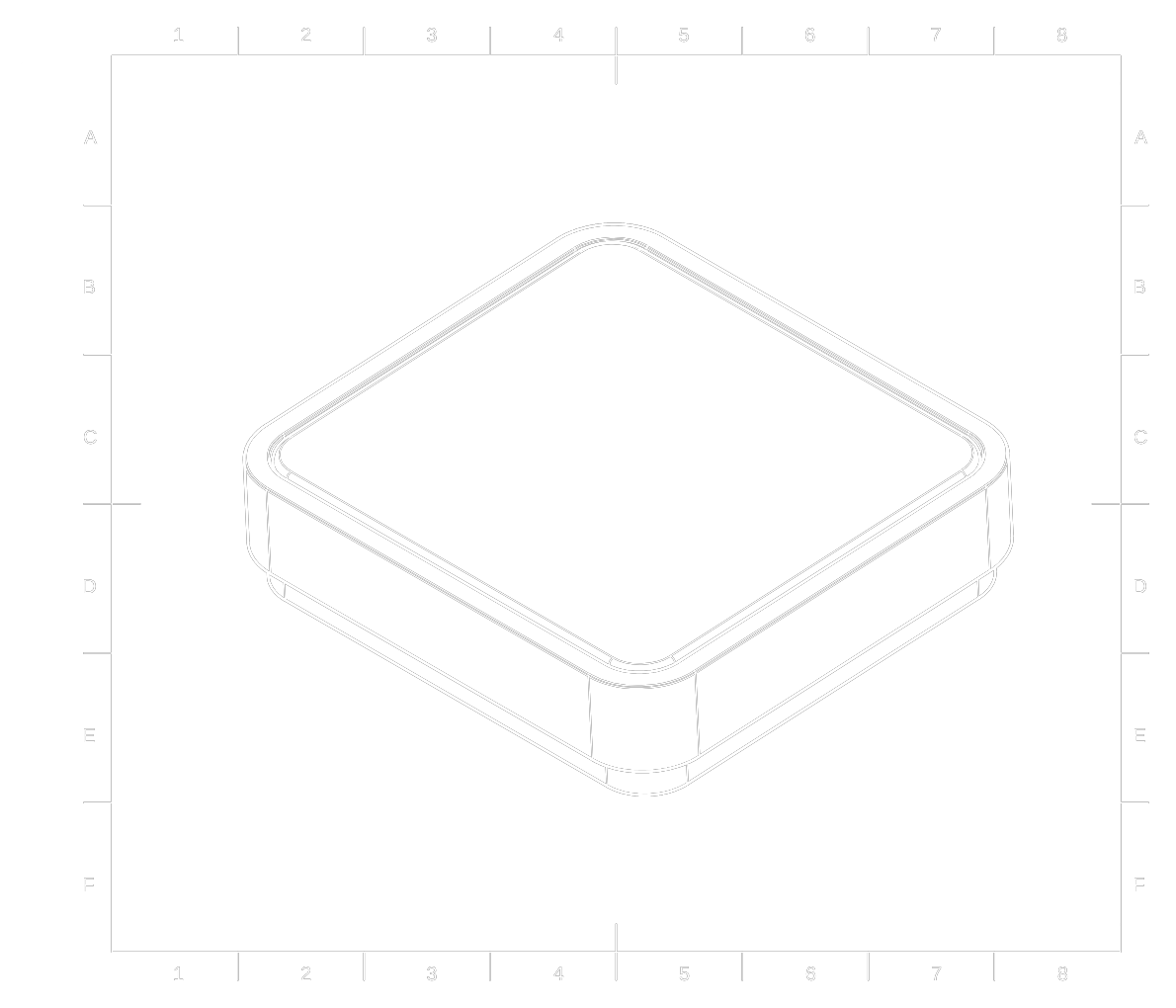

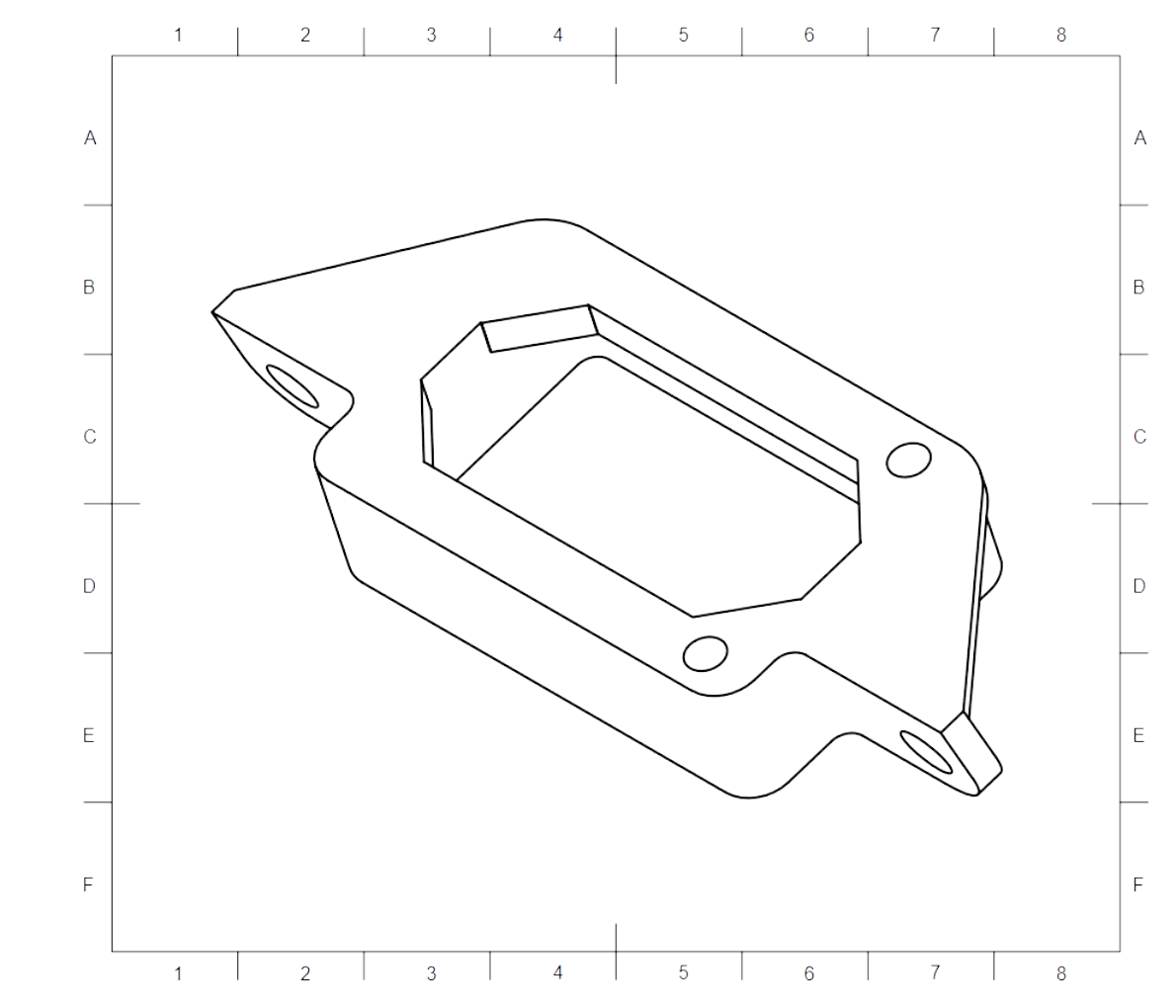

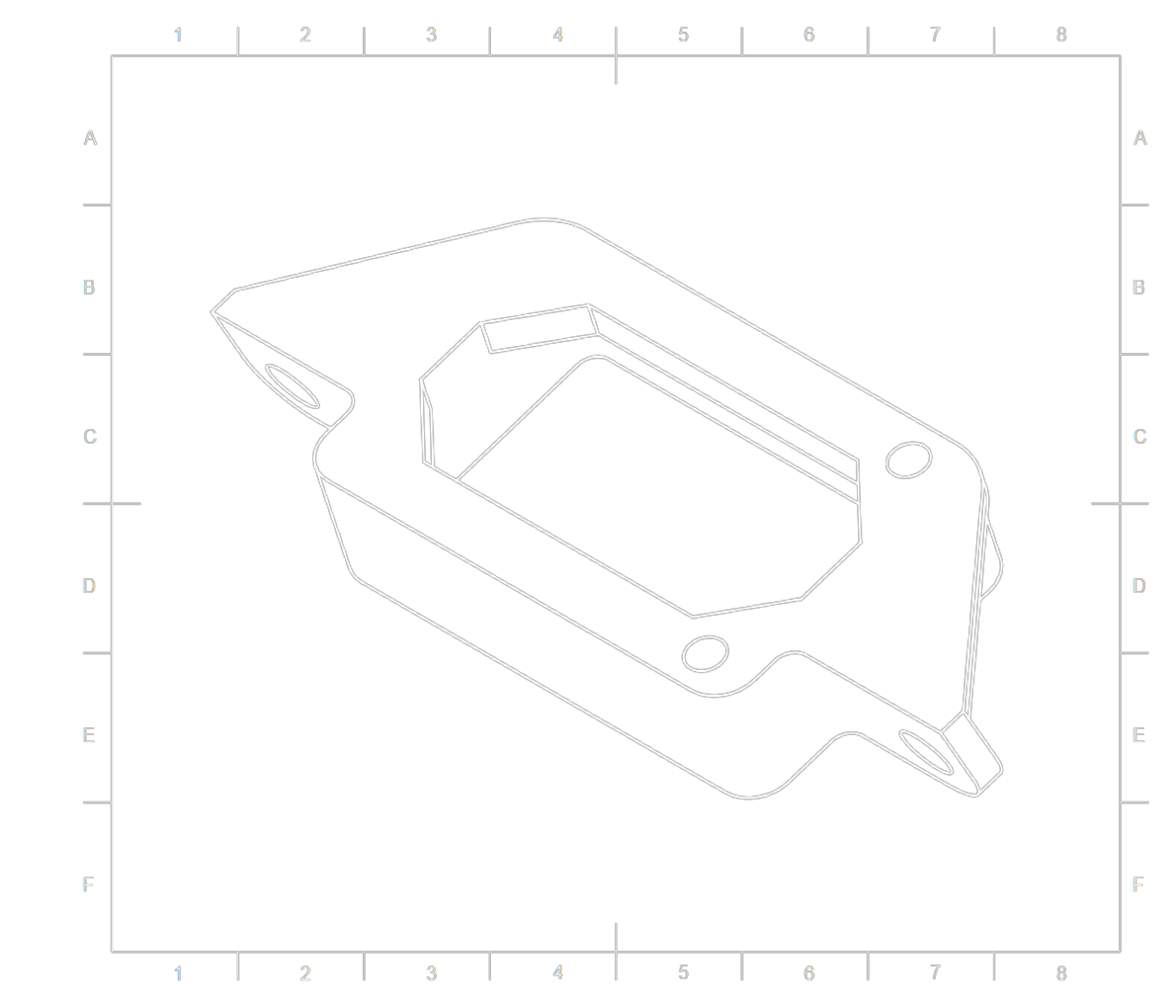

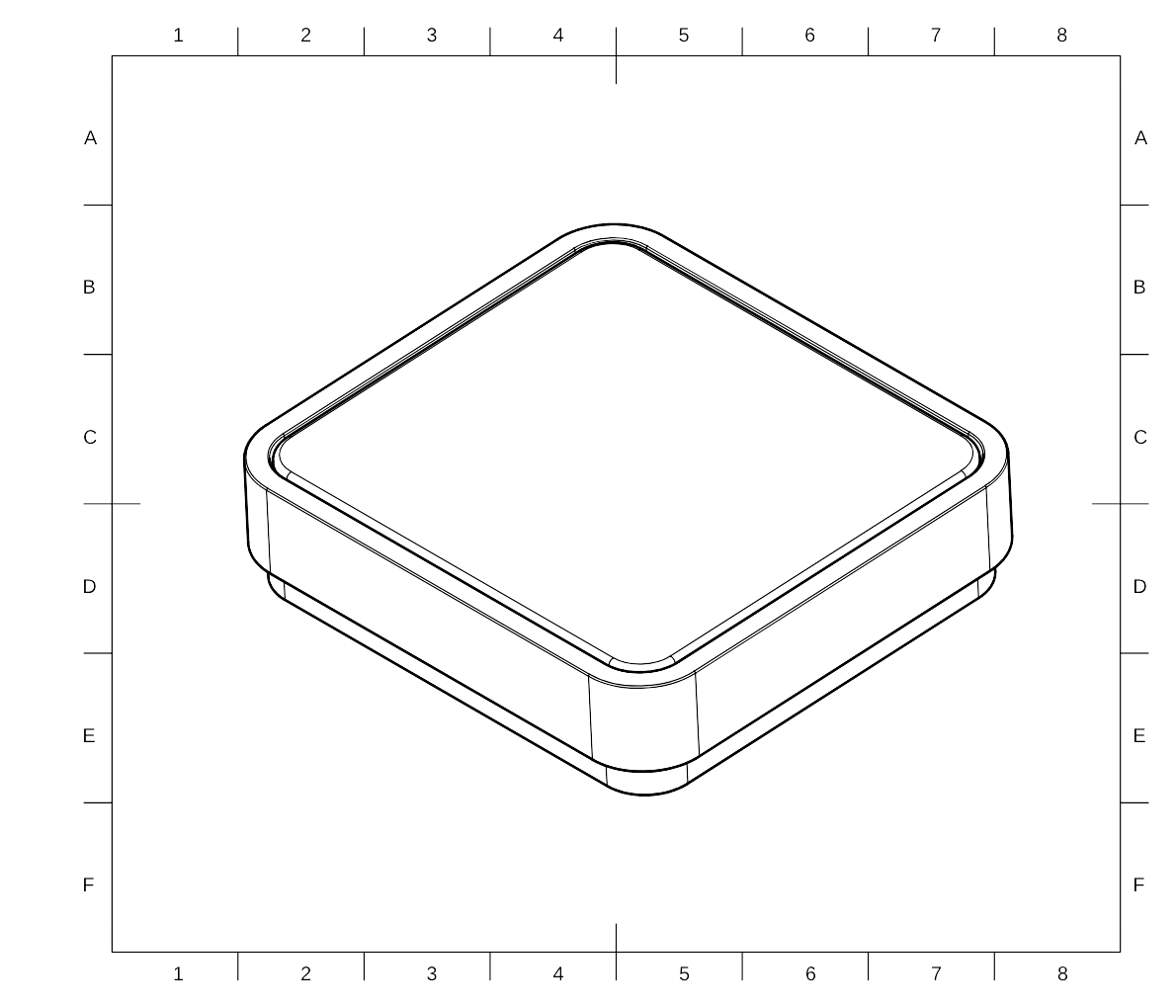

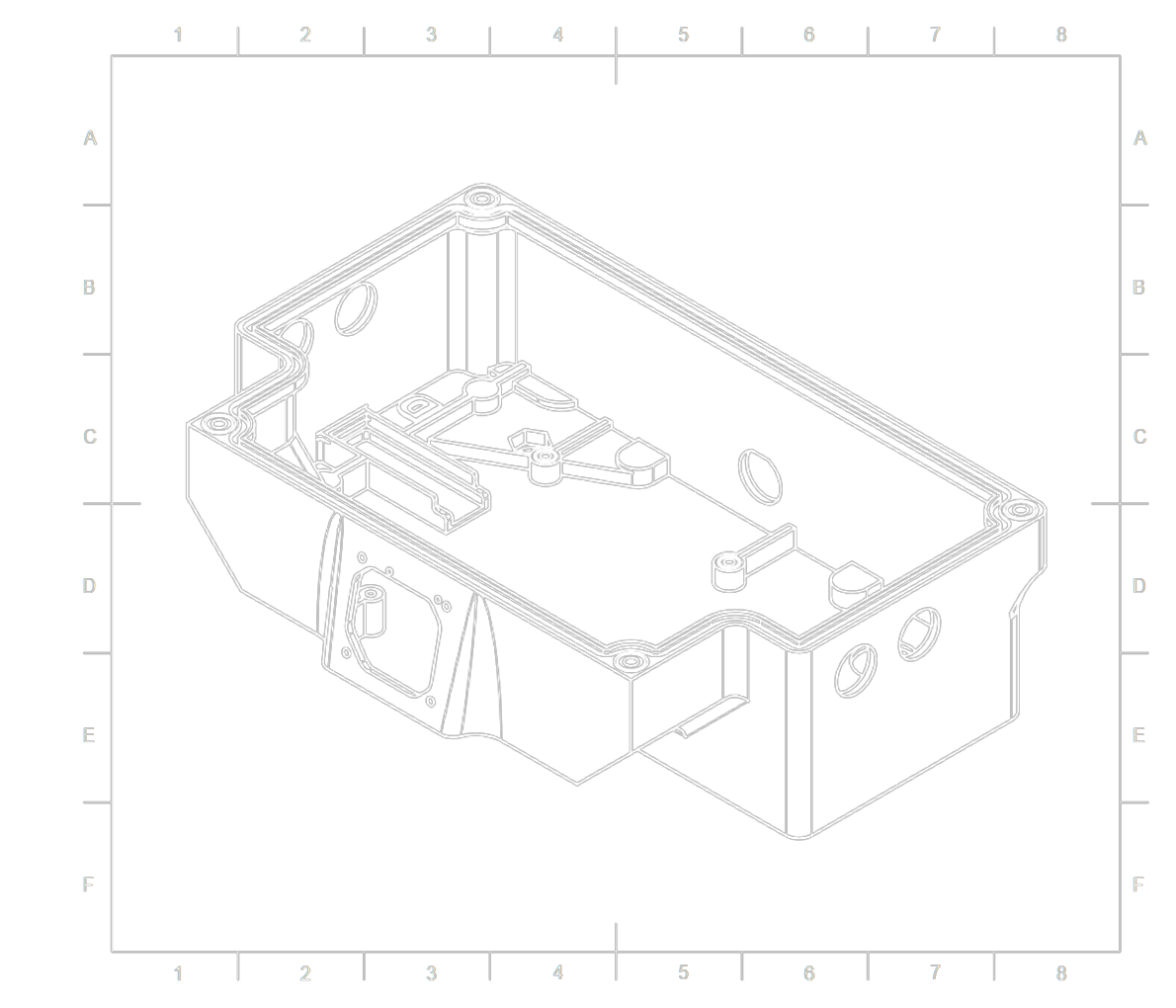

Step 2

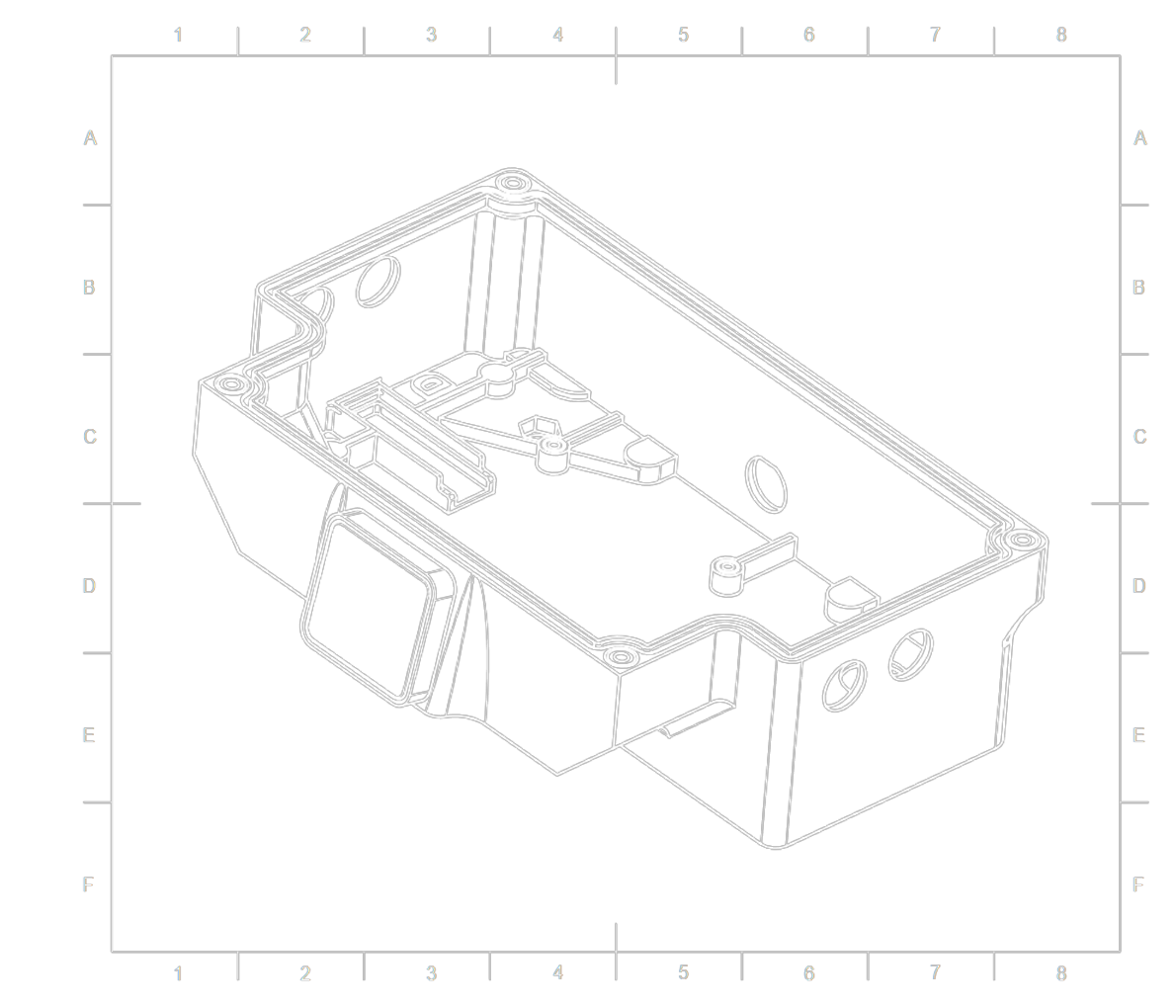

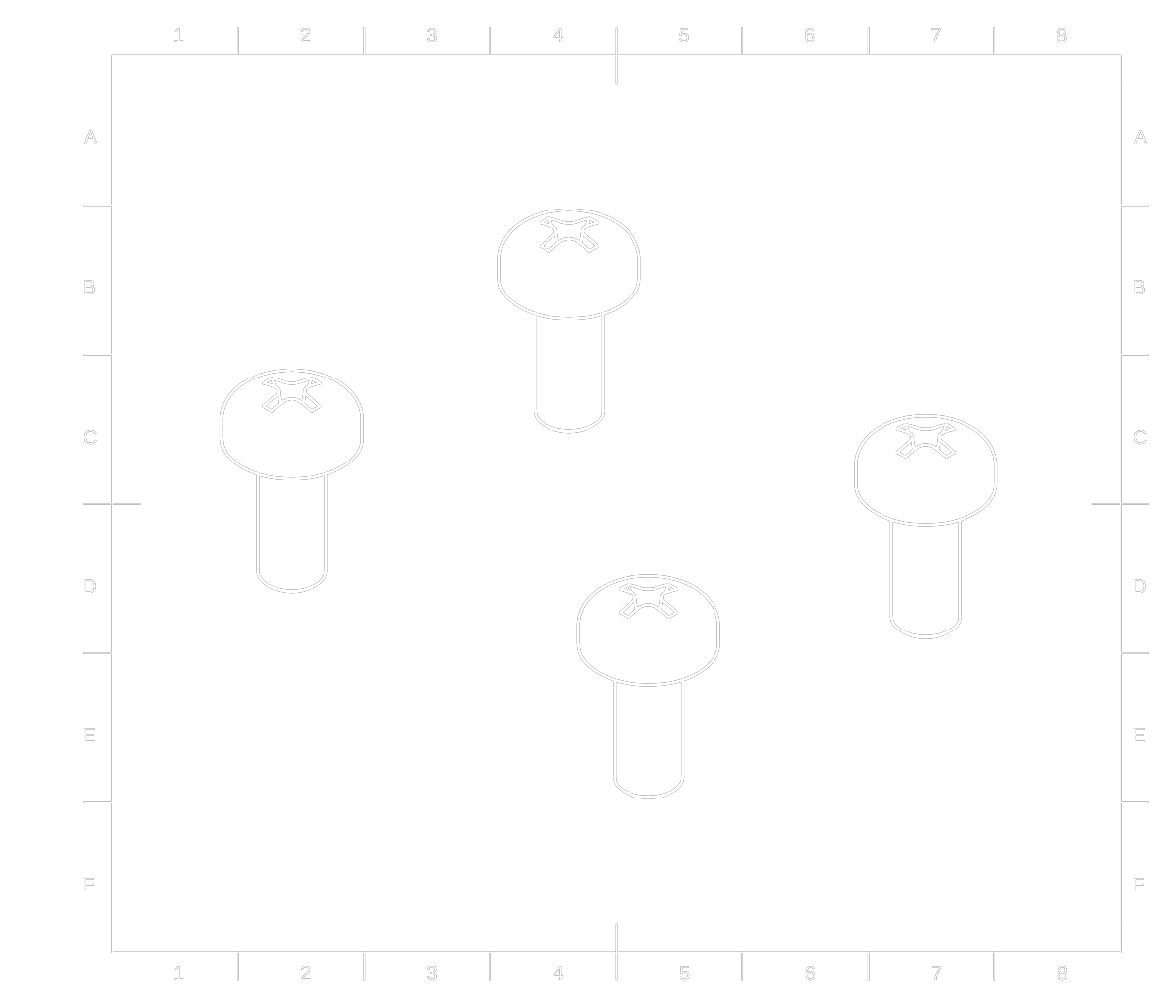

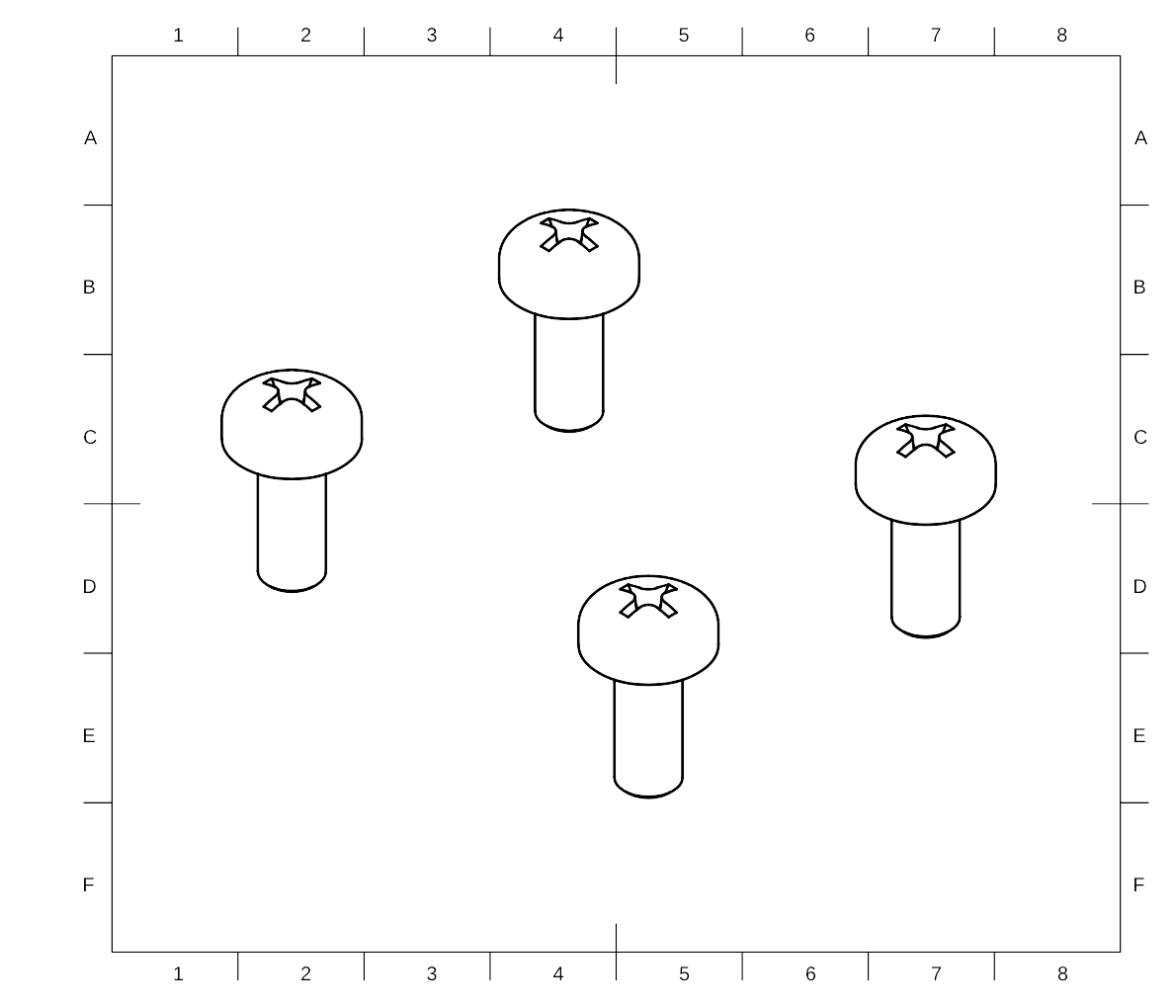

4x pan head B2.2x6.5 screw

4x pan head B2.2x6.5 screw

note

Do not overtighten the screw.

---

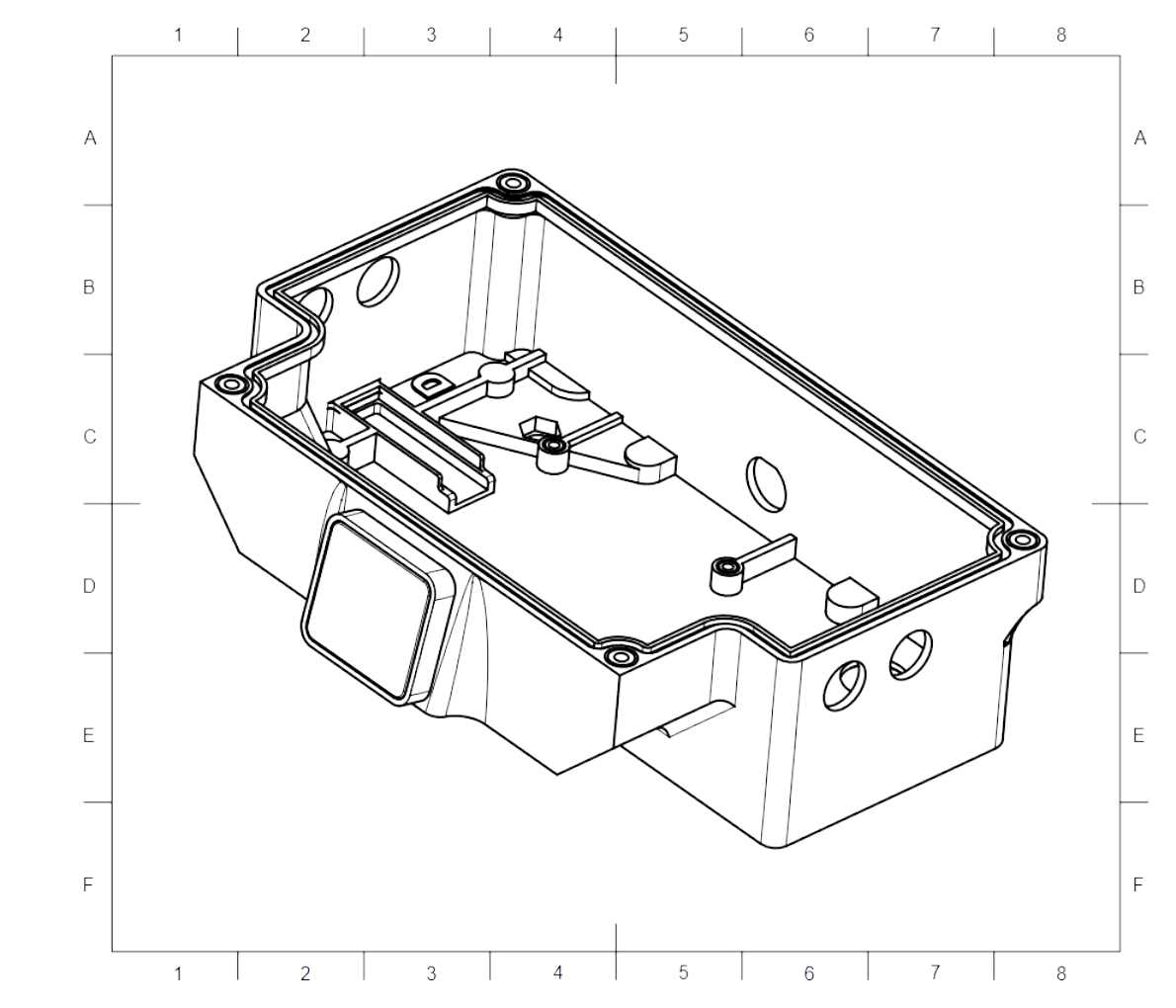

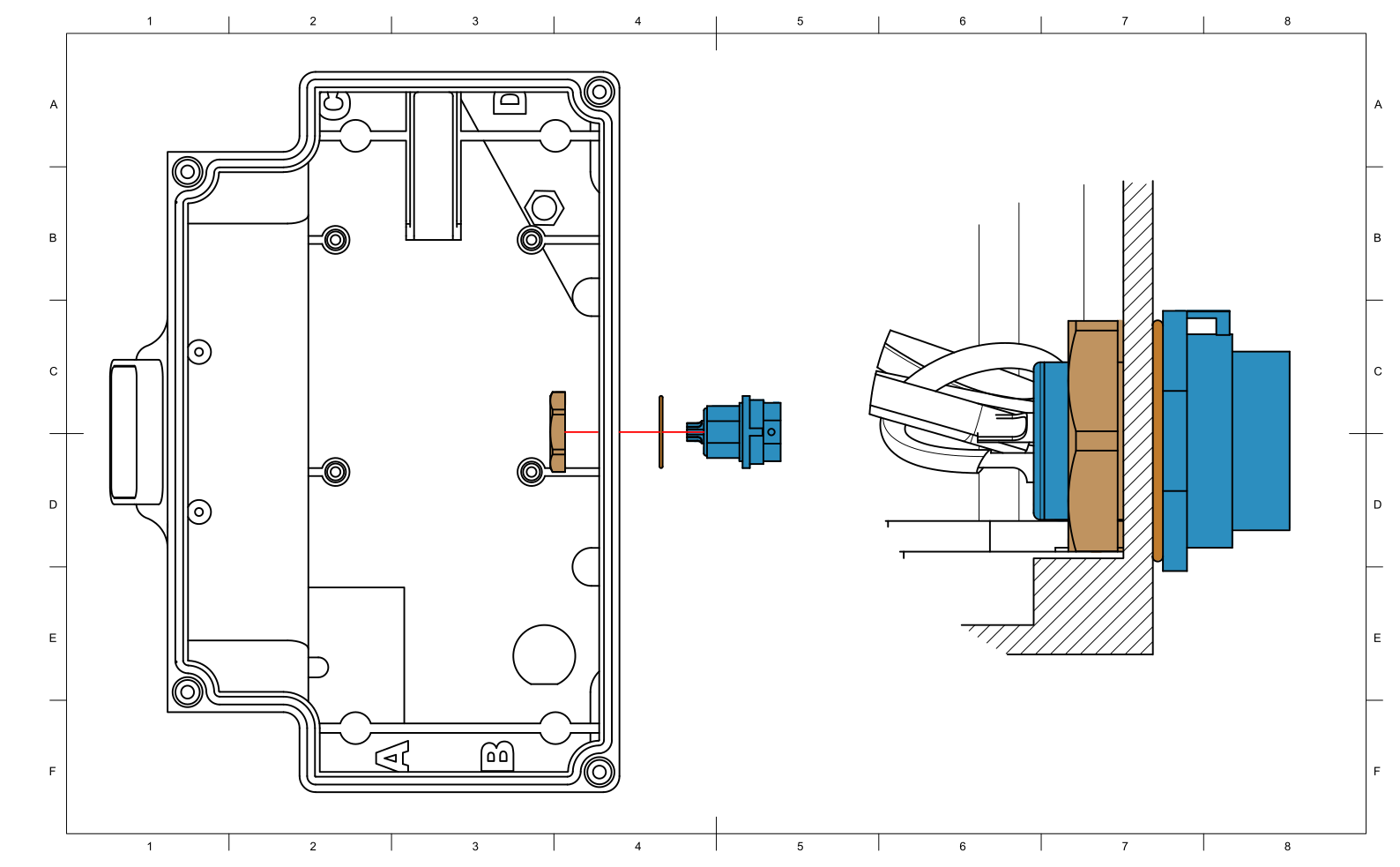

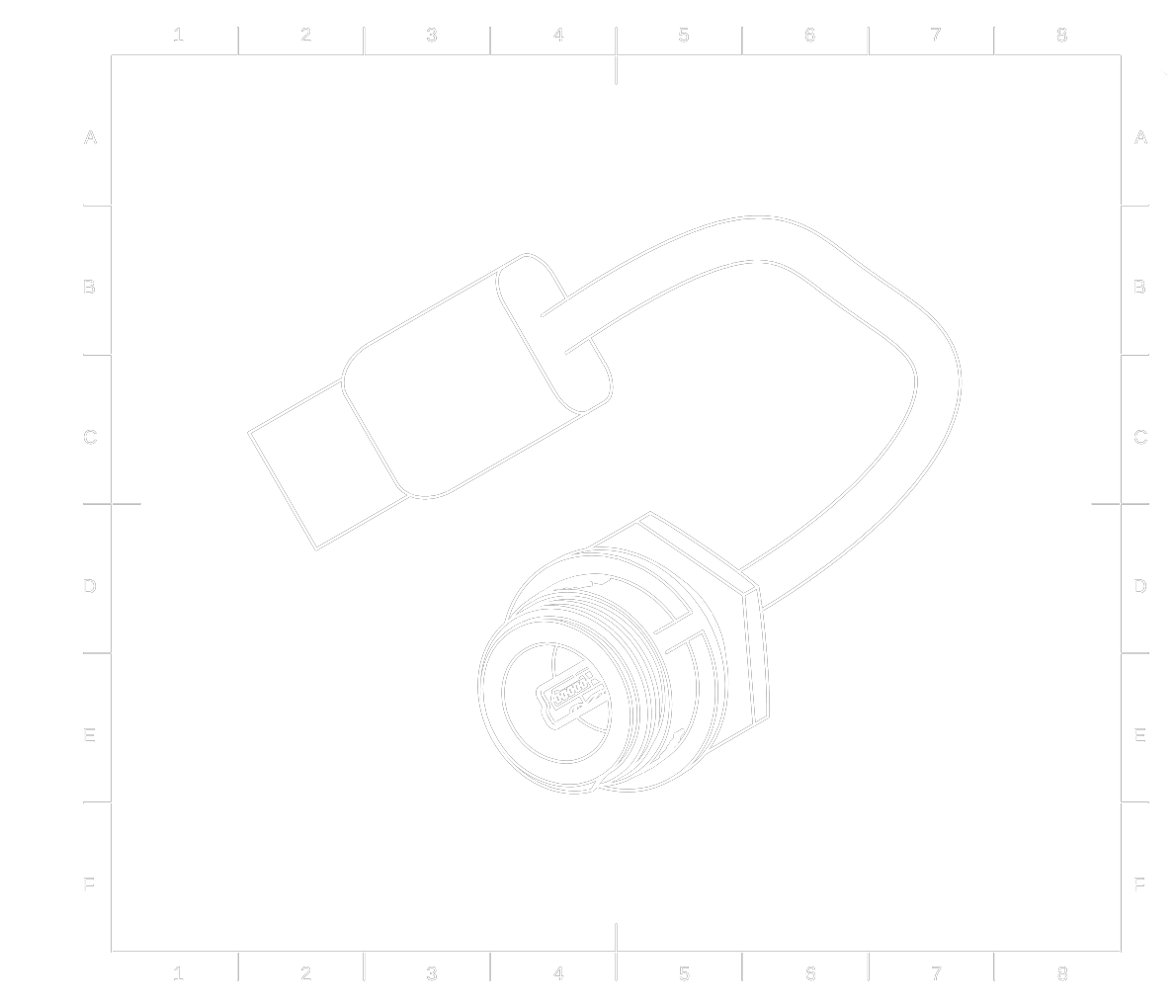

Step 3

---

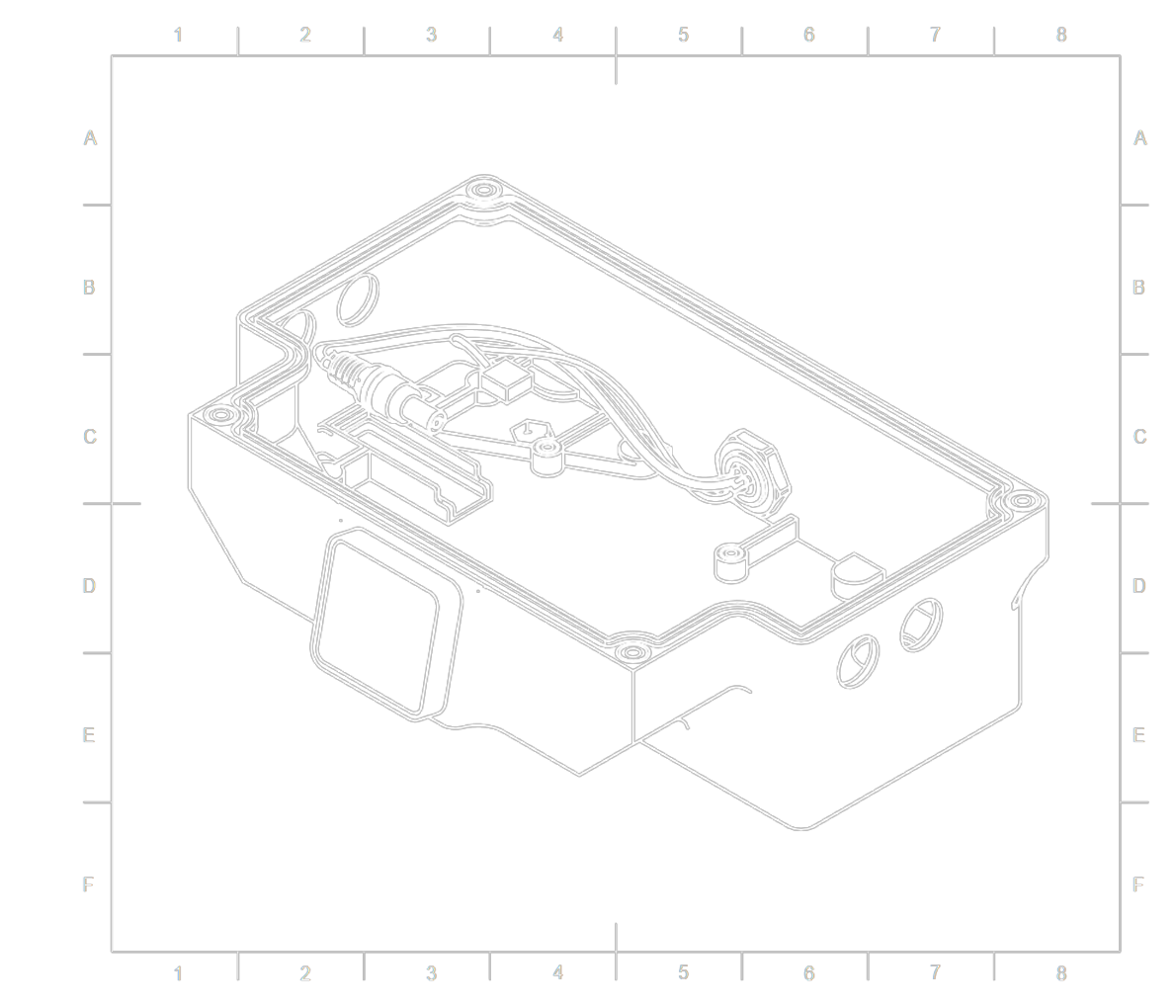

Step 4

---

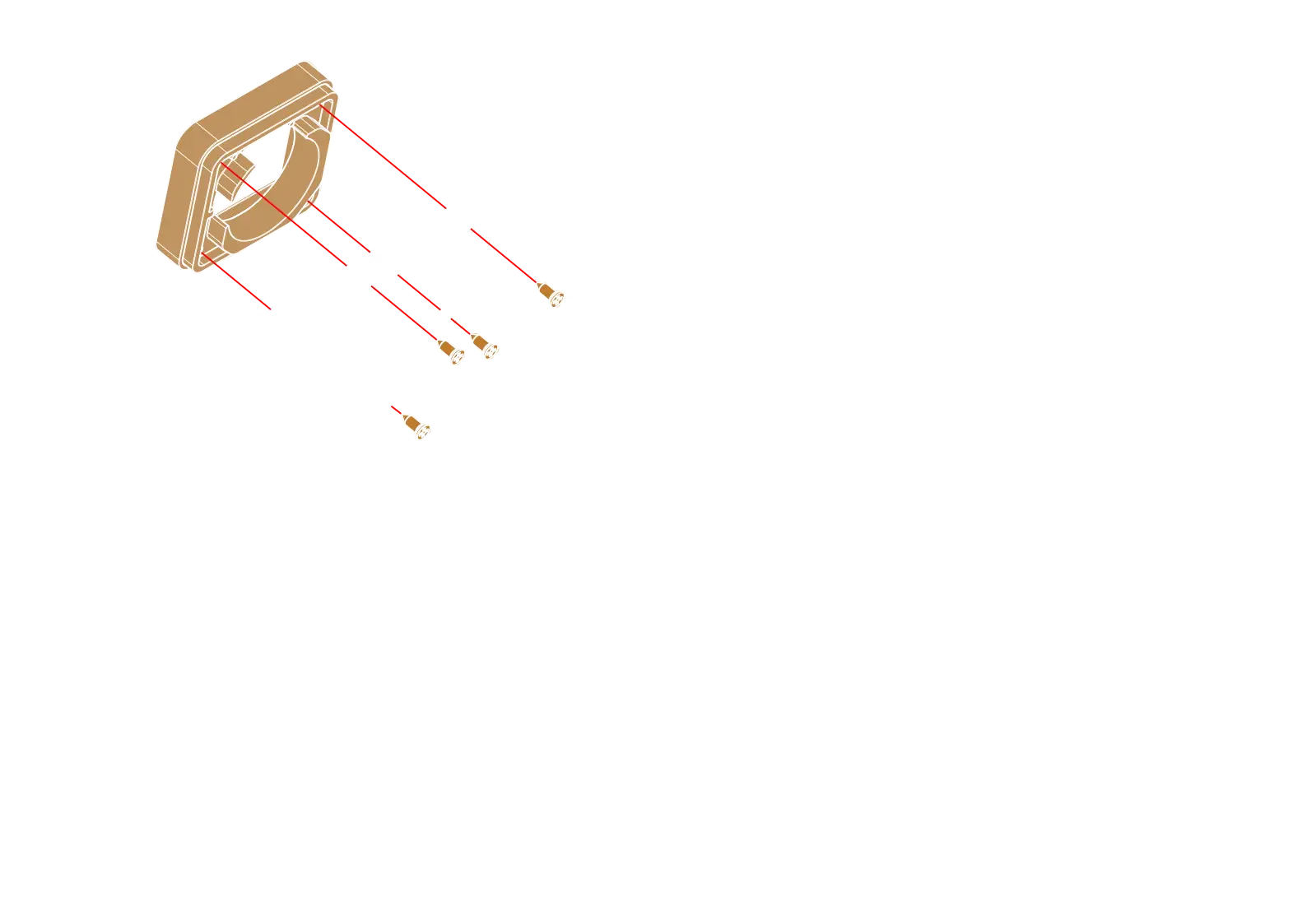

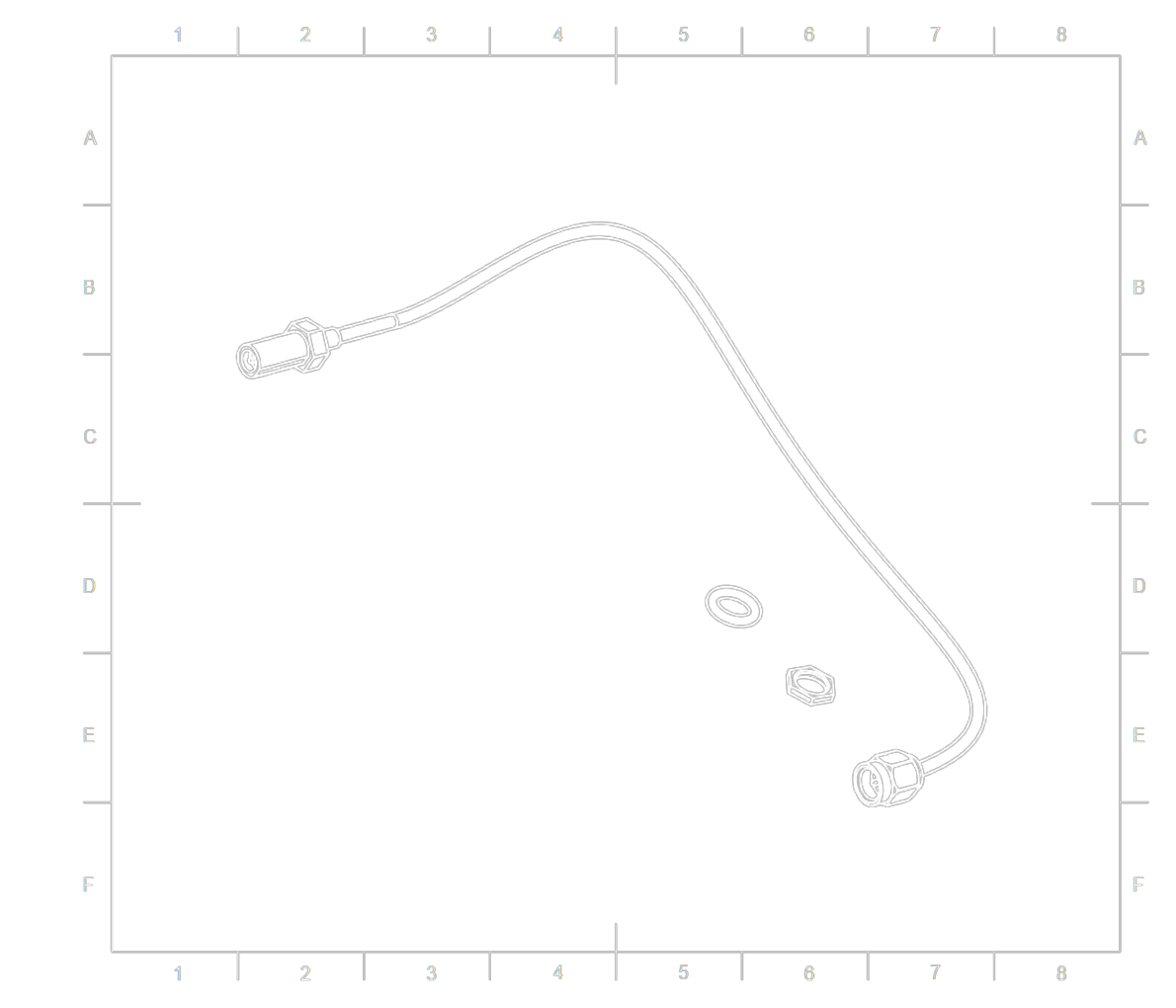

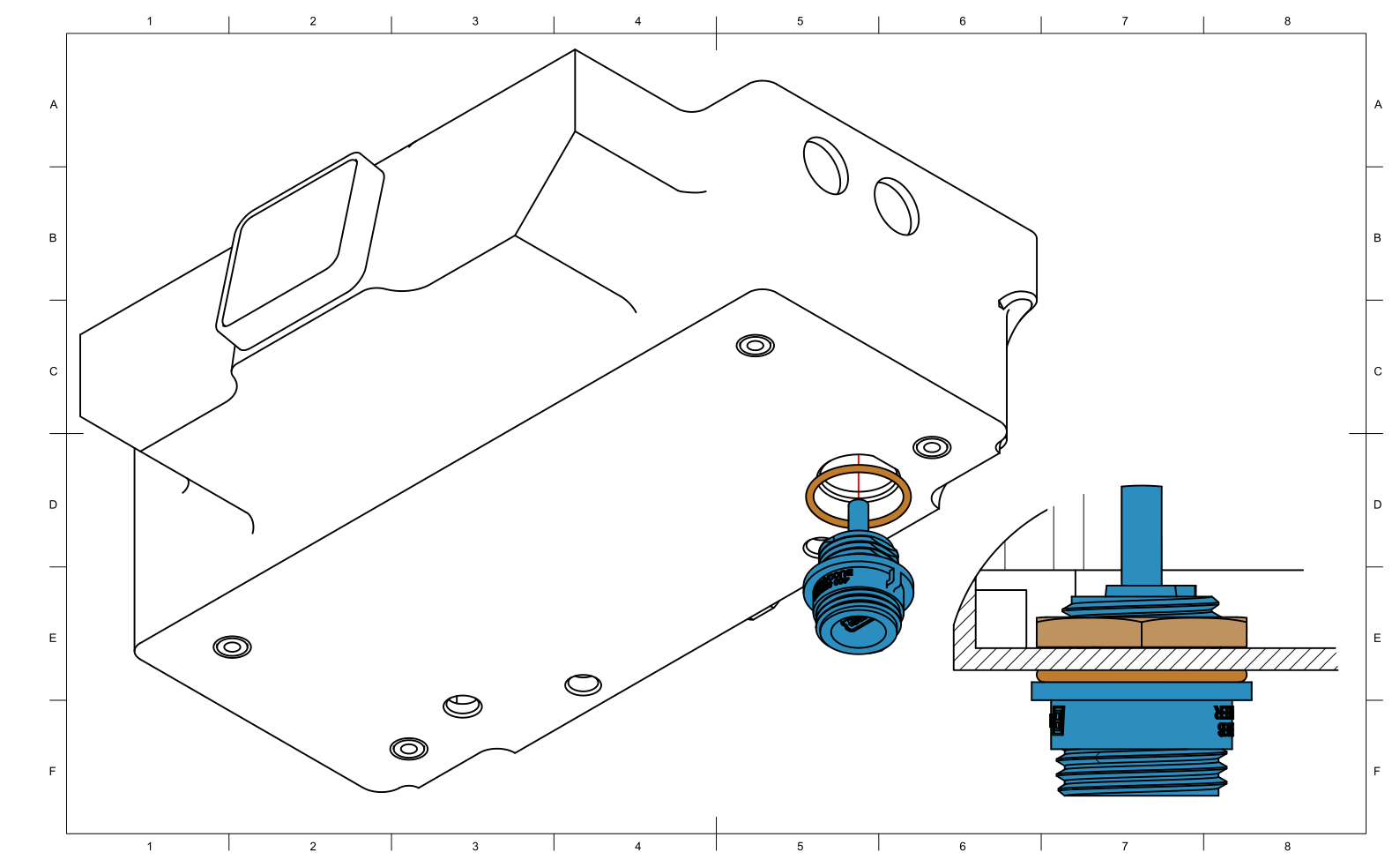

Step 5

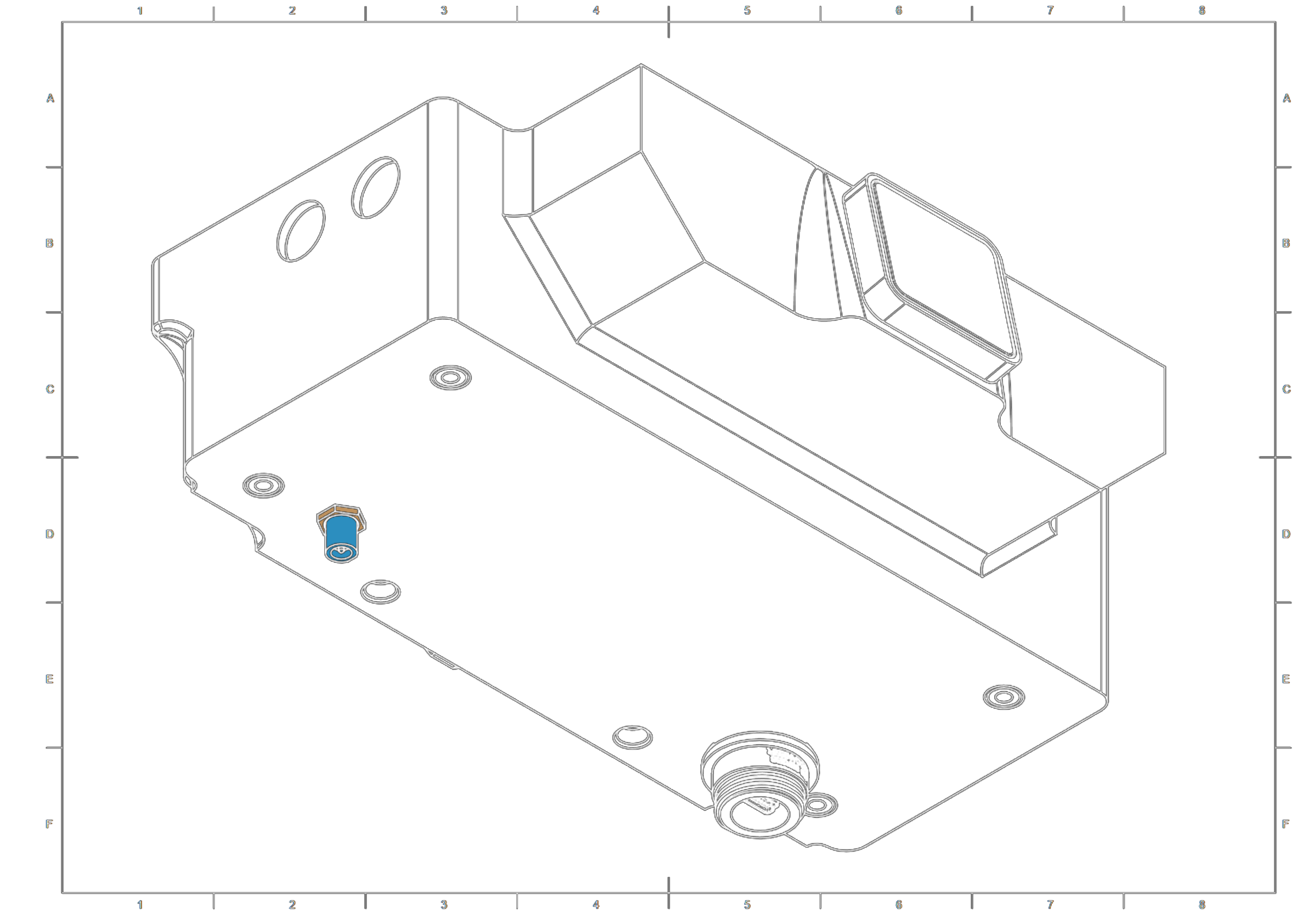

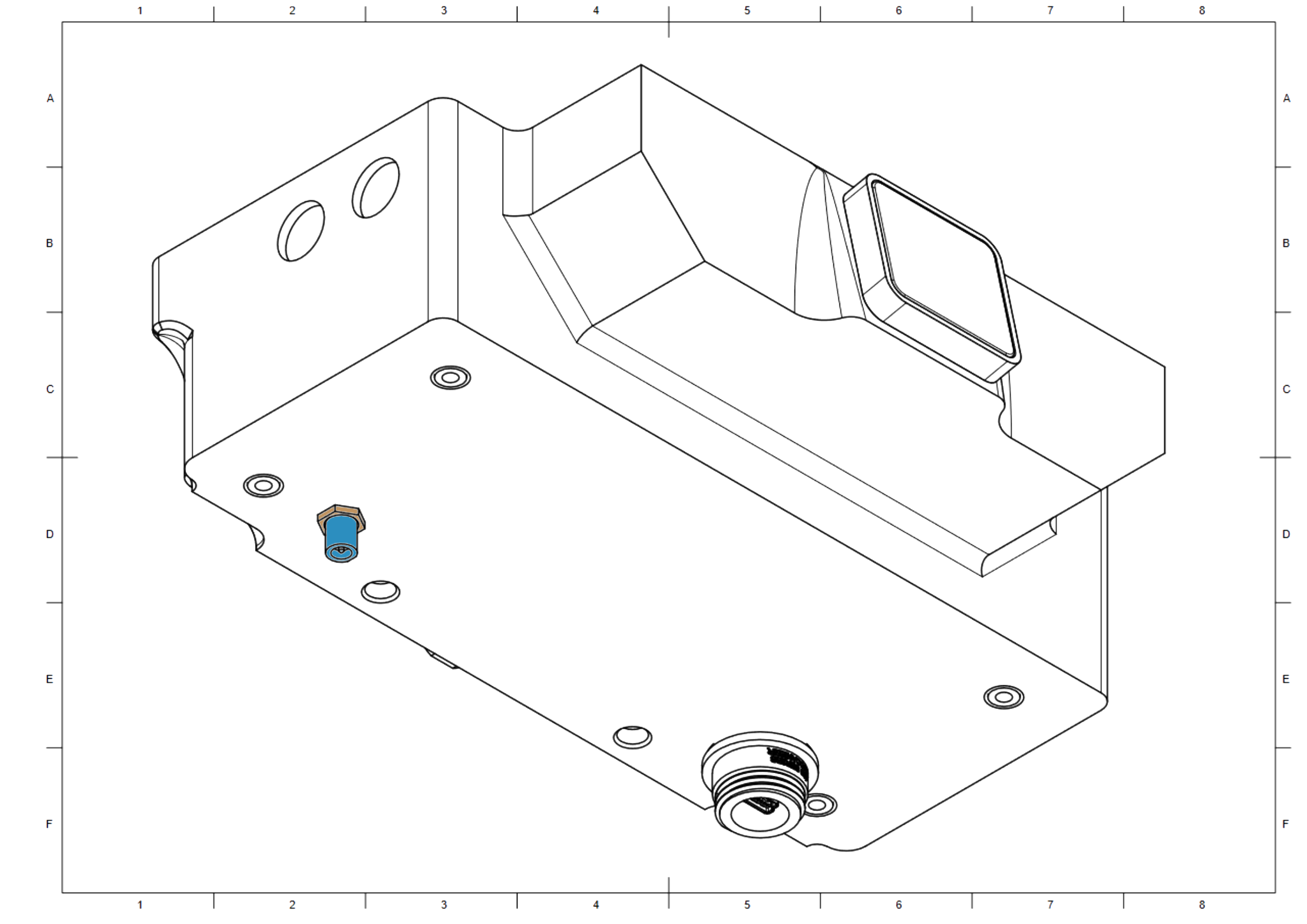

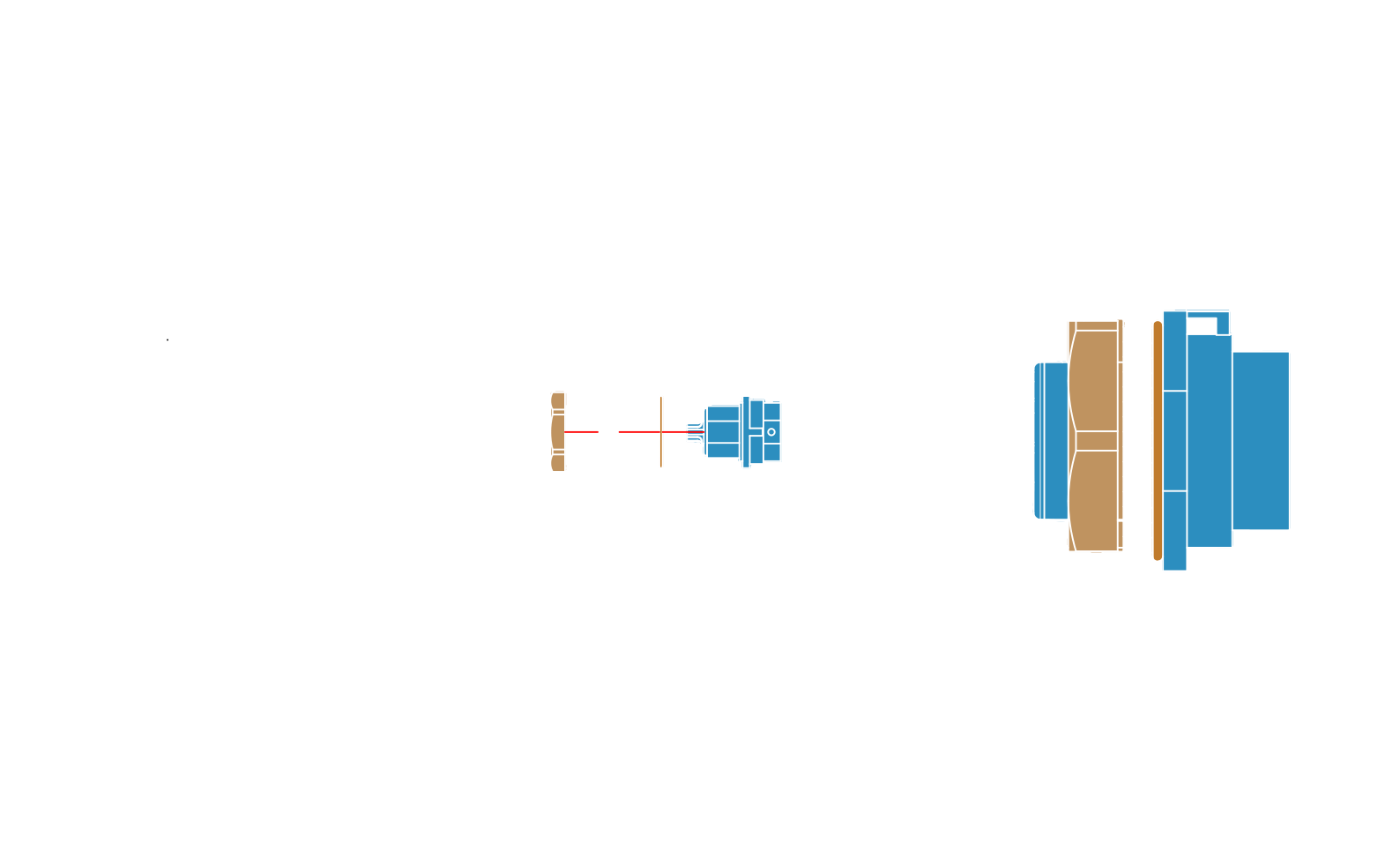

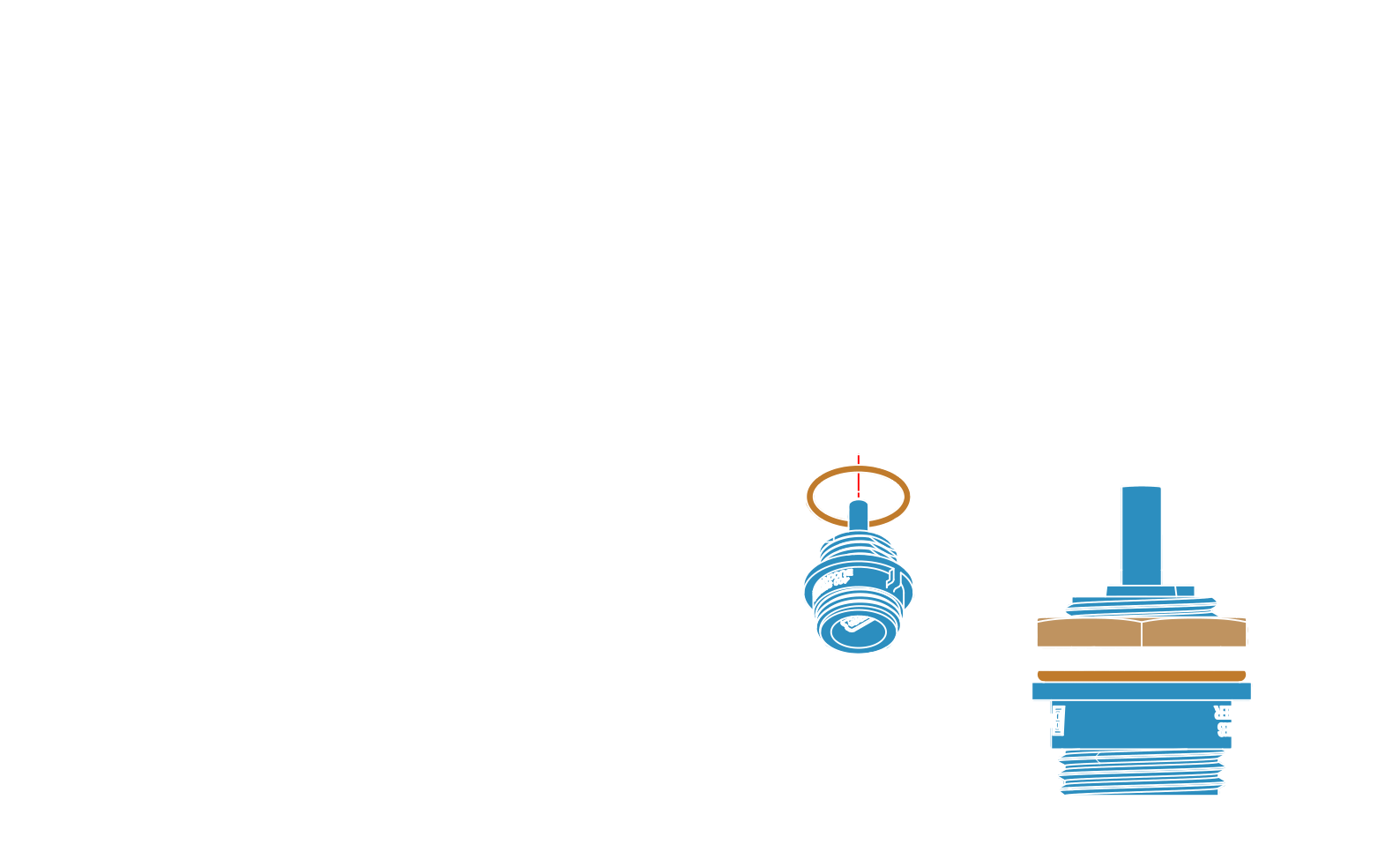

note

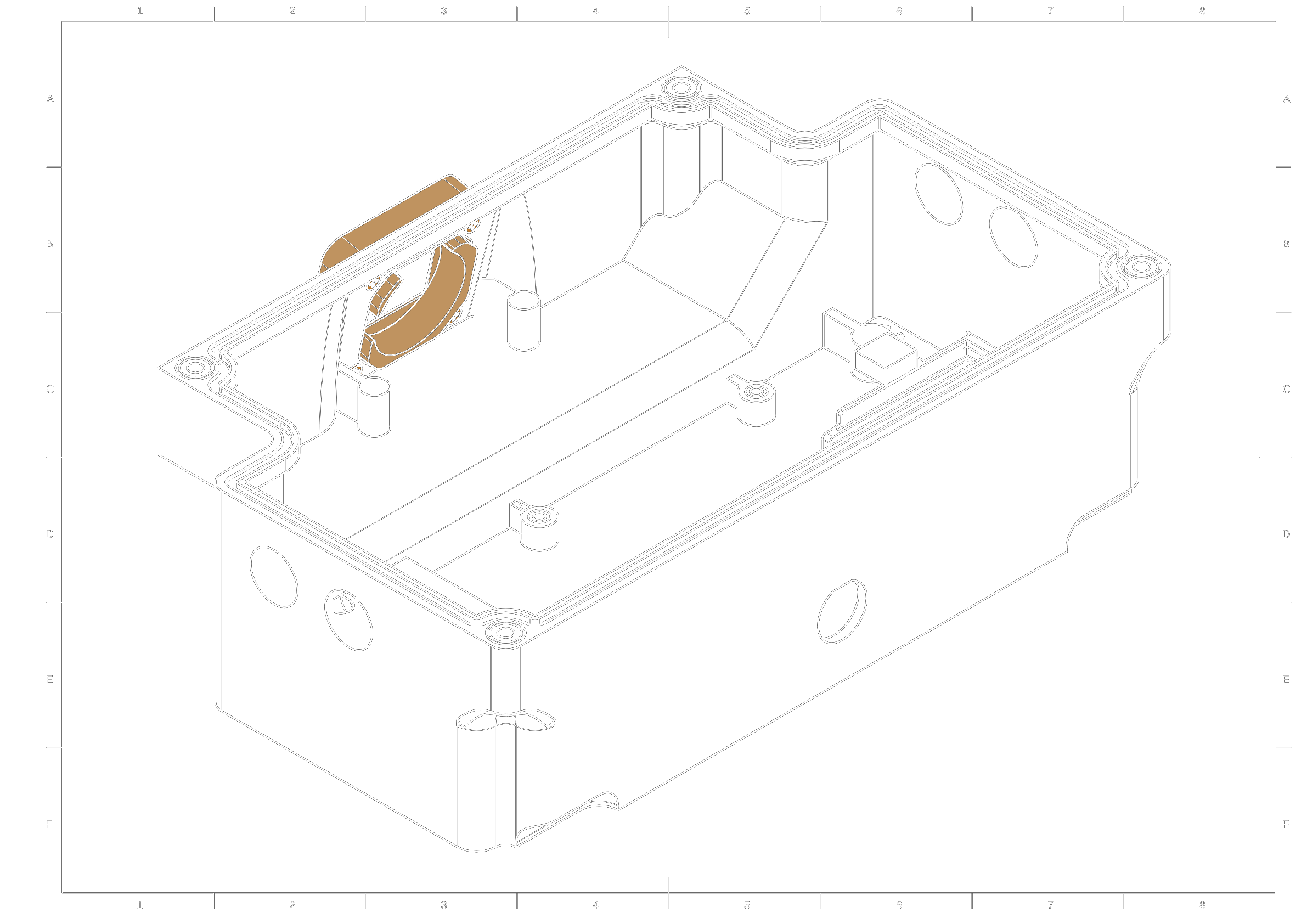

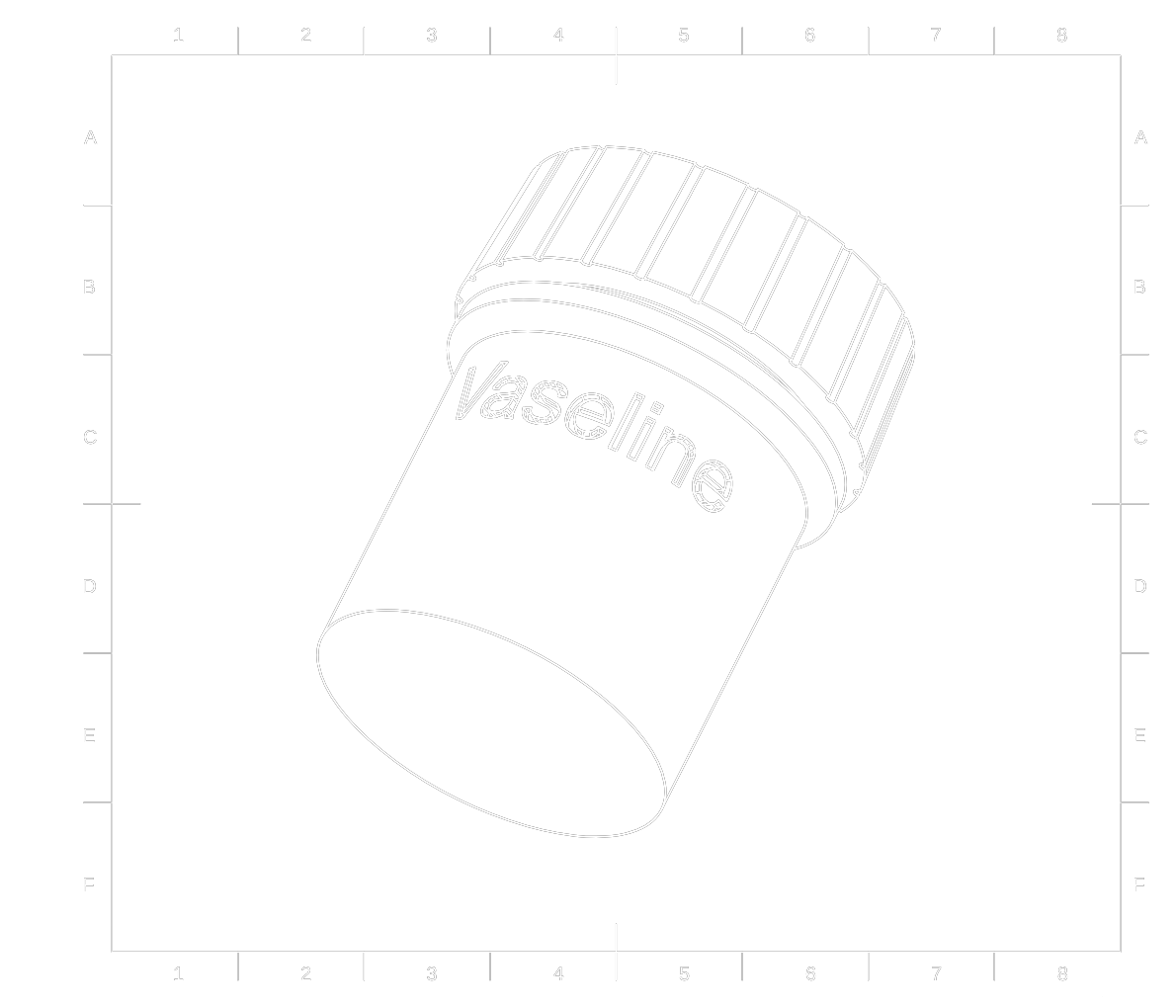

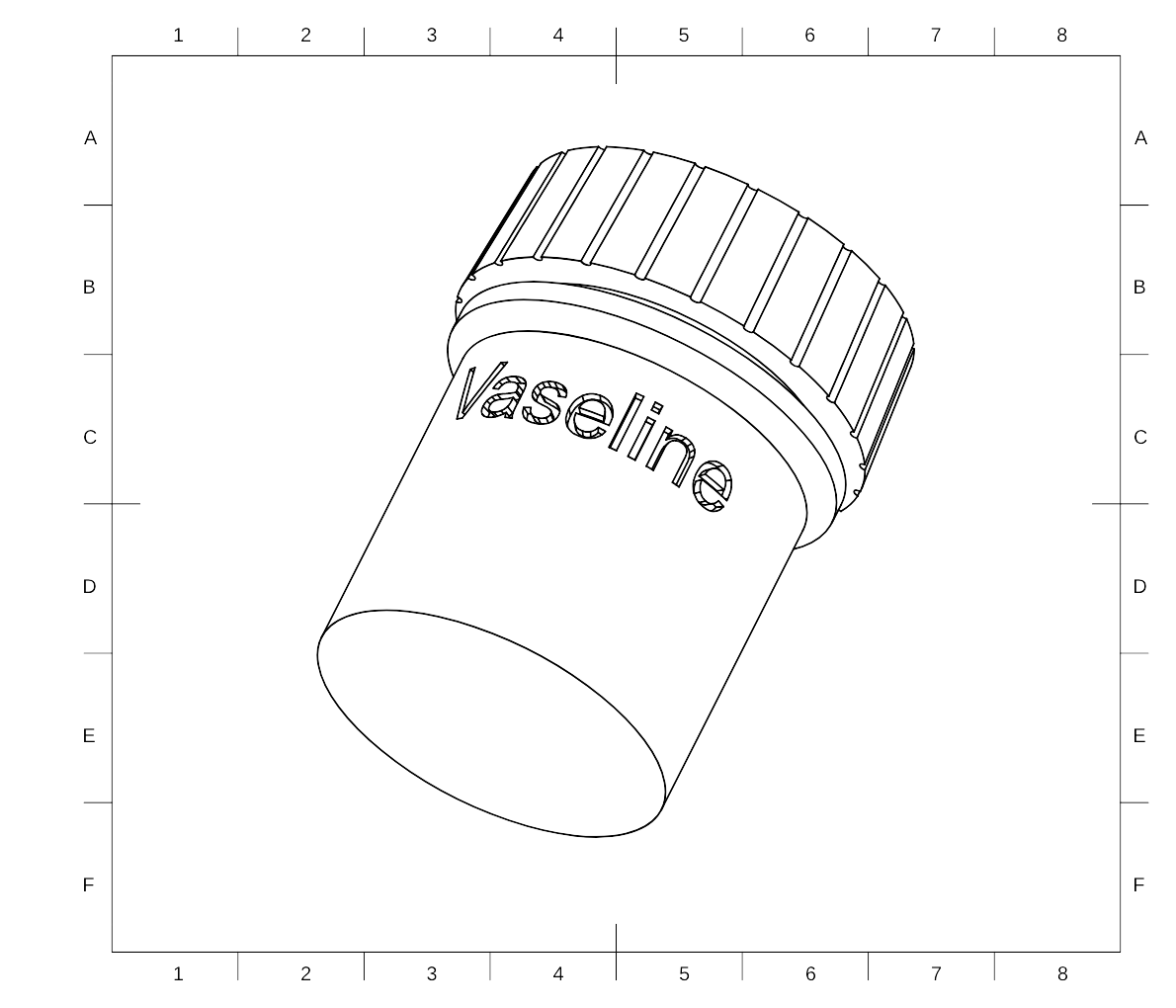

Cover the seal with vaseline before assembly.

---

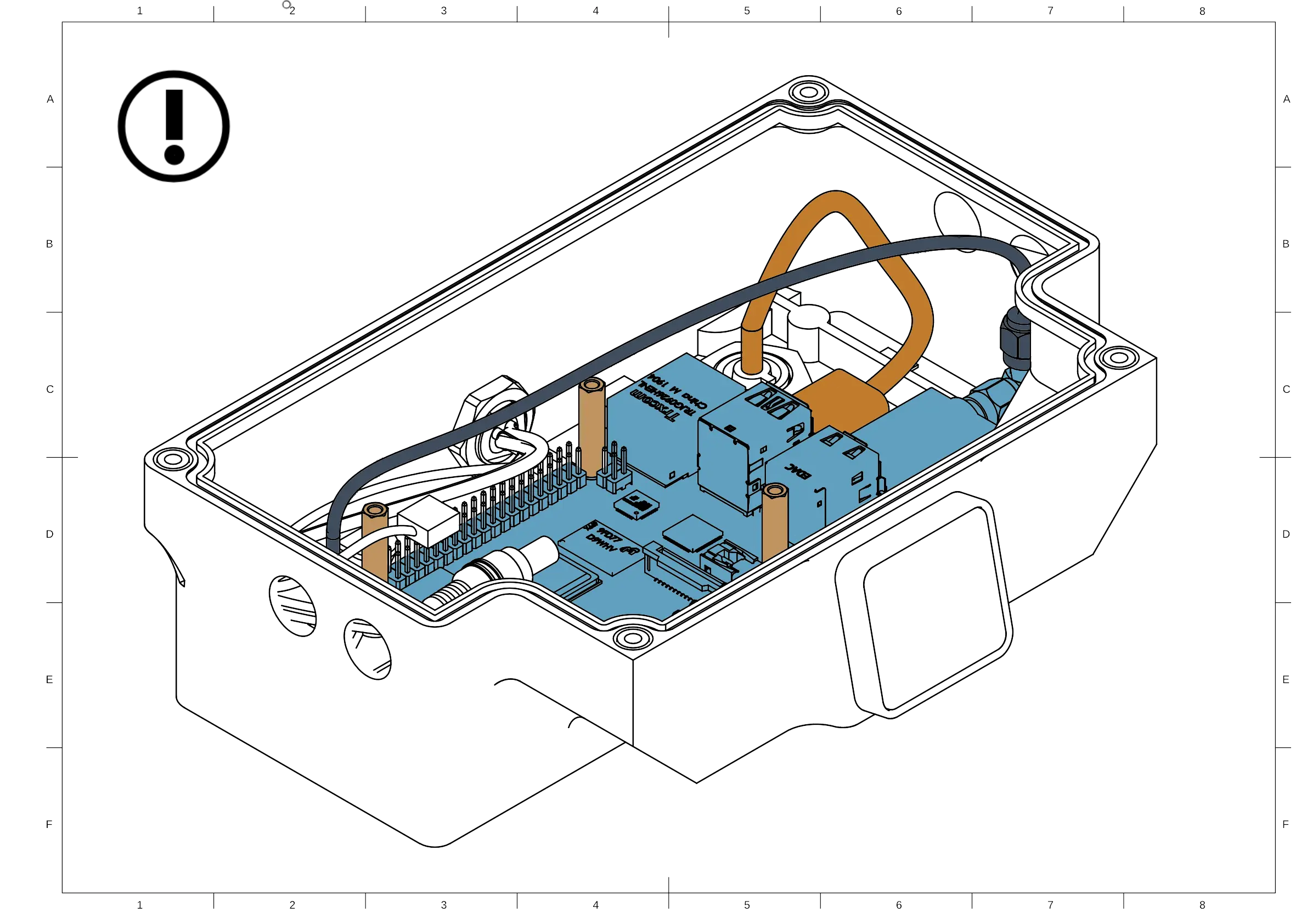

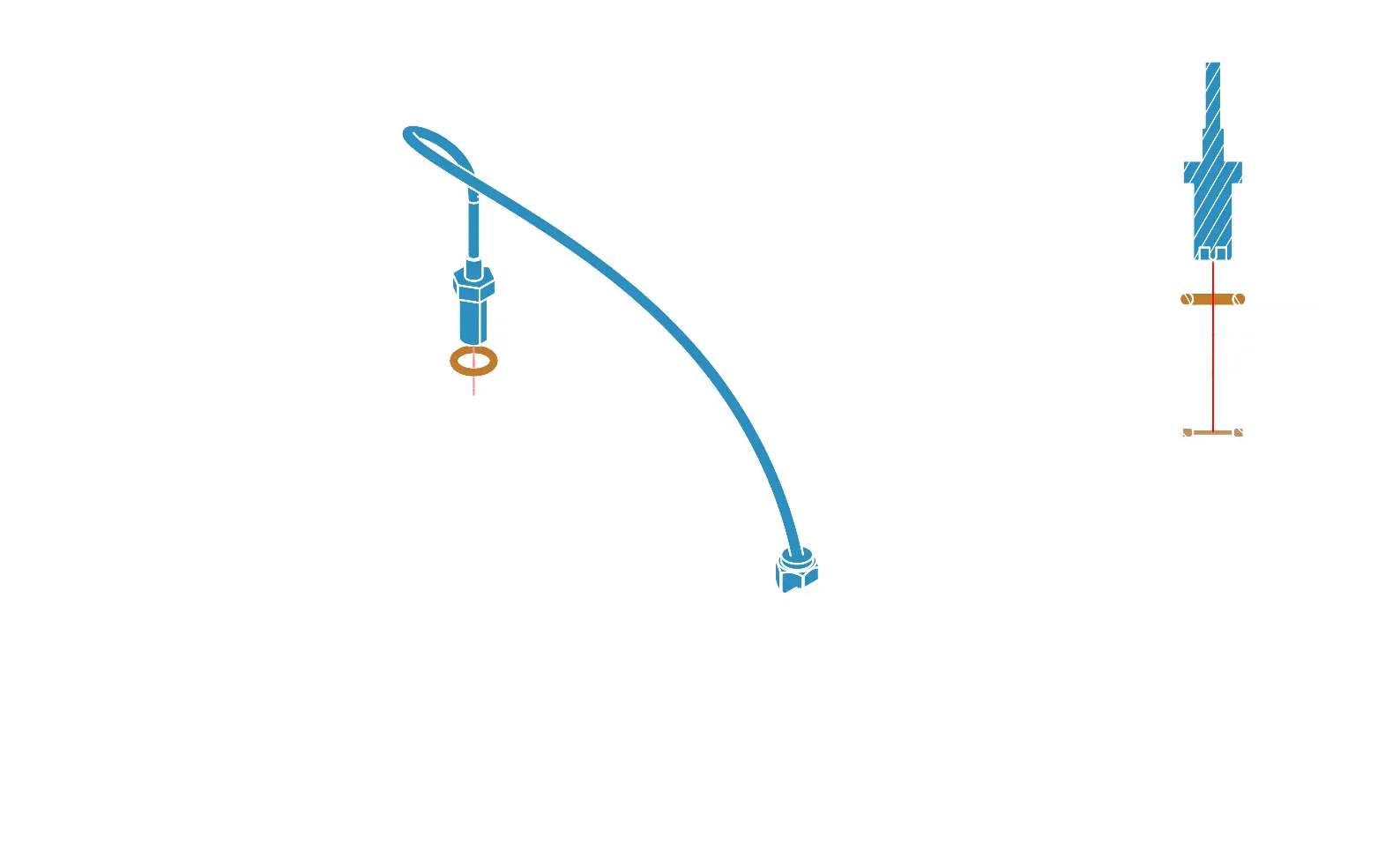

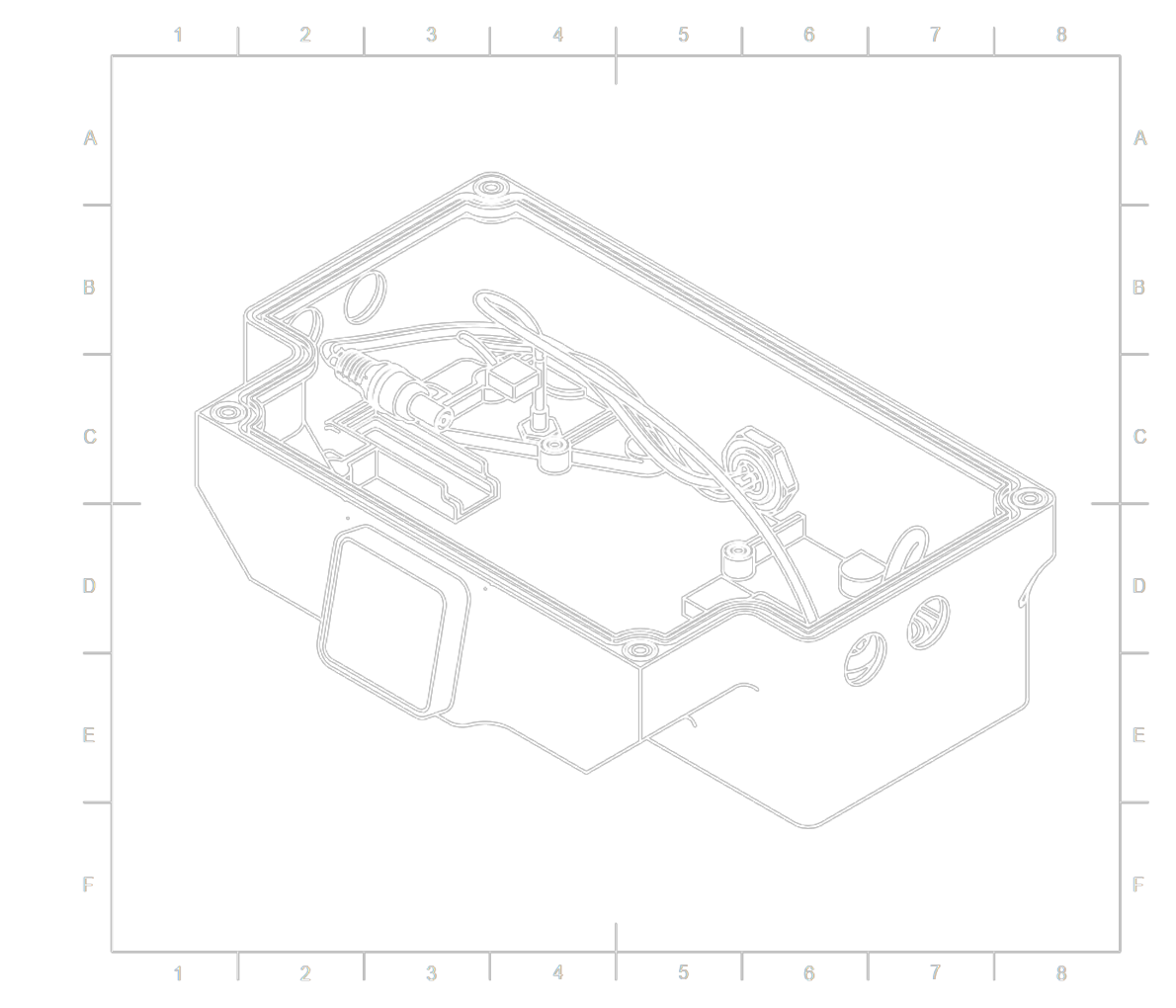

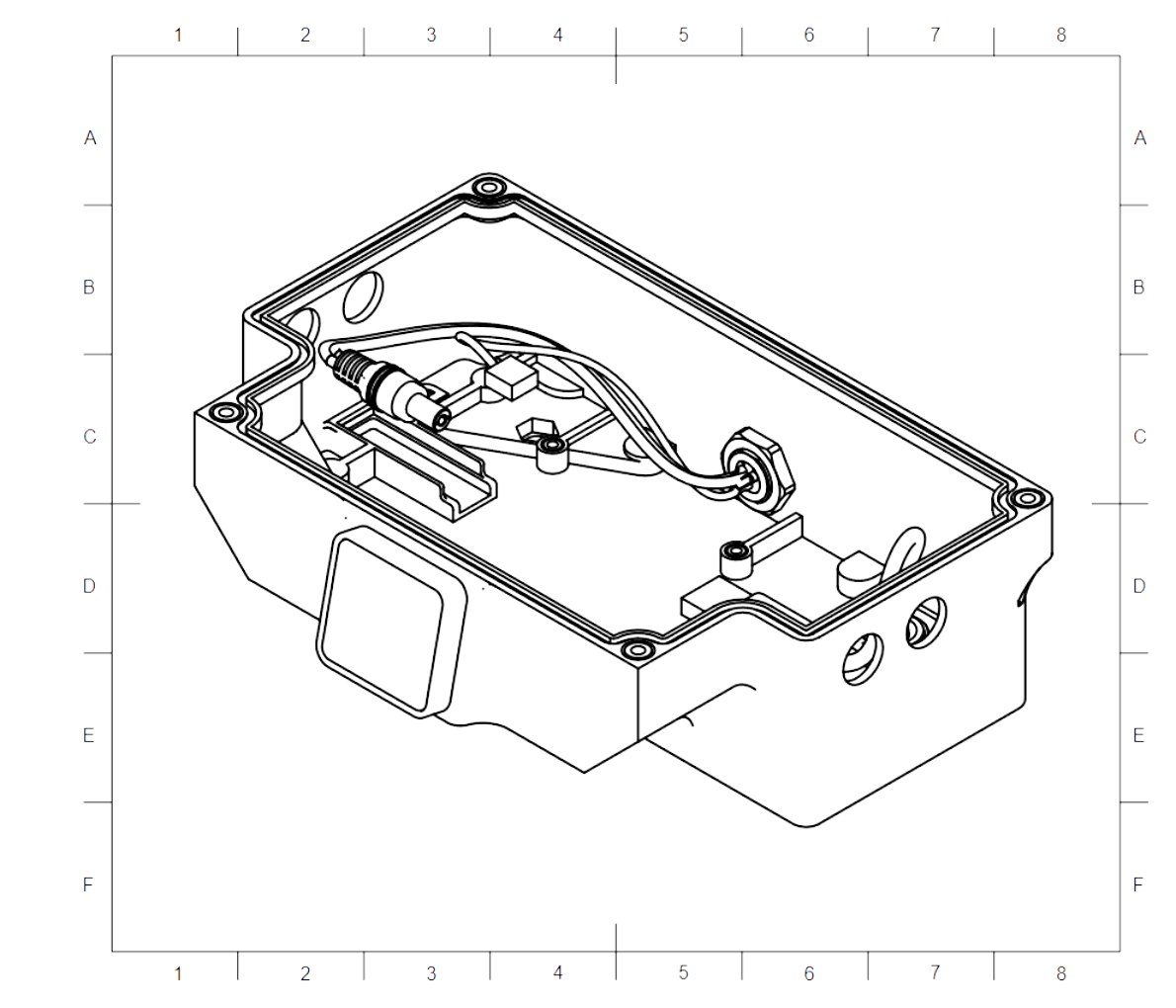

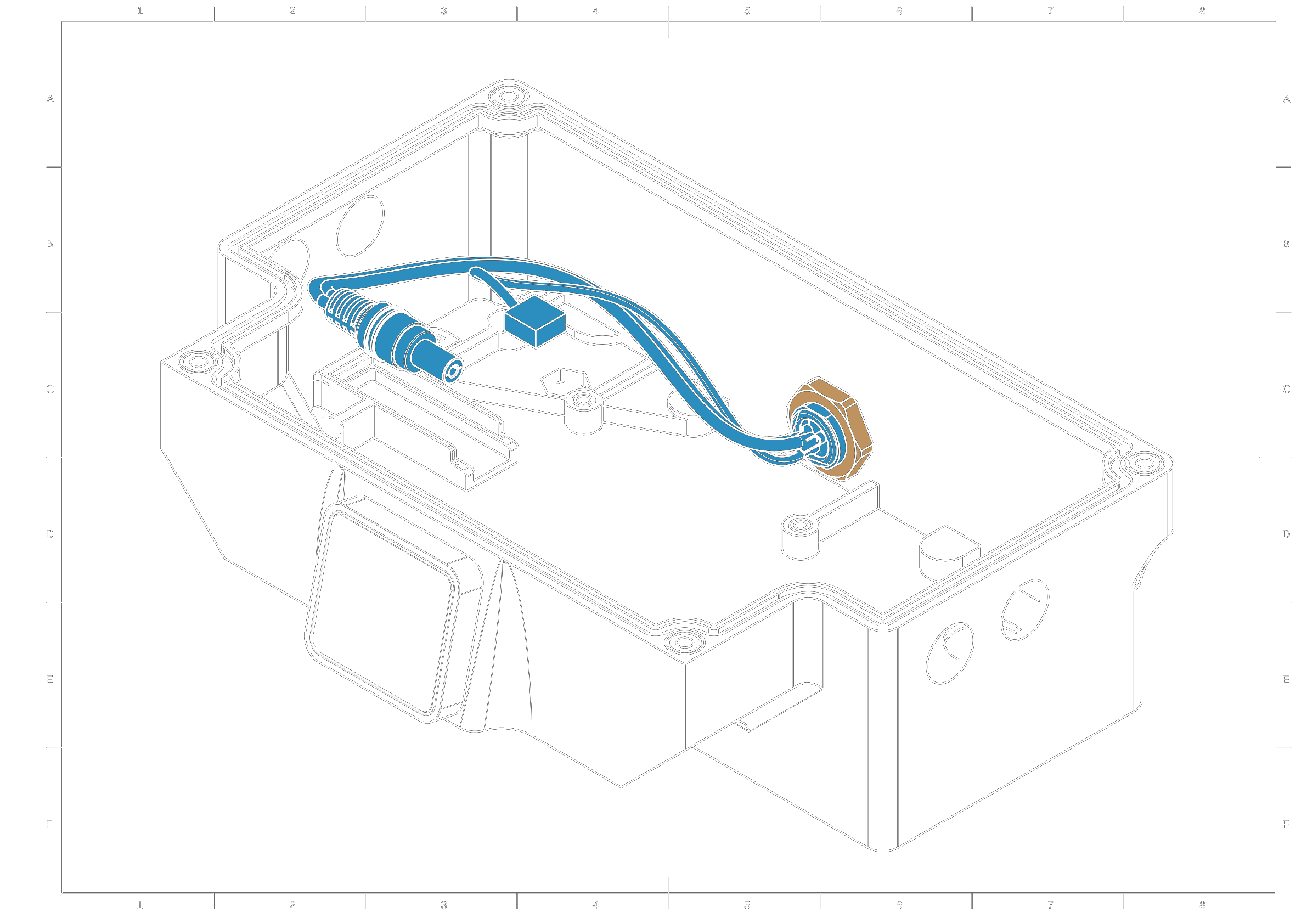

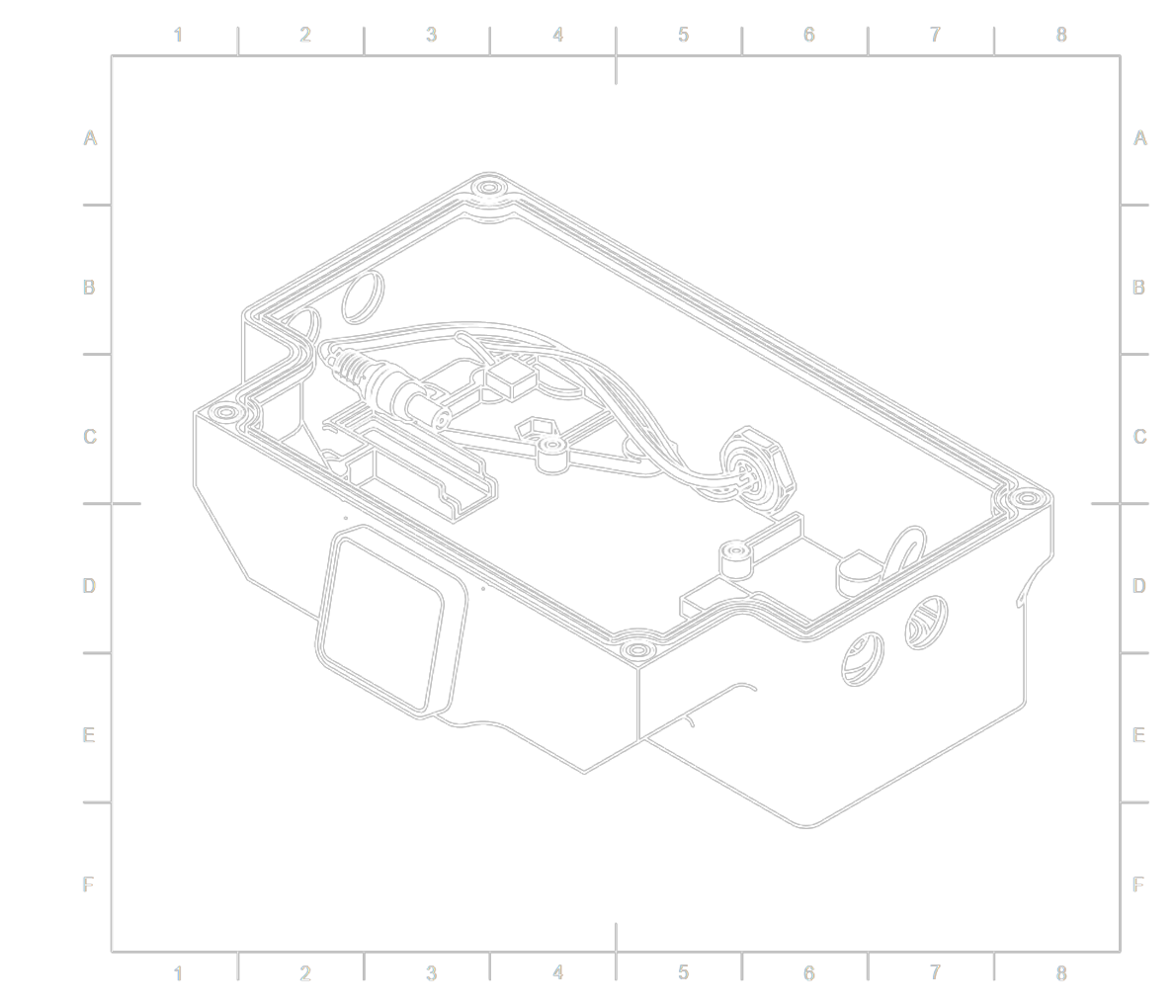

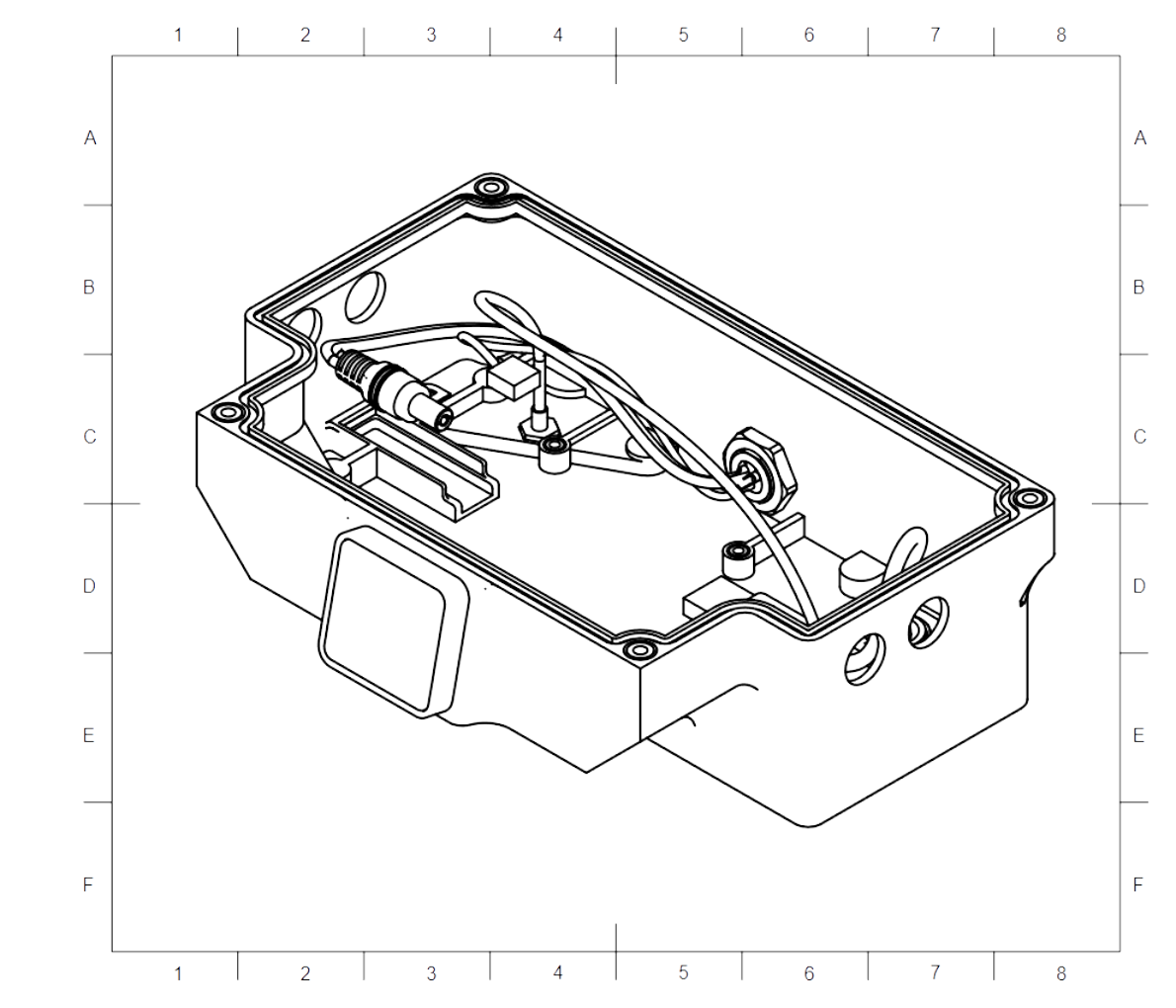

Step 6

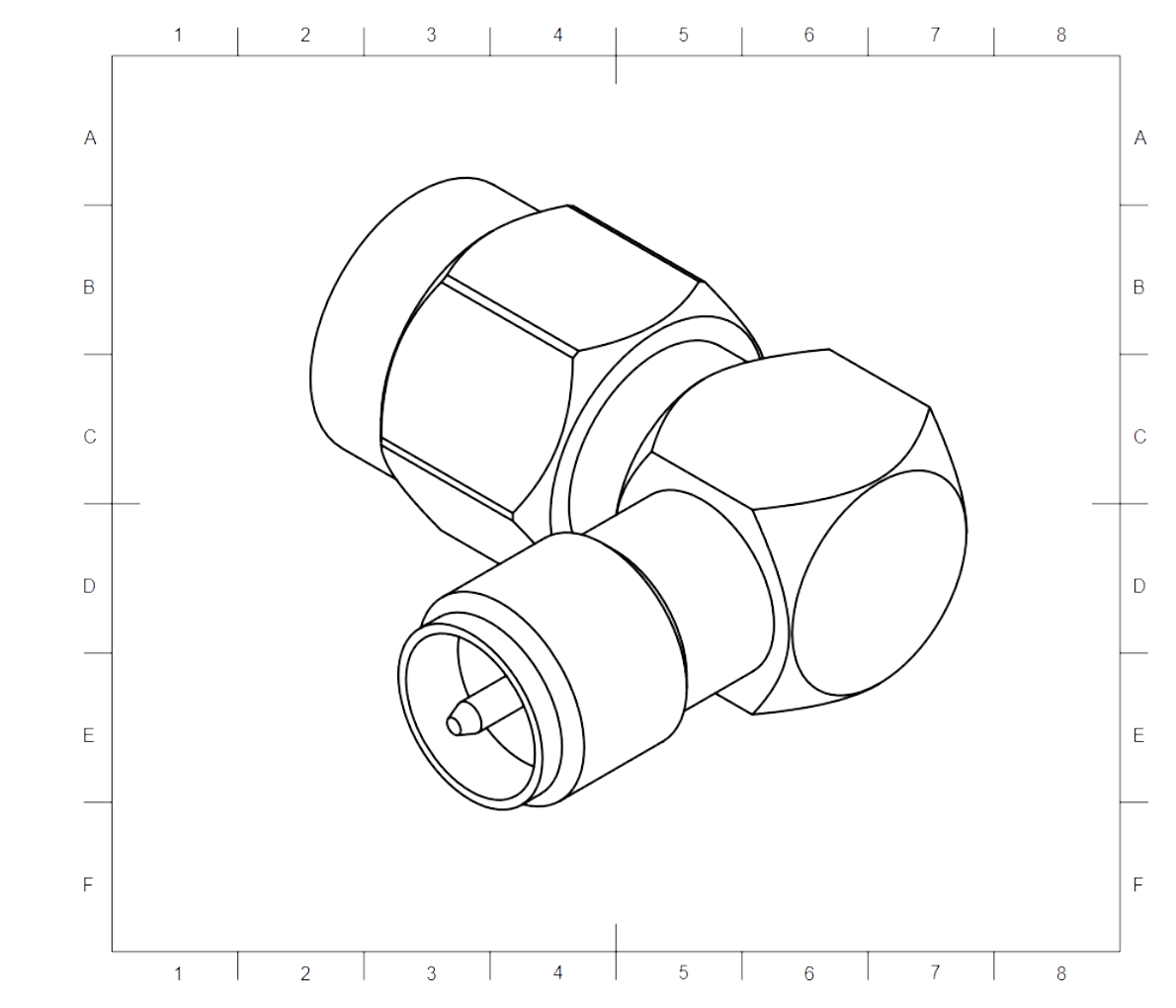

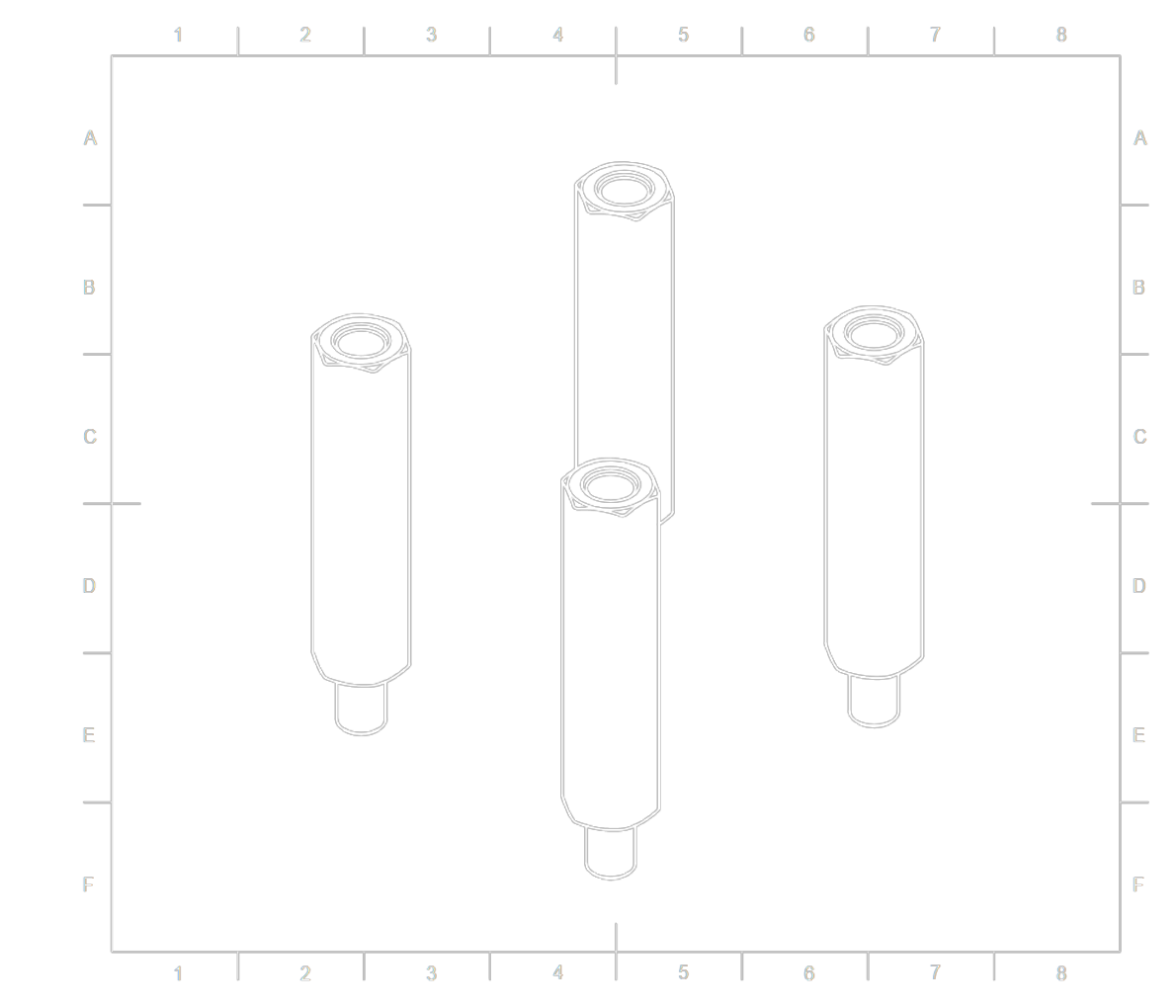

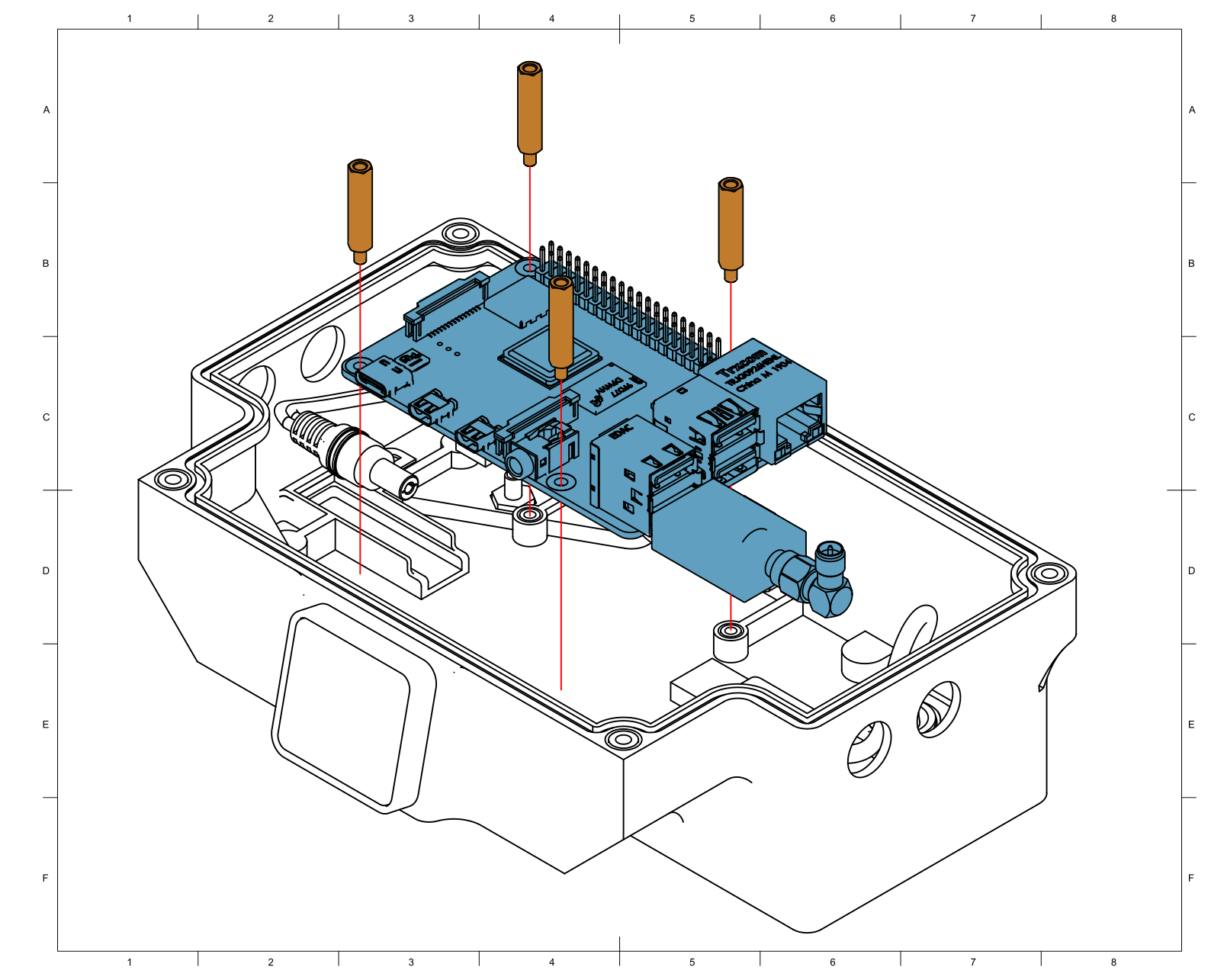

4x M2.5x40 distance

4x M2.5x40 distance

note

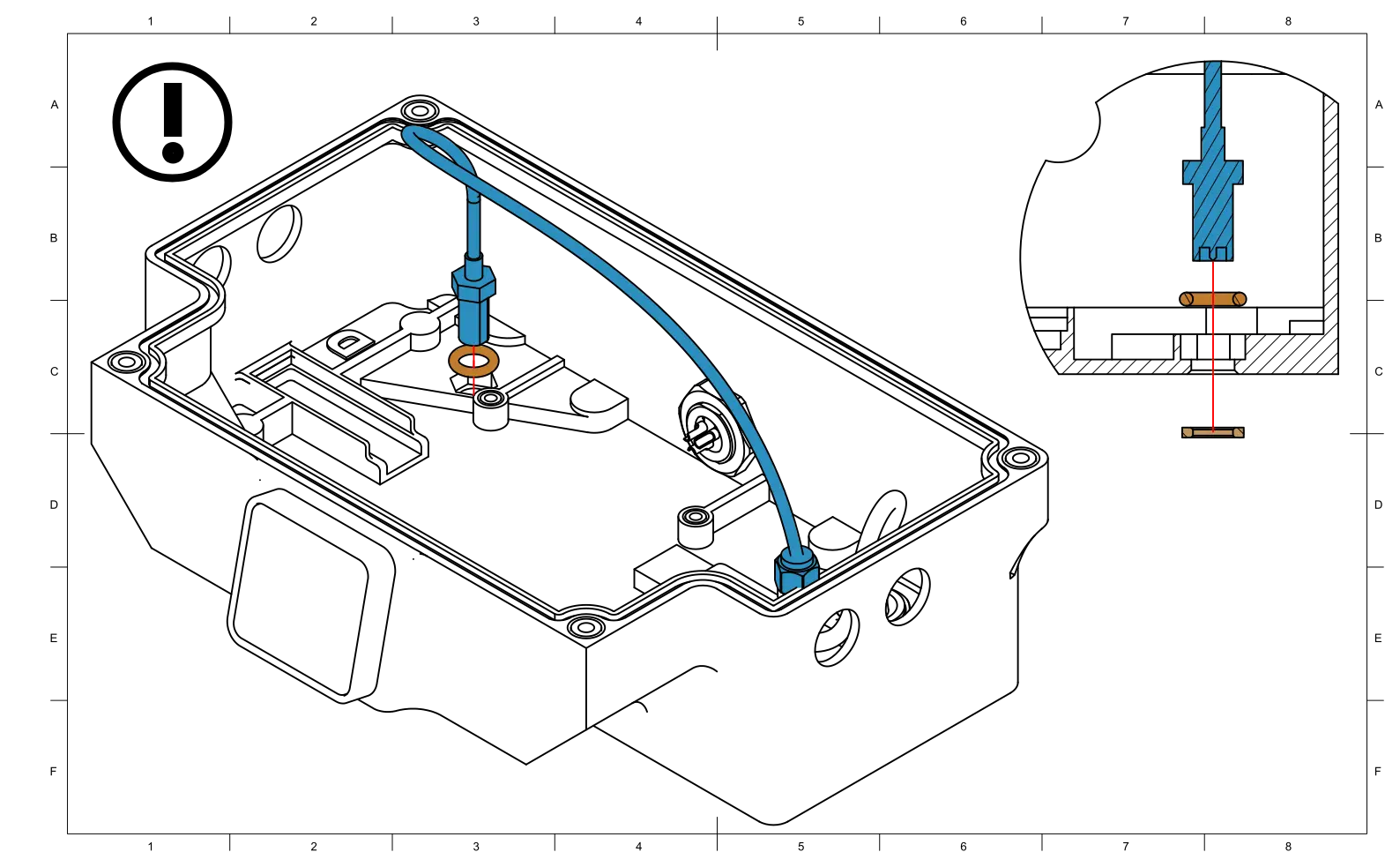

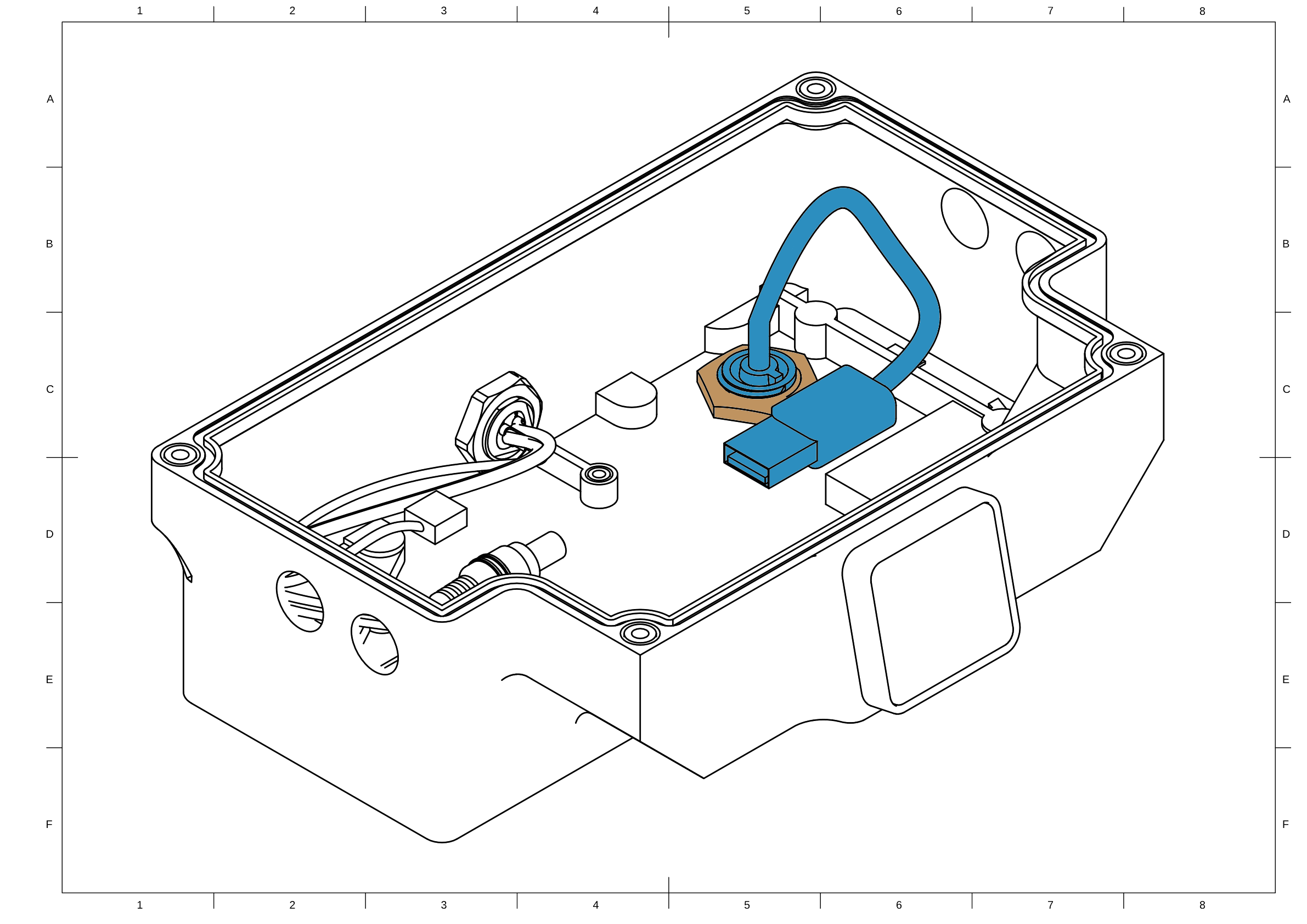

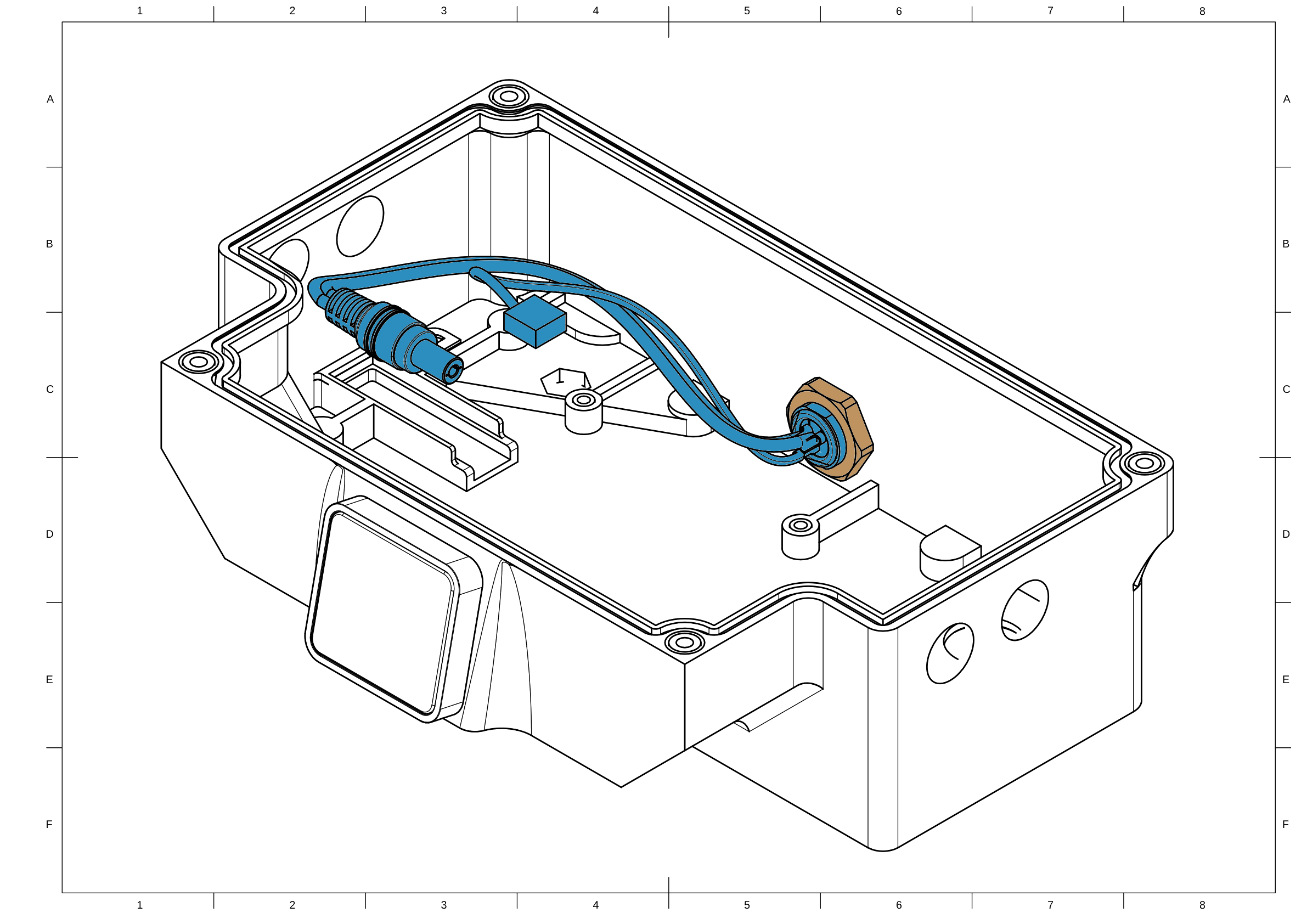

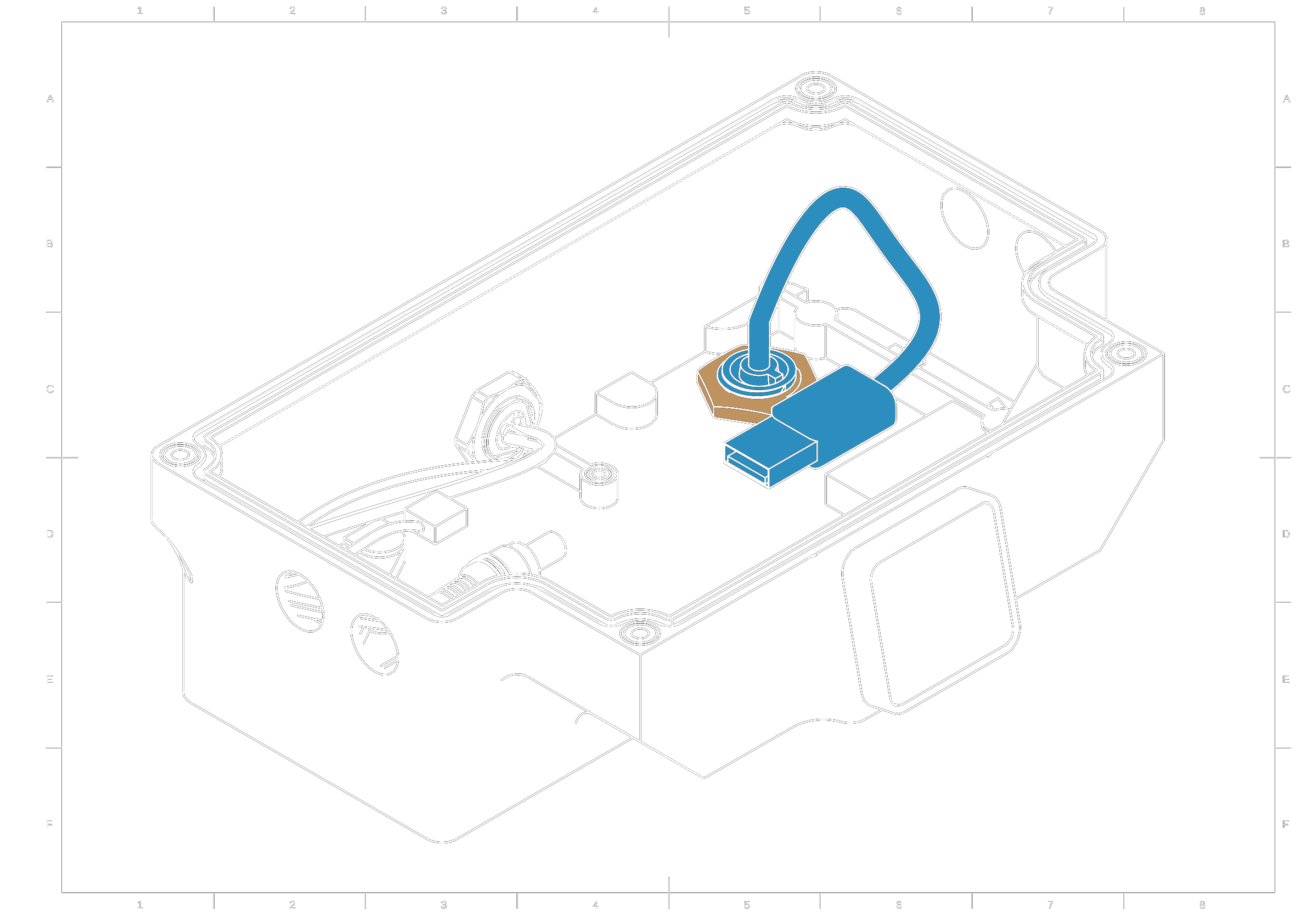

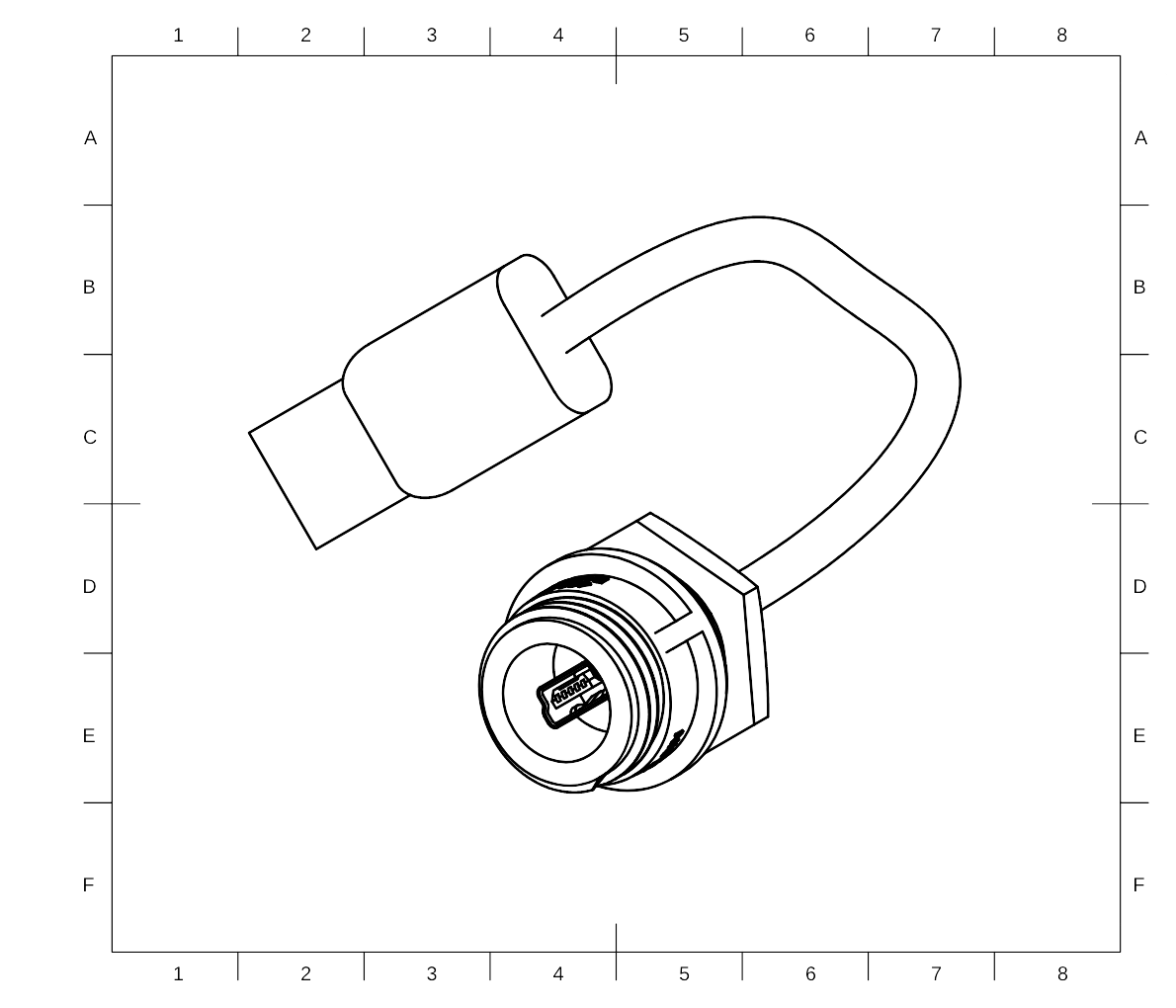

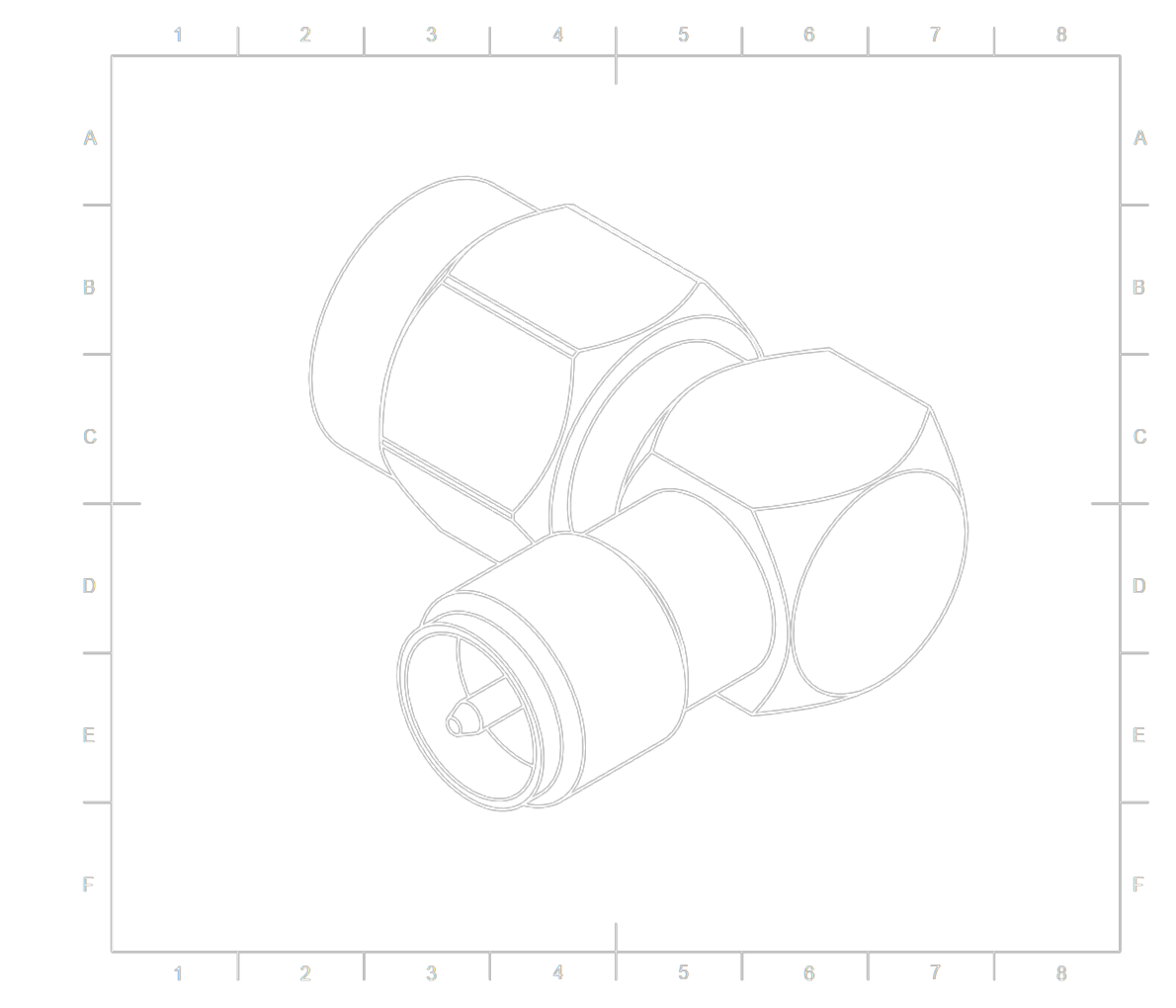

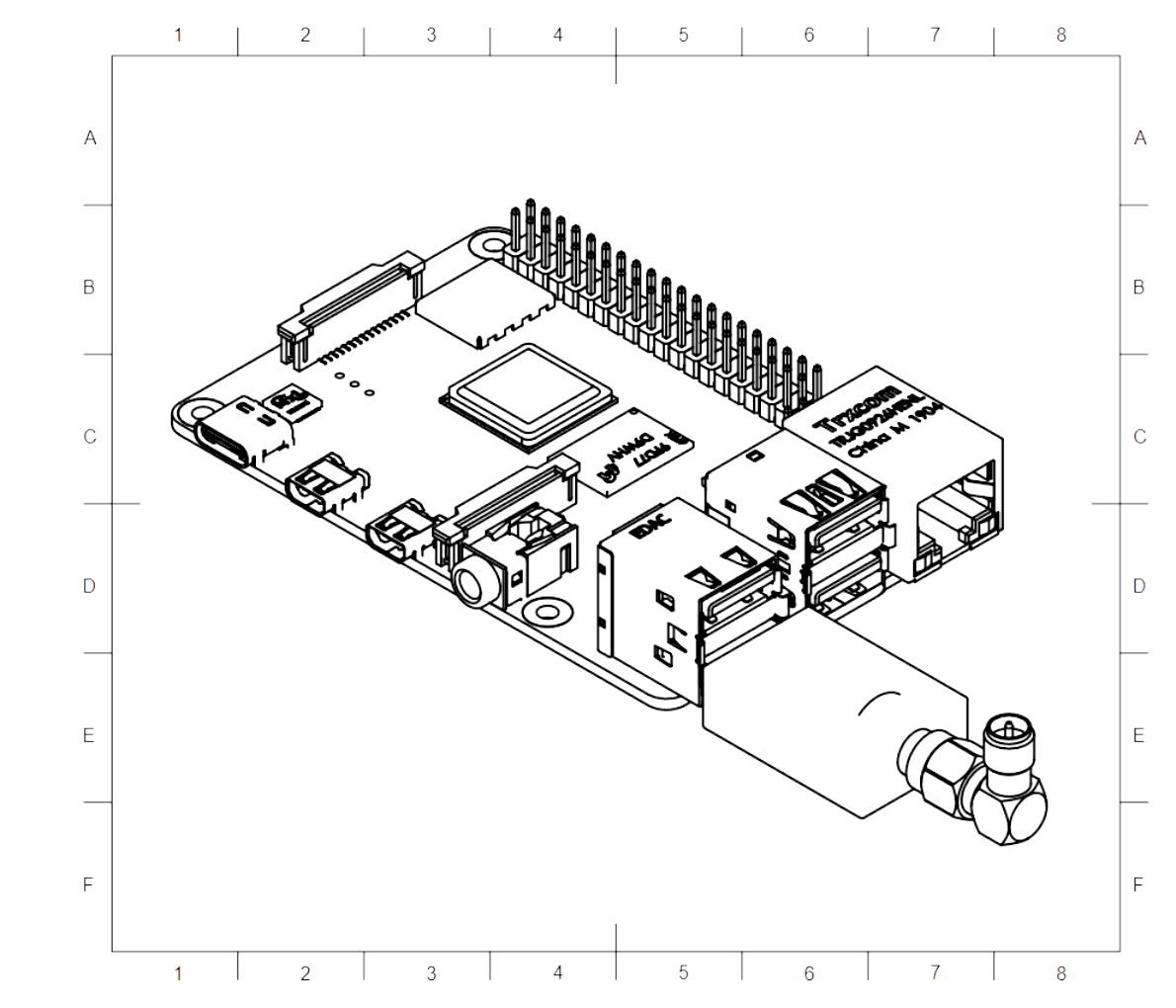

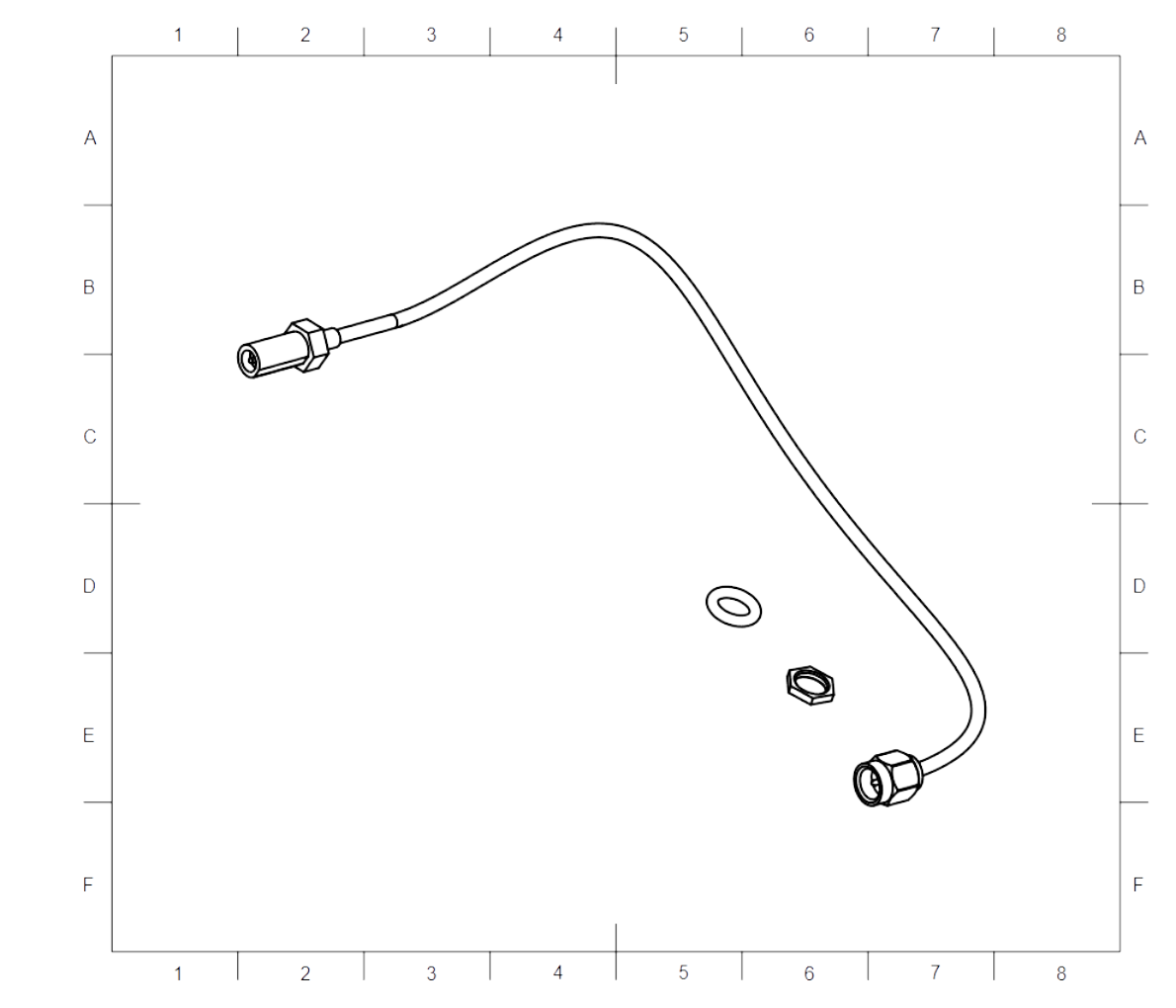

Connect antenna and USB cable .

---

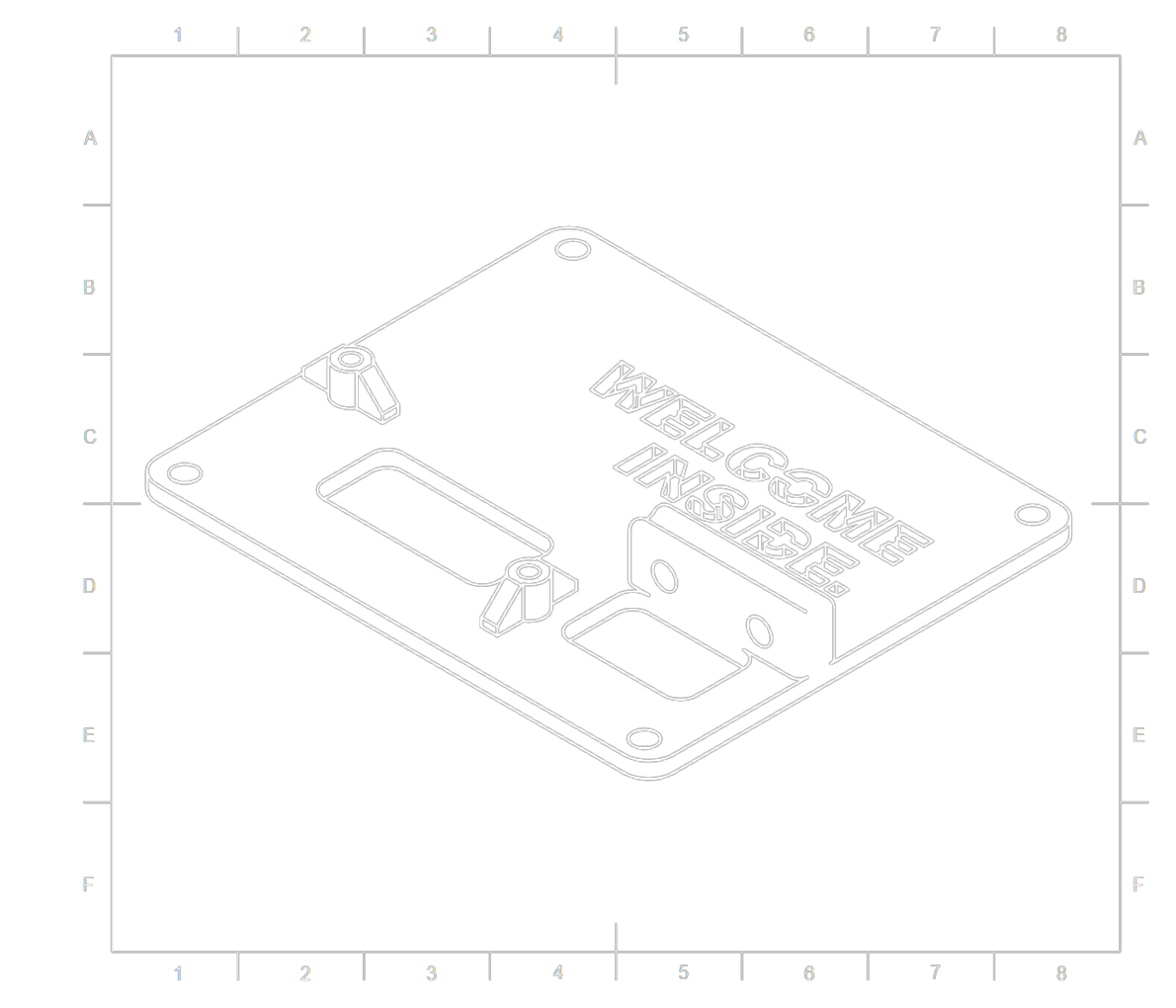

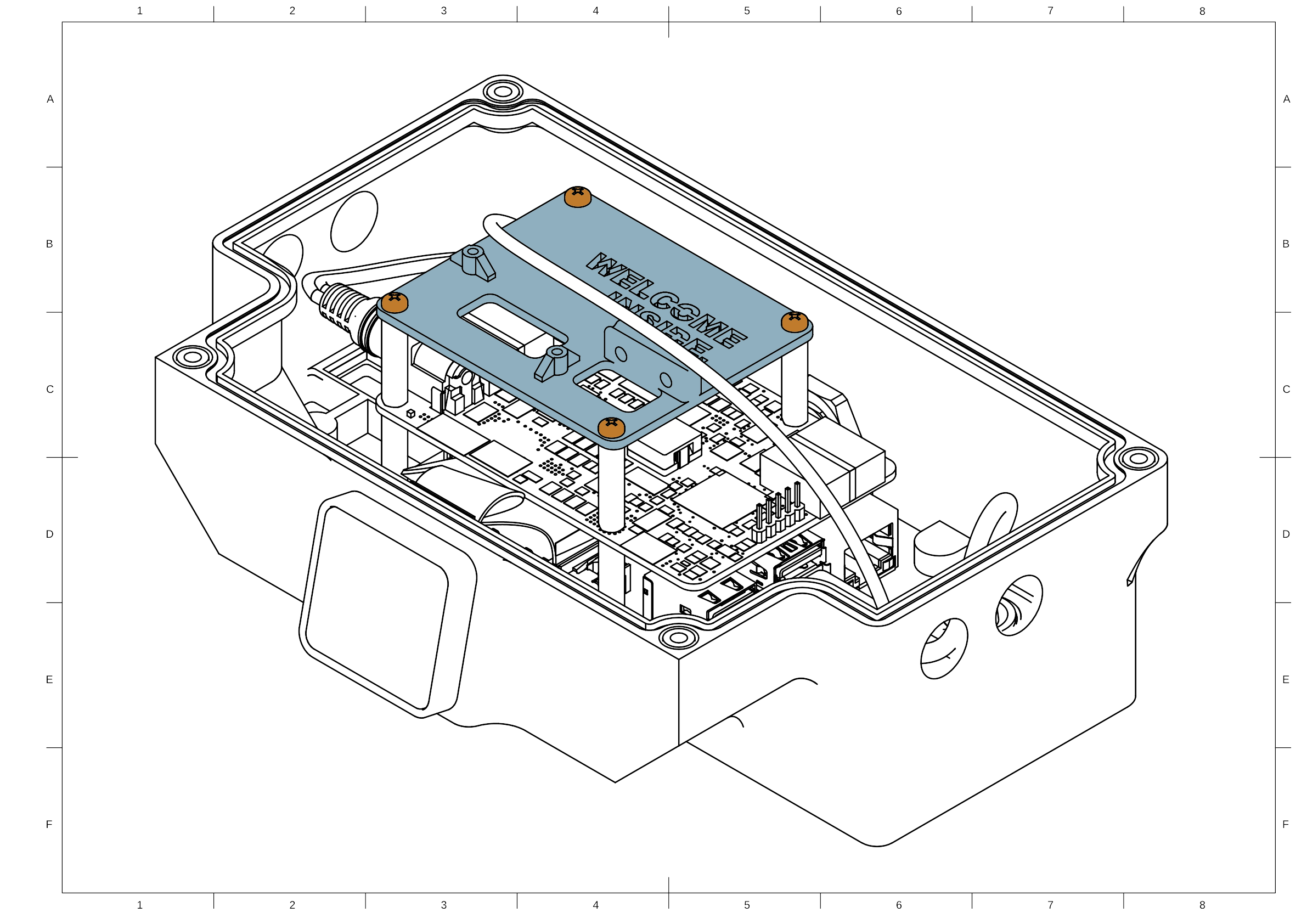

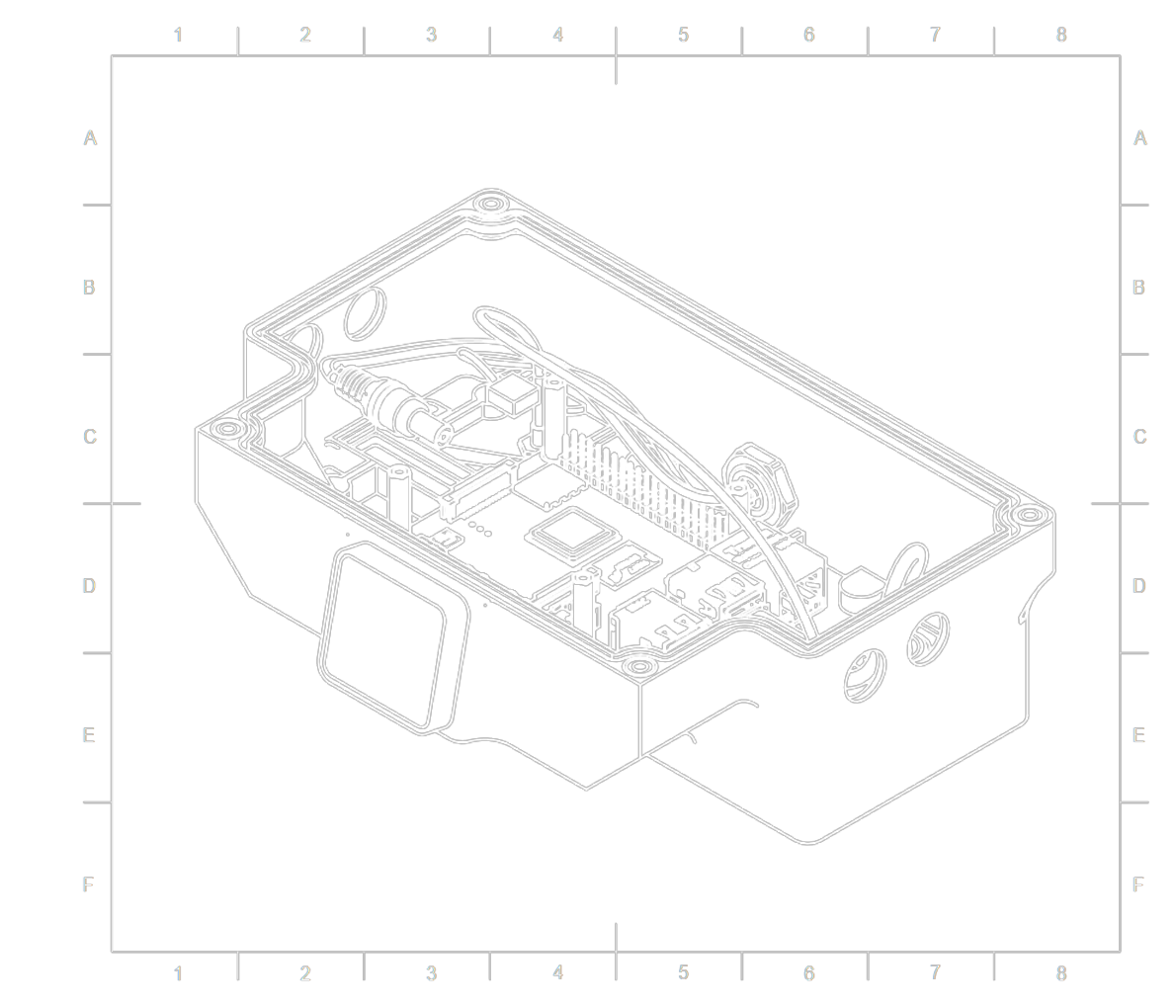

Step 7

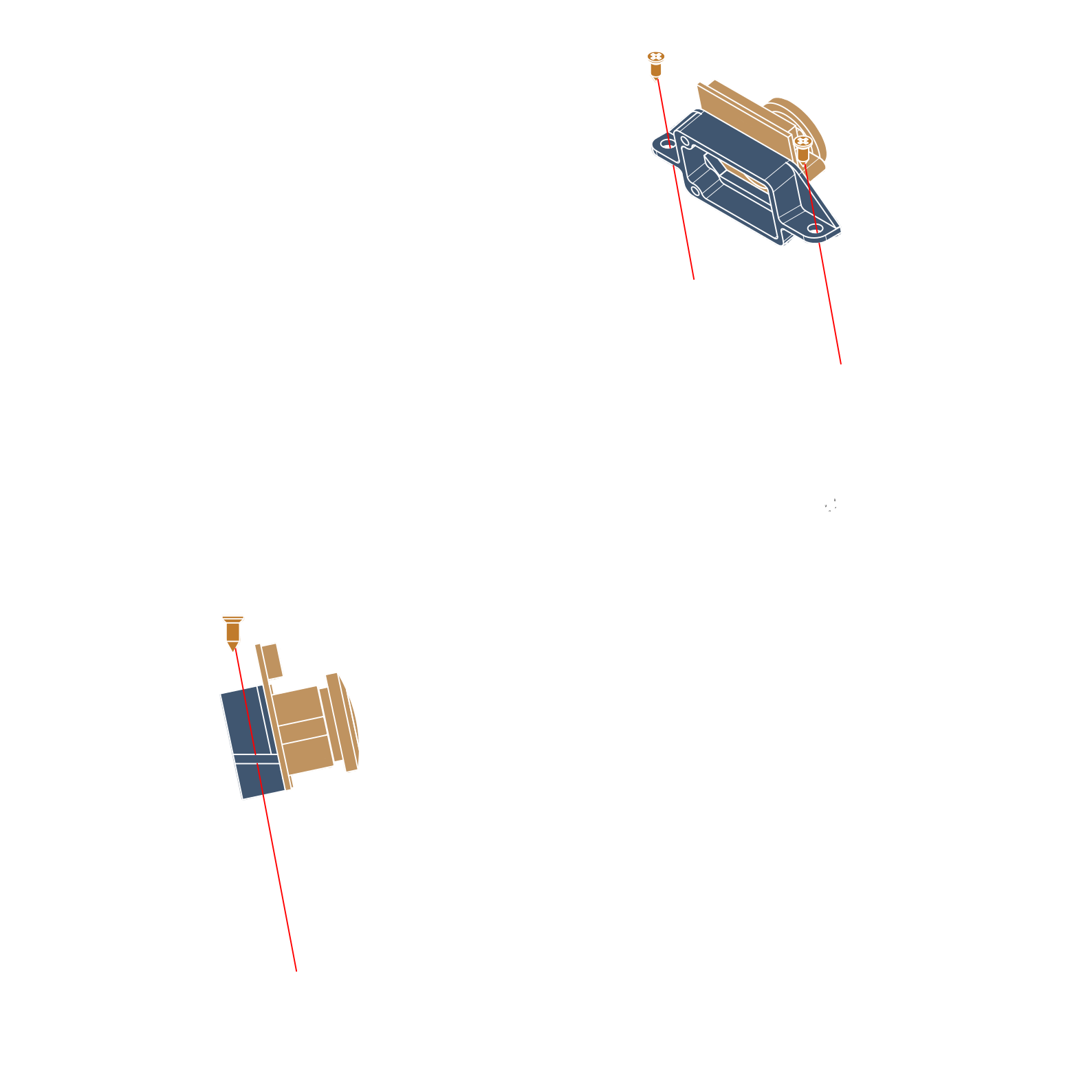

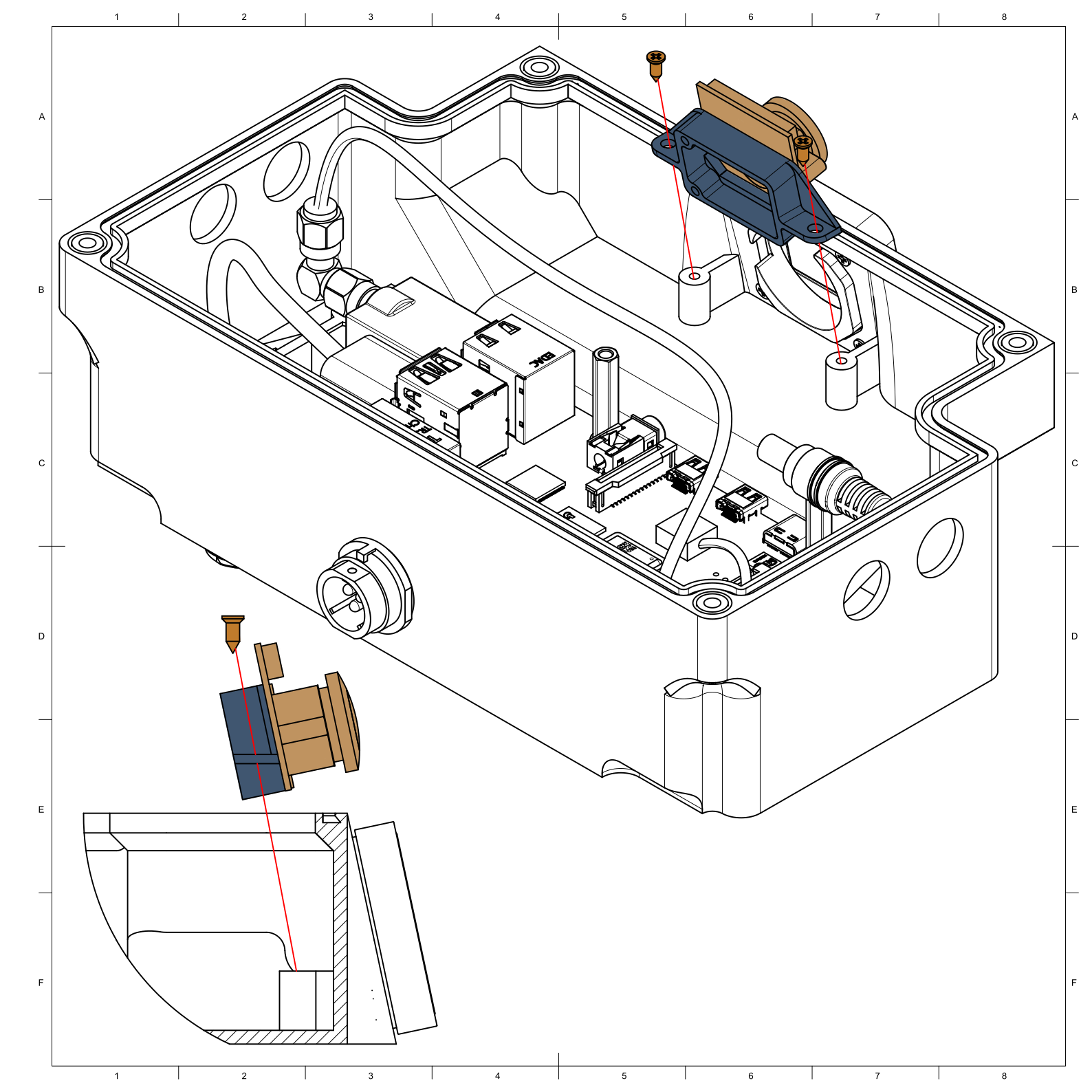

4x pan head B2.2x6.5 screw

4x pan head B2.2x6.5 screw

note

Do not overtighten the screw.

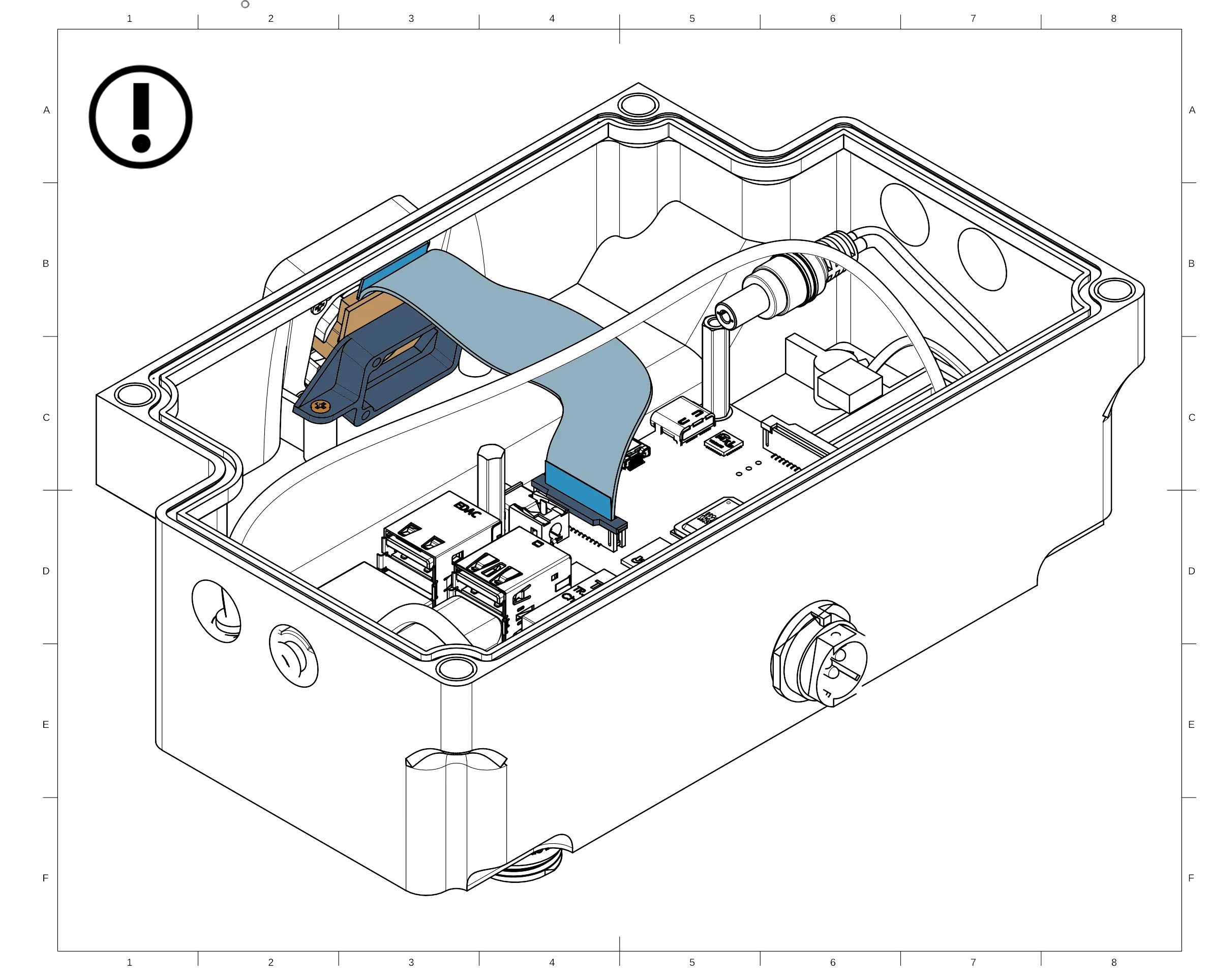

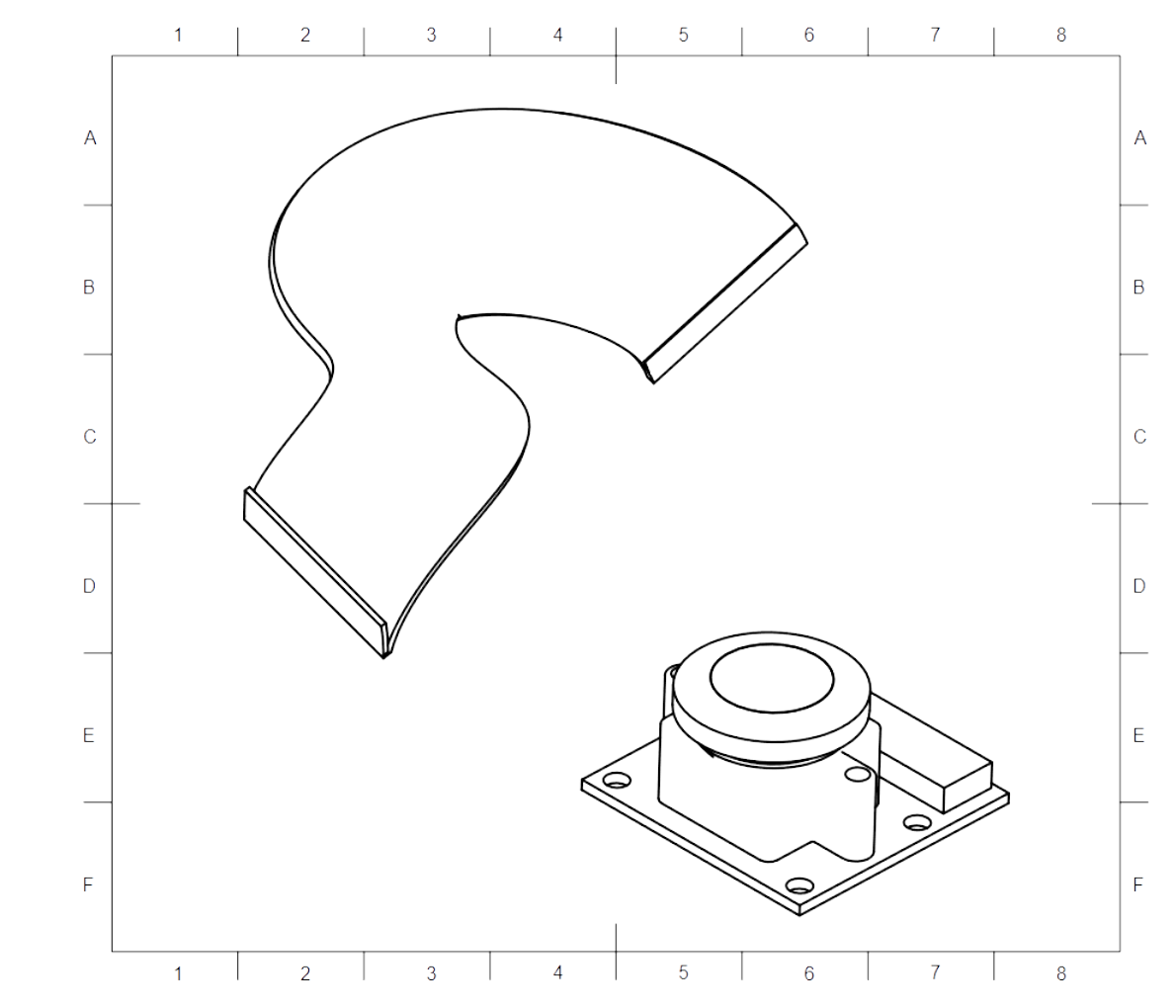

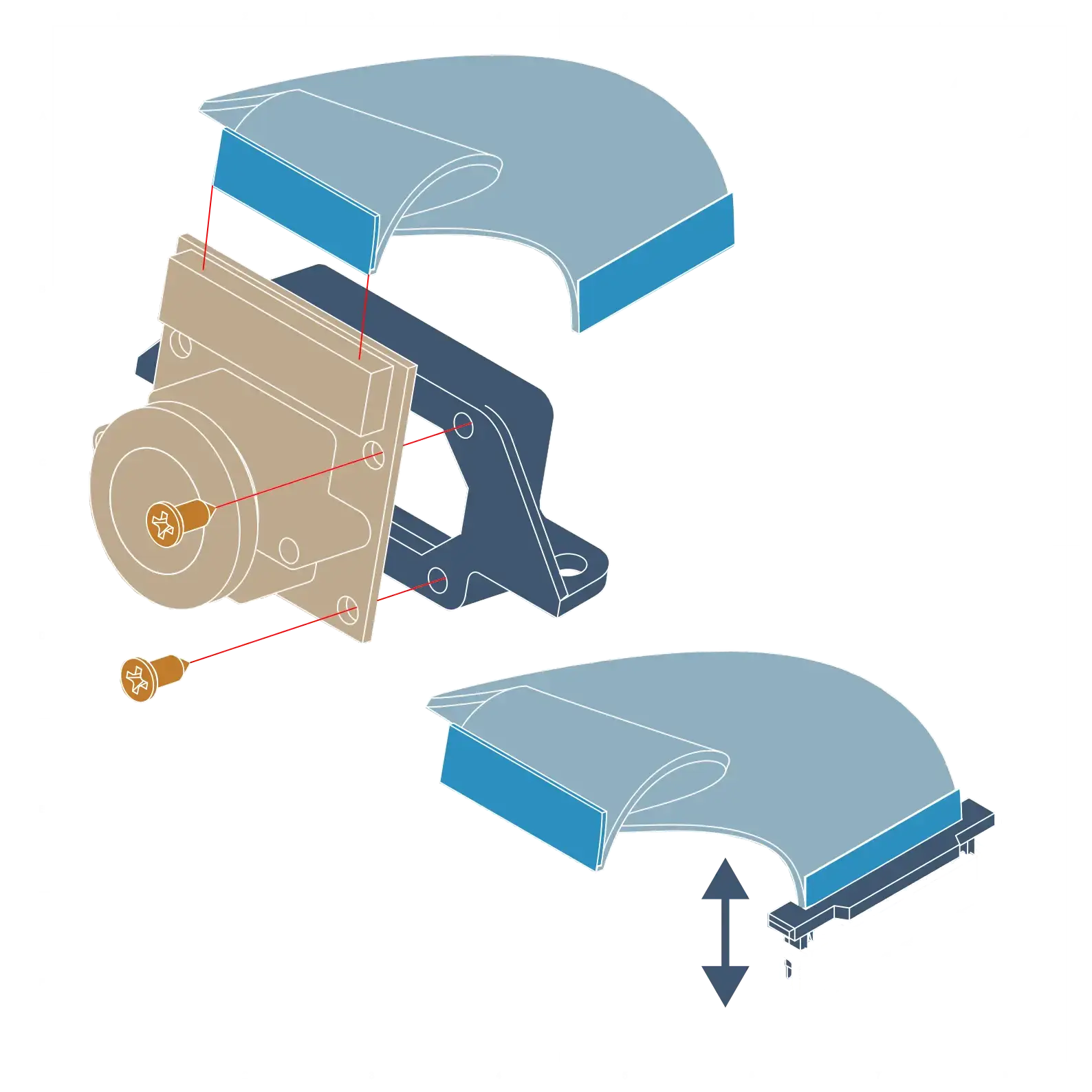

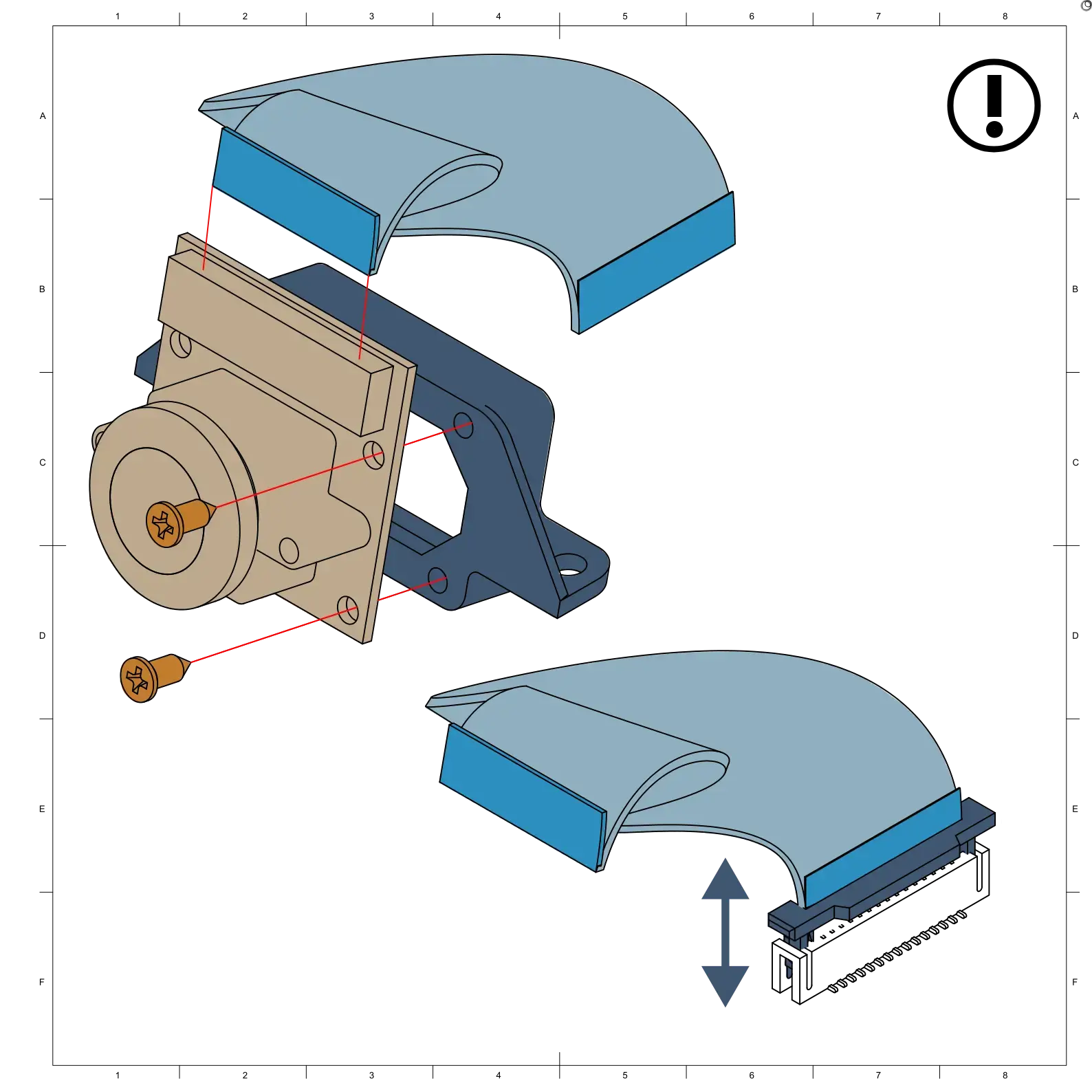

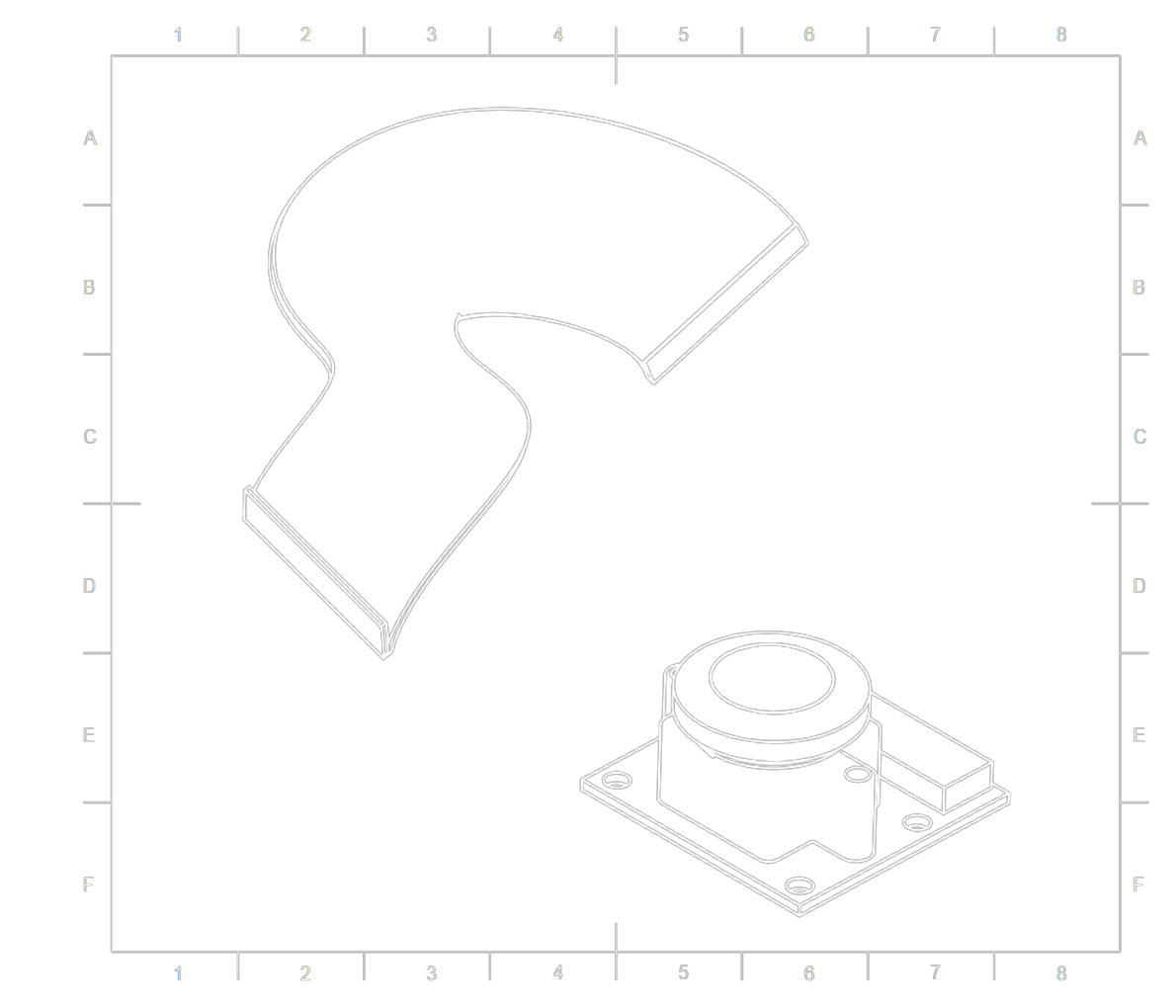

Make sure the ribbon is pushed all the way into the connector.

warning

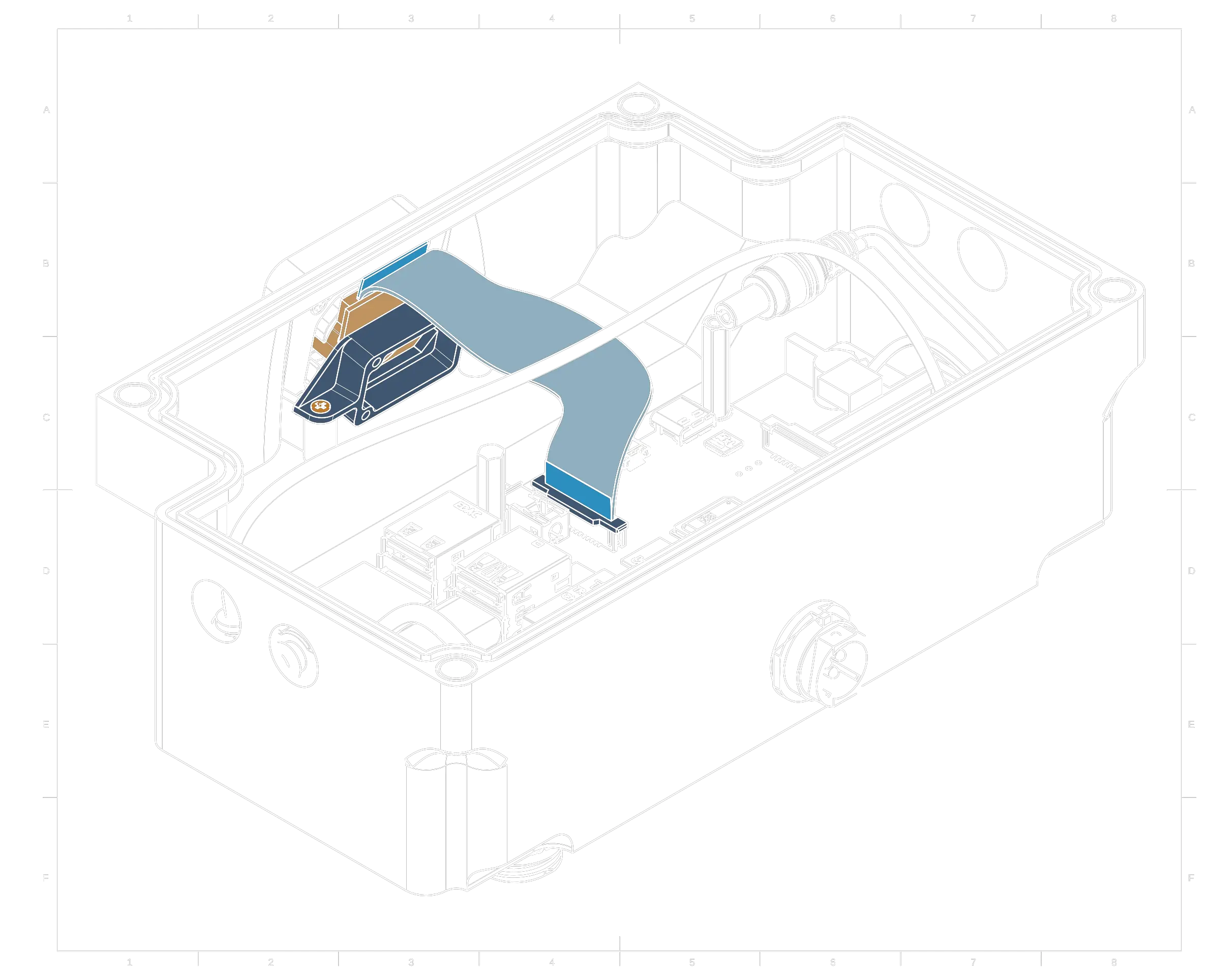

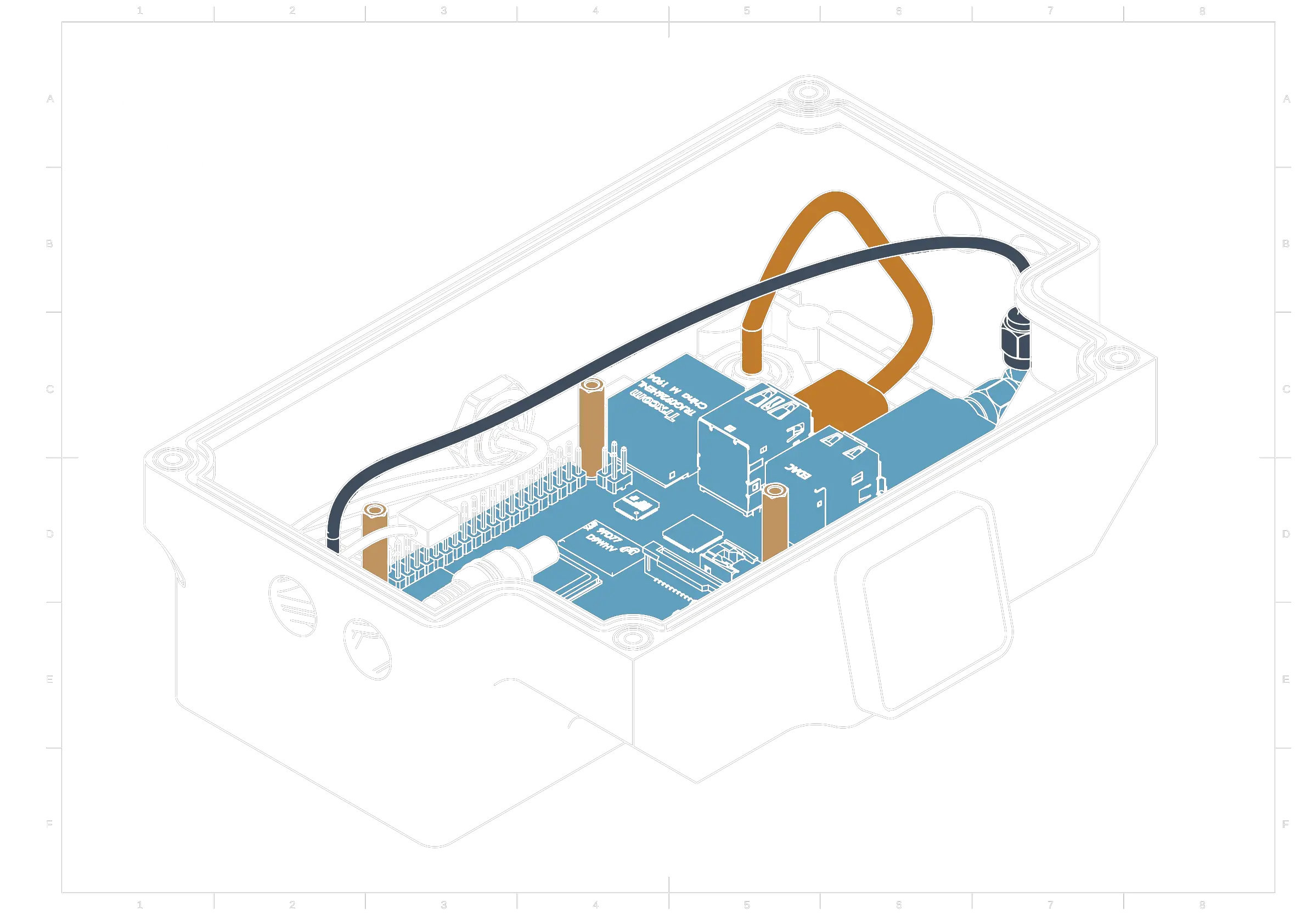

Connect the other end of the ribbon to the CAMERA port of Raspberry Pi.

---

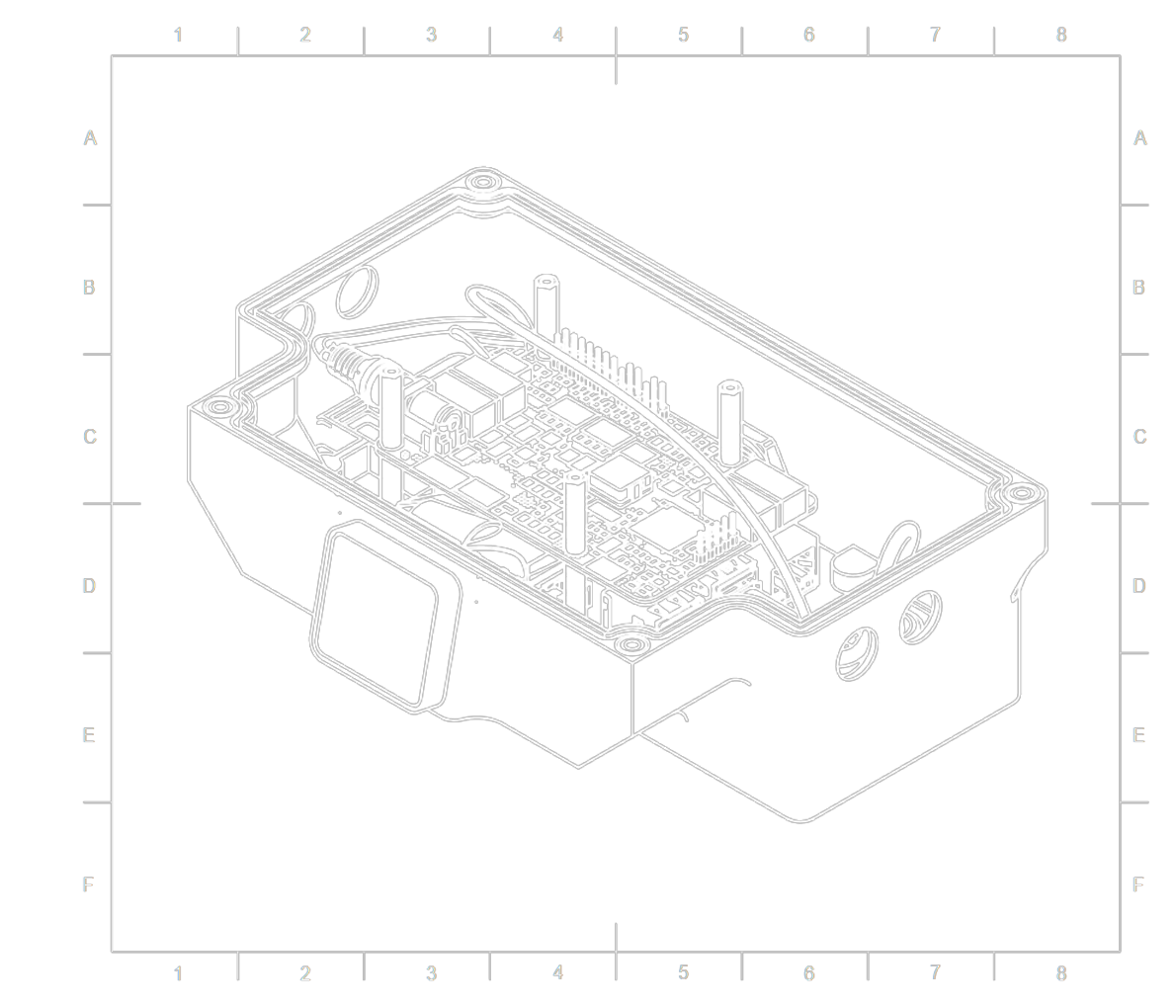

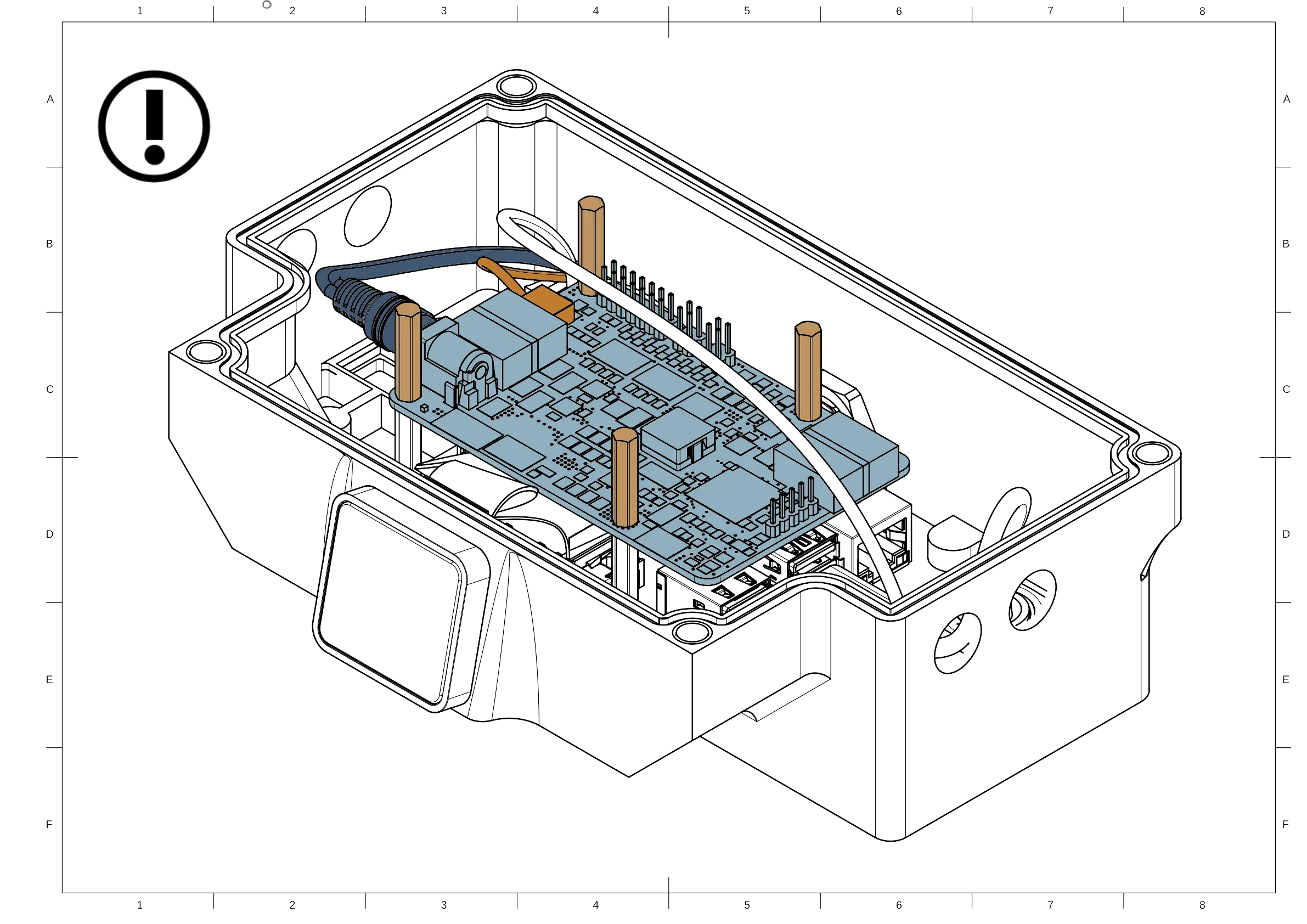

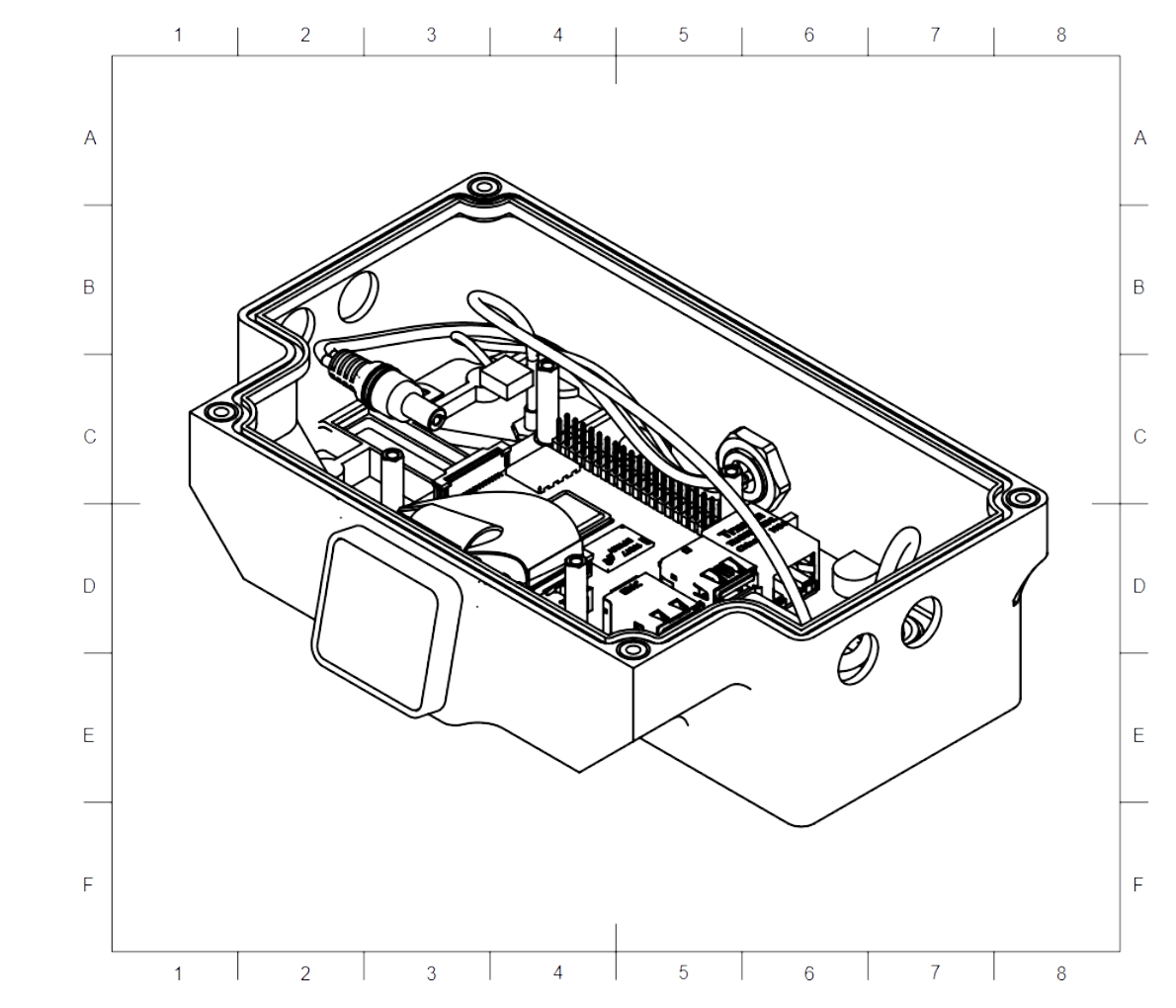

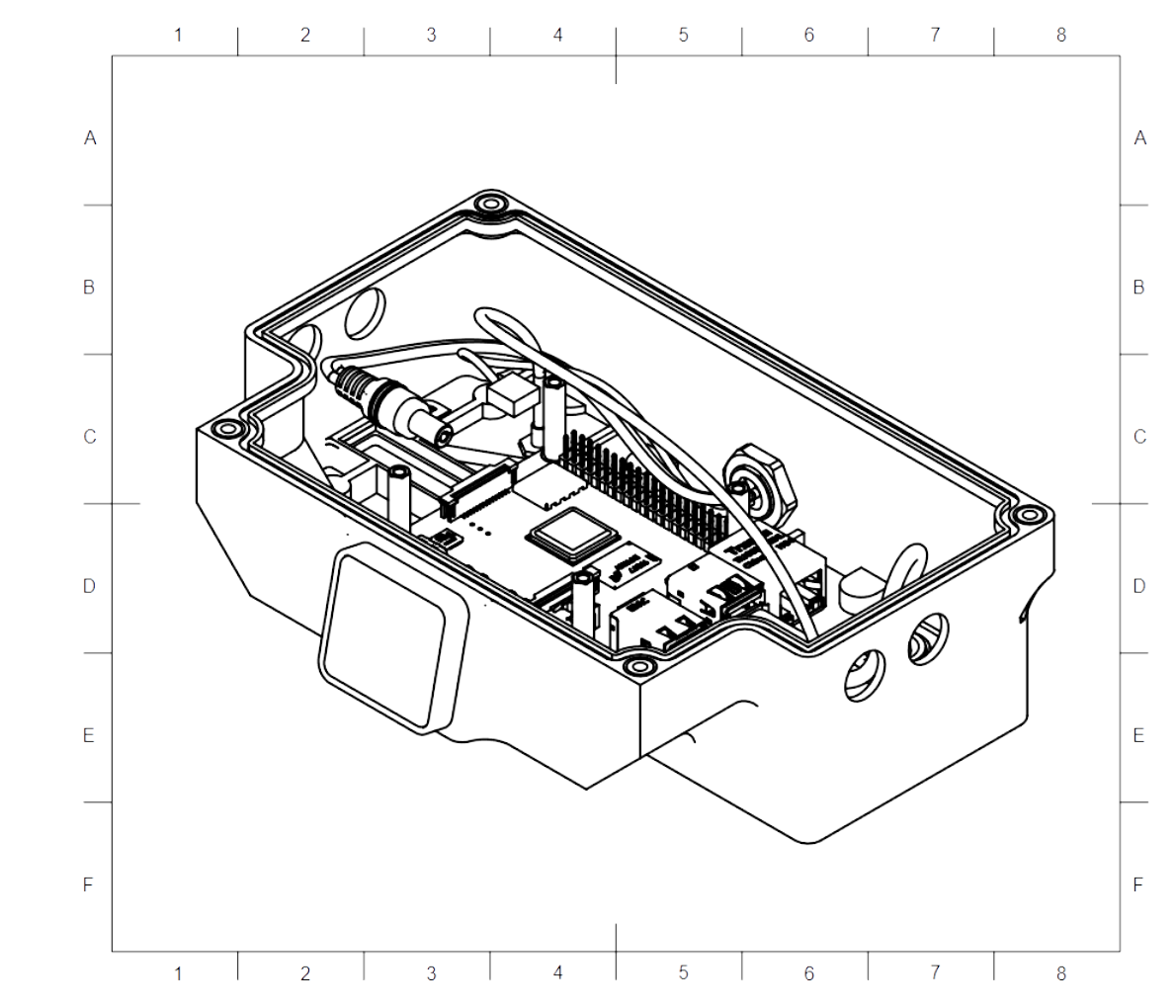

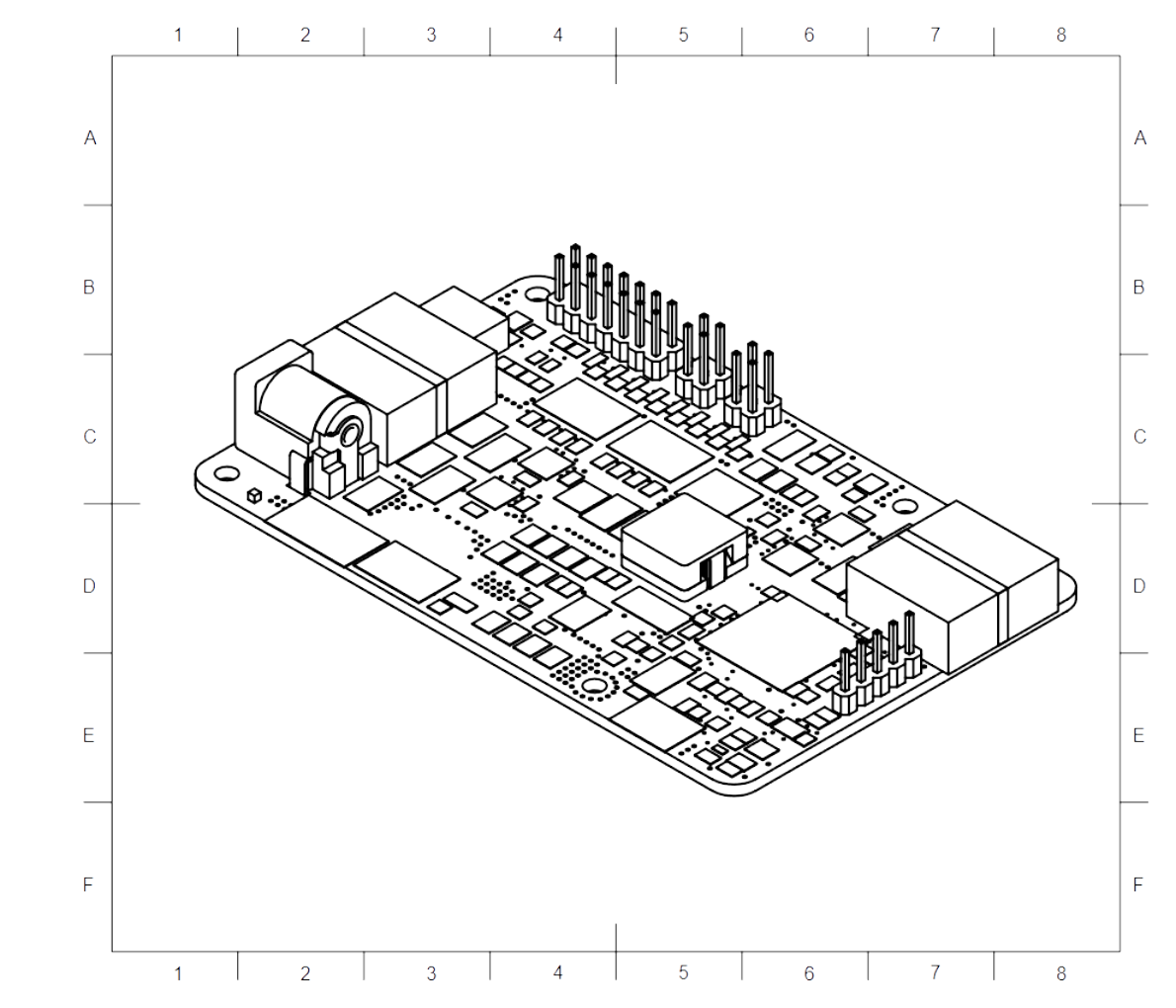

Step 8

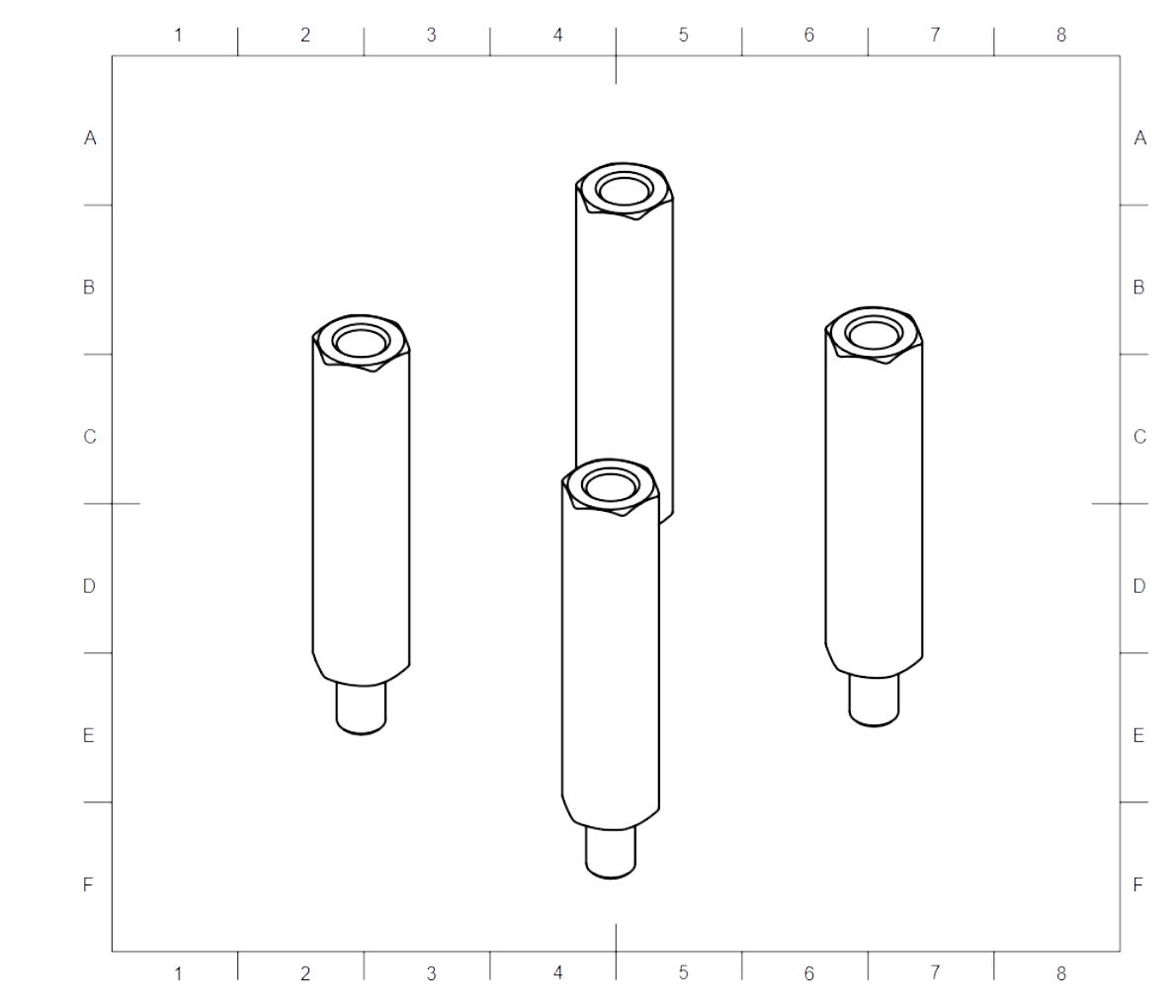

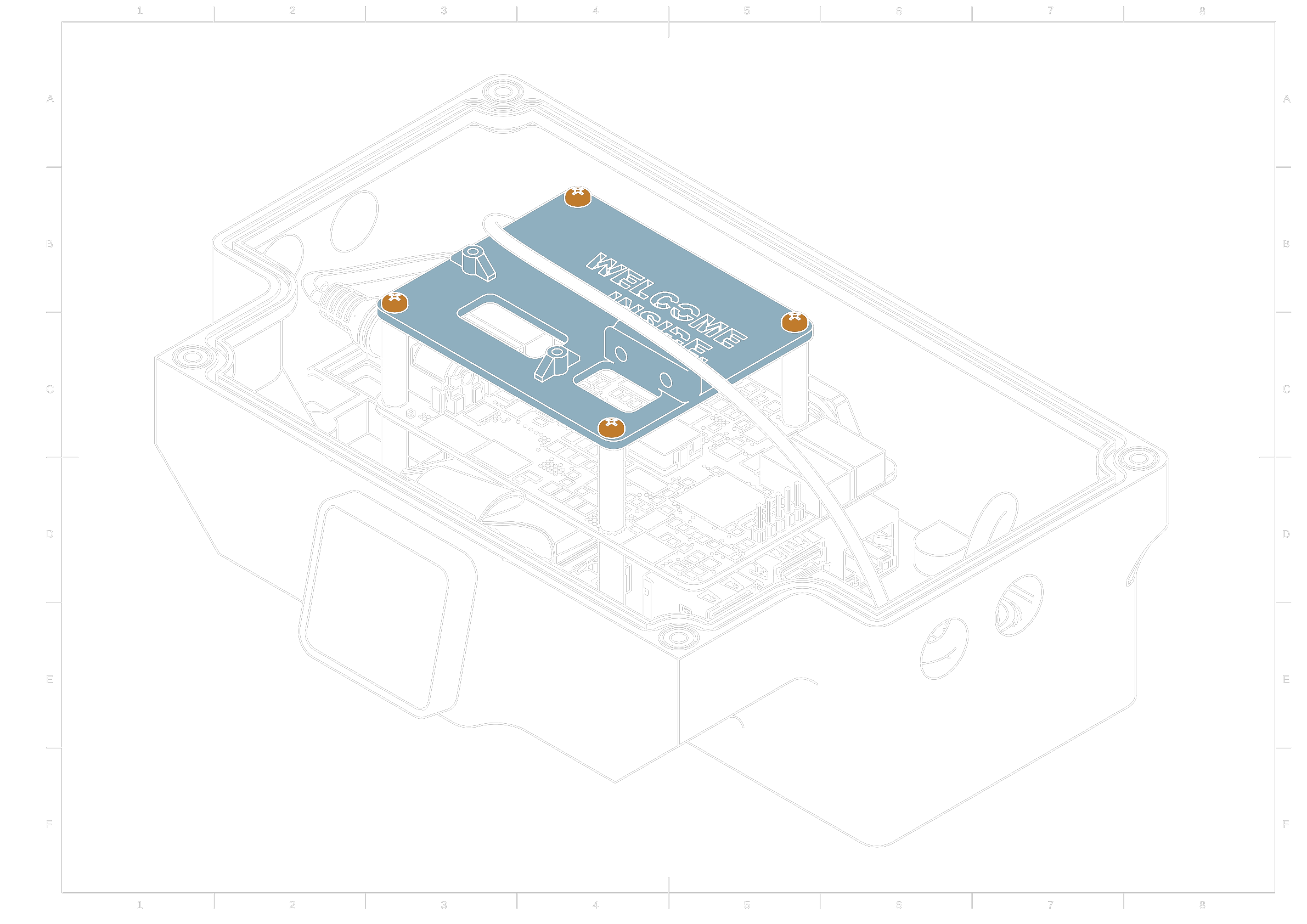

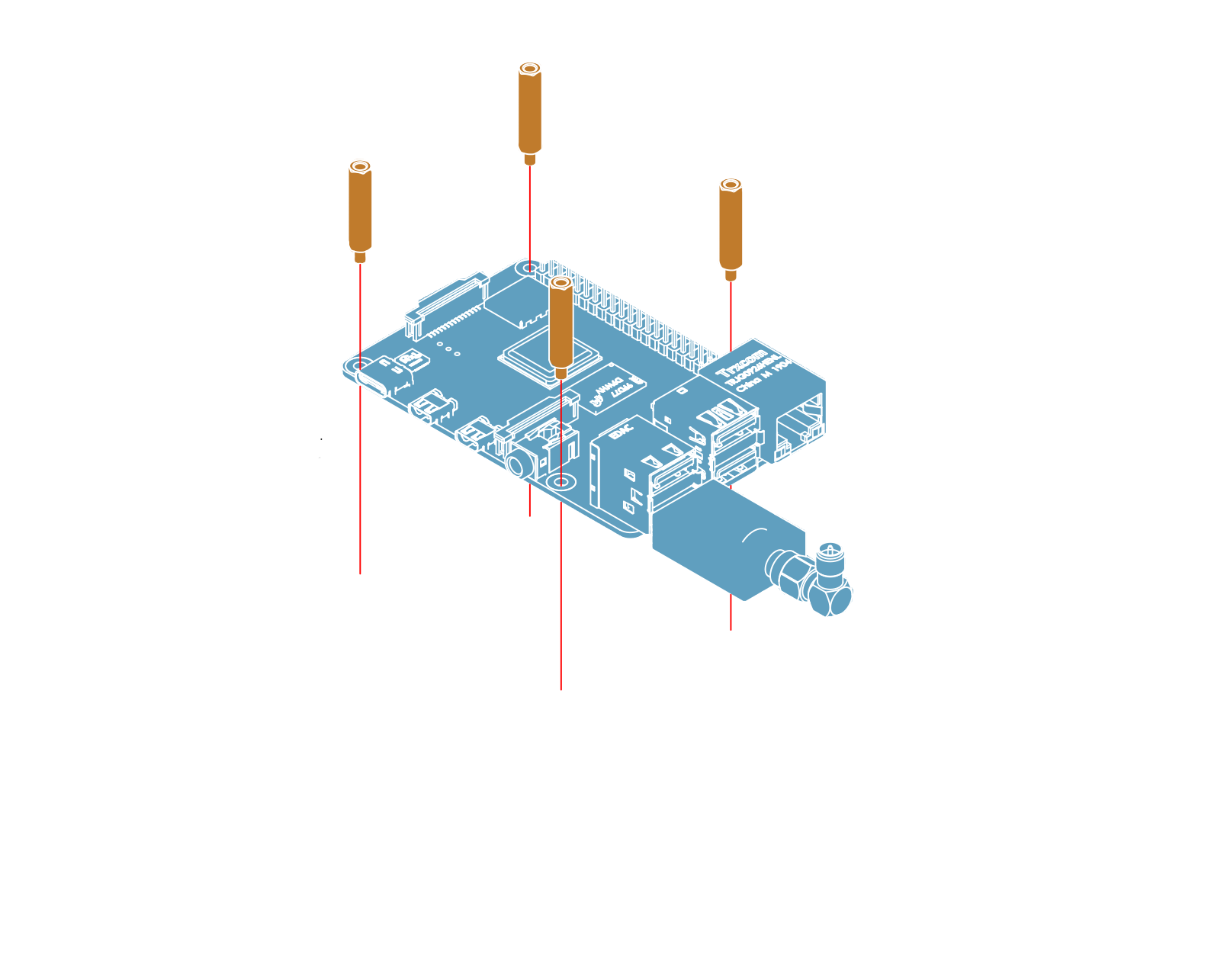

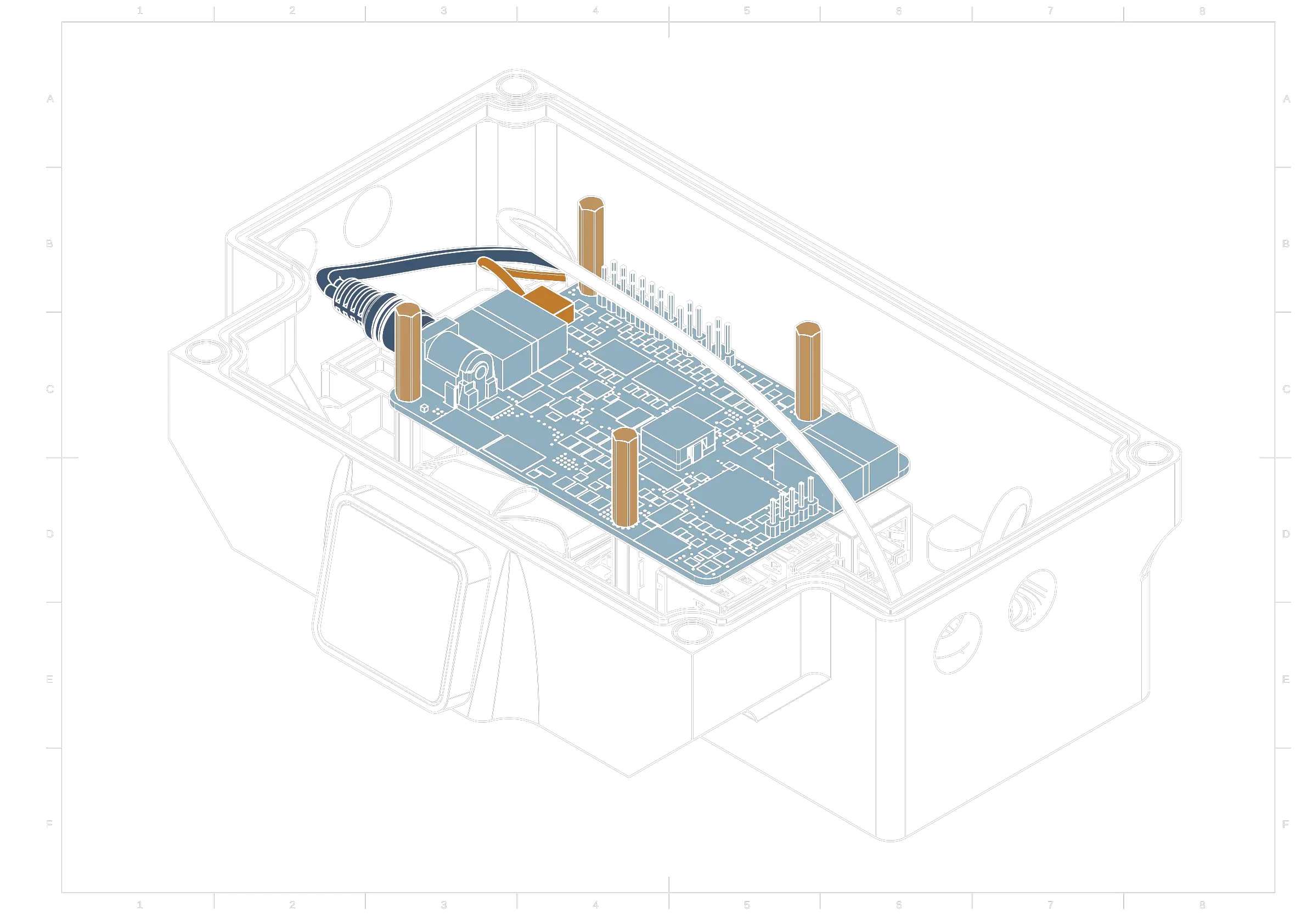

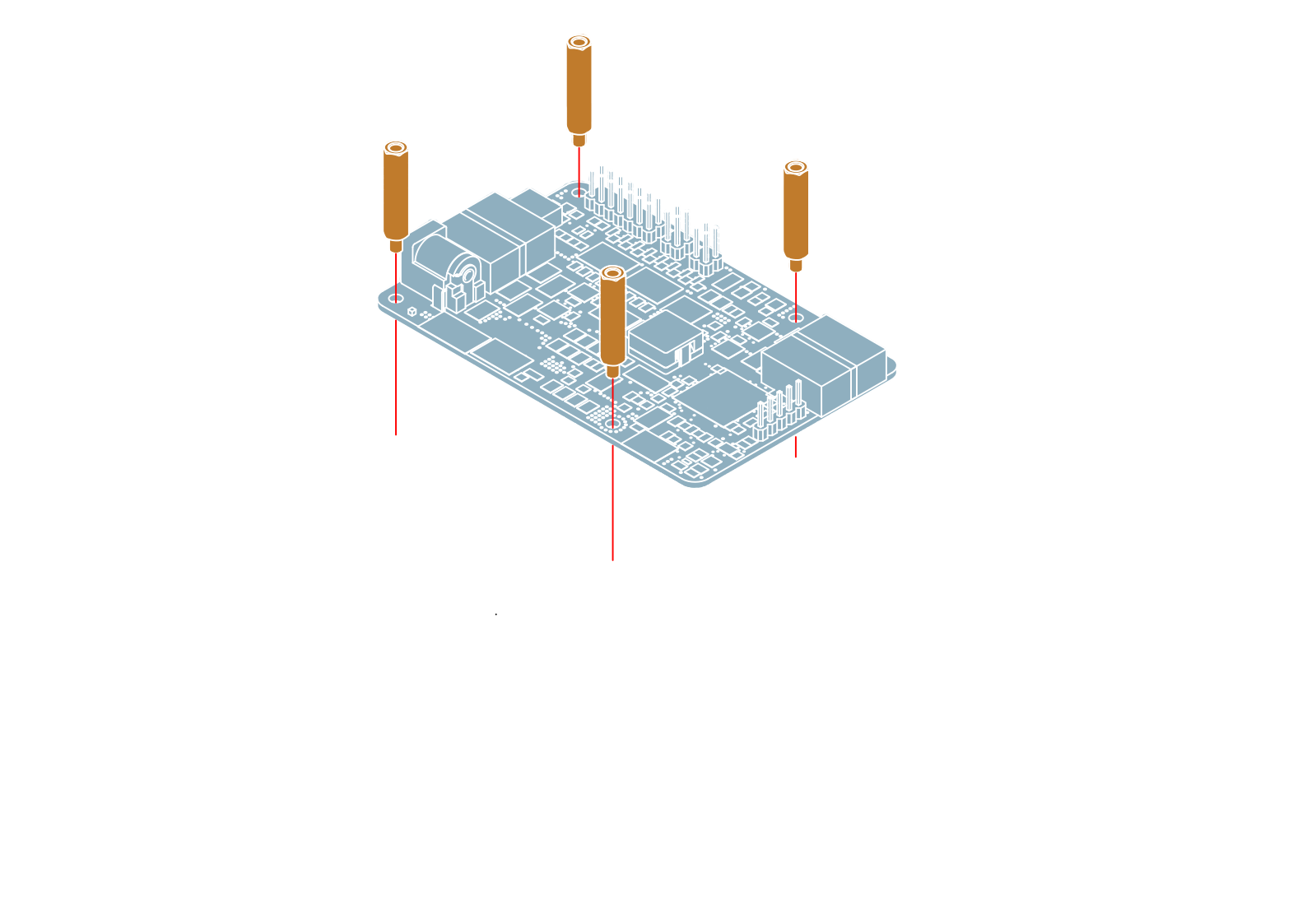

4x M2.5x40 distance

4x M2.5x40 distance

note

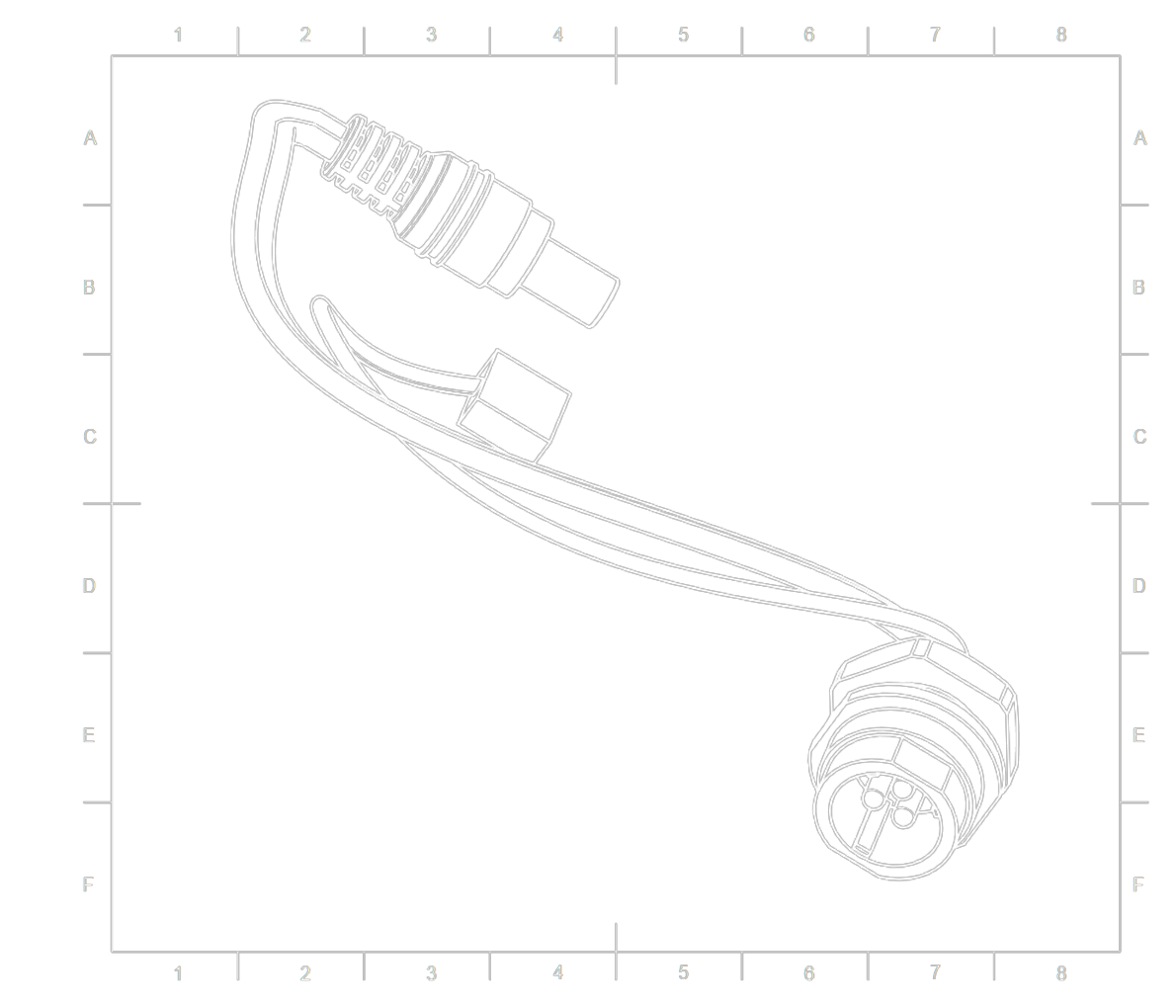

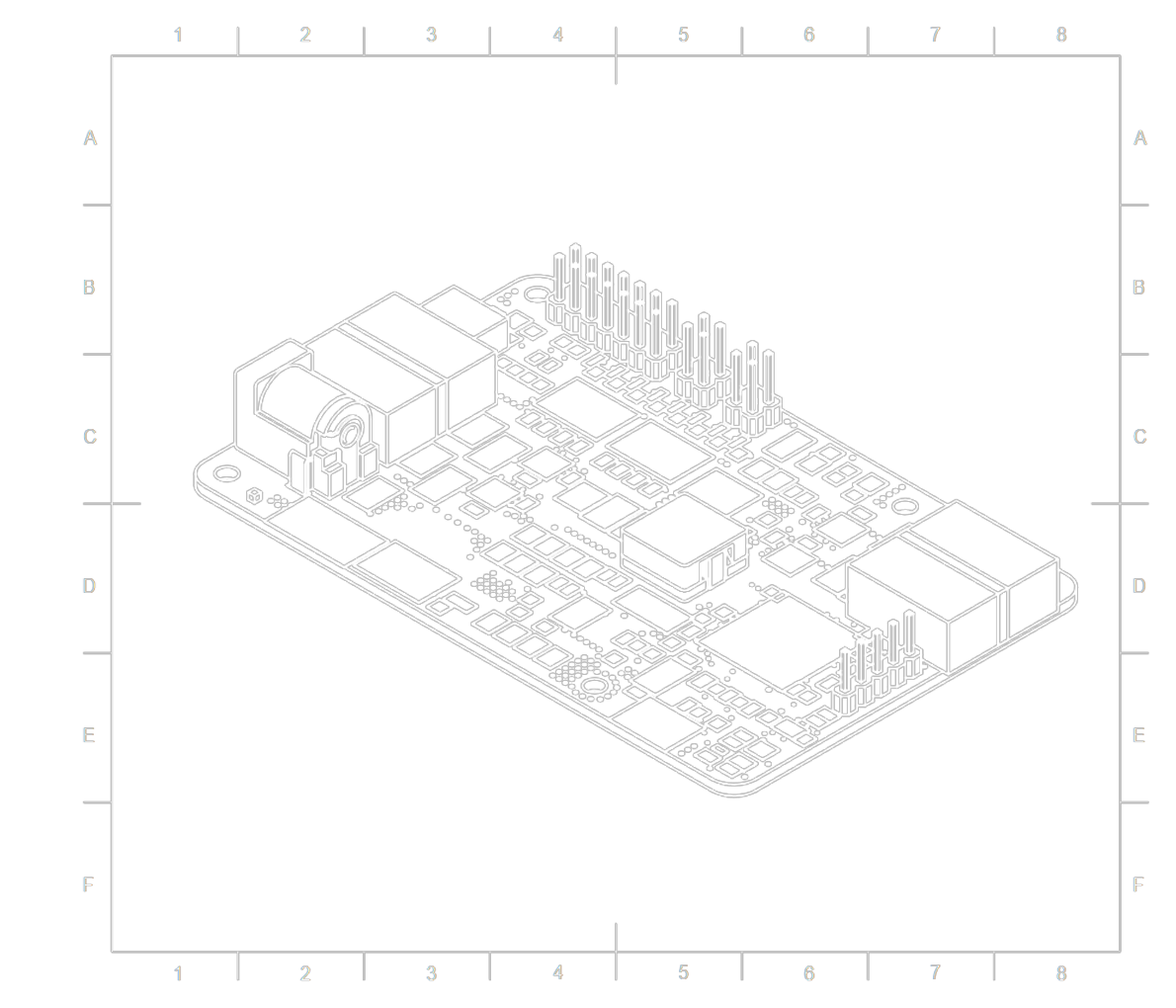

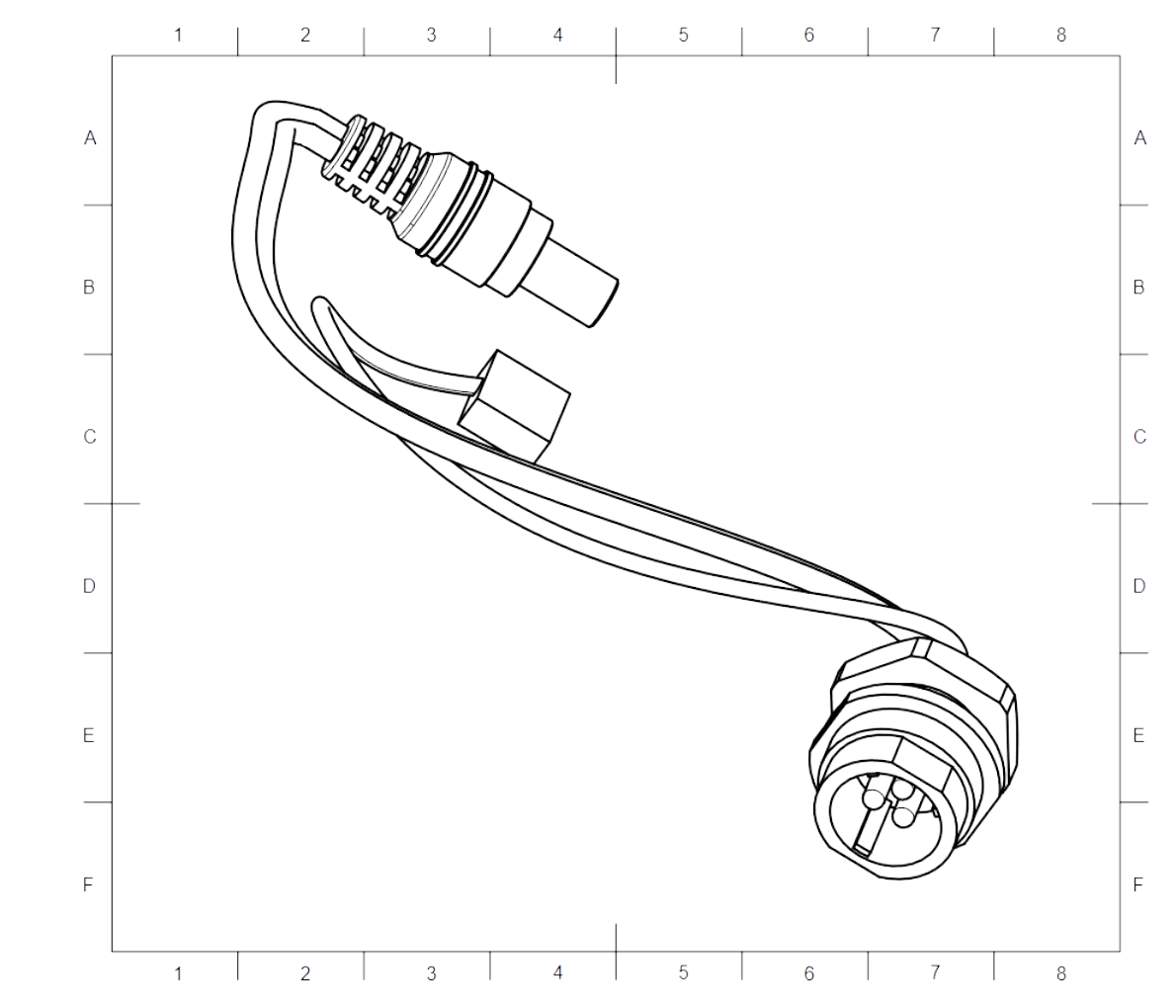

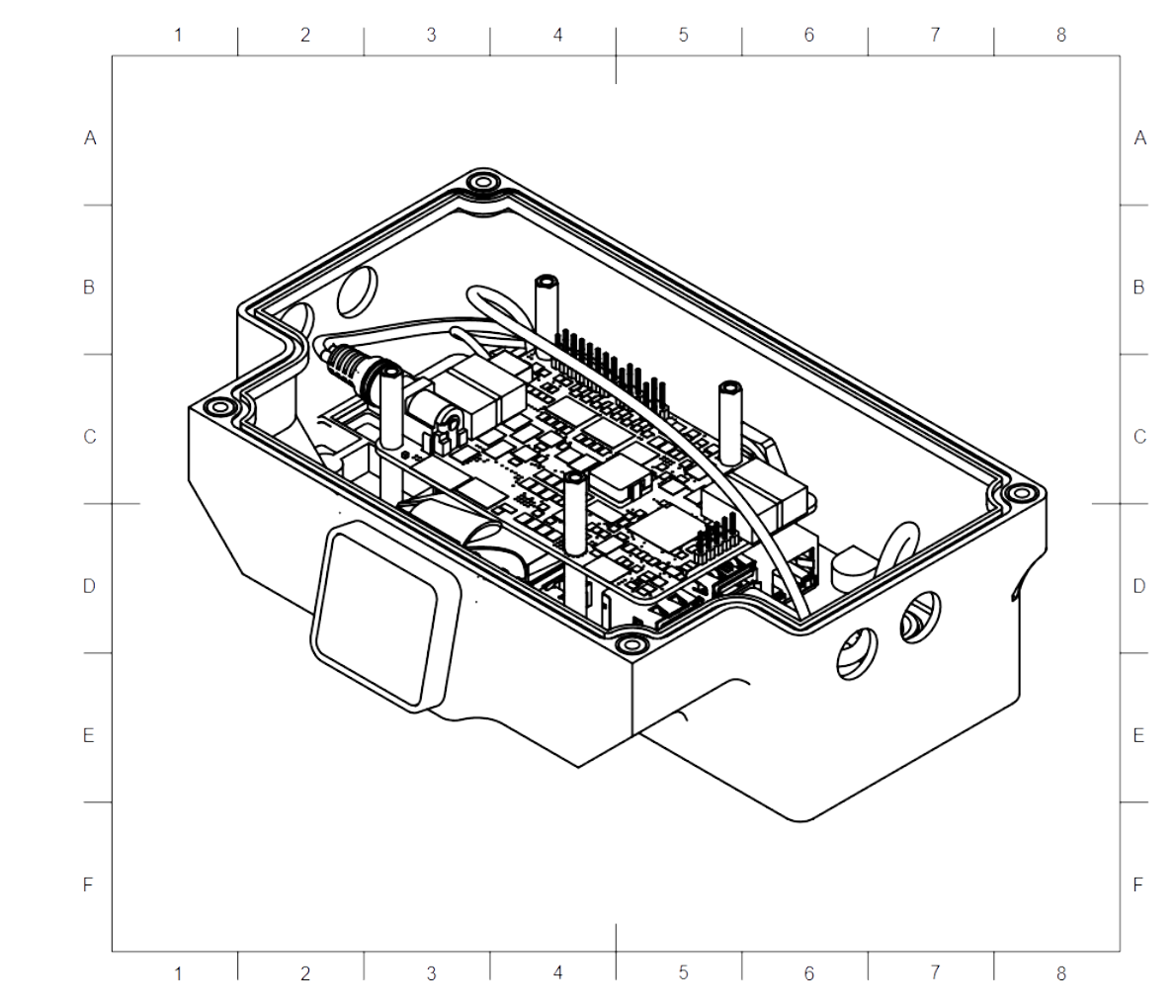

Connect power and LED cables.

---

Step 9

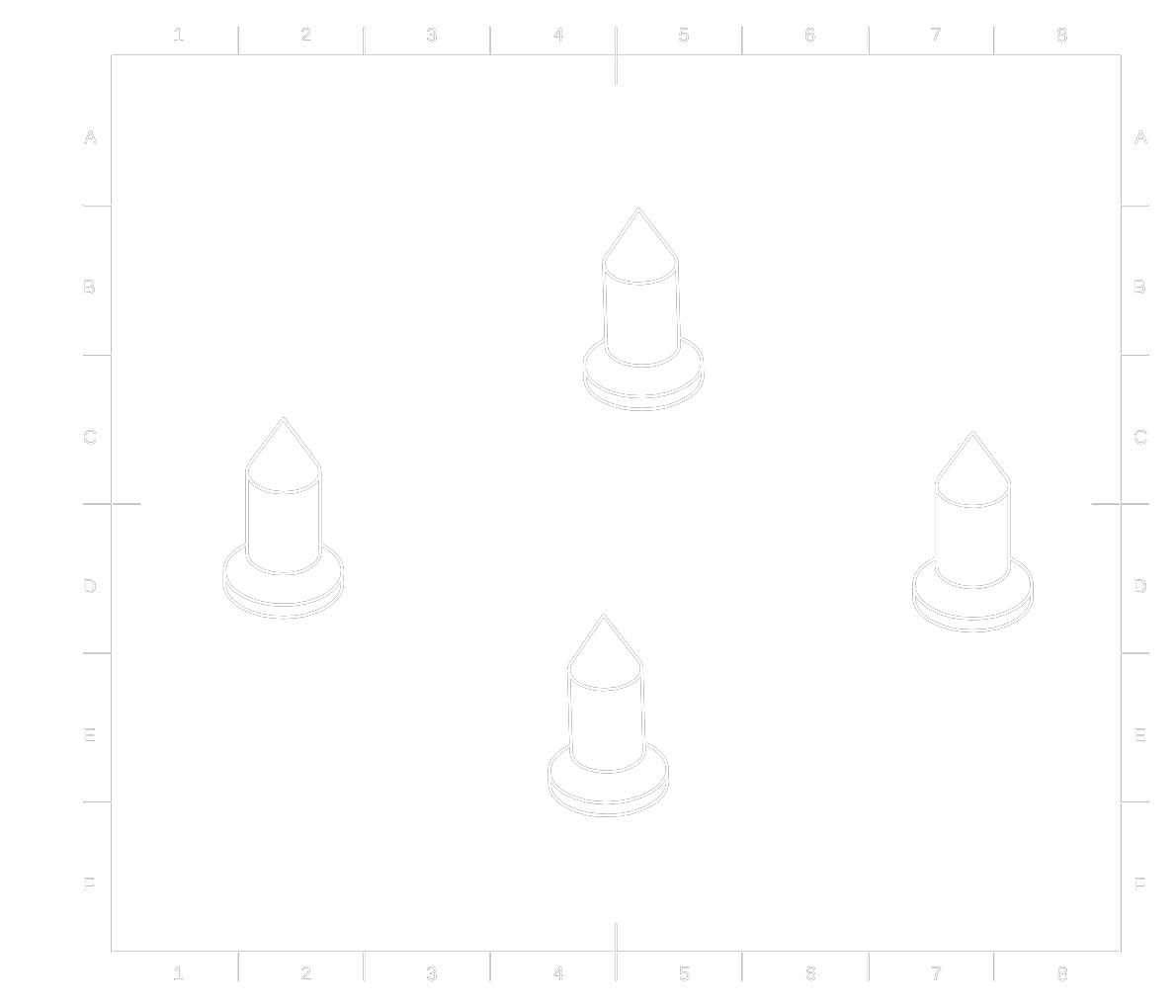

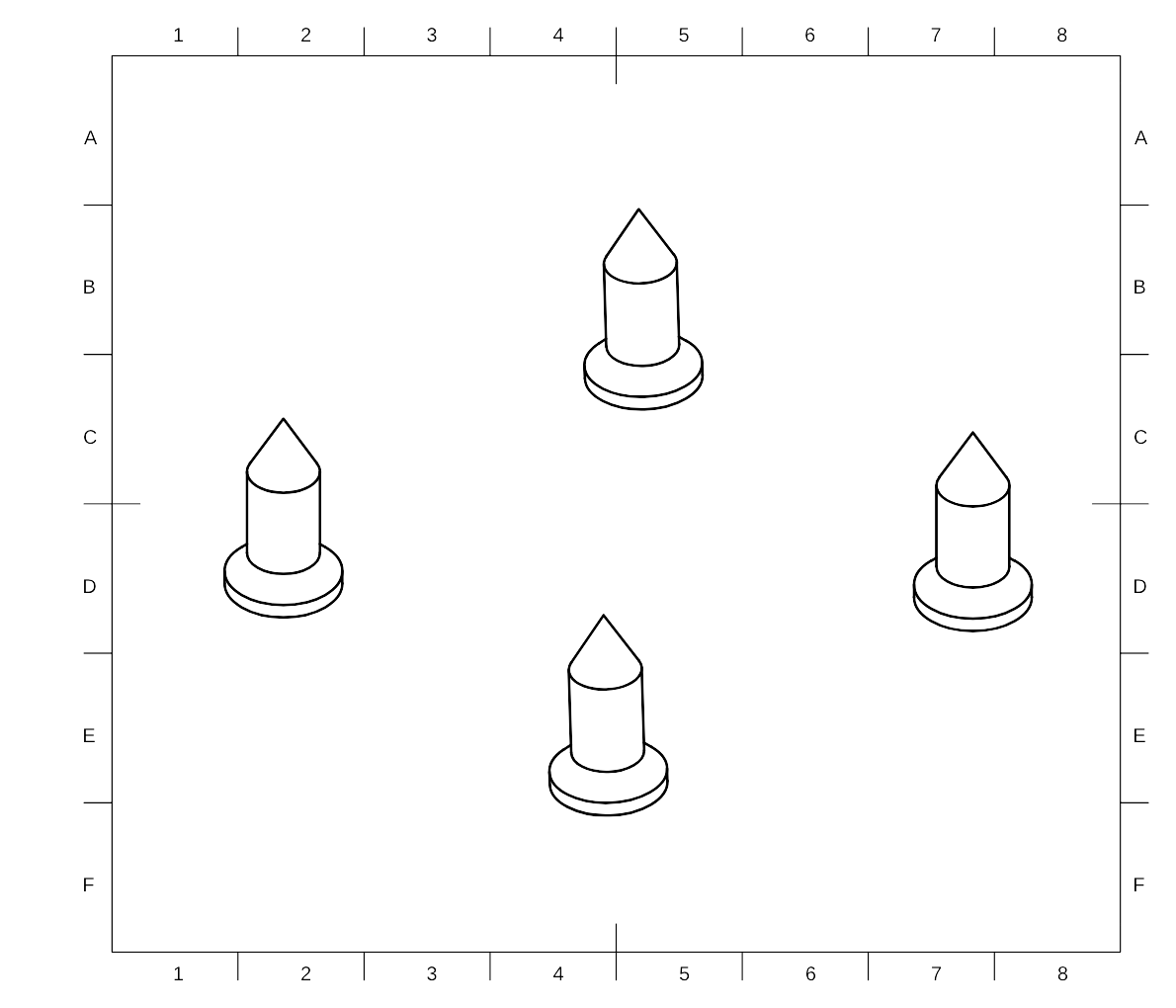

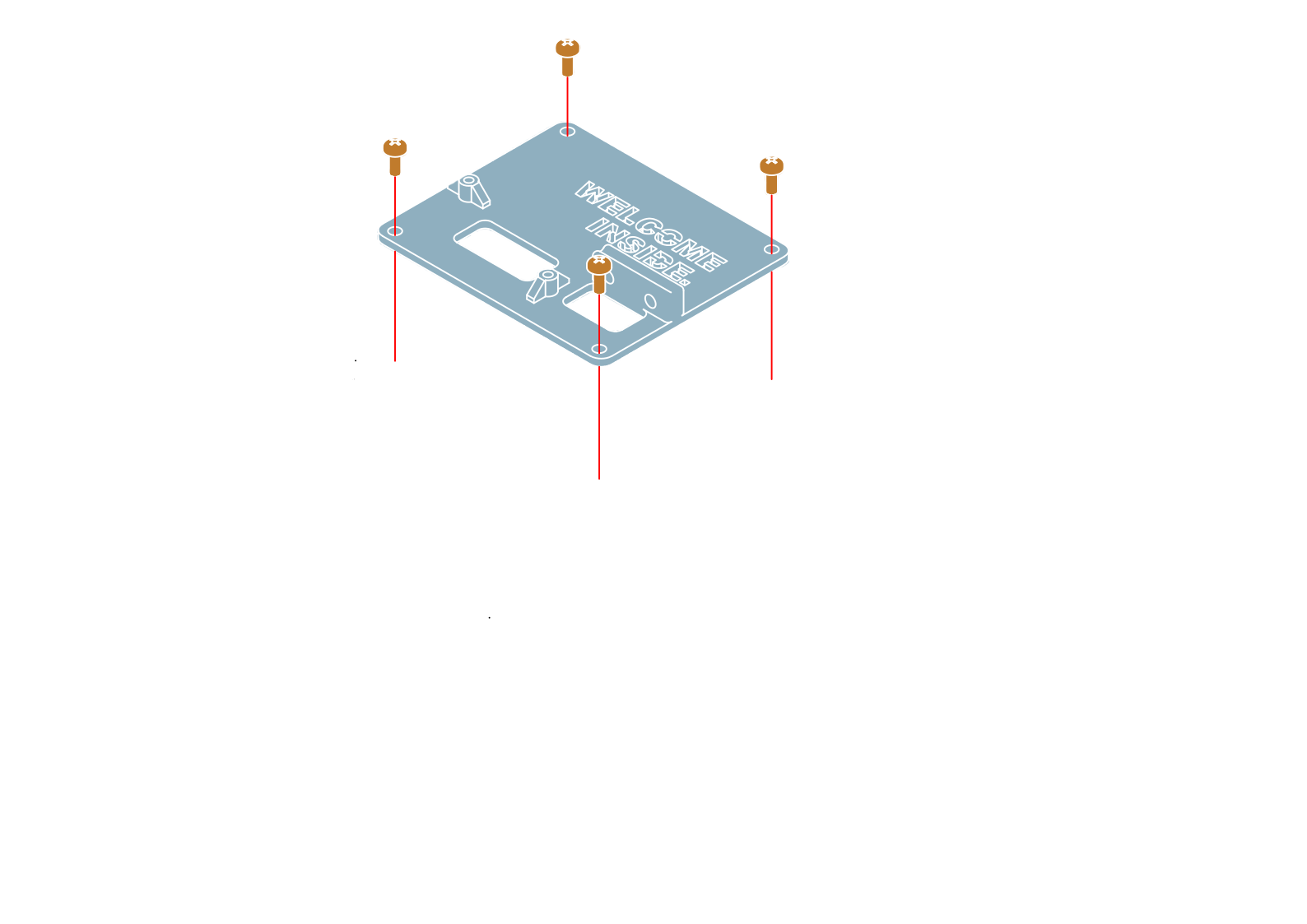

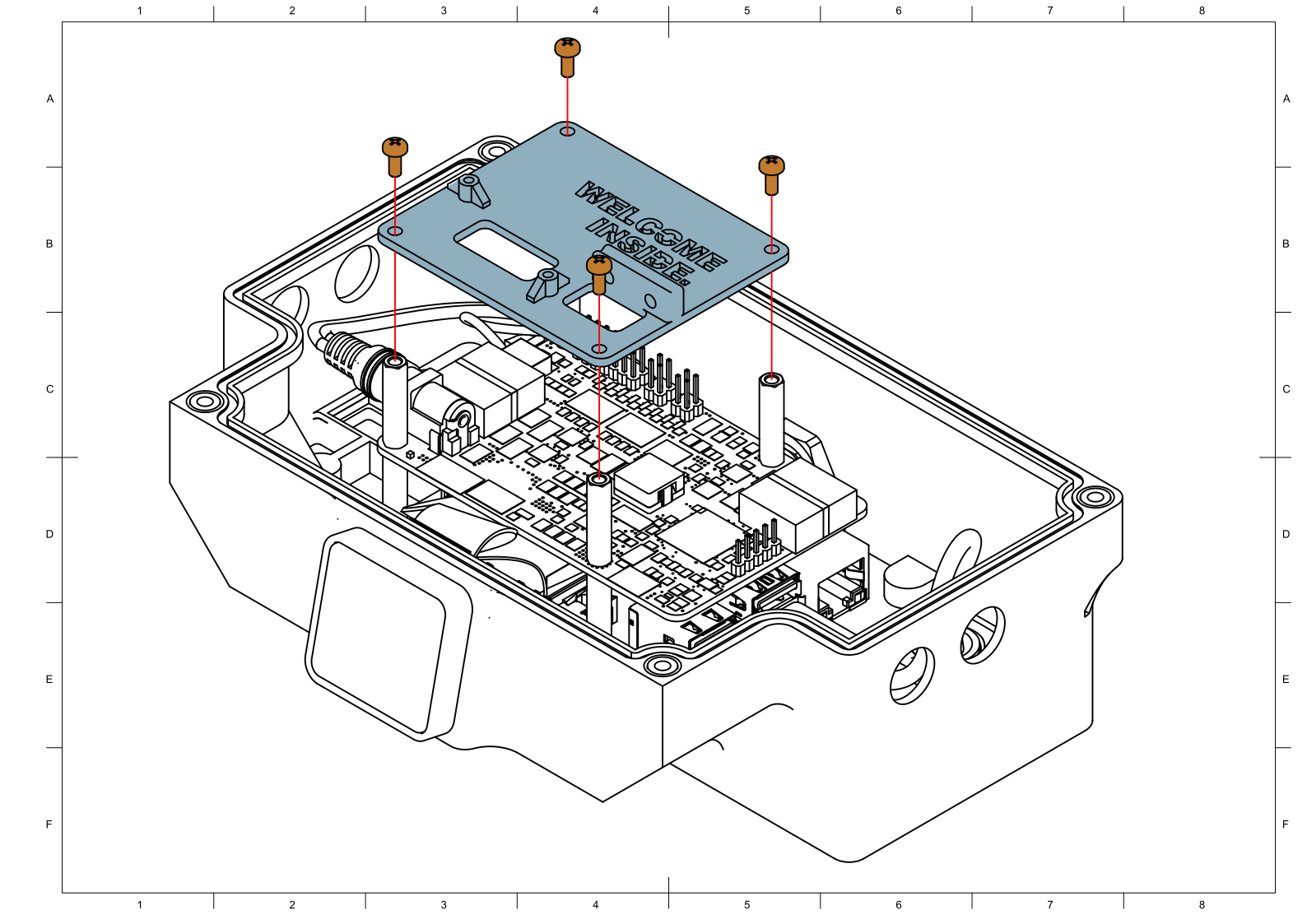

4x pan head M2.5x8 plastic screw

4x pan head M2.5x8 plastic screw

---

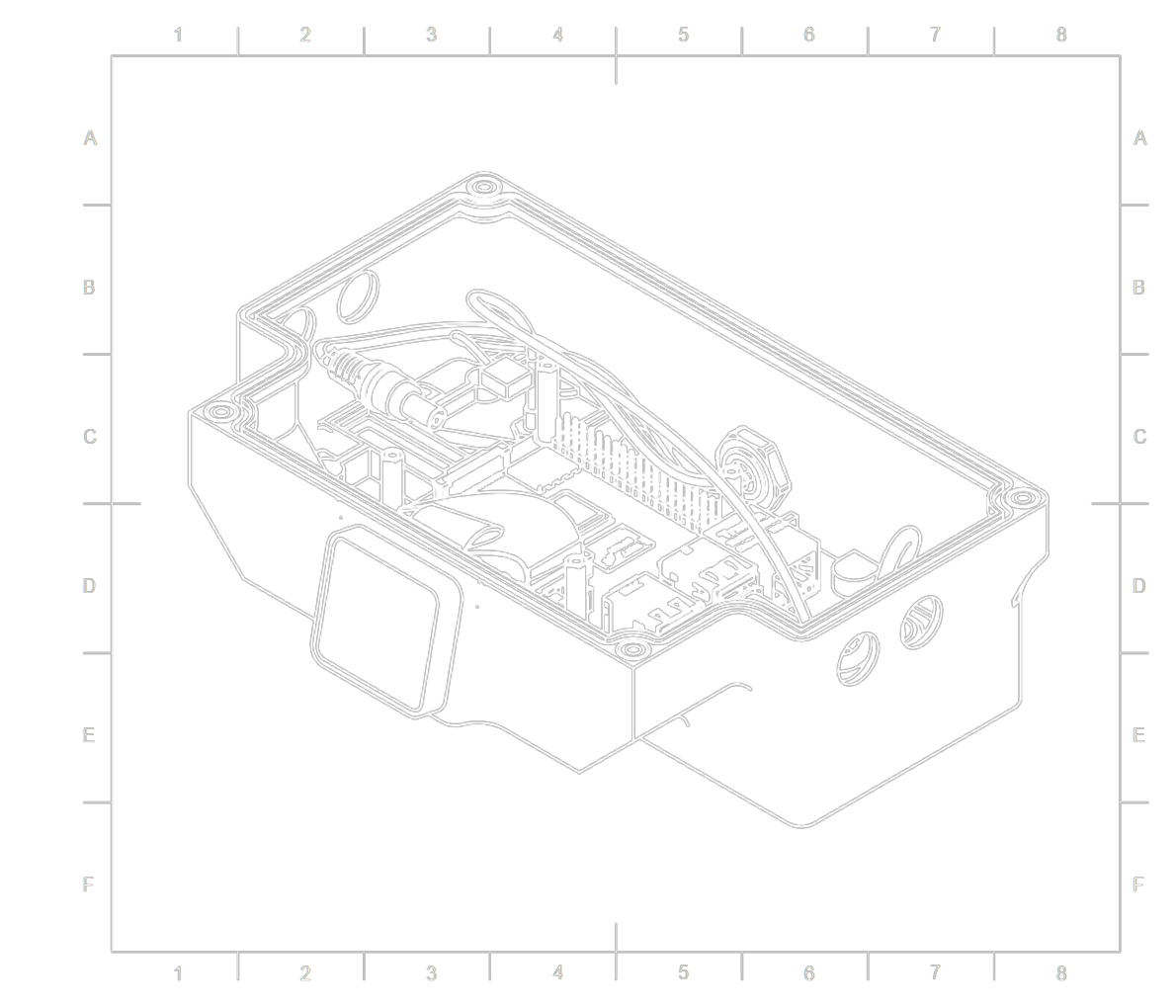

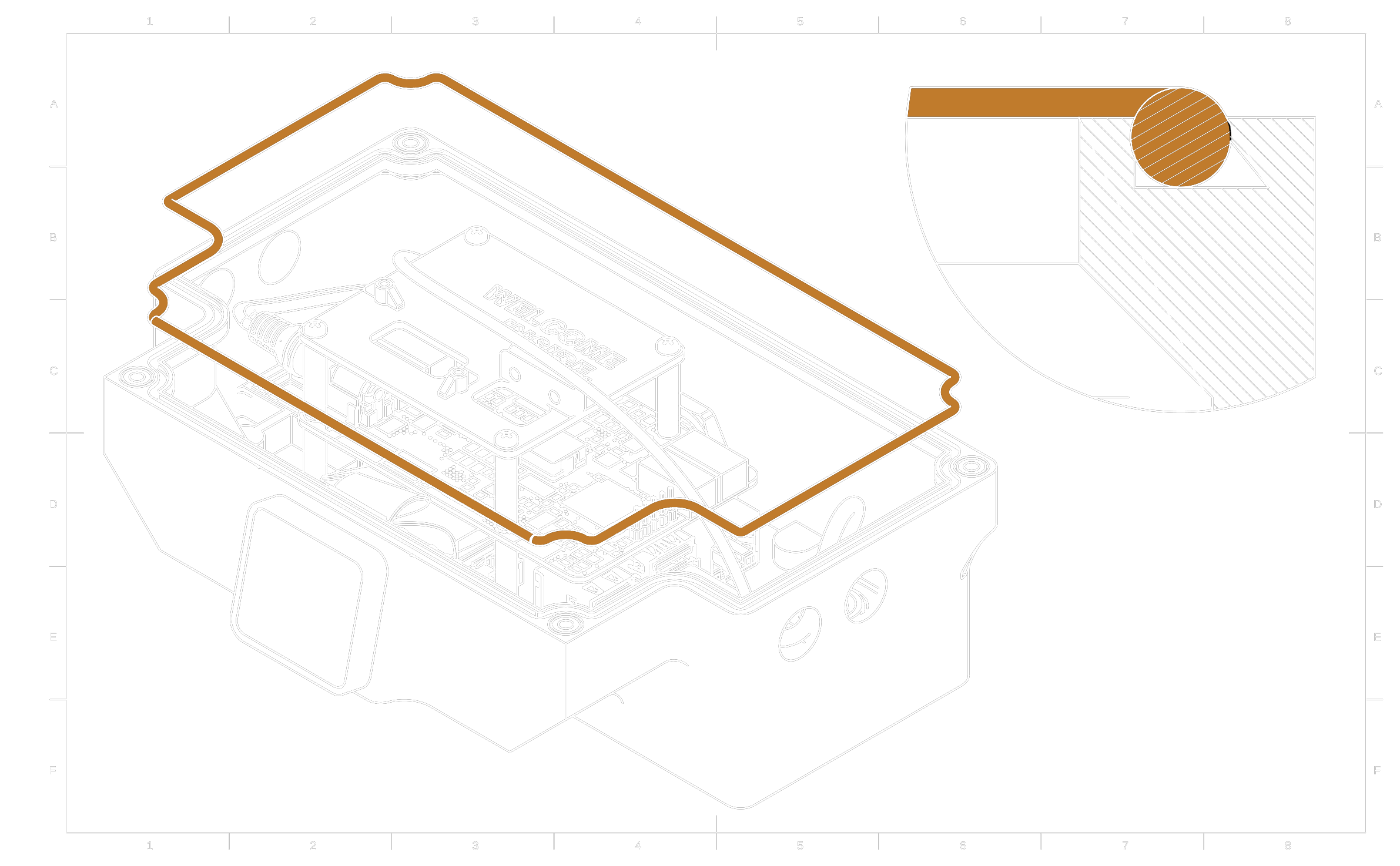

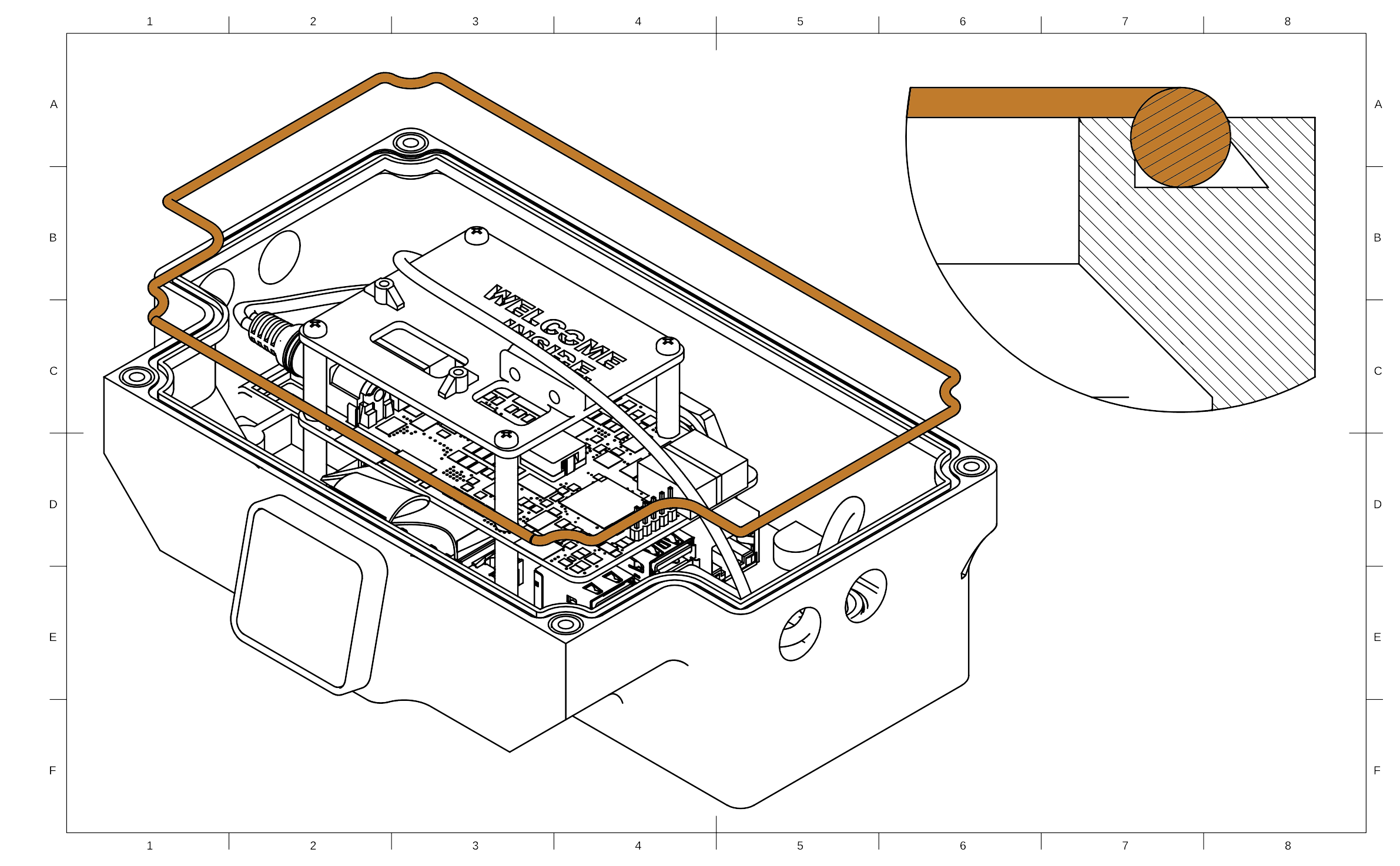

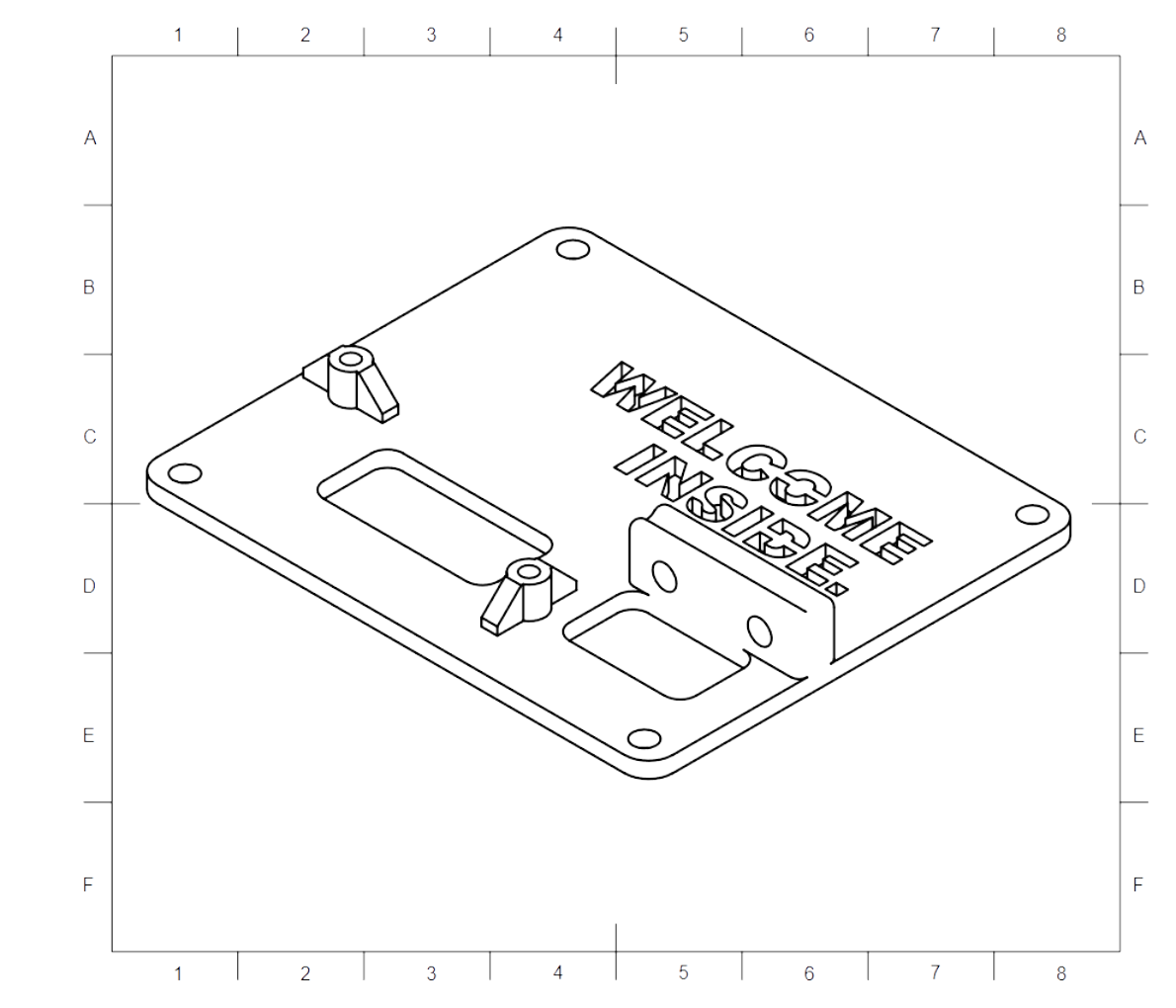

Step 10

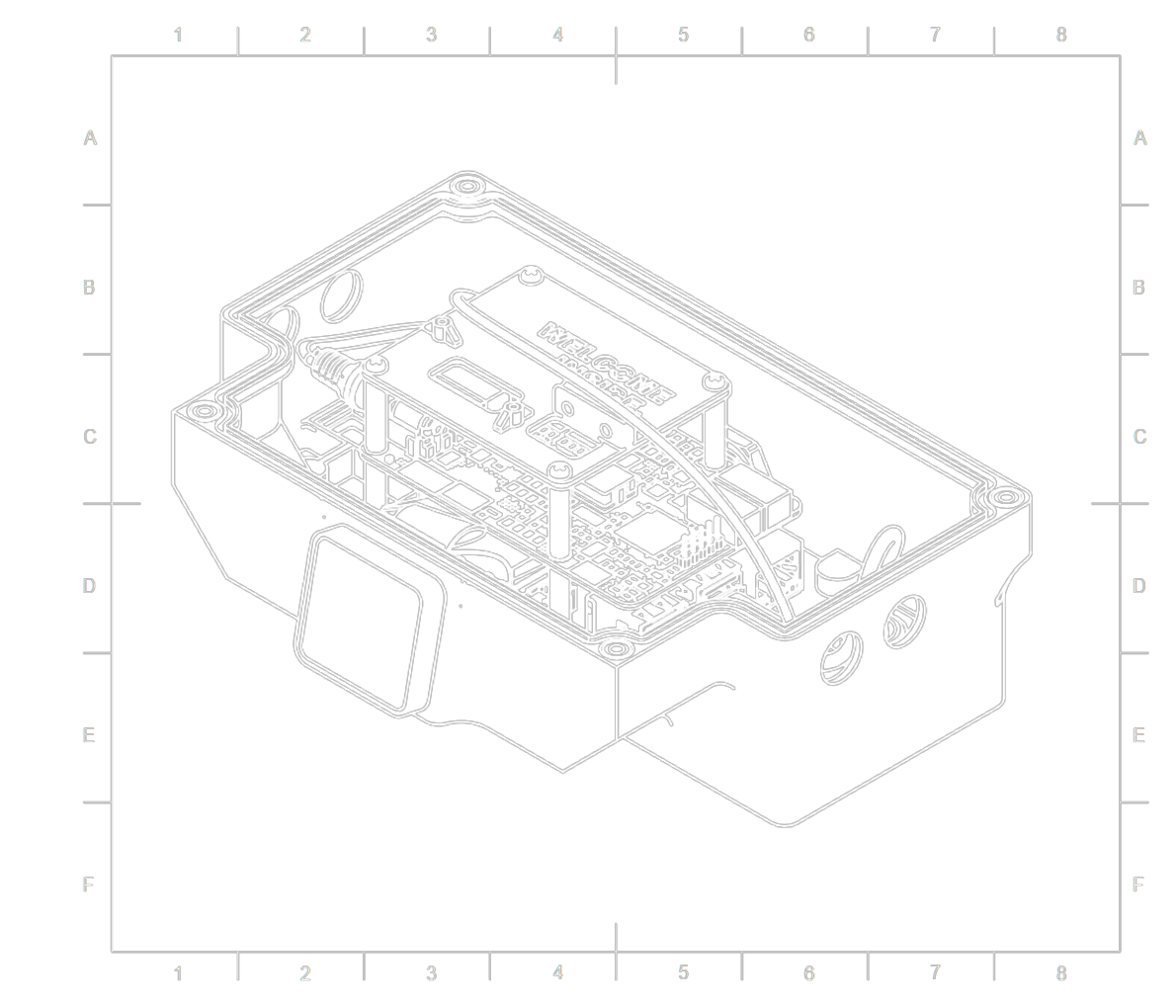

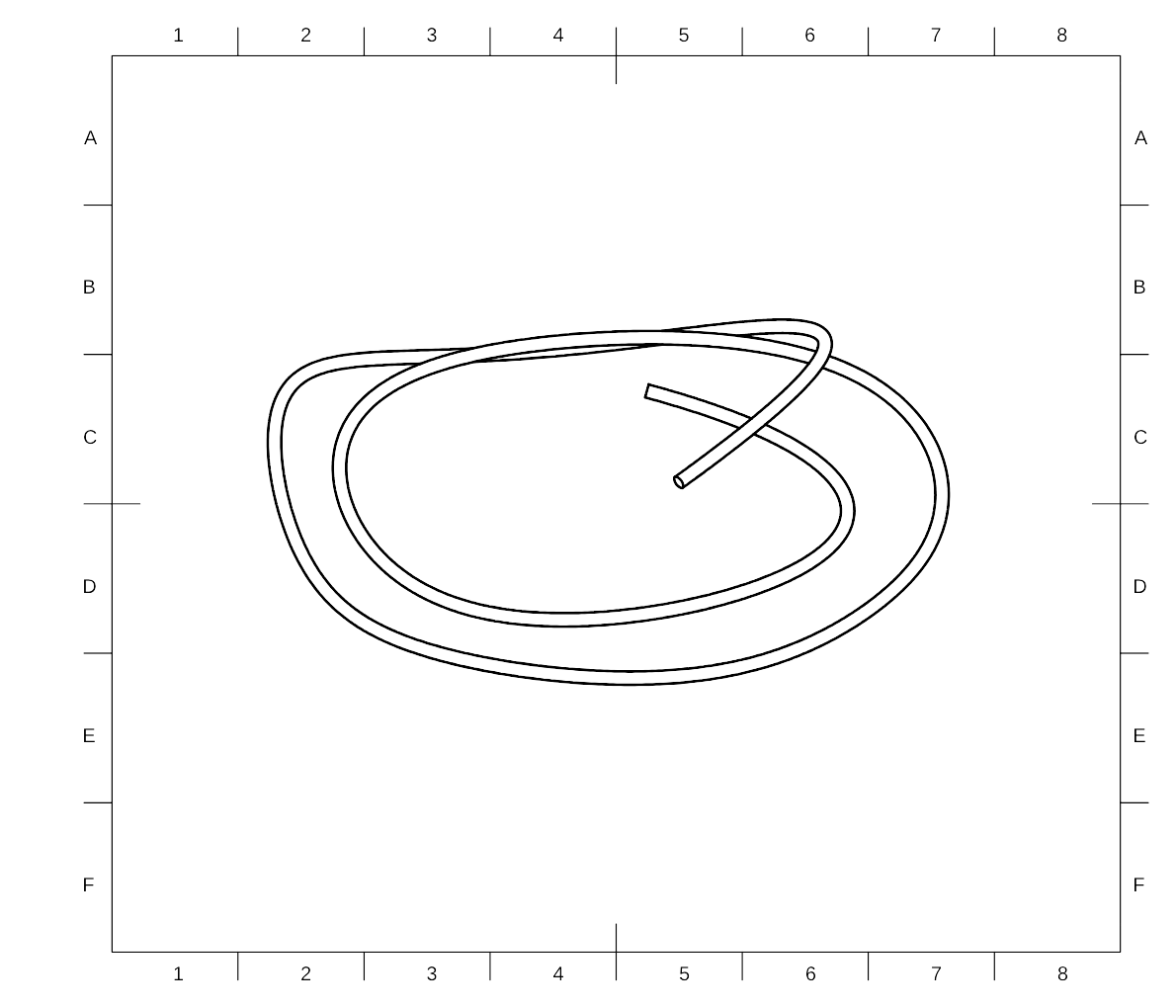

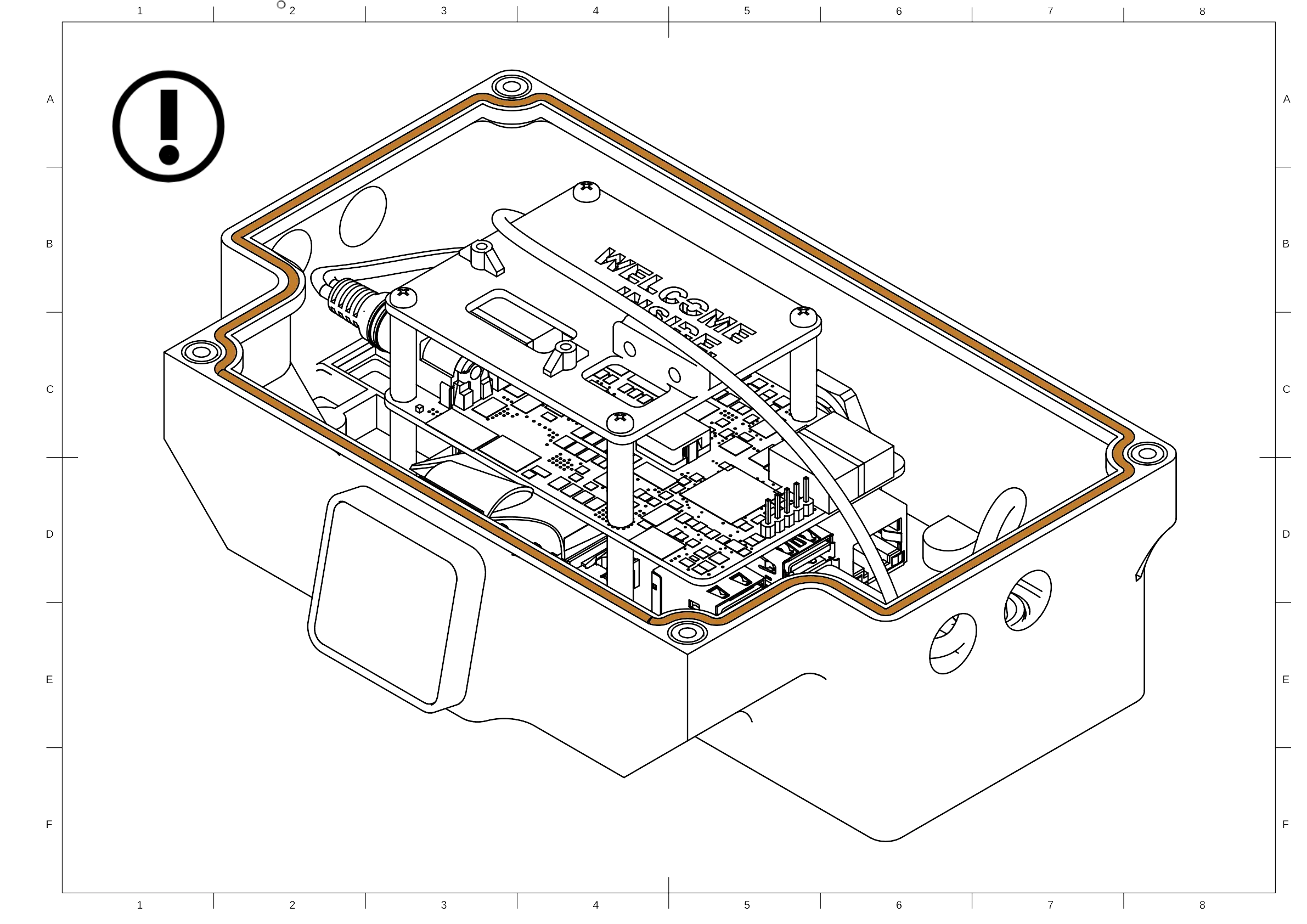

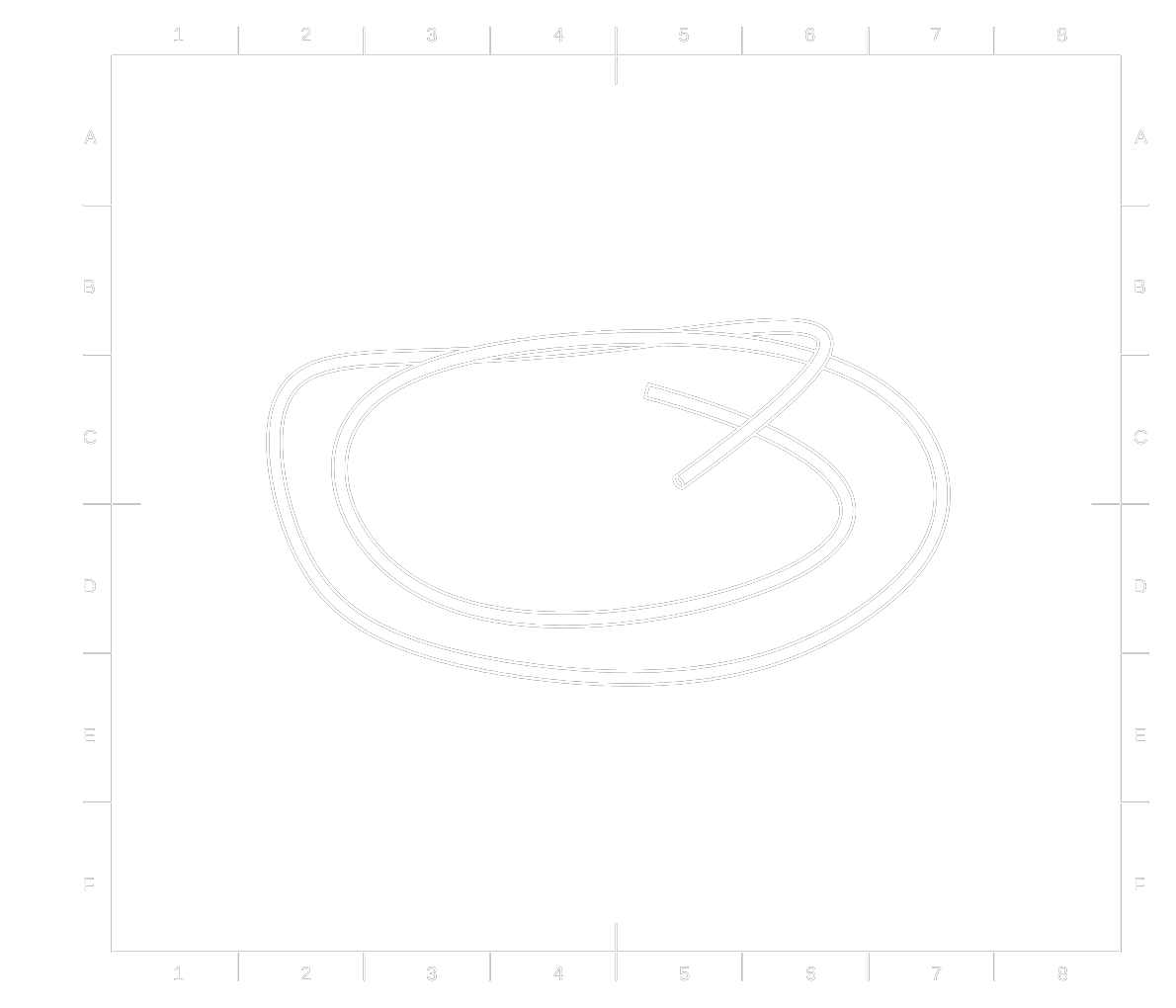

Seal string

Seal string

note

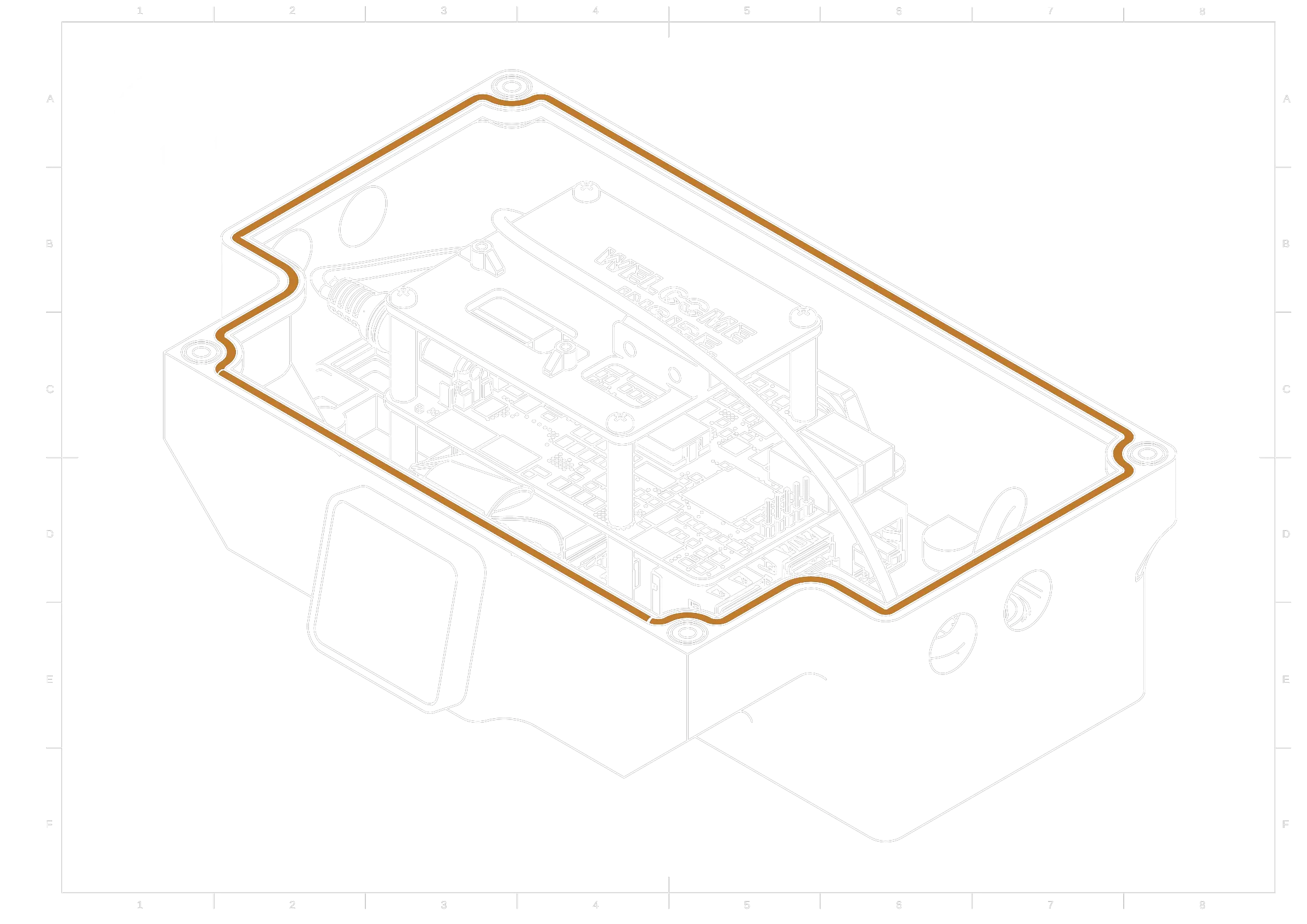

Make sure that the full length of the seal sits in the groove.
Cut excess material, leave ≈1cm of overlap

---

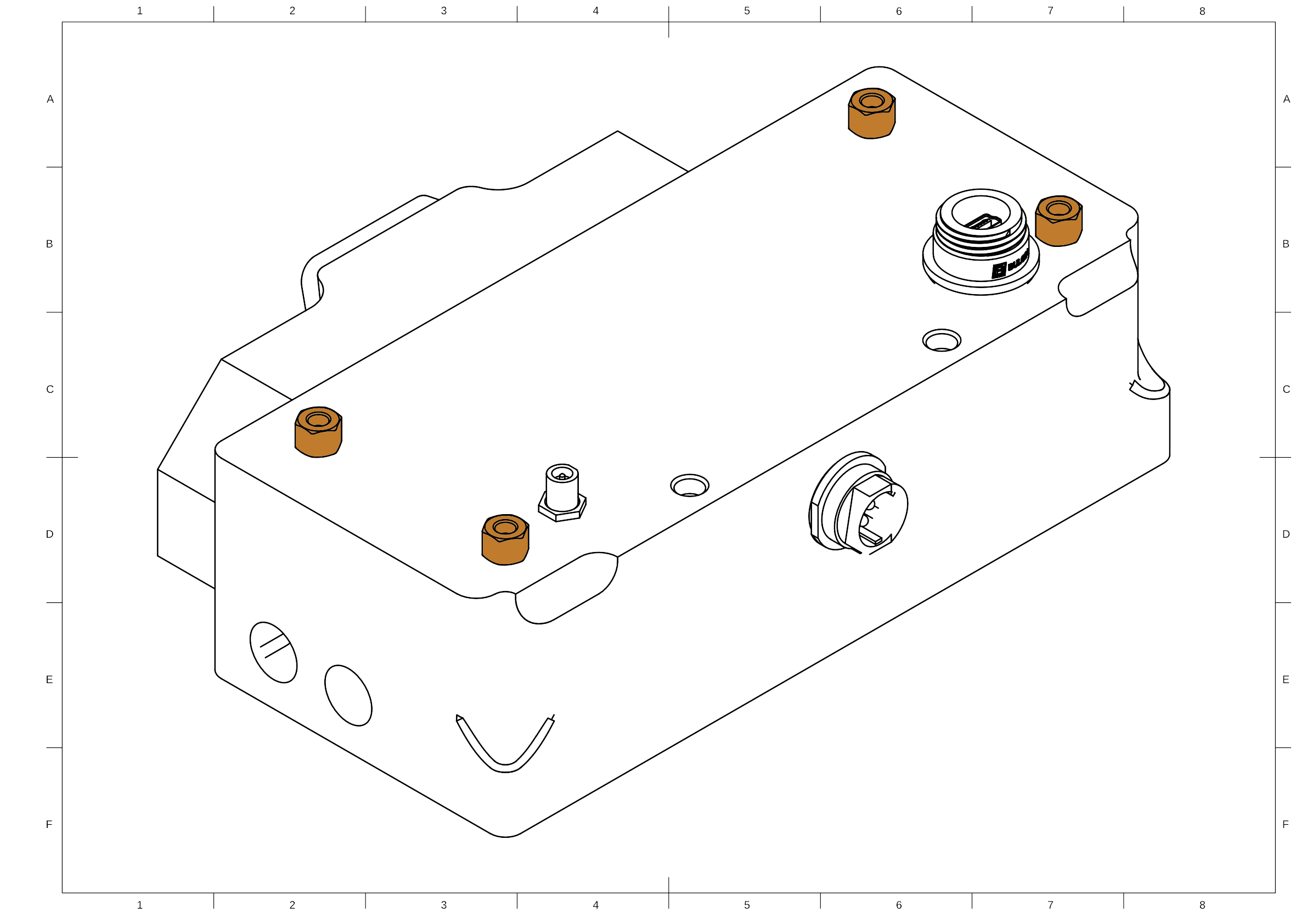

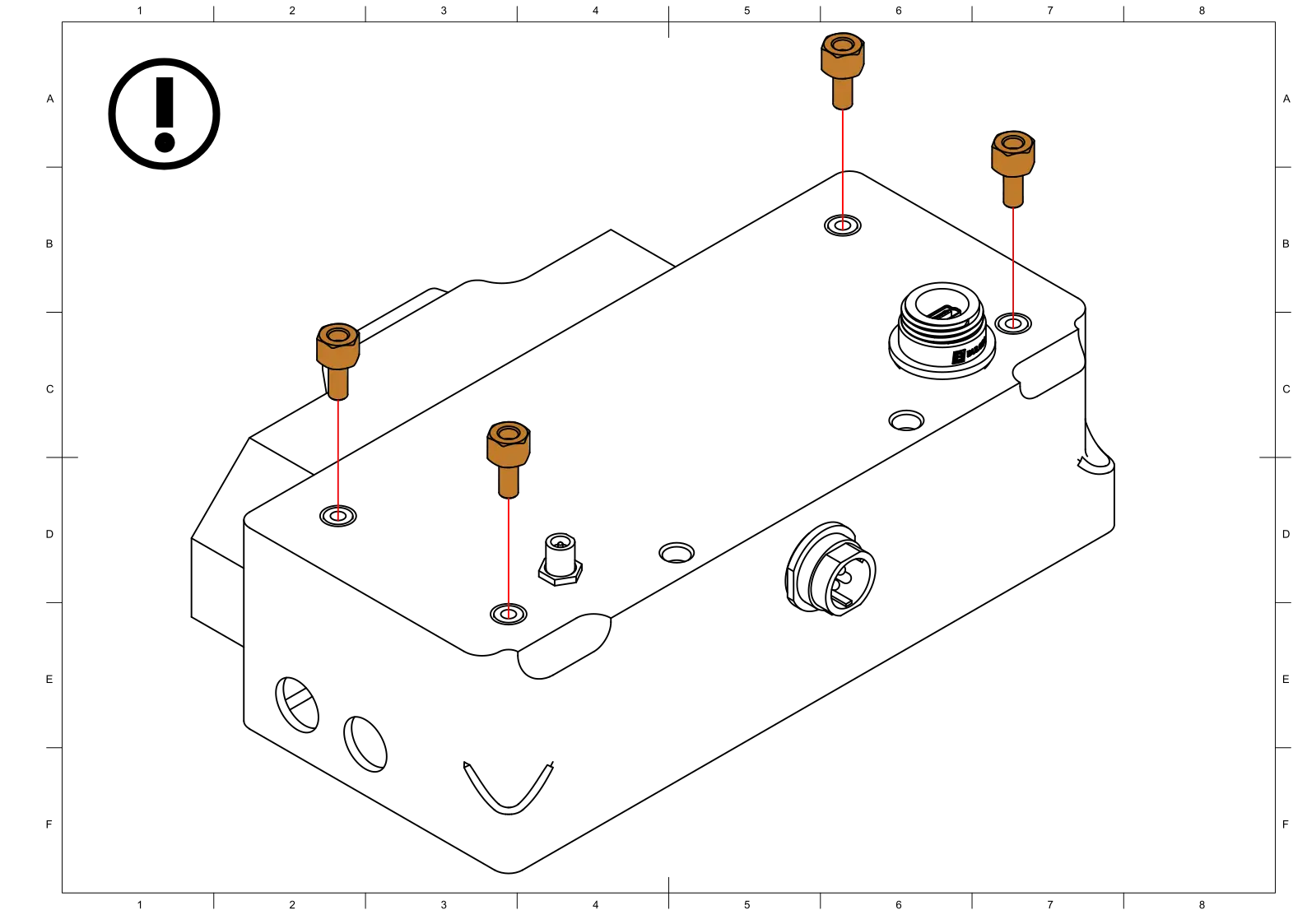

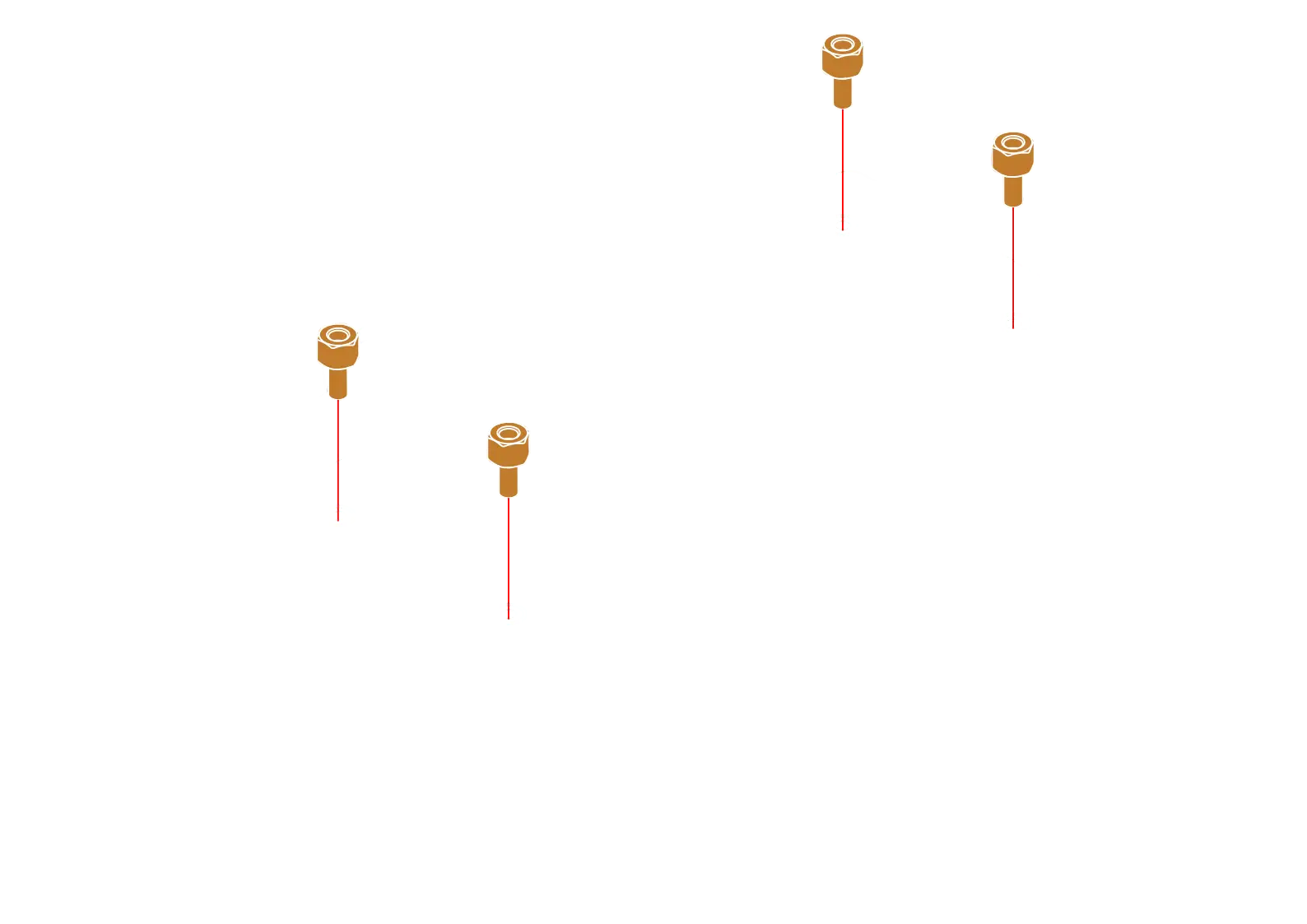

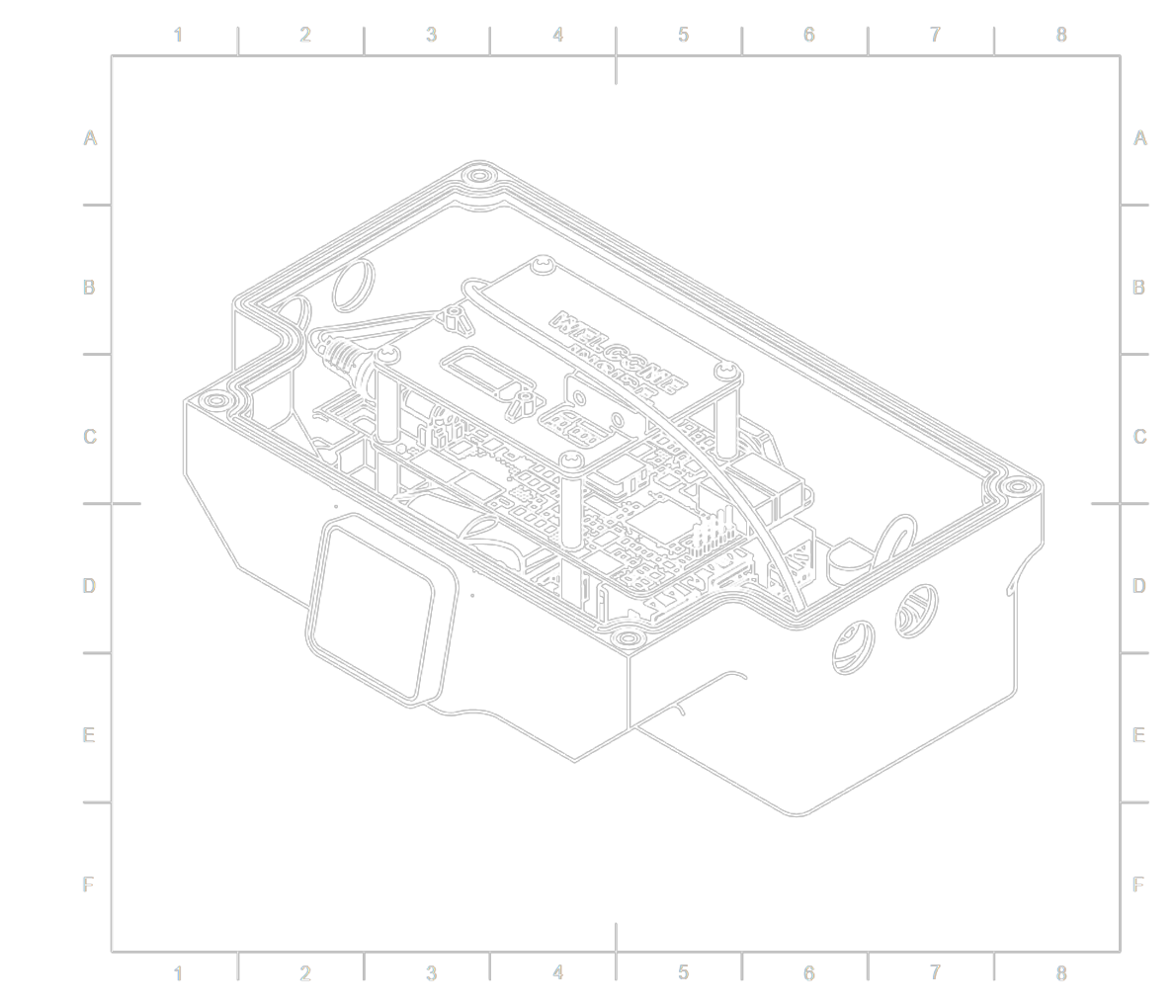

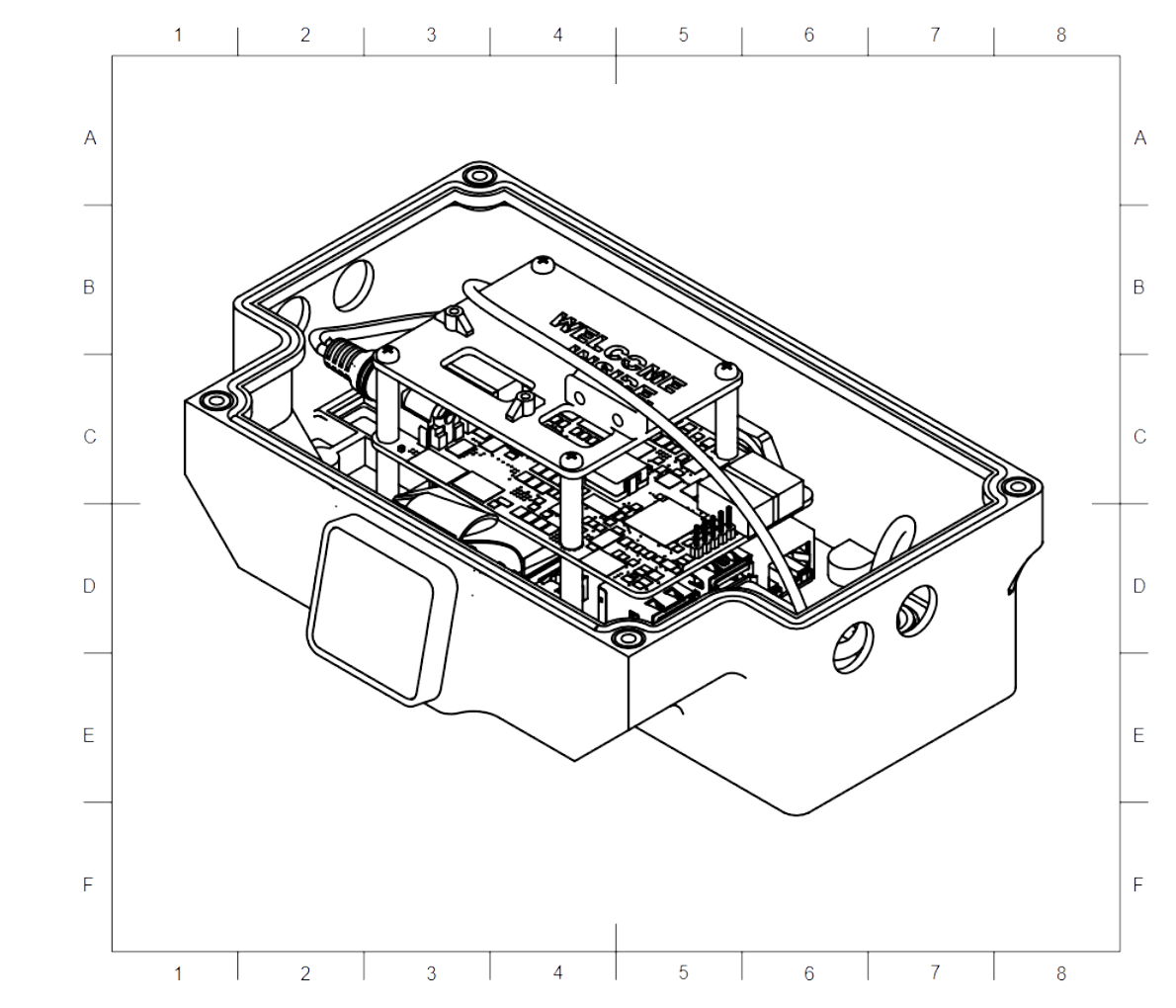

Step 11

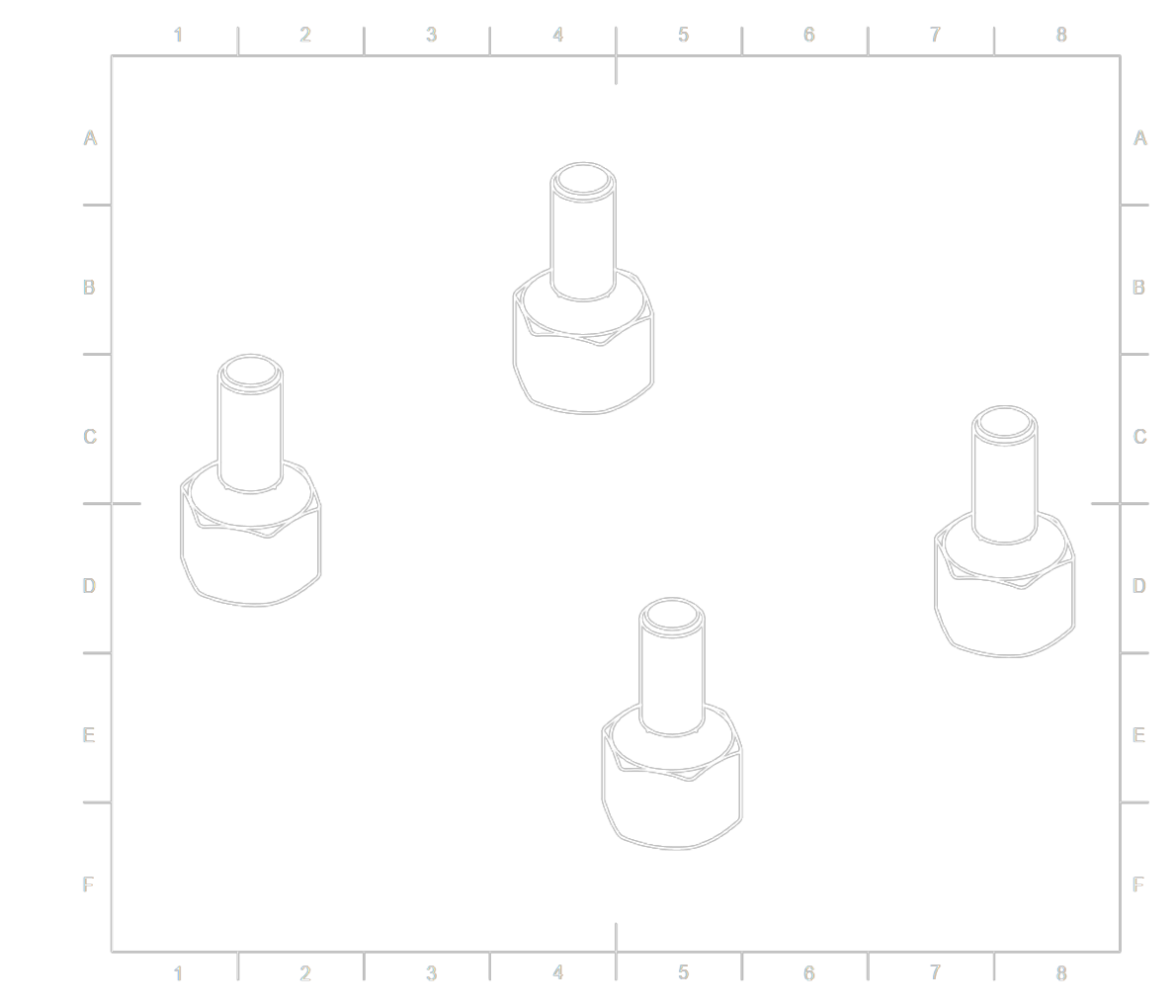

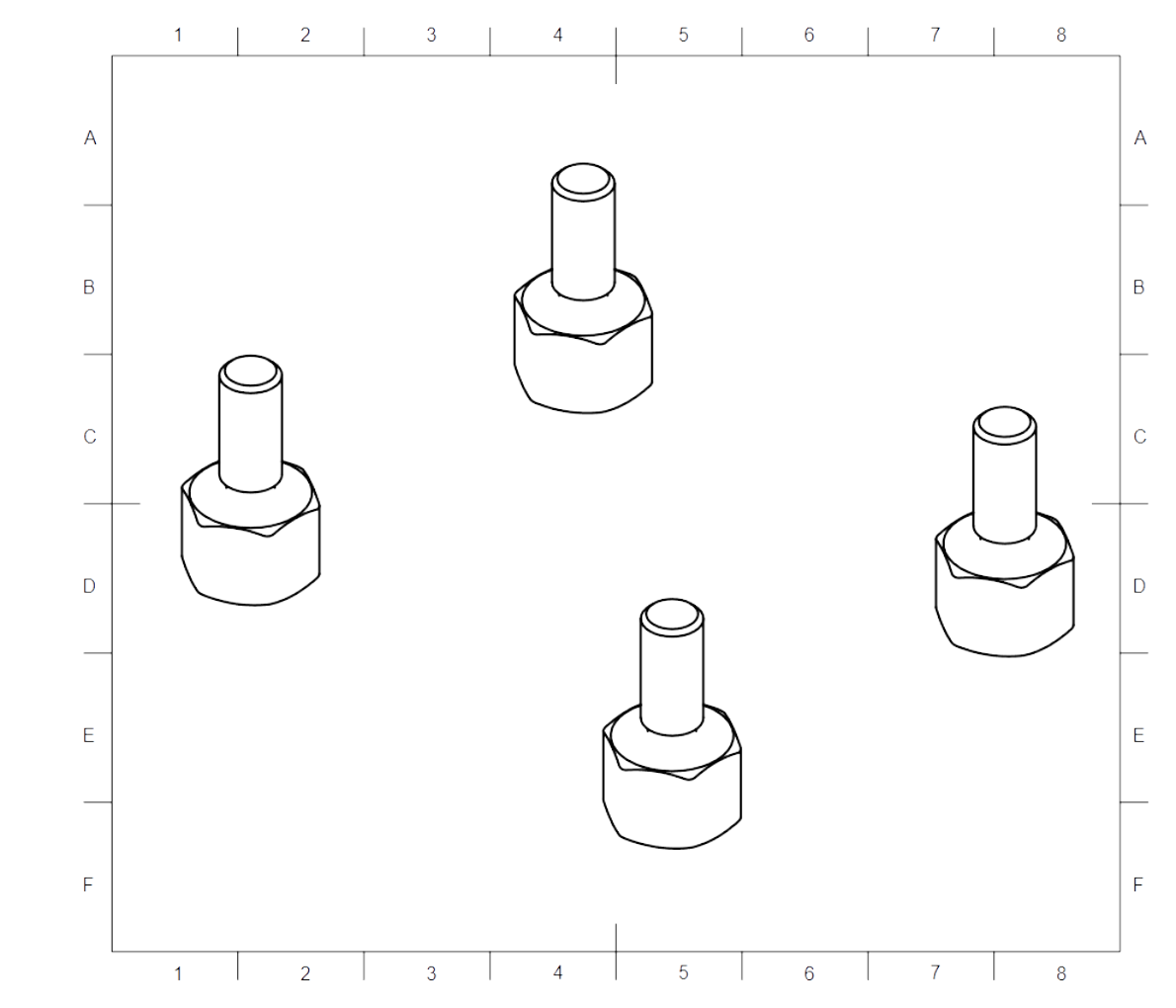

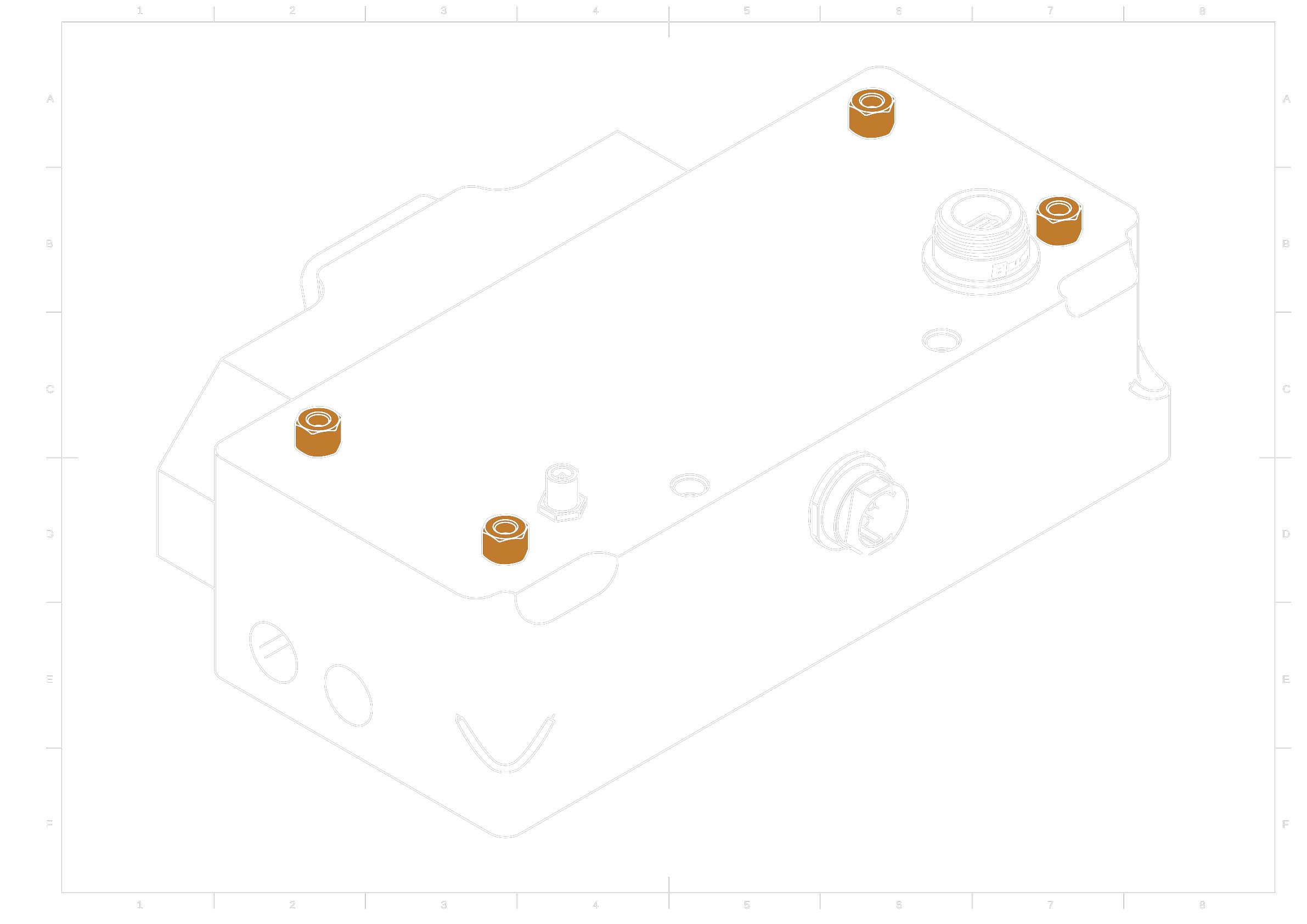

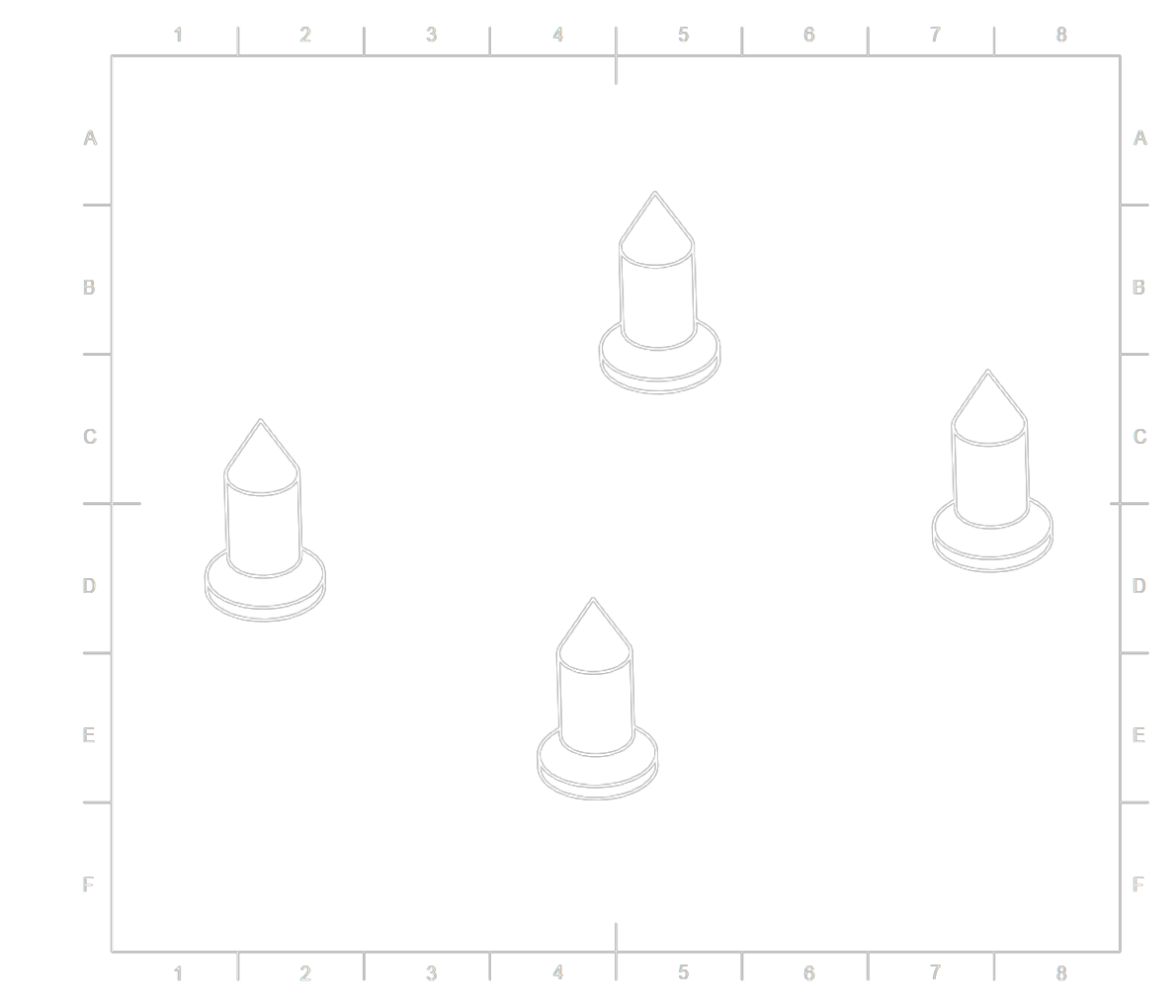

4x M4x6 distance

4x M4x6 distance

note

Put a drop of loctite onto the threads of the distances before tightening.
