Gazebo simulation

In this tutorial you will learn how to launch a Gazebo simulation with the Leo Rover robot model.

Prerequisites​

📄Install ROS on your computer
Learn how to install the Robot Operating System (ROS) on your computer. Step-by-step guide for beginners.

The simulation requires ROS (Robot Operating System) and was mainly developed and tested with ROS Jazzy Jalisco distribution on Ubuntu 24.04 Noble Numbat

Other distributions might not work properly so it is recommended to use the same setup.

note

The guide will refer to the distribution of your choice (for example humble or jazzy) as <distro>.

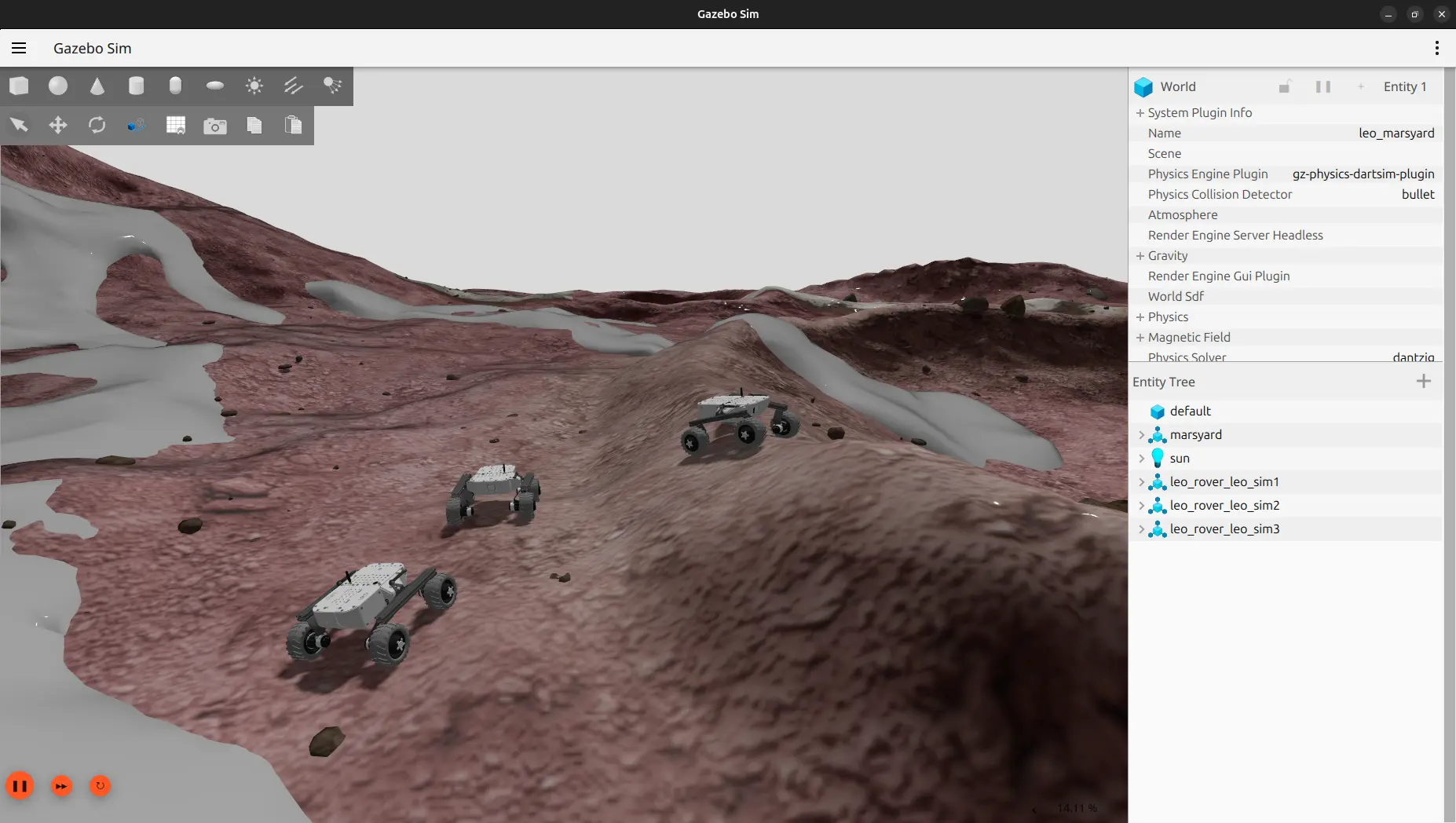

Leo Rover model in Gazebo

Installing the packages​

You can easily install the required packages with this command:

sudo apt install ros-${ROS_DISTRO}-leo-simulator

Alternatively, here are instructions how to build the packages from source.

Launching​

Make sure your ROS environment is properly sourced. Source either the global workspace:

source /opt/ros/<distro>/setup.bash

or your local workspace if you have one:

source install/setup.bash

and make sure it's sourced on each terminal session you want to use the simulation on.

To start the simulation and gazebo GUI, type:

ros2 launch leo_gz_bringup leo_gz.launch.py
info

This command will start an empty world with a rover in global namespace.

You can use launch arguments to specify the ROS namespace that the simulated robot will be in and the world that is going to launch (to see available choices refer to leo_gz_worlds package). For example you can launch simulation of an ERC 2021 competition terrain and put the robot inside some namspace like this:

ros2 launch leo_gz_bringup leo_gz.launch.py sim_world:=marsyard2021.sdf robot_ns:=leo_sim1

If you want to simulate multiple rovers, you can add another robot to an already running gazebo world. In another terminal where ROS has been sourced type:

ros2 launch leo_gz_bringup spawn_robot.launch.py robot_ns:=leo_sim2

Now you can operate the simulated robots in the same way as the real one. You can use ros2 topic echo command to get info from the robots, and ros2 topic pub to operate it. For example with such command robot will start driving forward:

ros2 topic pub /leo_sim1/cmd_vel geometry_msgs/msg/Twist "{linear: {x: 0.2, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 0.0}}"" -r 20

You can also control the rover using joystick. To do so you need leo-teleop package:

sudo apt install ros-${ROS_DISTRO}-leo-teleop

To operate the rover with joystick, you need to connect a controller to your computer and run:

ros2 launch leo_teleop joy_teleop.launch.xml cmd_vel_out:=/leo_sim1/cmd_vel
tip

You can choose which rover to operate with the joystick by providing correct namespace for the argument cmd_vel_out. In the example it's leo_sim1. If no value provided, the node will use the default namespace and topic - /cmd_vel.

The command mapping was set for the Xbox 360 controller and looks like this:

Xbox 360ControllerCommand
RBbutton enable - hold it to send commands
Left joystick Up/Downlinear velocity
Right joystick Left/Rightangular velocity
