Raph Rover Specification


Key parameters​

ParameterValue
Dimensions (LxWxH)559 mm x 474 mm x 255 mm
Weight12.5 kg
Maximum payload10 kg
Maximum linear speed1.8 m/s
Maximum angular speed4.7 Rad/s
IP protection ratingIP 54
Operating temperature-10 °C to +40 °C
Run time4 hours*
Connection rangeUp to 100 m

* - infinite with hot swapping batteries

Rover overview​

Overview of Raph Rover - front
Overview of Raph Rover - front

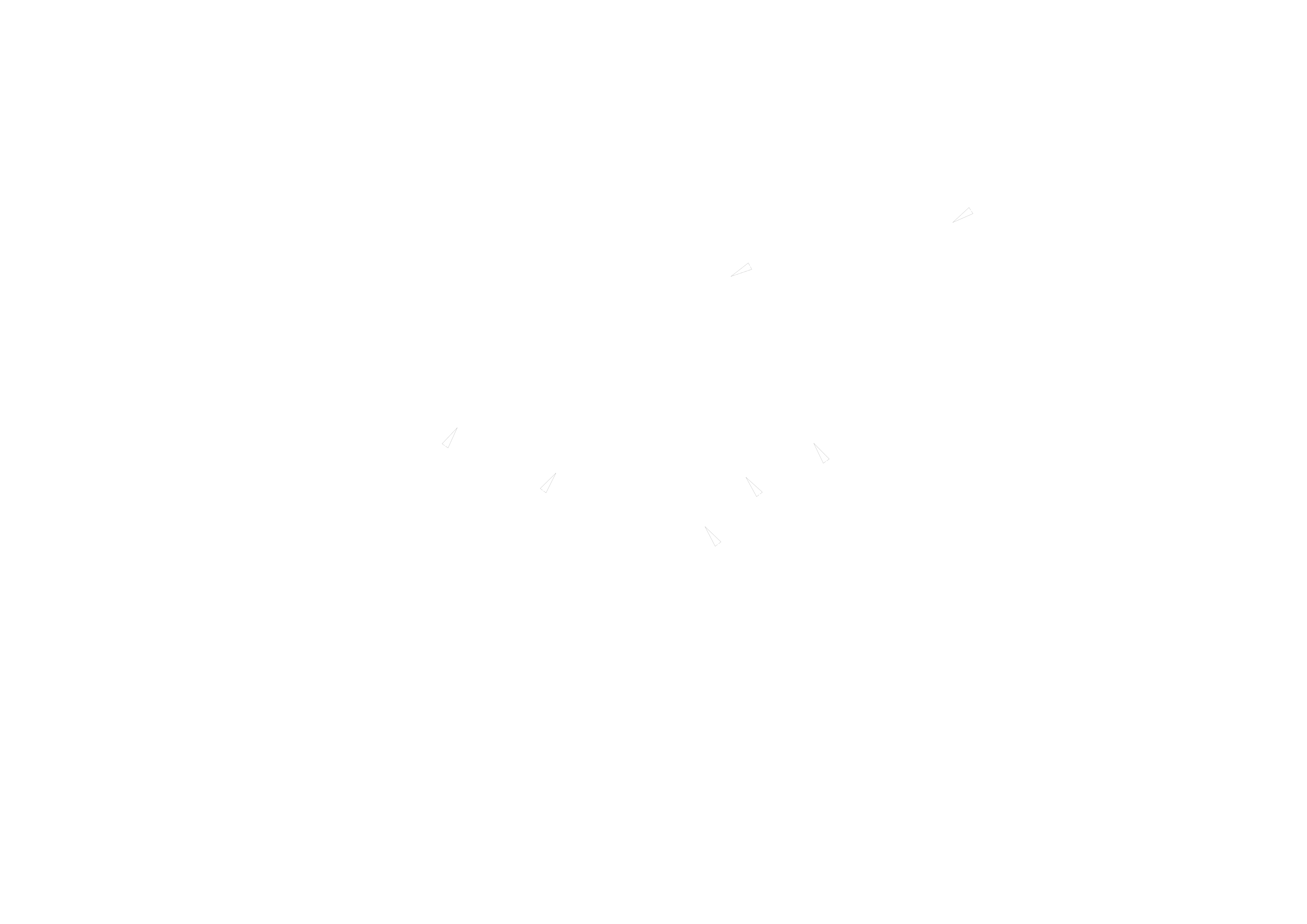

Overview of Raph Rover - front
Overview of Raph Rover - front

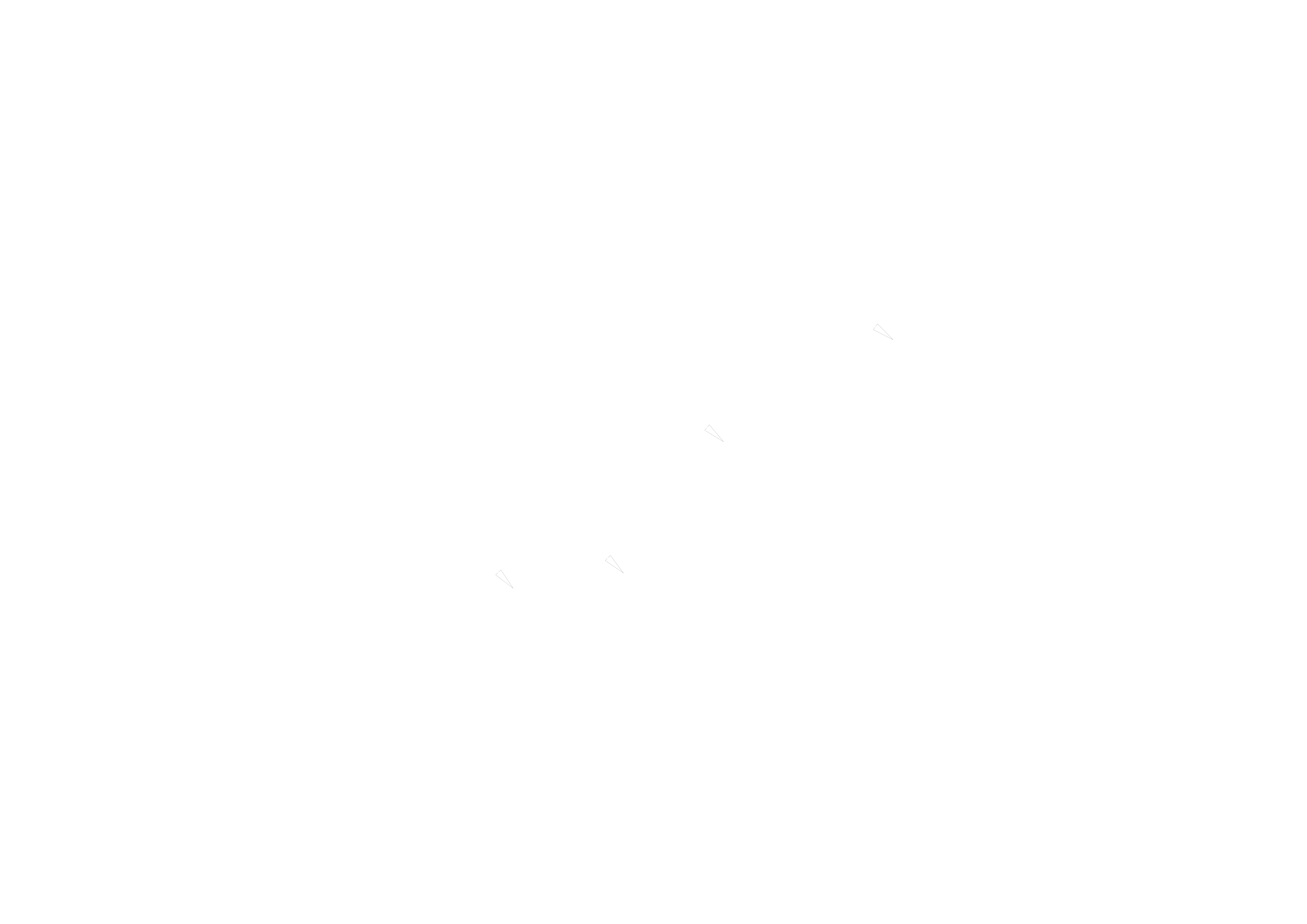

Overview of Raph Rover - electronics
Overview of Raph Rover - electronics

Hardware​

Dimensions​

ParameterValue
Length x Width x Height559 mm x 474 mm x 255 mm
Weight12.5 kg
Track Width385 mm
Wheelbase length382 mm
Ground clearance80 mm
Wheel diameter170 mm
Main dimensions of the Raph Rover
Main dimensions of the Raph Rover

Speed and performance​

ParameterValue
Maximum linear speed1.8 m/s
Maximum angular speed4.7 Rad/s
Climb grade (no payload)30° ( ~58%)
Climb grade with 5kg payload20° ( ~36%)
Climb grade with 10kg payload10° ( ~18%)
Hill grade traversal30° ( ~58%)
Nominal torque4 Nm
Maximum torque8 Nm

Drivetrain​

Raph rover is equipped with two independent steering wheels on the rear of the robot. It enables great agility of the robot as well as precise manoeuvres such as:

Raph Rover following a curve
Raph Rover following a curve

Components​

NameQuantityDescription
Built-in computer1UPBoard 7000 - Credit card-sized SBC based on the Intel N100 CPU
- CPU: Intel® N100 quad-core (x86 architecture)
- Memory: 8GB LPDDR5
- Storage: 64GB eMMC
- Connectivity:
 - 1 Gigabit LAN
 - HDMI 1.4b
 - 3 USB 3.2 Gen 2x1 (10 Gb/s)
 - 2 USB 2.0/UART
 - 40-pin GPIO header
Full specification
Router1Teltonika RUTX10 - Industrial router with with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi.
- WAN: 1 x 10/100/1000 Mbps
- LAN: 3 x 10/100/1000 Mbps
- Wi-Fi: 802.11b/g/n/ac Wave 2 (Wi-Fi 5)
- Bluetooth: 4.0
Full specification
Controller1RaphCore - Custom Fictionlab's controller designed for Raph Rover. See more
Antenna2Dual-band (2.4 GHz / 5 GHz) placed on the rear of the robot.
Stereoscopic camera1Luxonis OAK-D Pro W IMX378 - a wide-angle camera with active stereo depth and high-resolution color capabilities.
- RGB sensor: IMS 378
- RGB sensor resolution: 12 MP
- RGB sensor DFOV: 120°
- Stereo sensors: OV9282
- Stereo sensor resolution: 1 MP
- Stereo sensor DFOV: 150°
Full specification
Lidar1RPLidar S3 - 360-degree waterproof 2D Lidar scanner with a 40-meter range.
- Coverage: 360°
- Max range: 40 m
- Sample rate: 32 kHz (32 000 points per second)
- Angular resolution: 0.1125°
Full specification
Battery26S (22.2V) 4 Ah Li-ion battery - Custom battery pack with hot-swappable connectors. See more
BLDC motors6BLDC motors with integrated controllers. Connected to RaphCore board via RS 485 bus. See more
LED strip4143 RGBW Individually addressable LEDs. Used as rover status indicator as well as any custom purpose programmed by the user.
- Form factor: 3535
- Density: 144 LEDs/m
- Power: 23 W
- Temperature: 6000-6500K.
- Luminance R: 46; G: 156; B: 34; W:409 lm

Component's diagram​

Hardware diagram of Raph Rover
Block diagram of Raph Rovers components
Hardware diagram of Raph Rover
Block diagram of Raph Rovers components

Battery​

Raph rover's batteries are enclosed in specially designed case, allowing them to be quick swappable. Each pack has its own BMS that manages charging, discharging and has built-in protections.

ParameterValue
Battery typeLi-Ion
Battery pack type6S1P
Cell typeSamsung 40T
Nominal voltage22.2 V
Capacity4000 mAh
88.8 Wh (flight safe)
Maximum output power~650 W
Safety systemsOvercurrent
Undercurrent
Reverse polarity
Overheat

RaphCore controller​

RaphCore serves as the primary control board for Raph Rover. The board leverages FreeRTOS and MicroROS to control rover tasks such as:

  • Drivetrain control
  • Power system management
  • LED control
  • IMU operation
  • Odometry tracking

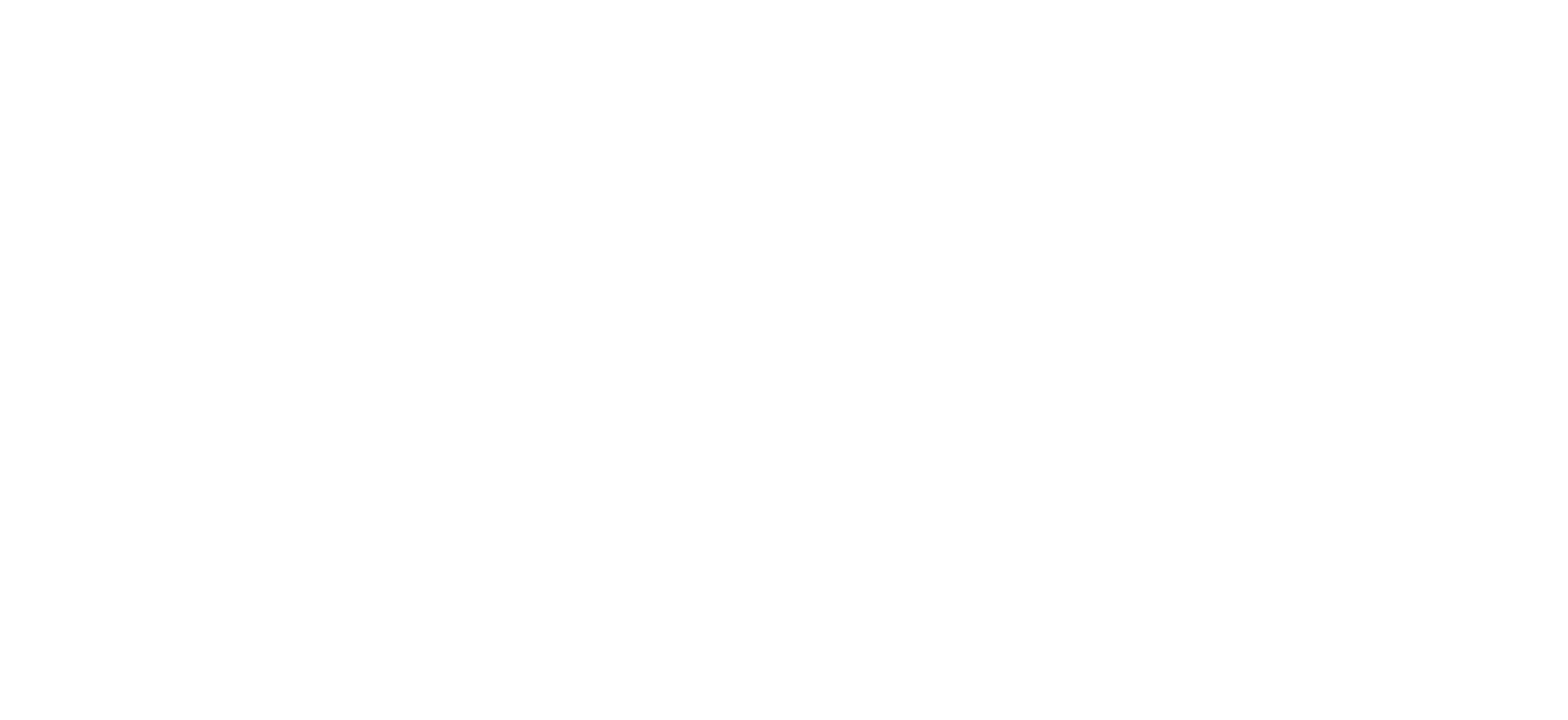

External connections of RaphCore
RaphCore PCB connectors
External connections of RaphCore
RaphCore PCB connectors
ComponentModelDescription
MicrocontrollerSTM32H5 seriesCPU type: 32-bit Arm® Cortex®-M33
CPU frequency: 250 MHz
Flash memory: 2 MB
IMU-Sensor Type: 6-axis
Acceleration: 2 g, 4 g, 8 g, 16 g
Resolution: 16 bit
Sensitivity: 2097.2 deg/s/LSB
Internal power connectors3 x MC 1,5/ 2‑G‑3,5Additional power outputs for the rover. Each individual output can be disabled or enabled separately.
External power connectors1 x MC 1,5/ 6‑G‑3,5Power outputs for the rover interface panel. Each individual output can be disabled or enabled separately. See more

Payload​

The Raph Rover is engineered for easy and versatile payload integration. If your sensor or hardware is ROS 2-compatible and falls within the rover's power (5V 4A, 12V 4A, and 24V 4A) and weight limits (10 kg), you can be confident in its compatibility.

External data ports​

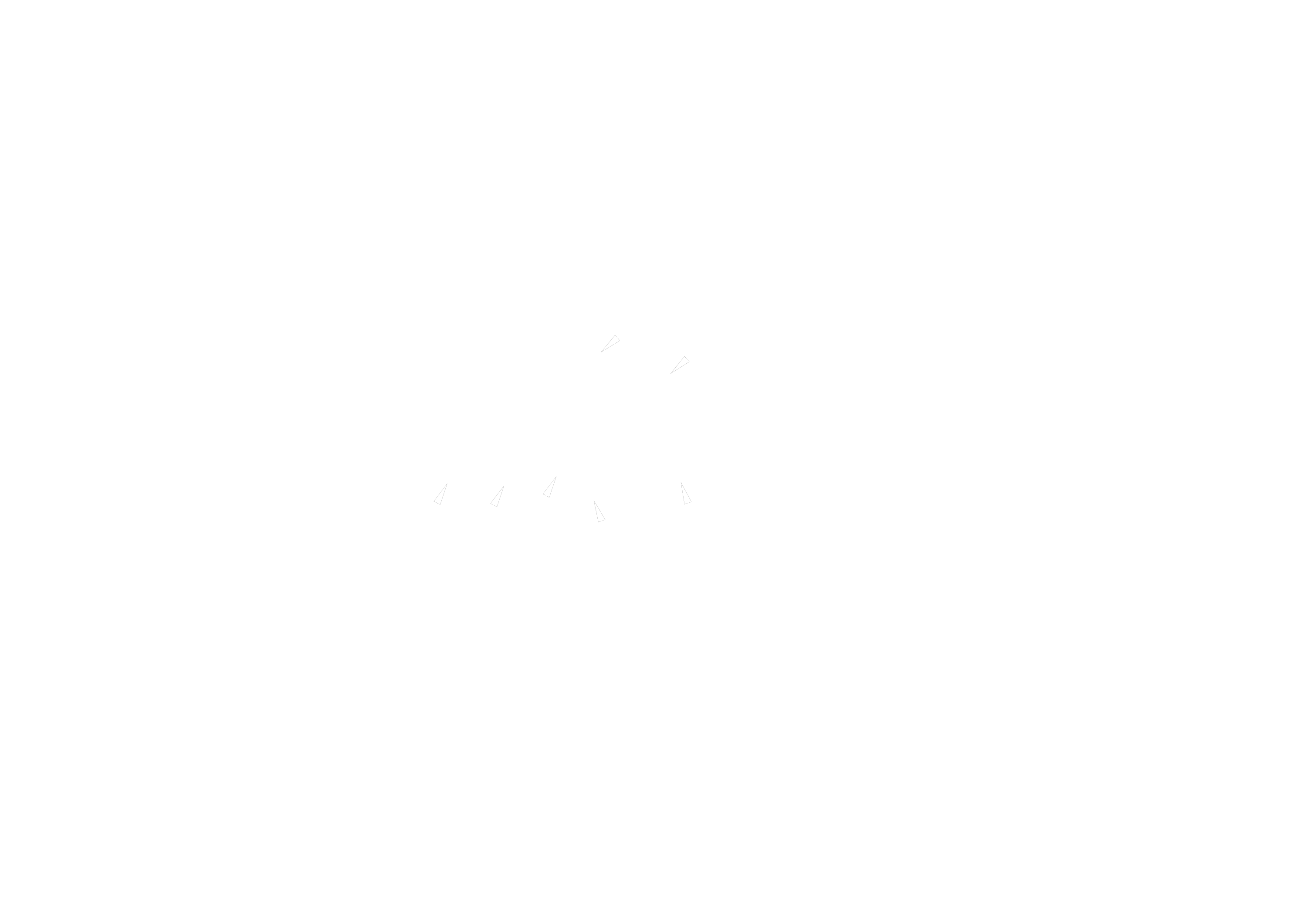

Raph Rover's rear compartment overview
Raph Rover's rear compartment overview
InterfaceNotesDevice connected
USB type AUSB 3.2 Gen 1 (5 Gb/s)UPBoard 7000 (Main computer)
USB type CUSB 3.2 Gen 1 (5 Gb/s)UPBoard 7000 (Main computer)
HDMIHDMI 1.4bUPBoard 7000 (Main computer)
RJ-4510/100/1000 Mb/sTeltonika RUTX10 (Router)

External power panel​

VoltageMax amperageMax powerConnector
5 V4 A20 WPhoenix Contact MC 1,5/ 2-ST-3,5
12 V4 A48 WPhoenix Contact MC 1,5/ 2-ST-5,08
BAT (18-25.2 V)4 A100 WPhoenix Contact MSTB 2,5/ 2-ST-5,08
note

Total amperage and power is shared between 2 connectors on the external panel, so for example it is possible to connect 1 device that uses 4 A or 2 devices that use 2 A each.

Mechanical connections​

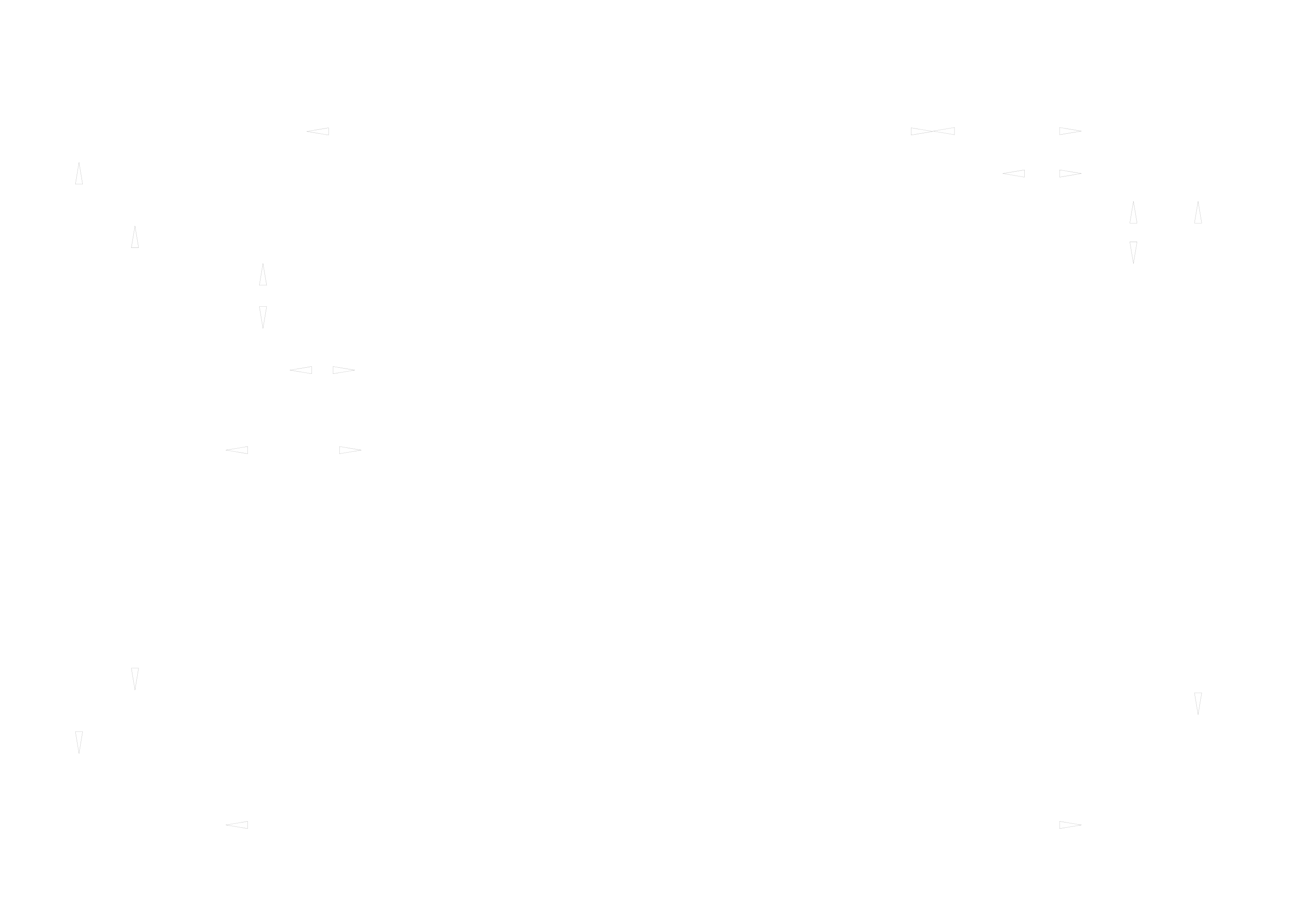

Raph Rover's mounting plate dimensions
Raph Rover's mounting plate dimensions
ParameterValue
Payload capacity10 kg
Hole grid spacing25 mm x 25 mm
Mounting hole dimensions5.4 mm, compatible with:
M5 screws
CLS-M4-1 press-in nuts
Mounting plate dimensions (L x W x D)330 mm x 198 mm x 2 mm
info

Apart from the mounting plate, it is possible to mount payloads directly to v-slot extrusions of the Raph Rover, effectively providing a 360 mm by 430 mm working area.

Software & Control​

Overview of Raph Rover's software components
Overview of Raph Rover's software components
ParameterValue
Operating SystemUbuntu 24.04 LTS
Core FrameworkROS 2 Jazzy
User InterfaceWeb-based GUI accessible over Wi-Fi
UI FeaturesReal-time teleoperation, live video streaming, system monitoring
API AccessFull control via standard ROS 2 topics, services, and actions
Software licenseMIT License

ROS nodes​

Simplified graph of core ROS nodes running on Raph Rover
Simplified graph of core ROS nodes running on Raph Rover
Simplified graph of core ROS nodes running on Raph Rover
Simplified graph of core ROS nodes running on Raph Rover
